Rittal 8618201 VX comfort handle, for lock inserts, RAL 9005

Your rating:
Average rating
product review for Rittal 8618201 VX comfort handle, for lock inserts, RAL 9005
( 4 / 5 ) 1 ratings
Rittal 8618201
This image may differ from the desired article.
Rittal 8618201Rittal 8618201Rittal 8618201Rittal 8618201
42,90 EUR
( 51,05 EUR incl. VAT )
≈ £35.91  |  ≈ $47.15
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8618201 VX comfort handle, for lock inserts, RAL 9005
Datasheet:file_download Download
Lieske Part No.:1989069
Mfg Part No: 8618201
UPC/EAN: 4028177924598
Weight:0.659 kg
Type:VX 8618201

Product information for Rittal 8618201:

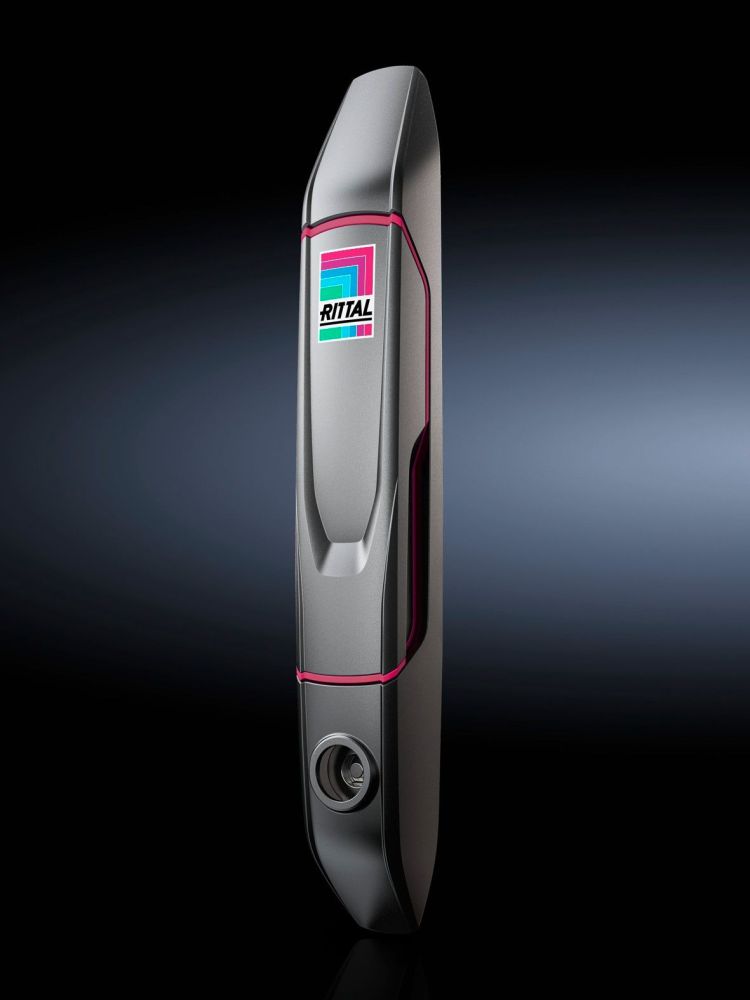

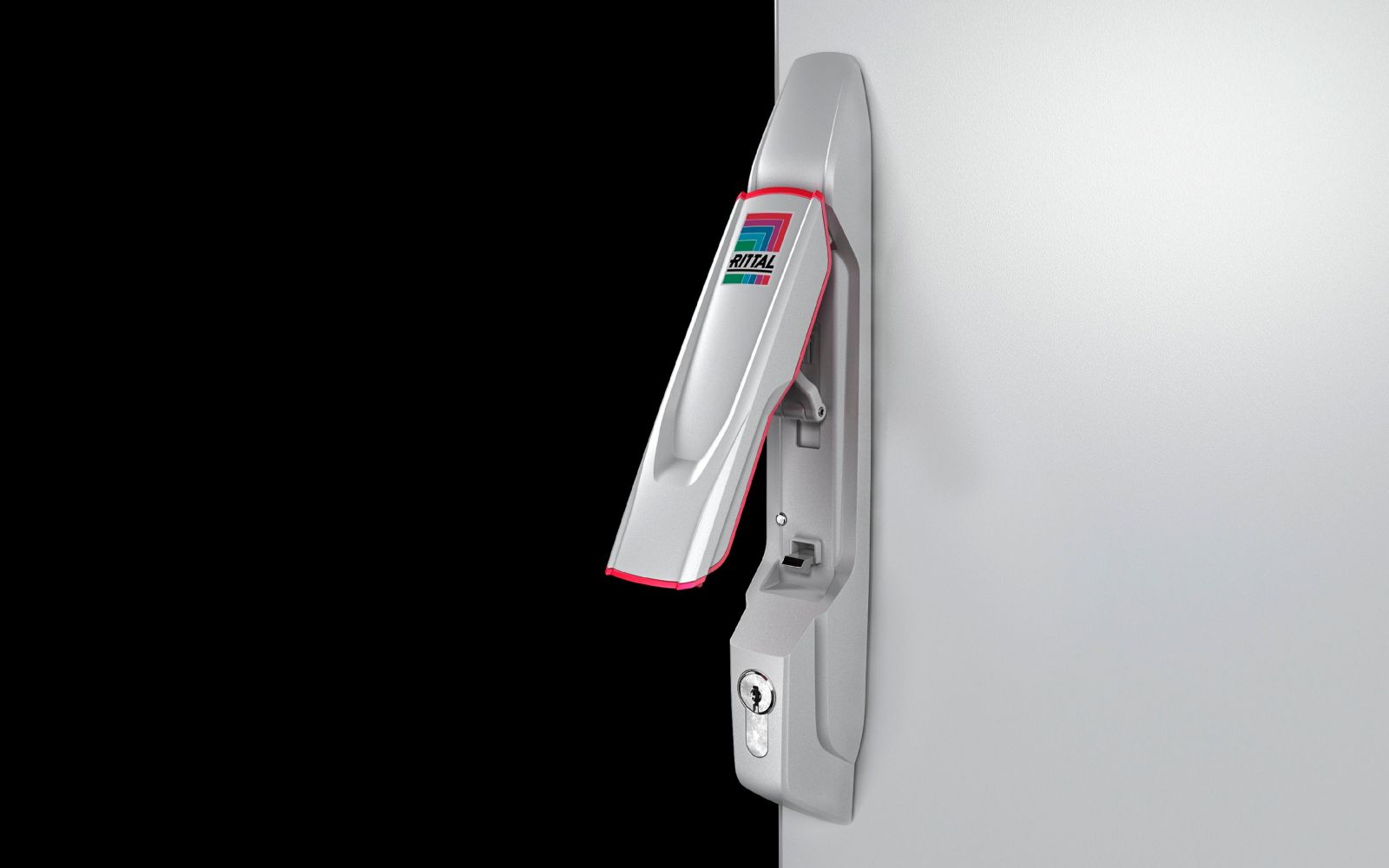

The Rittal VX 8618201 is a comfort handle for enclosure doors, specifically developed for use with lock inserts in the VX and VX IT enclosure system. It is made of zinc die-cast and finished in the colour RAL 9005 (black). The design allows for optimal use of the door surface, as the handle, using a flip mechanism, does not occupy any swing clearance. This is particularly advantageous when additional components or control elements are to be mounted on the door. Installation is carried out via a snap-in handle system, enabling quick and easy mounting without additional tools.

Applications
This handle is designed for use in industrial environments, particularly in enclosures and housings of the VX and VX IT series. It is suitable for applications where secure and convenient door operation is required, without restricting the door surface area due to the handle itself. Typical use cases include production plants, automation systems, or power supply technology.

Functions and Features in Detail
The VX 8618201 is prepared for lock inserts of type G, as well as for safety and push-button inserts with a maximum length of 26.5 mm. This allows for flexible combination with various locking systems, depending on safety requirements and access control. The flip mechanism ensures that the handle lies flat against the door surface when not in use, leaving the surface free for installations. The snap-in mounting reduces installation effort and enables quick maintenance or replacement.

Technology Explained Simply
The handle is made of zinc die-cast, a material valued in industrial manufacturing for its high strength, corrosion resistance, and precise shaping. The colour RAL 9005 is a standard black, commonly used in many industrial facilities to ensure uniform visual design. The flip mechanism is a mechanical design where the handle lies flat in its resting position and is only flipped out when needed to open the door. This saves space and allows for more efficient use of the door surface.

Compatibility and Accessories
The handle is specifically developed for enclosure types VX and VX IT. It is compatible with various lock inserts, including type G with different key profiles such as screwdriver, 7 mm square, 7 mm triangular, 6.5 mm triangular, Fiat, 3 mm double-barrel, Daimler insert, and 8 mm square. This variety allows adaptation to different security and access concepts. The use of safety and push-button inserts with a length up to 26.5 mm is also possible.

Mounting and Installation
Installation is performed via a snap-in system, enabling quick and tool-free installation. No additional fastening or drilling is required, as the handle is directly inserted into the pre-drilled mounting openings of VX and VX IT doors. The flip mechanism ensures the handle is securely seated and easily flips out when opening the door.

Operational Advantages
The handle provides a space-saving solution, as it lies flat against the door surface and thus does not require additional space for operation. This is particularly beneficial when the door surface is to be used for control elements, indicators, or other installations. The easy mounting reduces installation time and minimizes errors. The use of lock inserts allows flexible adaptation to different security requirements without changing the handle itself. The UL 50E certification in types 1, 3, 3R, 4, and 12 ensures suitability for various environments, including humid or dust-laden areas.

Standards and Certifications
The handle complies with the requirements of standard UL 50E in types 1, 3, 3R, 4, and 12. These certifications guarantee suitability for various environmental conditions, from dry indoor spaces to humid or dust-laden outdoor areas. The UL 50E certification is particularly relevant in the American industry and for international projects.

General
ModelFor closure inserts
Materialzinc die-cast
ColourRAL 9005
LockClosure type: Prepared for closure inserts type G or safety and push-button inserts with a length up to 26.5 mm
Suitable for housing typeVX, VX IT
Type rating according to UL 50EType 1, Type 3, Type 3R, Type 4, Type 12


Product data sheet
Datasheet for Rittal 8618201, EAN: 4028177924598
