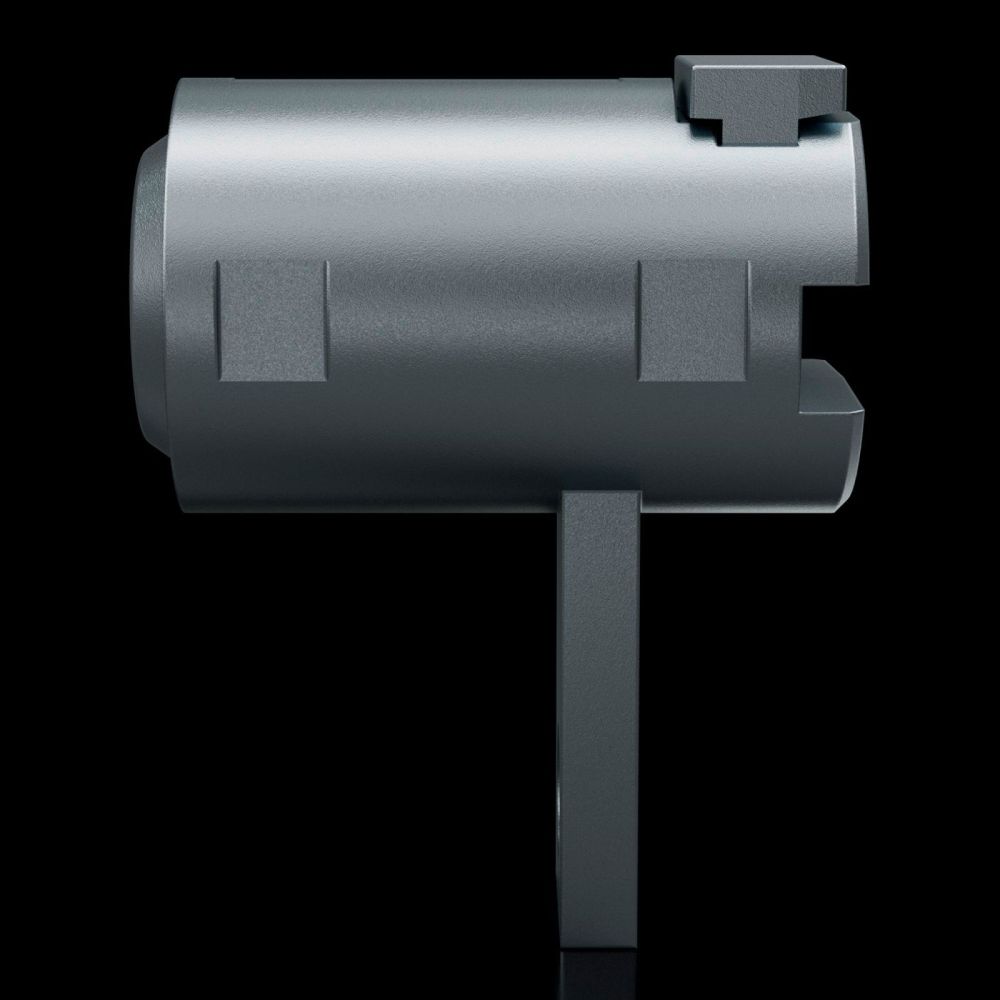

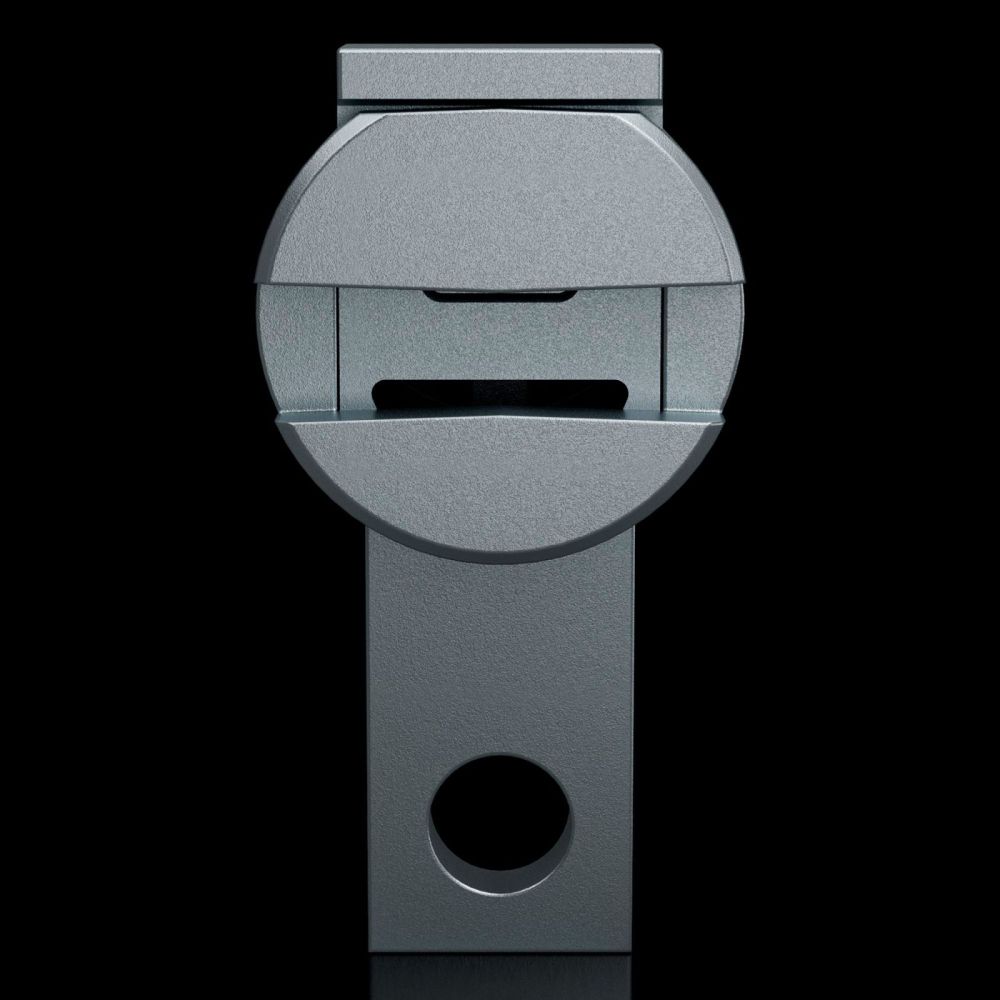

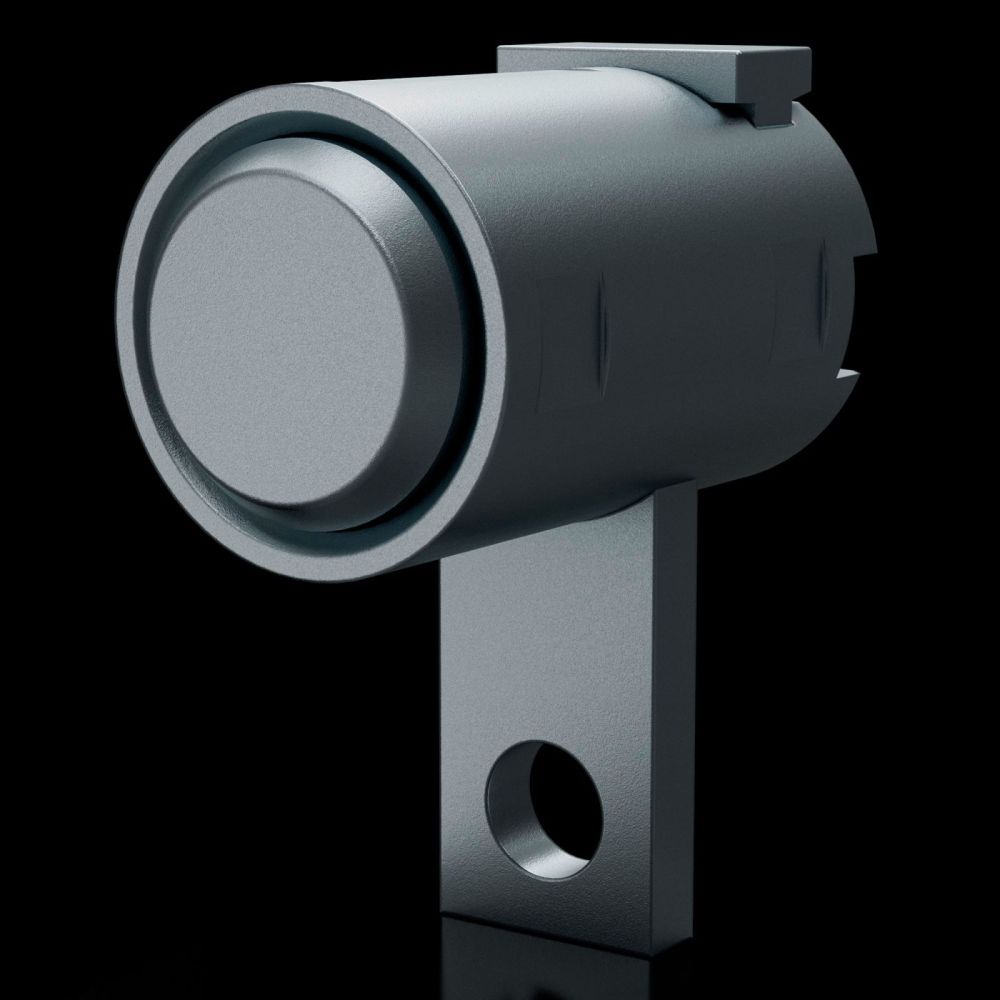

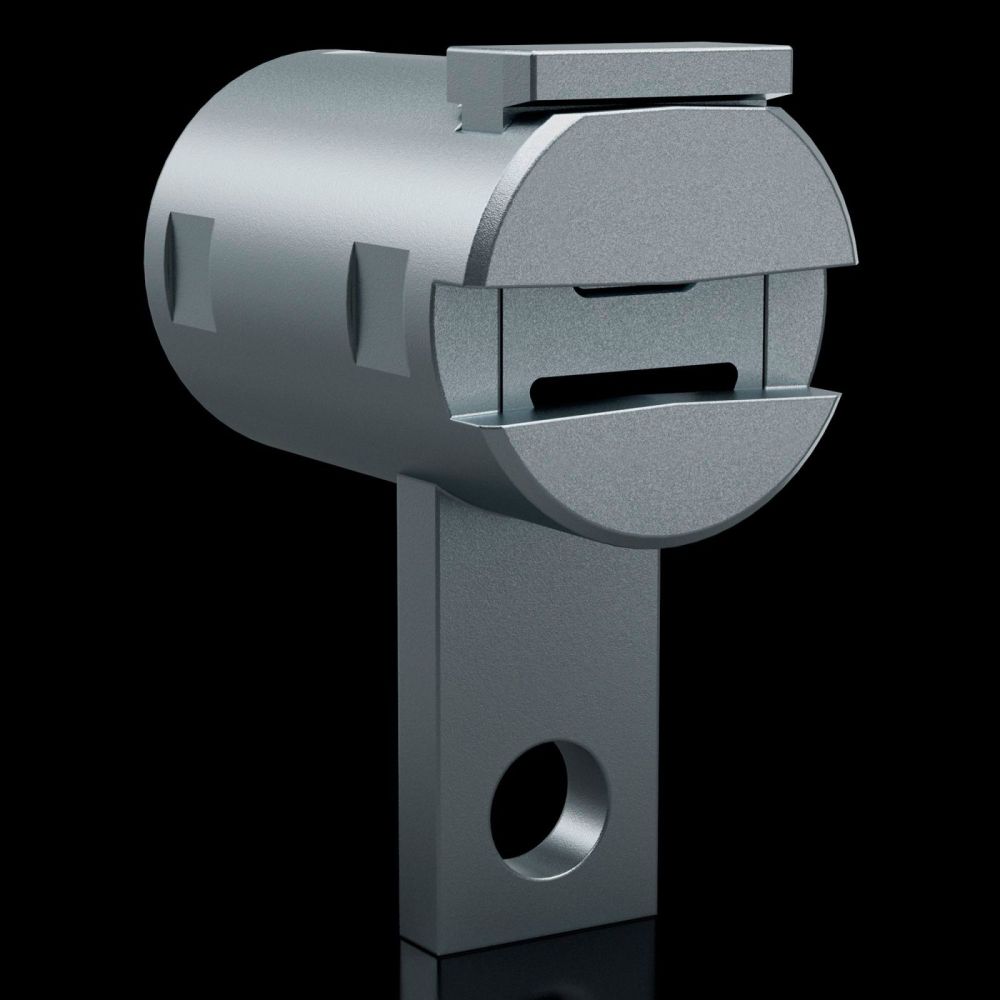

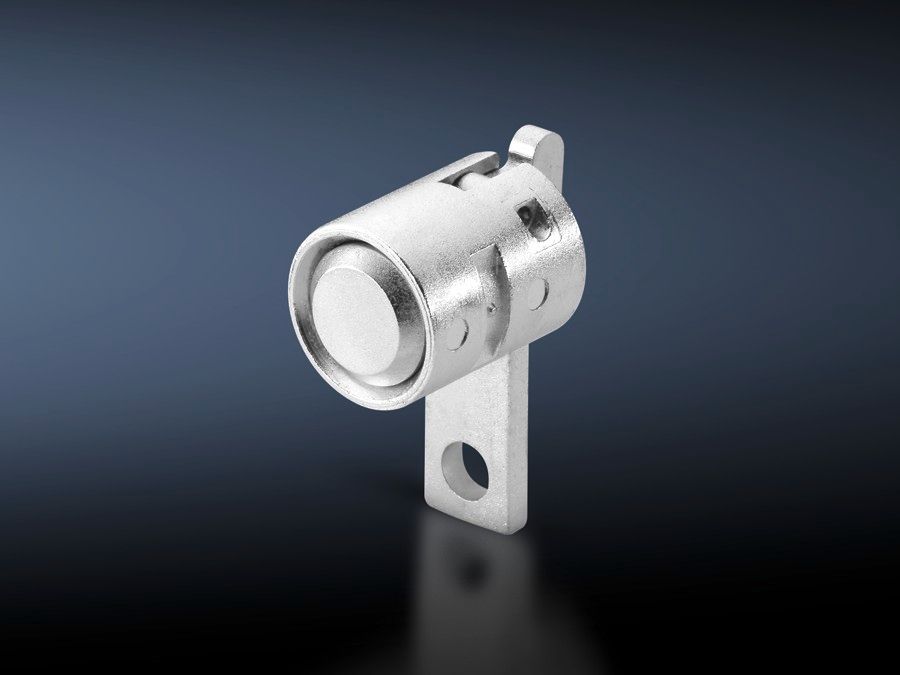

Rittal 8611190 Lock insert for handle systems
|
5,15 EUR |
|
|
( 6,13 EUR incl. VAT ) ≈ £4.31 | ≈ $5.66 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 760156 |
| Mfg Part No: | 8611190 |
| UPC/EAN: | 4028177212039 |
| Weight: | 0.03 kg |
| Type: | TS 8611190 |
Product information for Rittal 8611190:
Applications
The lock insert is used in industrial and technical installations where secure and at the same time quick operation of enclosure doors is required. It is particularly suitable for enclosures of types VX and VX IT, which are frequently used in electrical and IT technology. The use takes place in environments where a mechanical locking without additional tools or keys is sufficient to restrict access.
Functions and Equipment in Detail
The push-button insert enables a simple but secure locking of the enclosure door. It is installed into grasp systems specifically designed for this purpose and operates via a mechanical push-button mechanism. The length of the insert is 26.5 mm, ensuring an exact fit into the designated grasps. The function is based on a simple pressure mechanism that locks the door until the button is actuated again.
Technology Explained Simply
The insert is not a standalone lock, but a module integrated into existing grasp systems. It uses the structure of the grasp systems to enable mechanical locking. The length of 26.5 mm is matched to the bore width of the grasp systems to ensure secure and smooth installation. Locking is achieved by pressing the button, which moves an internal latch into the locked position. Unlocking is achieved by pressing the button again, which retracts the latch.
Compatibility and Accessories
The lock insert is exclusively intended for Rittal grasp systems Comfort Grasp VX for lock inserts, Comfort Grasp TS for lock inserts, Mini Comfort Grasp for EL 3-piece for lock inserts, and Mini Comfort Grasp AE for lock inserts. It is not suitable for other grasp systems or manufacturers. Compatibility is limited to enclosure types VX and VX IT, which are specifically designed for these grasp systems.
Installation and Mounting
Installation is tool-free into the designated grasp systems. The insertion length of 26.5 mm enables an exact fit, allowing the insert to be inserted into the grasp without additional adjustments. Installation is done by simply inserting it into the bore of the grasp, where the mechanical locking is automatically activated. No additional tools or mounting aids are required.
Advantages in Operation
The insert provides quick and reliable locking without additional tools. Integration into existing grasp systems reduces installation time and increases operational safety. The mechanical construction is robust and designed for use in industrial environments. Locking is achieved by a simple press, which facilitates operation even with limited visibility or in confined spaces. The exact fit for the specific Rittal grasp systems ensures secure and durable function without wear or loosening.
| General | |
| Length | 26,5 mm |
| Installation in handle system | Comfort grip VX for closure inserts, comfort grip TS for closure inserts, mini comfort grip for EL 3-piece for closure inserts, mini comfort grip AE for closure inserts |
| Note | Exclusively prepared for the corresponding Rittal handle systems |
| Lock | Locking insert: push-button insert |
| Suitable for housing type | VX, VX IT |
Questions & answers
What is the delivery time of Rittal 8611190 Lock insert for handle systems?
The article Rittal 8611190 Lock insert for handle systems is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8611190 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8611190 Lock insert for handle systems always at the best possible price. We can give you a discount of 2% on Rittal 8611190 Lock insert for handle systems if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
