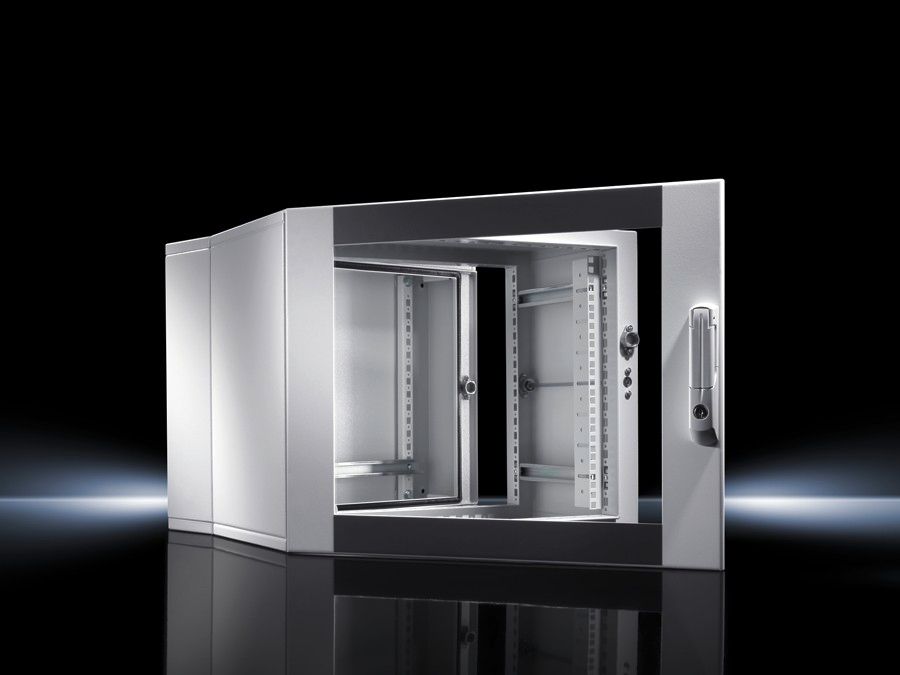

Rittal 7712135 DK wall-mounted enclosure 600x612x473 mm
|
625,35 EUR 652,11 EUR |
|
|
( 744,17 EUR incl. VAT ) ≈ £528.42 | ≈ $699.14 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 634706 |
| Mfg Part No: | 7712135 |
| UPC/EAN: | 4028177324190 |
| Weight: | 36 kg |
| Type: | DK 7712135 |
Further Walls and Doors from RittalFurther products in category Walls and Doors
All products of Rittal
Product information for Rittal 7712135:
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: 2 vertical punched rails
Wall section: C rail mounted horizontally for cable clamping
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles, fully depth adjustable
4 wall mounting brackets 10 mm
Mini-comfort handle
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324190
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC000261
Design: with punched rails and mounting angles, depth-variable
Dimensions: Width: 600 mm
Height: 612 mm
Units: 12 U
Depth: 473 mm
Depth hinged part: 316 mm
Installation depth: 420 mm
Clearances: Clearance width: 502 mm
Clearance height: 549 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 60 kg
Weight/pack: 38.6 kg
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: 2 vertical punched rails
Wall section: C rail mounted horizontally for cable clamping
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles, fully depth adjustable
4 wall mounting brackets 10 mm
Mini-comfort handle
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324190
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC000261
Design: with punched rails and mounting angles, depth-variable
Dimensions: Width: 600 mm
Height: 612 mm
Units: 12 U
Depth: 473 mm
Depth hinged part: 316 mm
Installation depth: 420 mm
Clearances: Clearance width: 502 mm
Clearance height: 549 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 60 kg
Weight/pack: 38.6 kg
