Rittal 2261240 wall-mounted enclosure AX 12 U W x D: 600x473 mm mounting and profile rail set (freight shipping)

Your rating:
Average rating
product review for Rittal 2261240 wall-mounted enclosure AX 12 U W x D: 600x473 mm mounting and profile rail set (freight shipping)
( 4 / 5 ) 1 ratings
Rittal 2261240
This image may differ from the desired article.
Rittal 2261240Rittal 2261240Rittal 2261240Rittal 2261240
740,16 EUR
( 880,79 EUR incl. VAT )
≈ £619.51  |  ≈ $813.44
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 2261240 wall-mounted enclosure AX 12 U W x D: 600x473 mm mounting and profile rail set (freight shipping)
Datasheet:file_download Download
Lieske Part No.:603844
Mfg Part No: 2261240
UPC/EAN: 4028177983366
Weight:34.833 kg
Type:AX 2261240

Product information for Rittal 2261240:

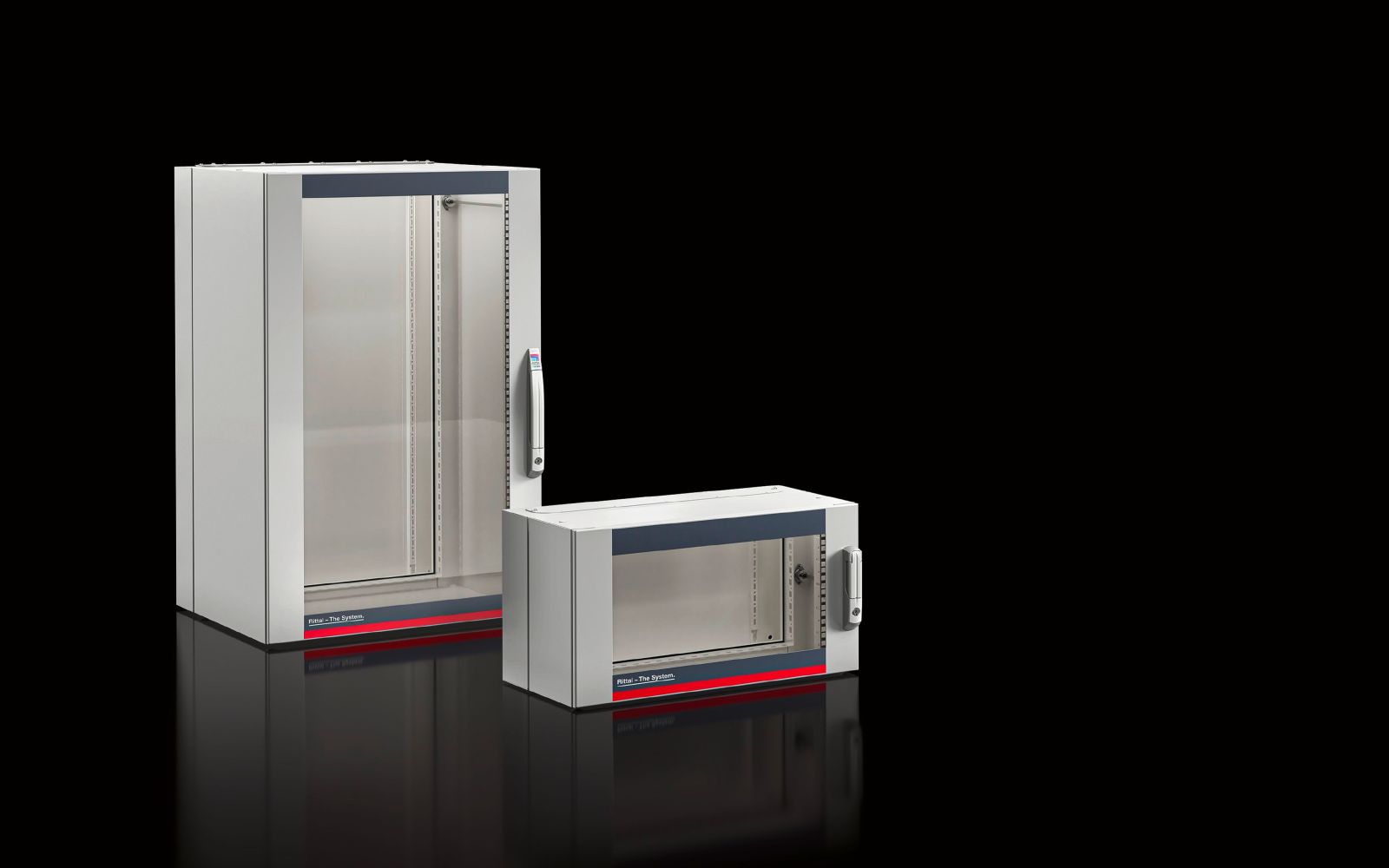

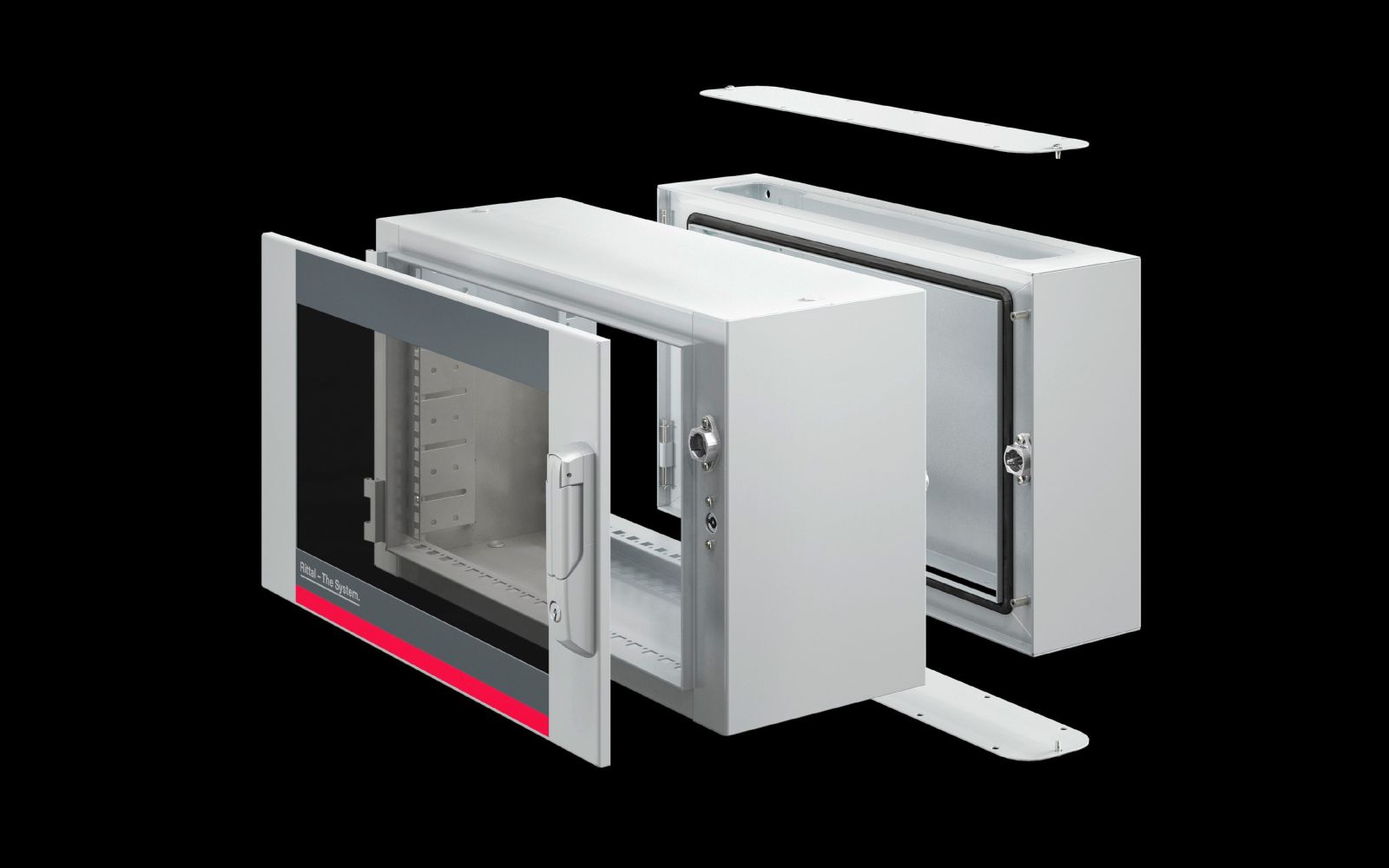

The Rittal AX 2261240 is a 3-piece wall-mounted enclosure of the IT series, designed for use in technical installations where compact, flexible, and secure mounting of IT and electronics components is required. The enclosure has a total width of 600 mm, a height of 612 mm, and a depth of 473 mm, with an installation depth of 420 mm. It offers 12 height units (HE) and is therefore suitable for installing standard 48,3 cm ( 19 inch ) devices. The three-part construction consists of a wall section, a swing section, and a design viewing door, which facilitates access to installed components and enables modular adaptation.

Applications
This wall-mounted enclosure is designed for indoor use, particularly in technical rooms, server rooms, control rooms, or for the installation of network and control technology on walls. The IP 54 protection rating, achieved in combination with closed gland plates at the top and bottom, protects against dust and splashing water, making it suitable for slightly damp environments as well. The powder-coated steel sheet surface (1.5 mm) ensures high mechanical stability and corrosion resistance.

Functions and Equipment in Detail
The swing section features a 25 mm hole grid in the front and rear frame, enabling flexible mounting of devices and cable ties. Two 48,3 cm ( 19 inch ) profile rails are mounted at the front, allowing secure fixation of devices. The design viewing door made of 3 mm single-pane safety glass provides a clear view of the installed components, while the integrated safety lock 3524 E with mini comfort handle ensures secure closure. The viewing door is available in the colour RAL 7035/7015 (slate grey), while the wall and swing sections are painted in RAL 7035.

Technology Explained Simply
The static load capacity of the swing section is 600 N, equivalent to a load of approximately 61 kg, while the wall section can withstand a load of 200 N (approximately 20 kg). The clear width is 502 mm and the clear height is 551 mm, defining the effective installation space for devices. The depth of the swing section is 316 mm, and that of the wall section is 135 mm. The closed gland plates at the top and bottom ensure the IP 54 protection rating, suitable for indoor use with increased dust and moisture exposure. Mounting is done on the wall via holes in the wall section.

Compatibility and Accessories
The enclosure is part of the AX/VX system kit and can be extended with various accessories. These include, for example, 48,3 cm ( 19 inch ) fasteners, earthing rails, routing panels, component shelves, C-profile rails, mounting brackets, system chassis, and wall mounting holders. These components allow individual adaptation to specific requirements, such as integrating cable management or earthing solutions.

Mounting and Installation
Installation is carried out on a wall using the pre-drilled mounting holes in the wall section. The swing section is coupled to the wall section, with the profile rails and hole grid facilitating device mounting. The design viewing door is secured with the mini comfort handle and safety lock 3524 E. The three-part structure allows easy access to the interior of the enclosure without having to dismantle the entire unit.

Advantages in Operation
The modular design and use of standard 48,3 cm ( 19 inch ) components increase flexibility during installation and maintenance. The IP 54 protection rating provides sufficient protection against environmental influences, while the robust steel sheet construction ensures a long service life. The integrated safety lock protects against unauthorised access, which is particularly important in public or shared spaces. The clear view through the safety glass front facilitates visual inspection of installed devices.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swivel section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, locking middle section: 3 mm double bar, locking design vision door: safety lock 3524 E, mini comfort handle
Height units12 HE
Width600 mm
Height612 mm
Depth473 mm
Built-in depth420 mm
Light dimensionsClear width: 502 mm, clear height: 551 mm
Depth of swivel part316 mm
Depth of wall part135 mm
Number of locks1
Load capacity of swivel part (static)600 N
Load capacity wall part (static)200 N
Base materialsteel sheet
LockLocking system: Mini comfort handle, lock insert: Security lock insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
