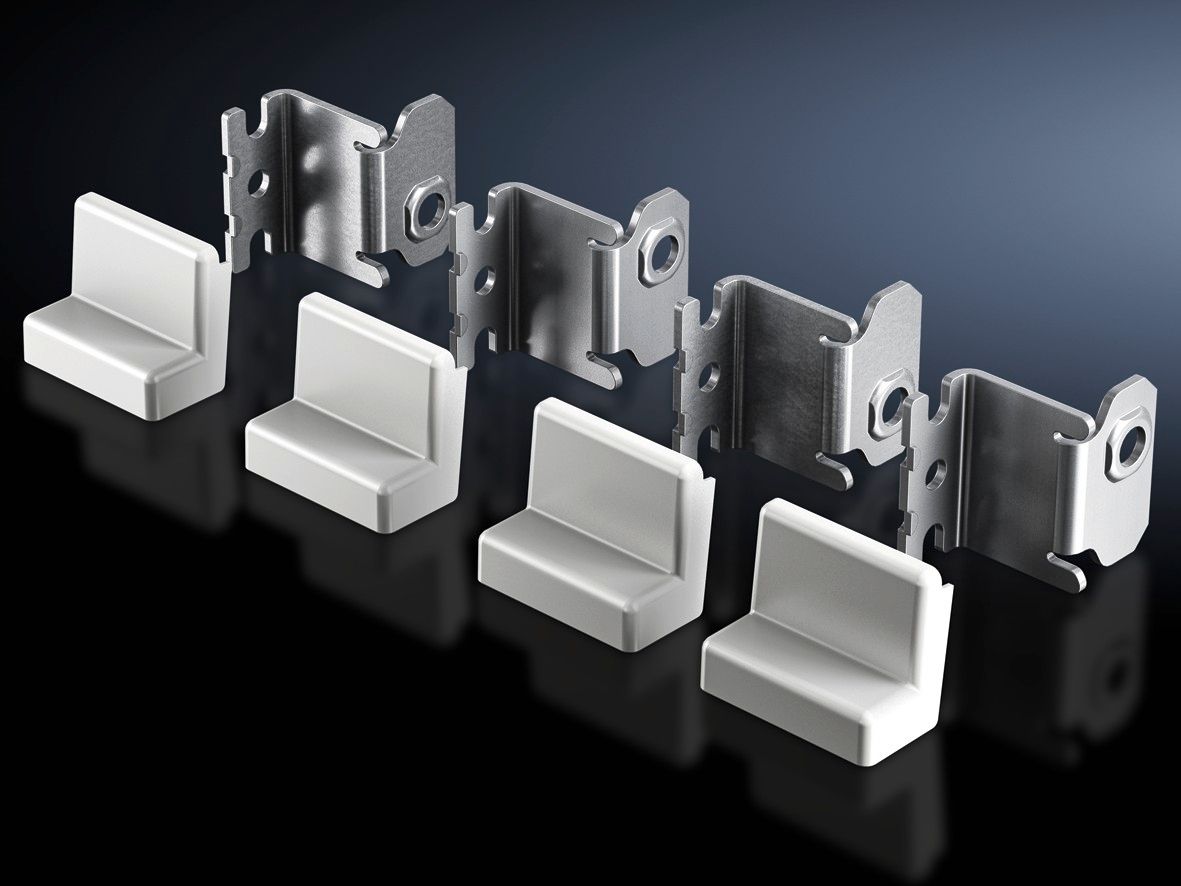

Rittal 2503020 Wall mounting holder for AX KX sheet metal AX IT EL
|
15,70 EUR |
|
|
( 18,68 EUR incl. VAT ) ≈ £13.14 | ≈ $17.25 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598260 |
| Mfg Part No: | 2503020 |
| UPC/EAN: | 4028177938274 |
| Weight: | 0.568 kg |
| Type: | AX 2503020 |
Product information for Rittal 2503020:
Applications
The wall mounting bracket is intended for use in industrial and technical installations where wall mounting of enclosures or cabinets is required. It is particularly suitable for applications in production environments where quick and secure mounting under limited space conditions is necessary. Use is permitted in areas complying with UL 50E requirements, including Type Ratings Type 1, Type 3R, Type 4, and Type 12, enabling use in indoor environments, light outdoor applications, and areas exposed to dust and splashing water.
Functions and Equipment in Detail
The bracket is directly screwed into the opening of the enclosure from the rear, using a self-tapping screw. Alternatively, it can also be fastened from the inside using a screw and nut, providing additional stability. Wall mounting is achieved by hanging the bracket onto a pre-installed screw, allowing for quick and precise positioning. Various mounting positions enable adaptation to local conditions. For dynamic applications with additional loads, fastening with a nut is possible to increase mechanical strength.
Technology Explained Simply
The material, galvanized sheet steel, offers high mechanical strength and corrosion protection. The galvanization protects the metal from oxidation and extends the bracket’s service life, especially in humid or slightly corrosive environments. The 40 mm wall clearance ensures the enclosure does not directly touch the wall, enabling sufficient air circulation and supporting heat dissipation. Mounting options using self-tapping screws or screws with nuts offer flexibility during installation and allow for secure anchoring under various conditions.
Compatibility and Accessories

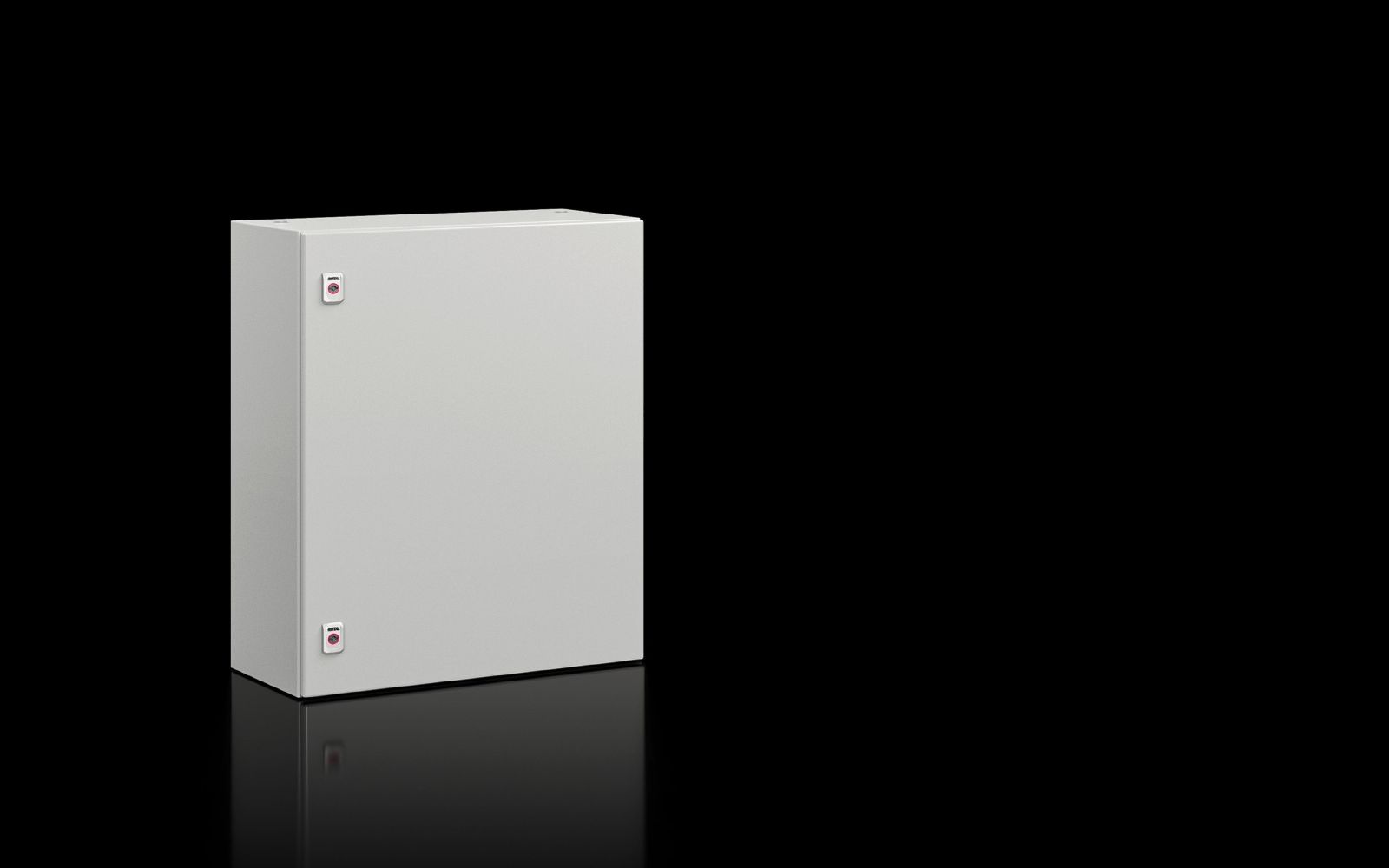

The wall mounting bracket is specifically designed for enclosure types AX sheet steel, KX sheet steel, AX IT, EL, as well as wall-mounted enclosures AX in 3-piece configuration. It is therefore compatible with a wide range of Rittal enclosures used in industrial electrical engineering and automation technology. Use with the mentioned enclosure types is standard, without requiring additional modifications or adapters.
Mounting and Installation

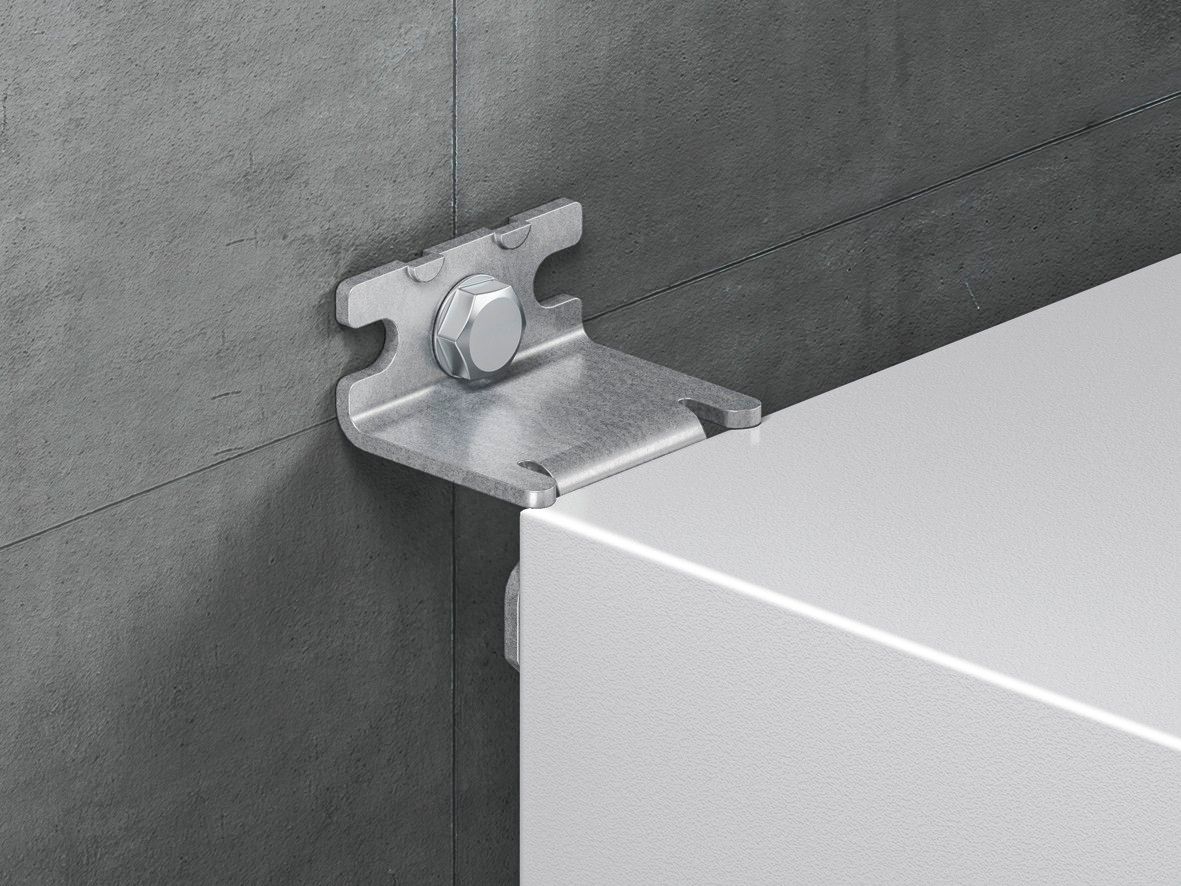

Installation is carried out in two steps: first, the bracket is fastened to the wall using a pre-installed screw. Then, the bracket is inserted into the opening of the enclosure and screwed from the rear using a self-tapping screw. Alternatively, it can be fastened from the inside using a screw and nut.
Operational Advantages
Using the wall mounting bracket reduces installation time and simplifies work, especially during one-person installations. Mechanical stability and flexibility in positioning ensure secure mounting of the enclosure. The use of galvanized sheet steel ensures long service life and low maintenance. Compliance with UL 50E Type Ratings guarantees suitability for various environments, including light outdoor use.
| General | |
| Material | Sheet steel, galvanised |

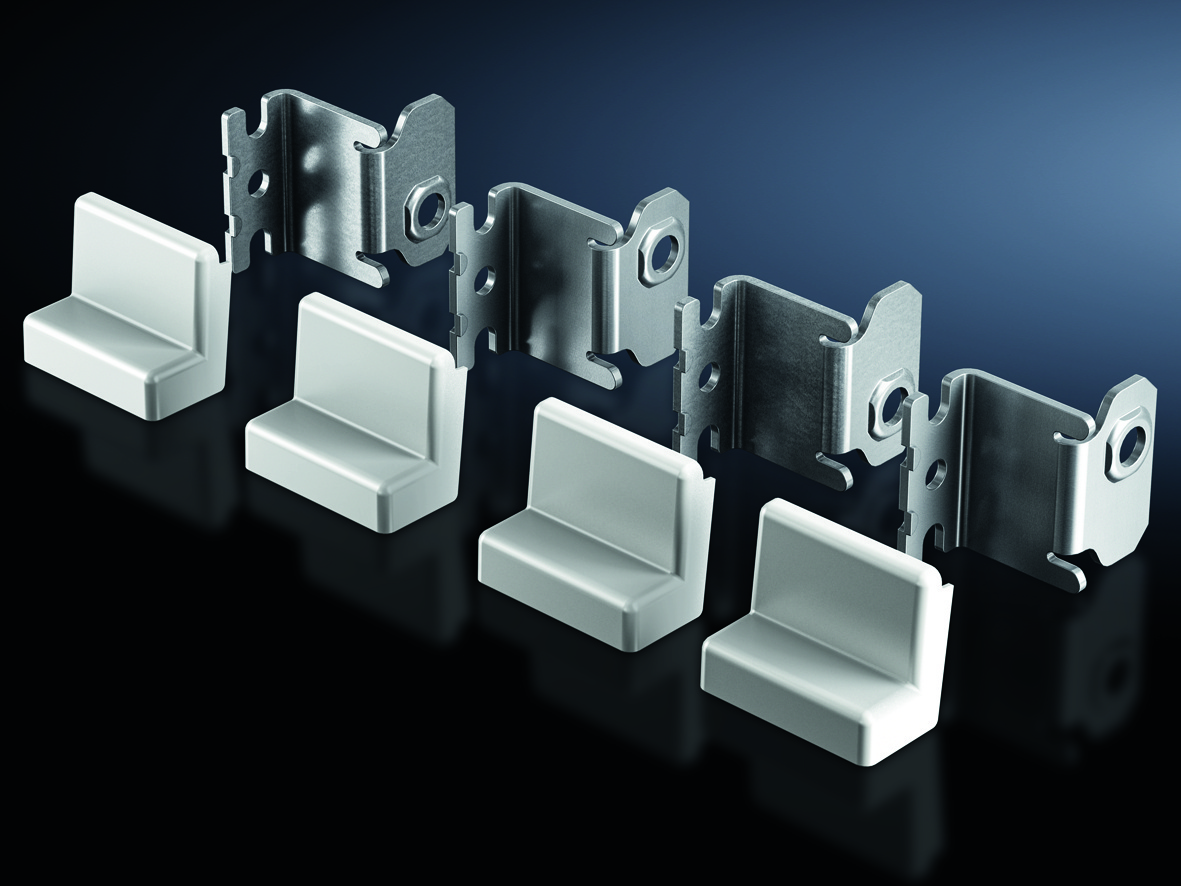

| Scope of delivery | Wall mounting bracket, end caps, including fastening material |
| Wall distance | 40 mm |
| Suitable for | Enclosure type: AX steel sheet, KX steel sheet, AX IT, EL, wall enclosure AX, 3-piece |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| PCF/VE (Cradle-to-Gate) | 2.2 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 2503020 Wall mounting holder for AX KX sheet metal AX IT EL?
The article Rittal 2503020 Wall mounting holder for AX KX sheet metal AX IT EL is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2503020 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 2503020 Wall mounting holder for AX KX sheet metal AX IT EL always at the best possible price. We can give you a discount of 2% on Rittal 2503020 Wall mounting holder for AX KX sheet metal AX IT EL if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
