Rittal 2260950 AX wall-mounted enclosure AX 3-piece W x H x D: 600 x 478 x 573 mm 9 U

Your rating:
Average rating
product review for Rittal 2260950 AX wall-mounted enclosure AX 3-piece W x H x D: 600 x 478 x 573 mm 9 U
( 4.8 / 5 ) 4 ratings
Rittal 2260950
This image may differ from the desired article.
Rittal 2260950Rittal 2260950Rittal 2260950Rittal 2260950
-6% 642,85 EUR 681,42 EUR
( 764,99 EUR incl. VAT )
≈ £538.07  |  ≈ $706.49
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2260950 AX wall-mounted enclosure AX 3-piece W x H x D: 600 x 478 x 573 mm 9 U
Datasheet:file_download Download
Lieske Part No.:603843
Mfg Part No: 2260950
UPC/EAN: 4028177983397
Weight:32.6 kg
Type:AX 2260950

Product information for Rittal 2260950:

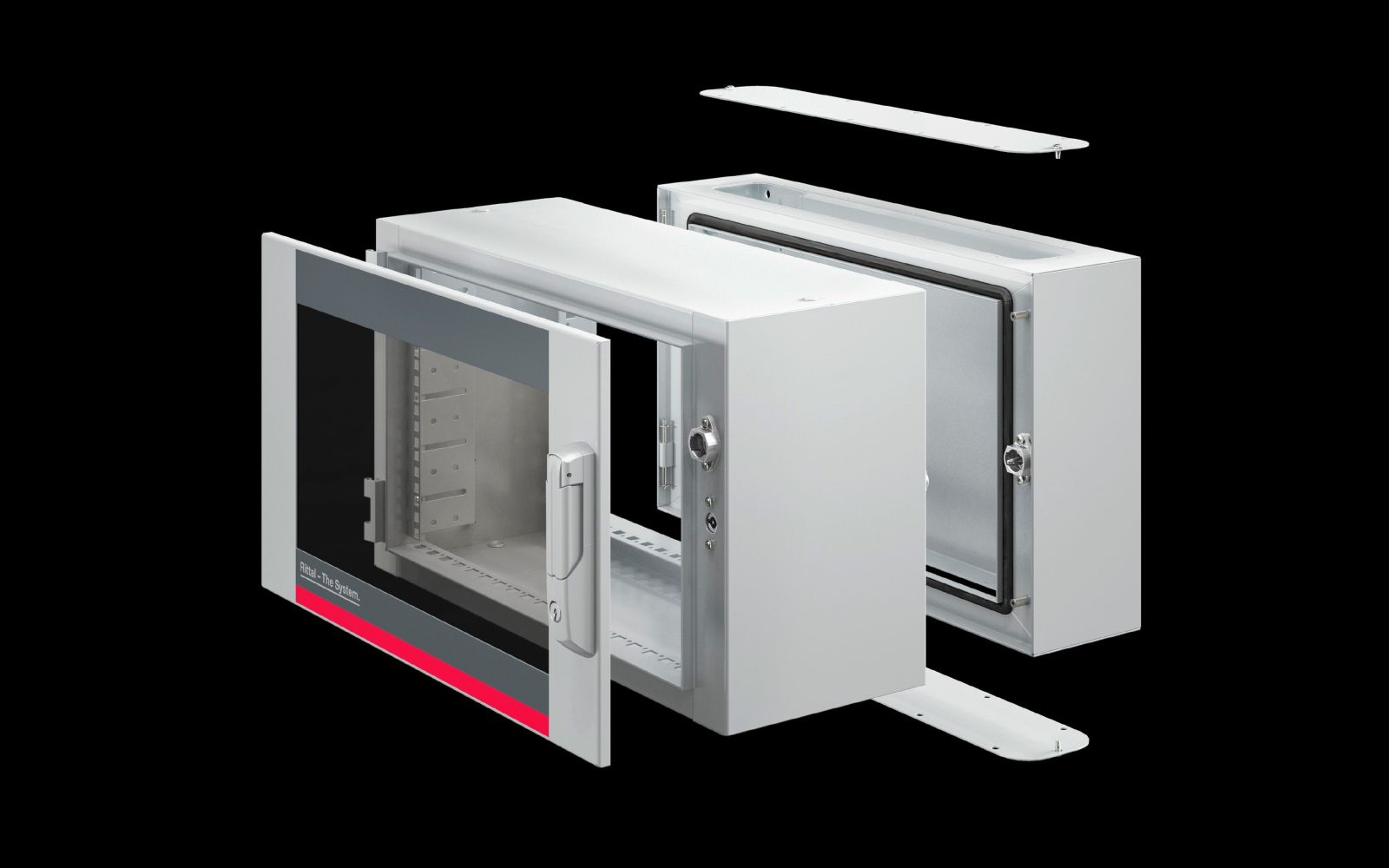

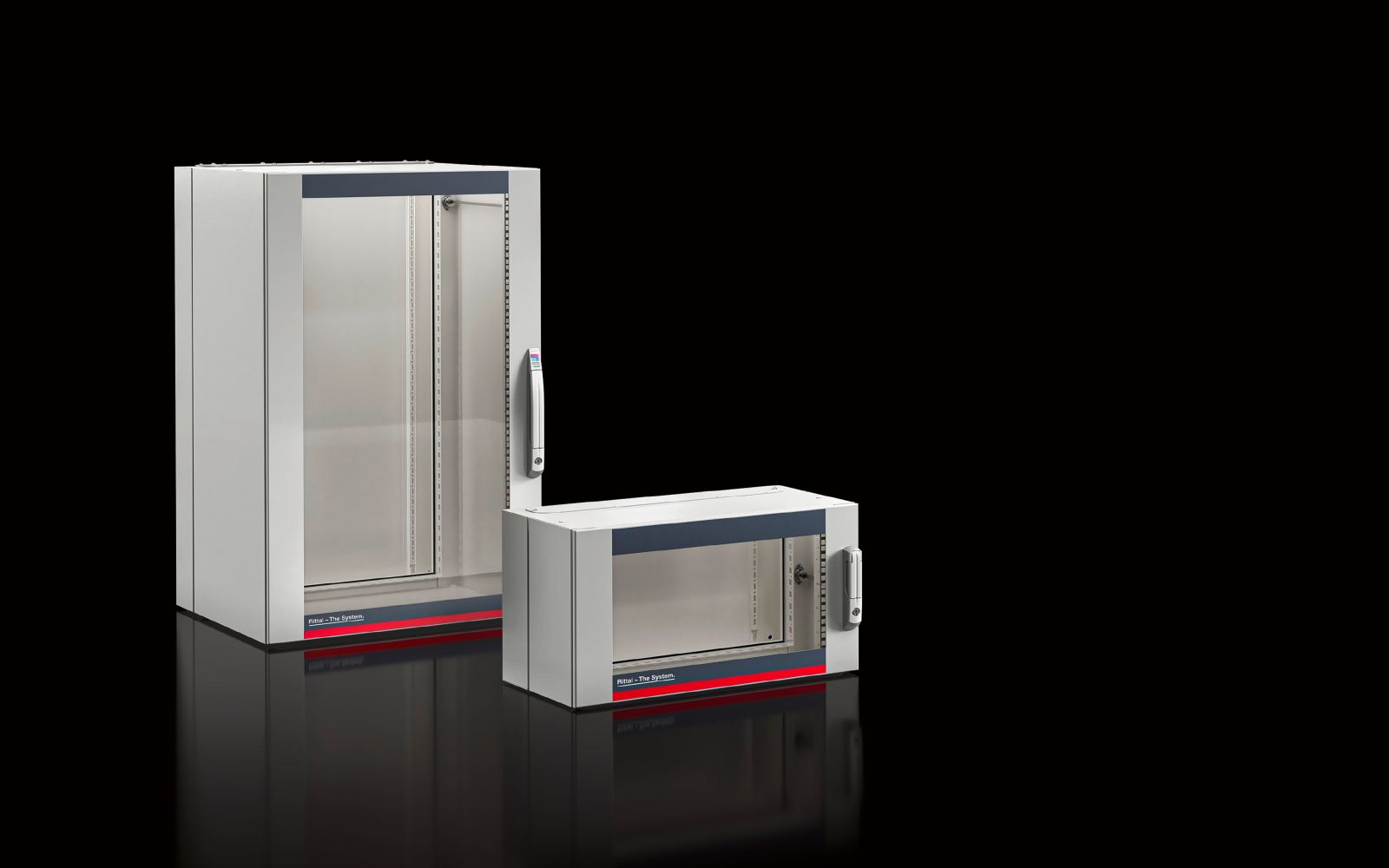

The Rittal AX 2260950 is a 3-piece wall-mounted enclosure for IT applications, designed for use in 48,3 cm ( 19 inch )-technology environments. It features overall dimensions of 600 mm width, 478 mm height, and 573 mm depth, providing space for 9 height units (HE). The enclosure consists of a wall section, a swing section, and a design viewing door, enabling a flexible and accessible setup for mounting network and IT devices. The construction from sheet steel with a thickness of 1.5 mm and a powder-coated surface in RAL 7035 ensures a robust and durable structure. The viewing pane made of single-pane safety glass with a thickness of 3 mm is finished in RAL 7035/7015 (slate grey) and provides clear visibility of installed components.

Applications
This wall-mounted enclosure is designed for indoor use, particularly in IT infrastructures such as server and network environments, where a compact and wall-mounted solution is required. The three-part design allows easy access to installed devices, simplifying maintenance and installation. The protection rating IP 54, achieved in combination with the closed gland plates at the top and bottom, protects against dust and splashing water, making it suitable for environments with moderate contamination risk.

Functions and Equipment in Detail
The swing section is equipped with a 25 mm hole raster in the front and rear frame, enabling flexible device mounting. Two 48,3 cm ( 19 inch )-profile rails are mounted at the front, providing a secure mounting option for IT components. The design viewing door is fitted with a mini comfort handle and a safety lock 3524 E, ensuring secure closure. The lock in the middle section consists of a 3 mm double bar, which securely closes the door. The wall section gland plate is closed at the top and bottom, supporting the IP 54 protection rating.

Technology Explained Simply
The static load capacity of the swing section is 450 N, equivalent to a load of approximately 45.9 kg, while the wall section has a load capacity of 150 N (approximately 15.3 kg). The installation depth is 520 mm, with a clear width of 502 mm and a clear height of 417 mm. The depth of the swing section is 416 mm, while the wall section has a depth of 135 mm. These dimensions allow for efficient use of available space. The surface is powder-coated, ensuring high corrosion resistance and uniform coloration.

Compatibility and Accessories
The enclosure is part of the AX/VX system kit and can be expanded with various accessories. These include, for example, 48,3 cm ( 19 inch )-fasteners, earthing rails, cable routing panels, mounting brackets, component shelves in various depths and colors (RAL 7035 and RAL 9005), C-profile rails, IT system lights, VX system chassis, and wall mounting brackets. These components allow for individual adaptation to specific requirements and installation situations.

Mounting and Installation
Mounting is done on a wall, with the wall section equipped with holes for fastening. The pre-mounted profile rails and the 25 mm hole raster enable quick and secure device installation. The closed gland plates at the top and bottom ensure a secure and dust-tight seal.

Operational Advantages
The enclosure offers an optimal combination of accessibility, security, and flexibility. The IP 54 protection rating protects installed devices from dust and splashing water, while the three-part design facilitates access to components. The robust construction from sheet steel and the powder-coated surface ensure a long service life. Compatibility with the AX/VX system kit allows for expansion and adaptation to future requirements.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swivel section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, locking middle section: 3 mm double bar, locking design vision door: safety lock 3524 E, mini comfort handle
Height units9 HE
Width600 mm
Height478 mm
Depth573 mm
Built-in depth520 mm
Light dimensionsClear width: 502 mm, clear height: 417 mm
Depth of swivel part416 mm
Depth of wall part135 mm
Number of locks1
Load capacity of swivel part (static)450 N
Load capacity wall part (static)150 N
Base materialsteel sheet
LockLocking system: Mini comfort handle, lock insert: Security lock insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
