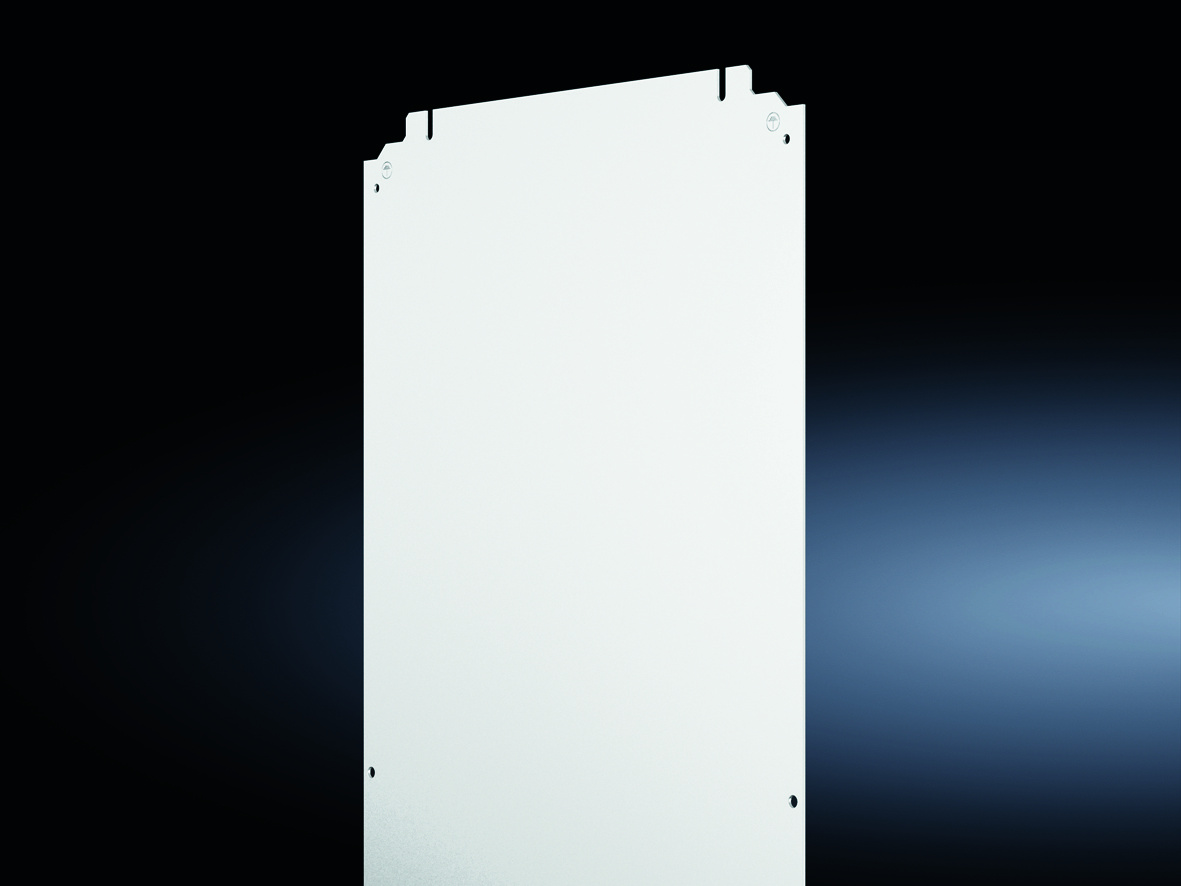

Rittal 1560900 AX mounting plate for AX 3-piece W x H: 485x425 mm

Your rating:
Average rating
product review for Rittal 1560900 AX mounting plate for AX 3-piece W x H: 485x425 mm
( 4 / 5 ) 1 ratings
Rittal 1560900
This image may differ from the desired article.
Rittal 1560900Rittal 1560900
31,97 EUR 33,40 EUR
( 38,04 EUR incl. VAT )
≈ £26.76  |  ≈ $35.14
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 1560900 AX mounting plate for AX 3-piece W x H: 485x425 mm
Datasheet:file_download Download
Lieske Part No.:895234
Mfg Part No: 1560900
UPC/EAN: 4069196010527
Weight:3.31 kg
Type:AX 1560900

Product information for Rittal 1560900:

The mounting plate AX 1560900 from Rittal is a system accessory for wall-mounted enclosures of the AX series, specifically designed for 3-piece enclosure configurations. It is used for mounting components, switches, indicators or other electrical parts outside the enclosure, thereby relieving internal space and increasing mounting efficiency. The plate is made of steel sheet with a thickness of 2 mm and features a galvanized surface, providing corrosion protection and extending service life in industrial applications.

Applications

The mounting plate is designed for wall-mounted enclosures of the AX series, used in industrial electrical engineering, automation technology and machine building. It enables the installation of control elements, indicators or control devices directly on the front of the enclosure, facilitating access for operators. Mounting outside the enclosure reduces internal space requirements and supports a structured, clear arrangement of components.

Functions and Equipment in Detail

The plate has a width of 485 mm and a height of 425 mm. These dimensions are matched to the standard sizes of 3-piece AX wall-mounted enclosures, which have a minimum width of 600 mm and a minimum height of 478 mm. The mounting plate is secured to the front of the enclosure using included mounting screws. The screws are included in the delivery and enable a secure and durable installation. The galvanized surface provides sufficient corrosion protection, especially in environments with increased humidity or low chemical exposure.

Technology Explained Simply

The mounting plate is made of steel sheet with a thickness of 2 mm, ensuring sufficient mechanical stability for mounting electrical components. The galvanized surface protects the material from oxidation and extends service life. The dimensions of 485 mm width and 425 mm height are designed to fit optimally into the designated mounting areas of 3-piece AX wall-mounted enclosures. The plate is not intended for other enclosure types or configurations.

Compatibility and Accessories

The mounting plate is exclusively intended for 3-piece wall-mounted enclosures of the AX series from Rittal. It is compatible with enclosures having a minimum width of 600 mm and a minimum height of 478 mm. Mounting is done using the included screws, designed for attachment to the front of the enclosure. No additional accessories or components are required specifically for this mounting plate.

Mounting and Installation

Mounting is done by securing the plate to the front of the AX wall-mounted enclosure using the included screws. Positioning is carried out according to the designated mounting areas of the enclosure. The plate is not intended for internal mounting within the enclosure, but exclusively for external mounting. The mounting screws ensure a secure and durable connection, meeting the requirements of industrial use.

Operational Advantages

Using the mounting plate reduces internal space requirements in the enclosure, simplifying installation and maintenance of components. External mounting of control elements improves operability and ensures a clear structure of the system. The galvanized surface provides sufficient corrosion protection, extending the service life of the plate in industrial applications.

General
MaterialSheet steel, 2 mm
Surface protectionZinc-plated
Width485 mm
Height425 mm
Suitable for housing typeWall-mounted housing AX, 3-piece
Suitable forEnclosure type: Wall enclosure AX, 3-piece, width: = 600 mm, height: = 478 mm


Product data sheet
Datasheet for Rittal 1560900, EAN: 4069196010527
