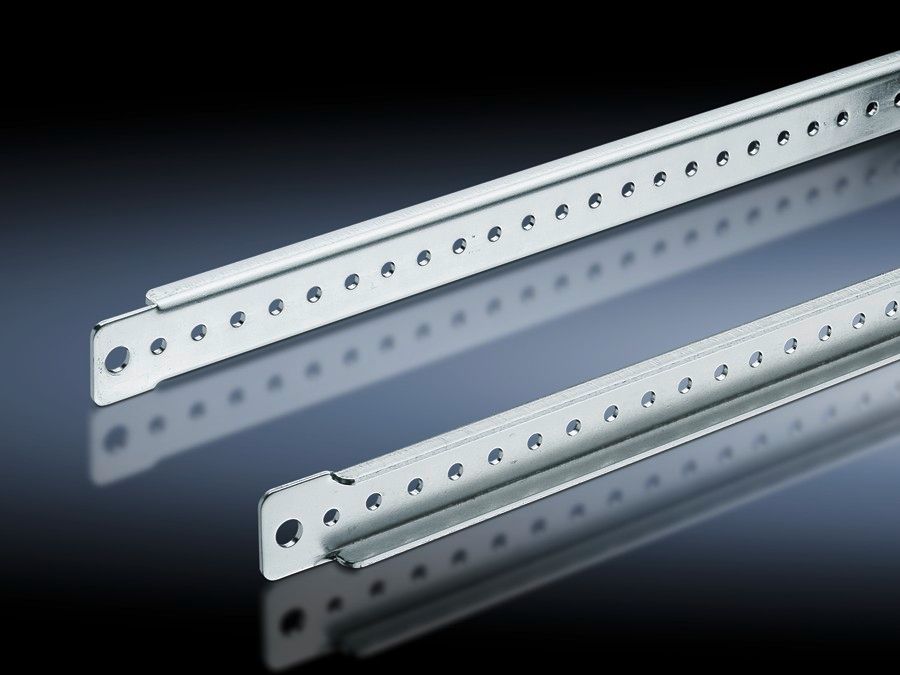

Rittal 4309000 TS mounting brackets for internal mounting level W x D: 400 mm
|
63,25 EUR 65,78 EUR |
|
|
( 75,27 EUR incl. VAT ) ≈ £52.94 | ≈ $69.51 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 584970 |
| Mfg Part No: | 4309000 |
| UPC/EAN: | 4028177098510 |
| Weight: | 4.1 kg |
| Type: | TS 4309000 |
Product information for Rittal 4309000:
Cable ducts
Cable conduit holder
Contact hazard protection covers
Equipment installed on the door
Cable clamping and attachment
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly parts
Packs of: 20 pc(s).
EAN: 4028177098510
Customs tariff number: 73269098
eCl@ss 5.1: 27189233
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620

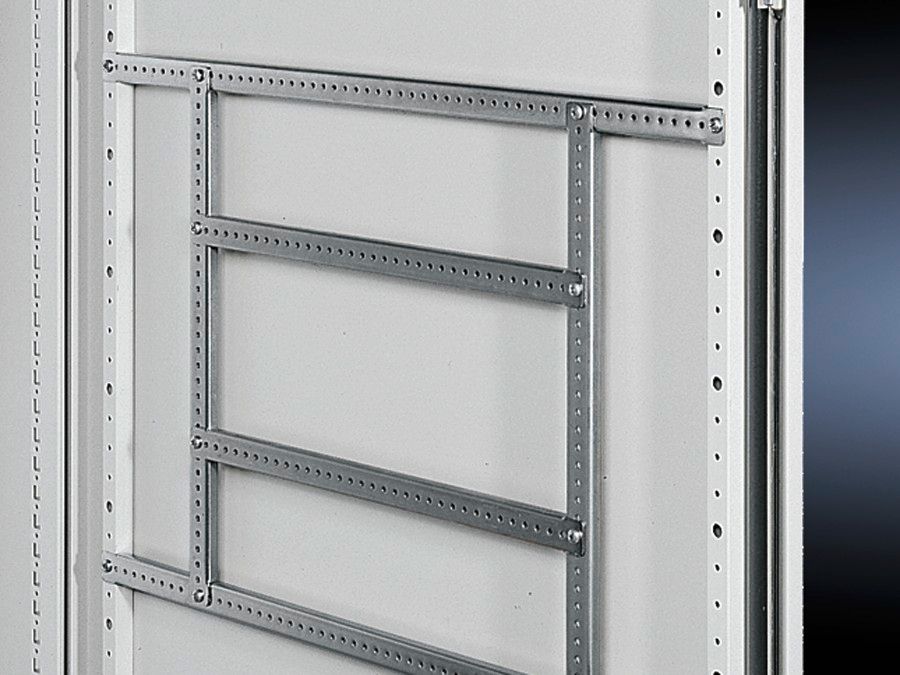

Design: For the inner mounting level and for mounting on doors
To fit: Width/depth: 400 mm
Dimensions: Length: 390 mm

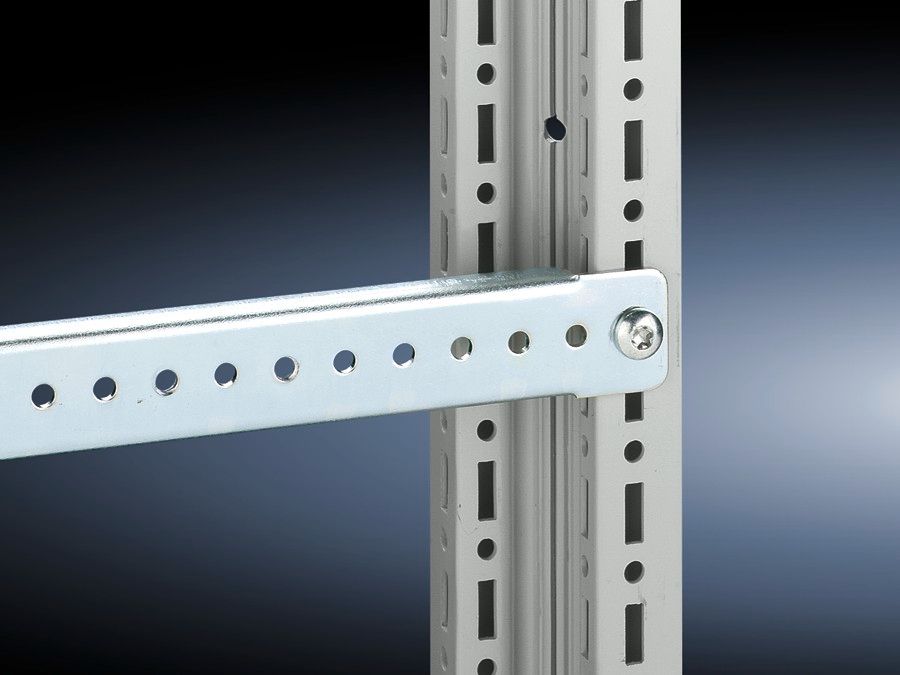

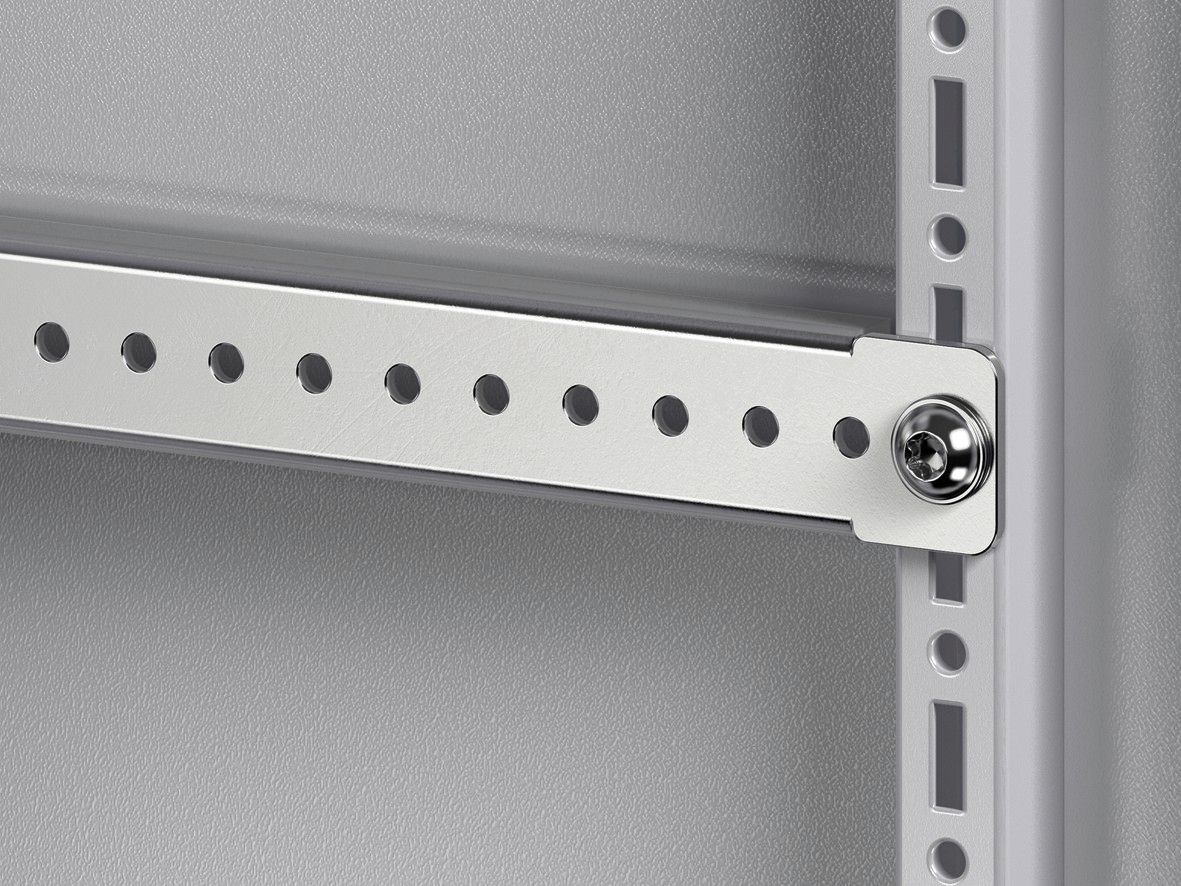

Installation options: On the vertical and horizontal TS enclosure section on the inner mounting level, height-offset all-round

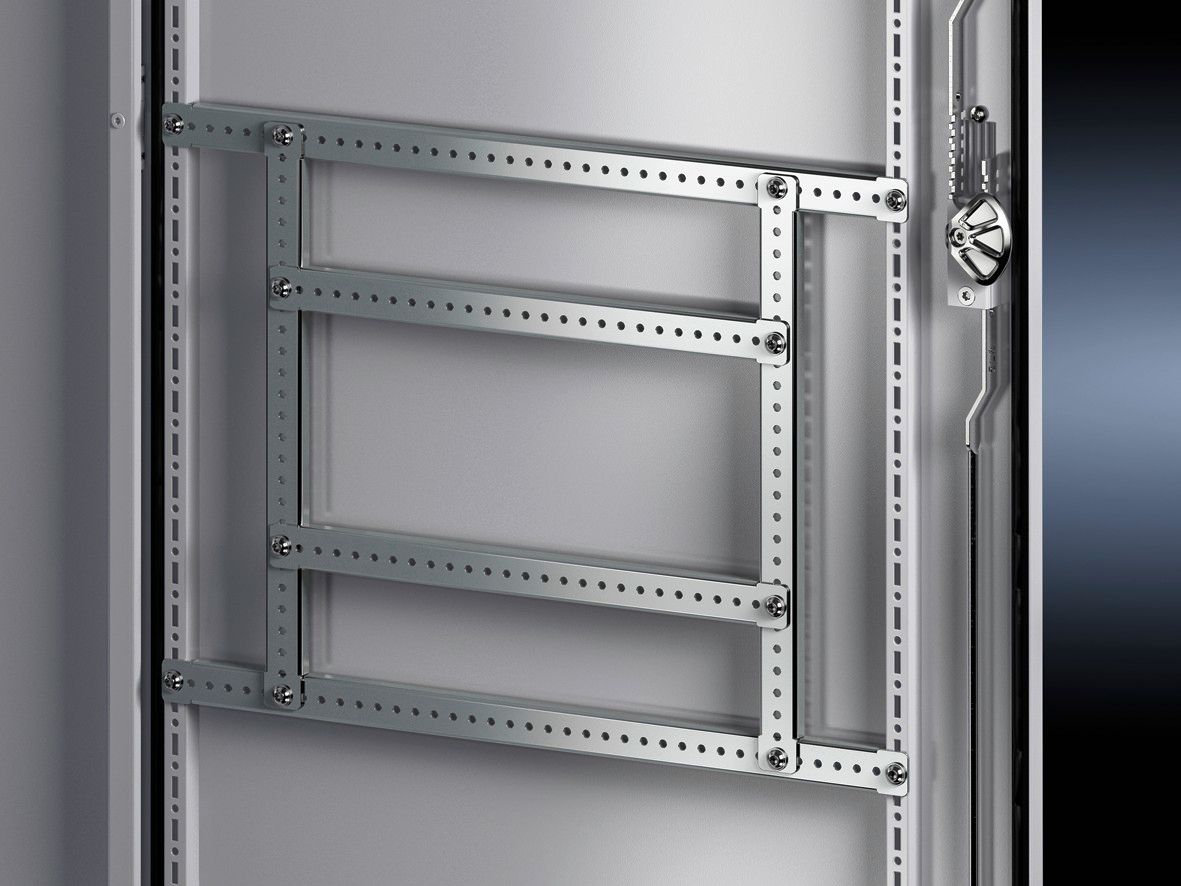

On the tubular door frame TS, SE, depending on the door width
On the perforated door strip CM, TP, depending on the enclosure width
To fit door width: 500 mm
Weight/pack: 3.98 kg
| General | |
| Technical data | Drilling Ø 4.5 mm on 25 mm grid |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Length | 390 mm |
| Suitable for door width | 500 mm |
| Mounting options VX | In door width 500 mm |
| Mounting options VX SE | In door width 500 mm, in cabinet depth 400 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility |
| Mounting options AX | In door width 500 mm, with 3-point locking system, in the door lock, in housing width 400 mm and housing height 500 mm, in combination with the rail for internal installation AX |
| Mounting options AX stainless steel | In housing width 400 mm, in housing height/width 500 mm |
| Mounting options AX plastic | In door width 500 mm |
| Installation options AX 3-piece | In housing depth 573 mm |
| Mounting options TS | In door width 500 mm, in cabinet width/depth 400 mm, on the inner mounting plane |
| Mounting options TP | In top panel parts for 3-part construction, to the height of the housing lid, in combination with the rail for internal installation for TP, compact control cabinet HD |
| Mounting options VX socket, stainless steel | In socket depth 500 mm, in combination with internal hexagon screws M6 and nut M6 |
| Suitable for | Enclosure type: VX, TS, VX SE, TP, AX, AX plastic, wall enclosure AX, 3-piece, width/depth: 400 mm |
| PCF/VE (Cradle-to-Gate) | 18.68 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 4309000 TS mounting brackets for internal mounting level W x D: 400 mm?
The article Rittal 4309000 TS mounting brackets for internal mounting level W x D: 400 mm is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4309000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 4309000 TS mounting brackets for internal mounting level W x D: 400 mm always at the best possible price. We can give you a discount of 2% on Rittal 4309000 TS mounting brackets for internal mounting level W x D: 400 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
