Rittal 8660062 VX VX plinth corner piece 1=2 with trim panel front/back H:200 mm for W:1000 mm

Your rating:
Average rating
product review for Rittal 8660062 VX VX plinth corner piece 1=2 with trim panel front/back H:200 mm for W:1000 mm
( 4 / 5 ) 1 ratings
Rittal 8660062
This image may differ from the desired article.
Rittal 8660062Rittal 8660062Rittal 8660062
297,85 EUR 309,76 EUR
( 354,44 EUR incl. VAT )
≈ £249.30  |  ≈ $327.34
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 8660062 VX VX plinth corner piece 1=2 with trim panel front/back H:200 mm for W:1000 mm
Datasheet:file_download Download
Lieske Part No.:877358
Mfg Part No: 8660062
UPC/EAN: 4028177037953
Weight:9.555 kg
Type:VX 8660062

Product information for Rittal 8660062:

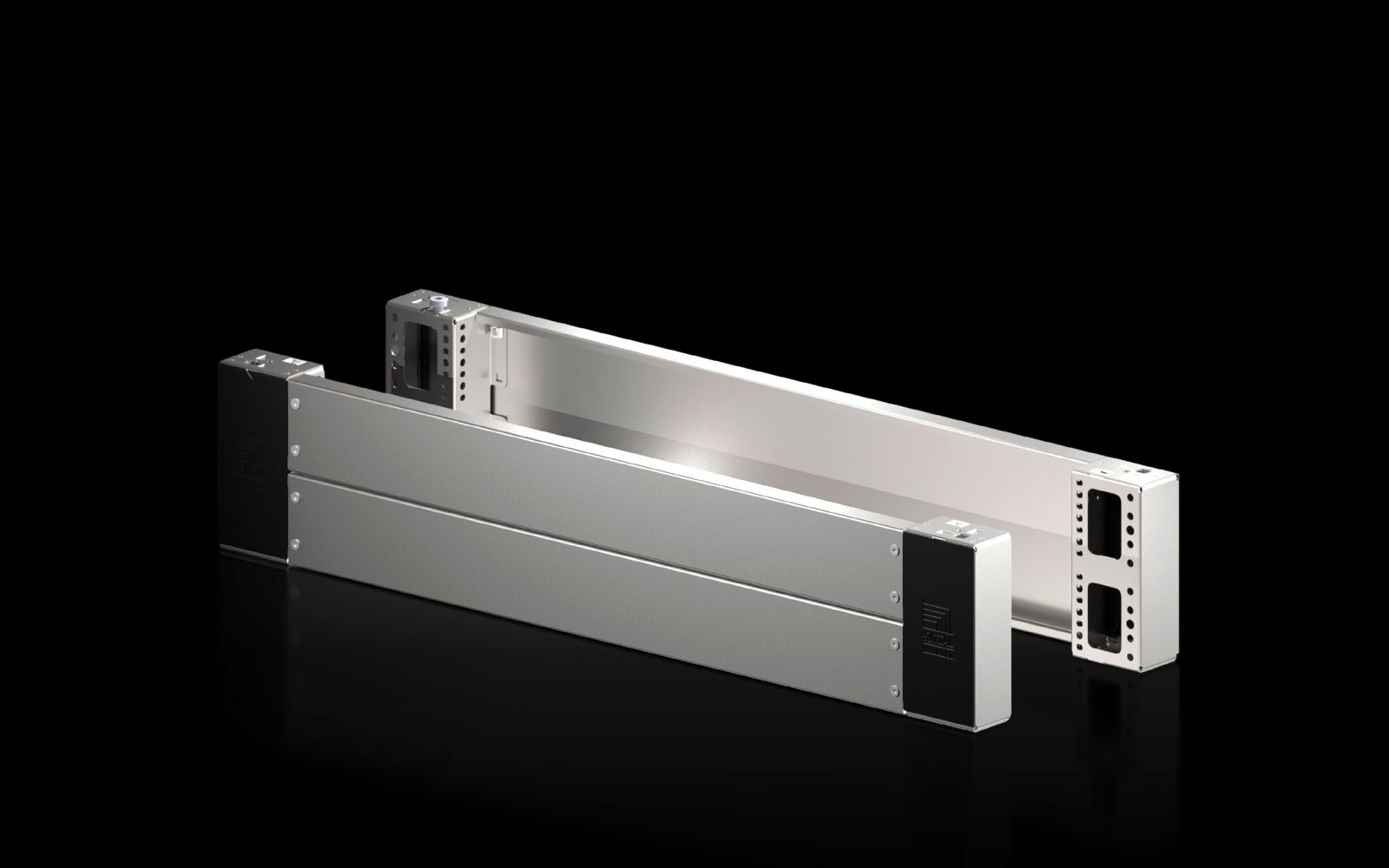

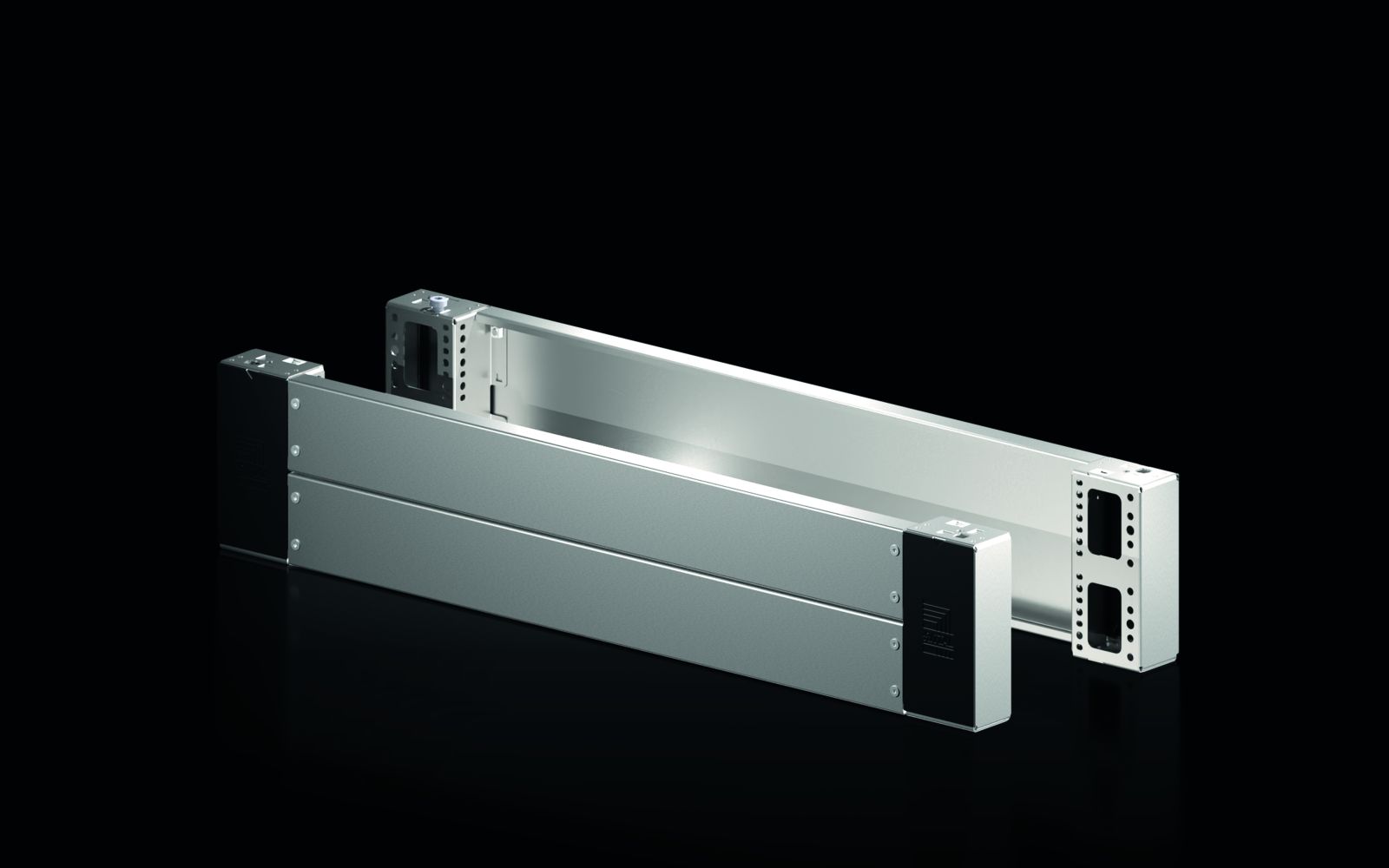

The Rittal VX 8660062 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically designed for the VX plinth system. It serves as a stable base for enclosures and housings of types VX, VX SE, TS and PC with an exact width of 1,000 mm. The component is made of stainless steel 1.4301 (AISI 304), ensuring high corrosion resistance and mechanical strength. The surface features a brushed finish with grit 400, creating an even, decorative appearance while also facilitating cleaning. The height is 200 mm, providing the plinth unit with sufficient stability and clearance from the floor.

Applications
This plinth corner piece is used in industrial environments where enclosures and electrical housings must be mounted on a stable, level base. It is particularly suitable for installations in production environments where high mechanical loads, moisture or aggressive media are present. Compatibility with housing types VX, VX SE, TS and PC makes it a universal component for various enclosure configurations. The plinth trim panels at the front and rear ensure a clean visual finish and support the stability of the plinth unit.

Functions and Equipment in Detail

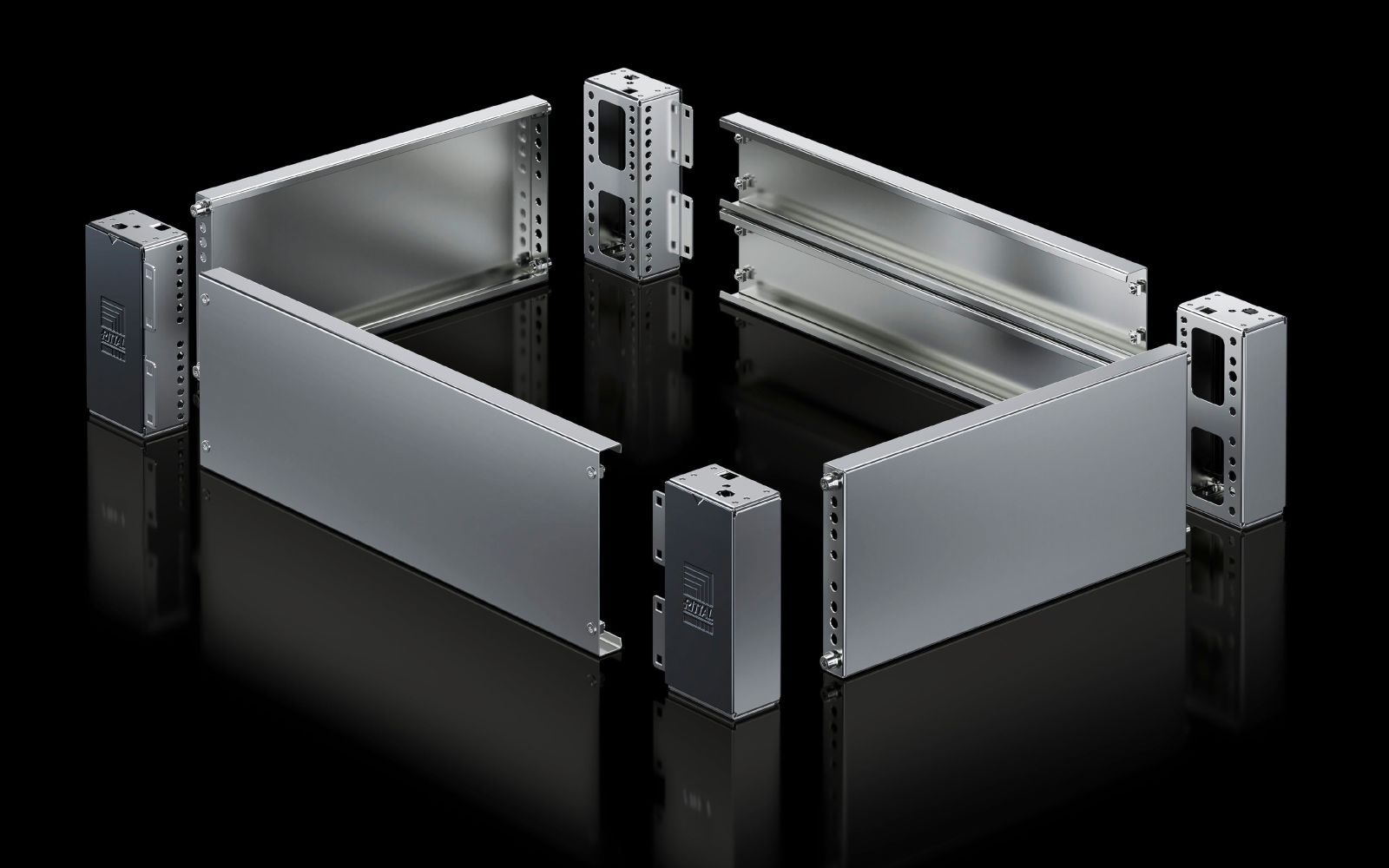

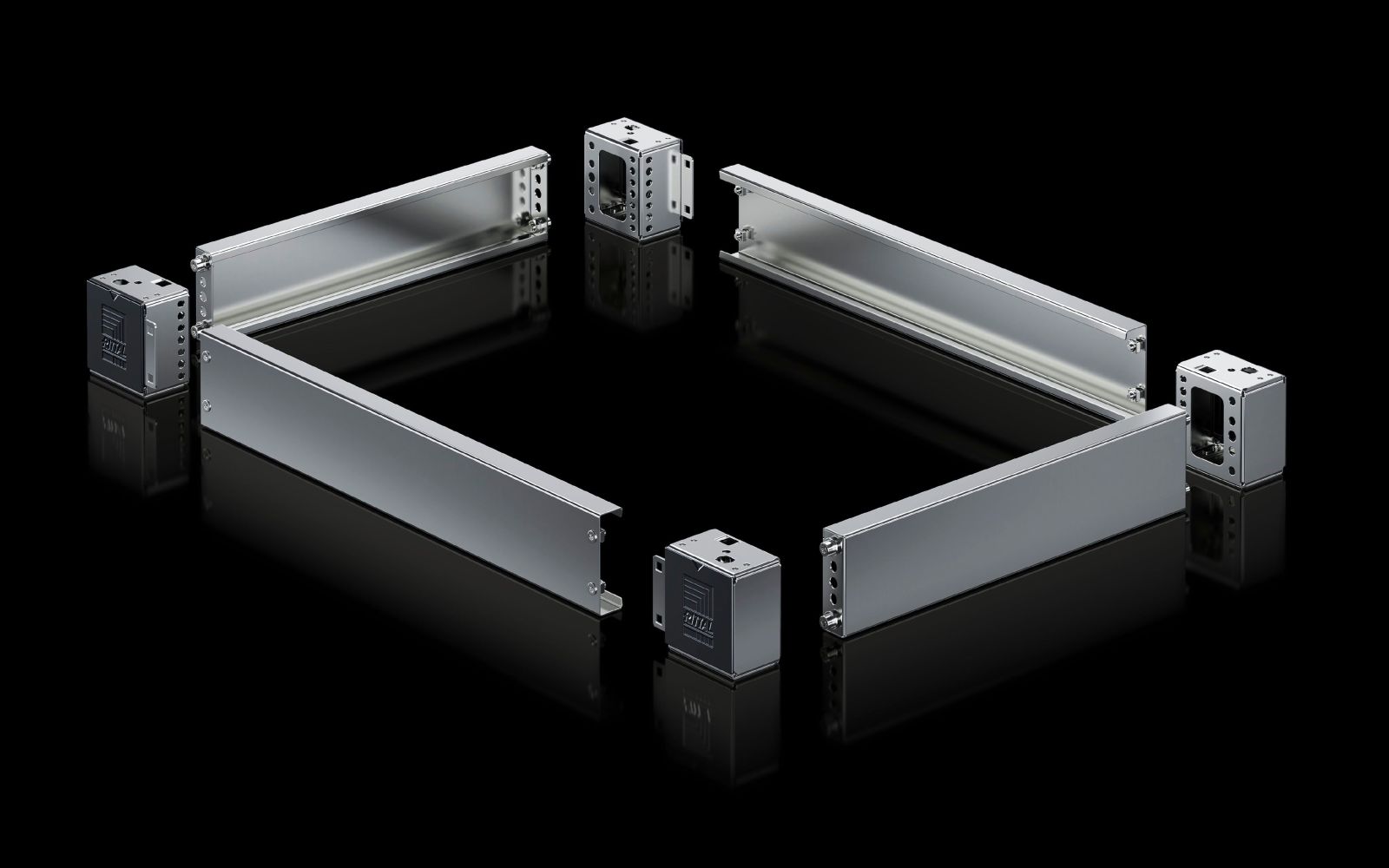

The product includes four plinth corner pieces, four ABS end caps, one front/rear plinth trim panel with a height of 200 mm, and two front/rear plinth trim panels with a height of 100 mm. All components are supplied with fastening materials that enable mounting to the enclosure plinths. The plinth corner pieces feature large openings to ensure optimal access to the screwing point. The ABS end caps serve for visual finishing and can be replaced with stainless steel end caps if required, to maintain material consistency.

Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high resistance to corrosion, which is particularly advantageous in moist or chemically stressed environments. The brushed finish with grit 400 provides an even surface structure that is both aesthetically pleasing and easy to clean. The plinth trim panels are not only decorative but also contribute to additional stabilization between plinths, increasing the overall stability of the enclosure construction. The ABS end caps are lightweight and dimensionally stable, ensuring a secure finishing function.

Compatibility and Accessories
The plinth corner piece is specifically designed for enclosures with a width of 1,000 mm and fits housing types VX, VX SE, TS and PC. It is not compatible with components of the 2nd generation of the plinth system, as the 1st generation is not compatible with the 2nd generation. As accessories, cable strain relief rails, mounting brackets, mounting plates, levelling elements, double swivel castors and plinth adapters can be used to supplement the mounting and functionality of the enclosure. The side plinth trim panels are necessary to fully complete a plinth unit and ensure additional stability.

Mounting and Installation
Mounting is done by screwing the plinth corner pieces to the corresponding positions on the enclosure plinth. The included fastening materials allow for secure and easy installation. The plinth trim panels are attached to the front and rear edges of the plinth, with the 200 mm high panels used for main sides and the 100 mm high panels for additional finishing surfaces. The end caps are inserted over the ends of the plinth corner pieces to achieve a clean visual appearance.

Operational Advantages
The plinth corner piece offers high mechanical stability and corrosion-resistant surfaces, extending the service life of the enclosure. The large accessibility to the screwing point simplifies mounting and maintenance. The uniform visual design provided by the stainless steel trim panels and the option to replace the end caps allow for individual adaptation to the requirements of the application environment. Compatibility with various enclosure types increases flexibility in planning and installing enclosures.

Type rating according to UL 50E
The product complies with Type ratings Type 1, Type 3R, Type 4, Type 4X and Type 12 according to UL 50E, confirming its suitability for various environments, including indoor and outdoor use. These approvals guarantee that the plinth corner piece meets requirements for protection against dust, water and mechanical impacts.

General
MaterialSocket corner piece: stainless steel 1.4301 (AISI 304), socket faceplate front/back: stainless steel 1.4301 (AISI 304), cover caps: ABS
Surface protectionLinear grind, grit 400
Scope of deliveryincluding mounting material, 4 socket corner pieces, 4 end caps, 1 socket front/rear cover, 200 mm, 2 socket front/rear covers, 100 mm
NoteSocket inserts, required on the sides to complete a socket unit and provide additional stabilization between sockets. The included cover caps can be replaced, if required, with stainless steel cover caps for VX socket system, stainless steel. Components of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system.
Height200 mm
Suitable forEnclosure type: VX, VX SE, TS, PC, width: = 1,000 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8660062, EAN: 4028177037953

Questions & answers

What is the delivery time of Rittal 8660062 VX VX plinth corner piece 1=2 with trim panel front/back H:200 mm for W:1000 mm?

The article Rittal 8660062 VX VX plinth corner piece 1=2 with trim panel front/back H:200 mm for W:1000 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660062 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660062 VX VX plinth corner piece 1=2 with trim panel front/back H:200 mm for W:1000 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660062 VX VX plinth corner piece 1=2 with trim panel front/back H:200 mm for W:1000 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
