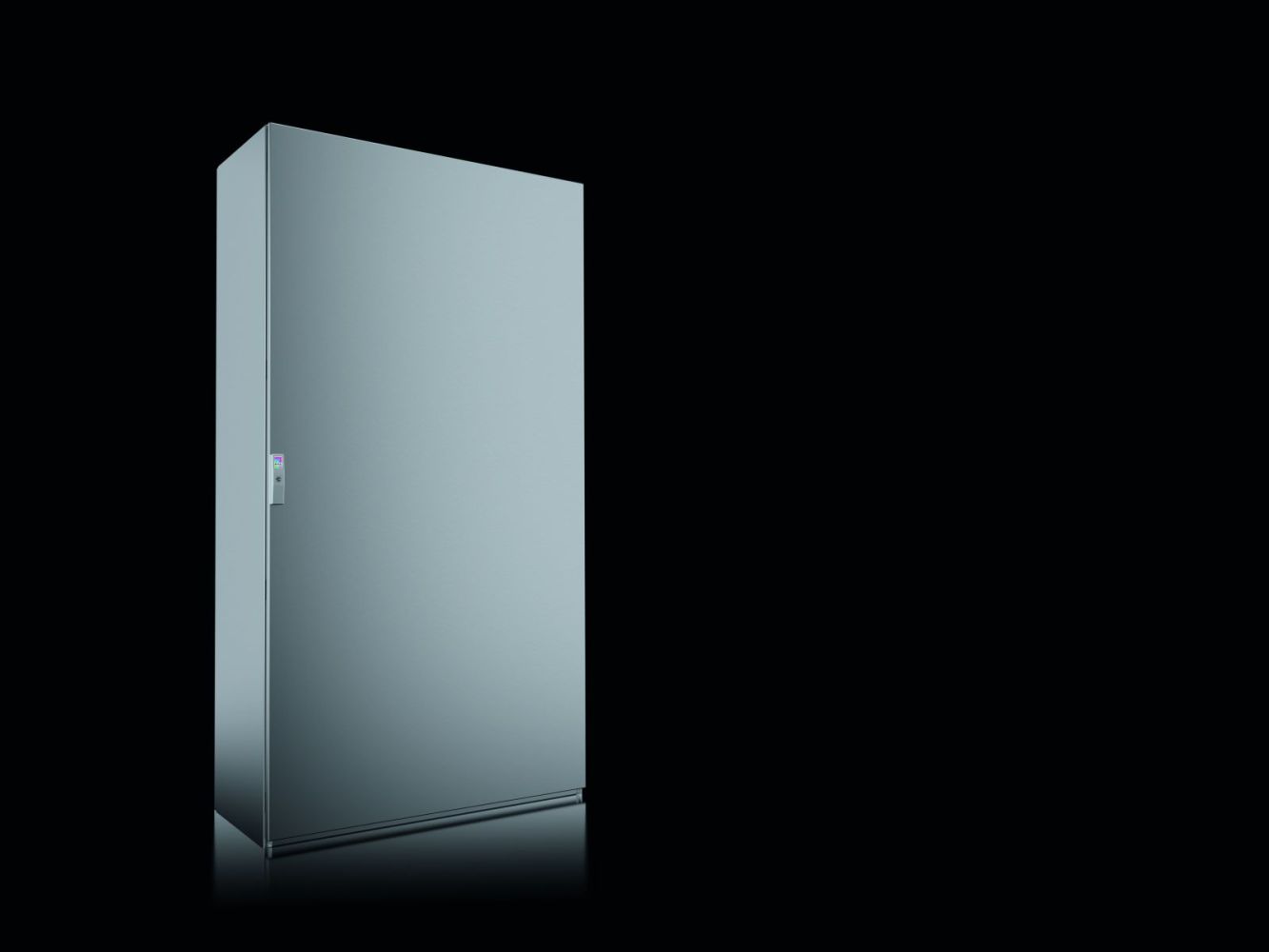

Rittal 5854600 SE system single enclosure 1000x1800x400 mm stainless steel
|
2.871,67 EUR |
|
|
( 3.417,29 EUR incl. VAT ) ≈ £2,403.59 | ≈ $3,155.97 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910638 |
| Mfg Part No: | 5854600 |
| UPC/EAN: | 4028177959330 |
| Weight: | 140.4 kg |
| Type: | SE 5854600 |
Product information for Rittal 5854600:
Applications
This enclosure is suitable for use in production plants, automation technology, power supply systems, and other industrial applications where high mechanical stability and protection against dust and splashing water are required. The use of stainless steel 1.4301 ensures high corrosion resistance, especially in humid or aggressive environments. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water from any direction, making it suitable for outdoor use as well. Additionally, the enclosure meets protection ratings NEMA 3R and NEMA 12 as well as Type ratings according to UL 50E: Type 1, Type 2, Type 3, Type 3R, Type 12, confirming its suitability for various regional and industrial requirements. The IK code IK10 provides high protection against mechanical impacts, such as blows or shocks.
Functions and Equipment in Detail
The enclosure consists of a single unit with a profiled frame, providing high stability. The door is fitted with a horizontally double-foamed seal, ensuring a reliable closure. The locking mechanism uses a 3 mm double bar, manufactured according to DIN 43668, and is four-point locked. The door opens up to 130°, with an optional upgrade to 180°. The hinges are equipped with non-removable hinge pins, simplifying installation and maintenance. The rear panel is removable and fitted with a foamed seal to ensure a tight cover. The base plates are divided into three sections, removable and replaceable, allowing flexible adaptation to different installation conditions. All metallic parts inside the enclosure are automatically connected to the enclosure body for equipotential bonding, enhancing electrical safety.
Technology Explained Simply
The enclosure material thickness is 1.5 mm, the door is 2.0 mm thick, and the rear panel and base plates are also 1.5 mm thick. The mounting plate is made of steel sheet with a thickness of 3.0 mm and is galvanized. The surface of the enclosure, door, and rear panel is hand-polished with grit 400, resulting in a uniform, slightly textured finish. The base plates are plain, and the mounting plate is galvanized. The mounting plate is C-bent on the sides and adjustable in depth in 25 mm increments using integrated plastic glides and mounting rails. This allows flexible positioning of components within the enclosure. Integrated mounting levels in the enclosure profile and roof frame enable space-saving system expansion. The perforation in the DIN grid of 25 mm facilitates the mounting of components and enclosures.
Compatibility and Accessories
The enclosure is fully compatible with the VX25 baying system, enabling flexible expansion and combination with other enclosures. Suitable accessories include stainless steel 1.4301 lifting eyes, system chassis, comfort handles, C-profile rails, circuit diagram pockets, lock inserts, mounting brackets, support rollers, 180° hinges, door latches for escape routes, and additional lock inserts. These components allow individual adaptation to specific operational requirements.
Installation and Mounting
Installation is performed using the integrated mounting levels and mounting rails. The mounting plate is depth-adjustable, ensuring precise alignment of components. The base plates are pre-installed and can be replaced if necessary. The rear panel is removable, facilitating access to the interior. The door is standard right-hinged but can be converted to left-hinged. The manufacturer recommends using the internal hexagon sheet metal screw 2486.400 for internal assembly, as the hardness of stainless steel requires a specific screw type.
Operational Advantages
The enclosure offers high mechanical stability, corrosion resistance, and protection against environmental influences. The integrated mounting levels and DIN grid simplify installation and maintenance. The removable rear panel and replaceable base plates allow flexible use. Compatibility with the VX25 system enables scalable expansion. Automatic equipotential bonding enhances electrical safety. The hand-polished surface is easy to maintain and provides a professional appearance. The delivery includes door, rear panel, mounting plate, base plates, lock, and two mounting rails 18 x 39 mm.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, Rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Base plates: stainless steel 1.4301 (AISI 304), 1.5 mm, Mounting plate: sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: brushed finish, grain 400, base plates: plain, mounting plate: galvanised |
| Scope of delivery | Housing top and sides closed, door(s), for single-door cabinets door hinge on right, changeable to left, rear panel, removable, mounting plate, base plates, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 1.000 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 899 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 427,68 |
