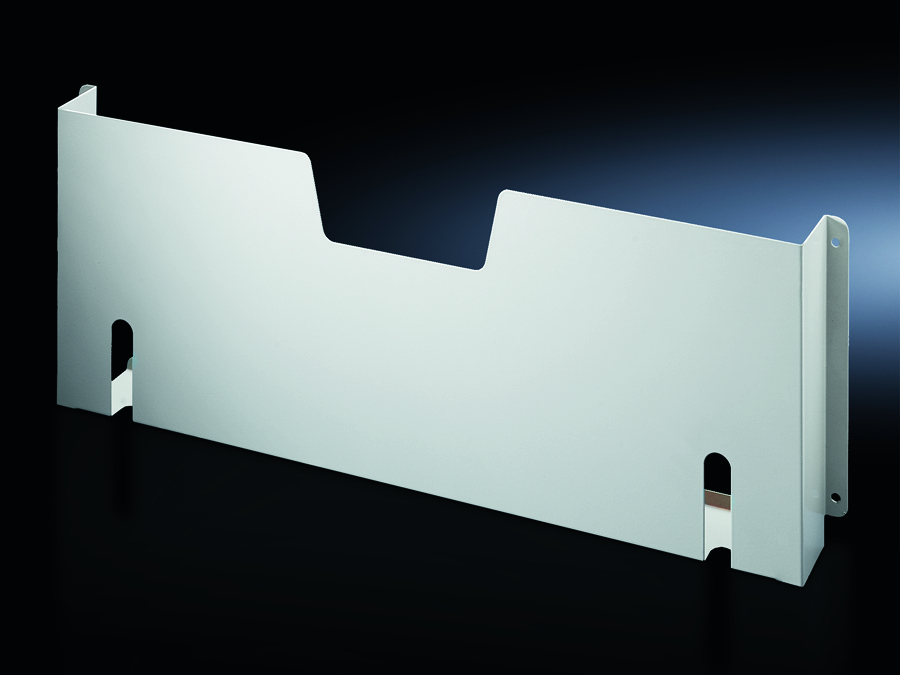

Rittal 4124000 Circuit diagram pockets VX/TS steel sheet lower section

Your rating:
Average rating
product review for Rittal 4124000 Circuit diagram pockets VX/TS steel sheet lower section
( 4.4 / 5 ) 27 ratings
Rittal 4124000
This image may differ from the desired article.
36,00 EUR 37,43 EUR
( 42,84 EUR incl. VAT )
≈ £30.13  |  ≈ $39.56
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 4124000 Circuit diagram pockets VX/TS steel sheet lower section
Datasheet:file_download Download
Lieske Part No.:256824
Mfg Part No: 4124000
UPC/EAN: 4028177091948
Weight:2.16 kg
Type:PS 4124000

Product information for Rittal 4124000:

The Rittal circuit diagram pocket type PS 4124000 is a system accessory made of sheet steel, specifically designed for mounting on door frame profiles of enclosures from the VX, TS, VX SE, PC and TP lower section series. The product is intended for the orderly storage and presentation of circuit diagrams, documentation or other technical documents directly on the enclosure door. The circuit diagram pocket is mounted at any desired height on the door frame profile, enabling flexible positioning during operation. The housing colour corresponds to the standard RAL 7035, a grey-black tone that integrates well visually in industrial environments.

Applications
The circuit diagram pocket is intended for use in industrial electrical and automation systems, particularly in enclosures with a door width of 1,000 mm. It is suitable for installations where quick and secure access to circuit diagrams or operating instructions is required, such as in production plants, power supply systems or during maintenance work. Mounting on the door frame profile allows for stable installation without additional drilling in the enclosure body.

Functions and equipment in detail
The circuit diagram pocket offers a clear height of 210 mm and a clear width of 855 mm, providing sufficient space for standard circuit diagrams or documents in A3 format. The depth is 90 mm, ensuring the pocket is deep enough to securely hold documents without them falling out. The product is delivered incl. mounting hardware, enabling installation on the door frame profile. The use of sheet steel ensures high mechanical stability and durability under industrial conditions.

Technology explained simply
The circuit diagram pocket is designed as an open pocket mounted on the front of the enclosure. Installation is carried out using the screws and mounting components included in the delivery, directly on the door frame profile. The construction allows mounting at any height, enabling the pocket to be positioned according to requirements and workplace layout. The sheet steel thickness is designed for industrial environments to withstand mechanical stress and wear.

Compatibility and accessories
The circuit diagram pocket is specifically designed for enclosure lower sections from the VX, TS, VX SE, PC and TP series. It is designed for enclosure doors with a width of 1,000 mm and adapts to the standard dimensions of these enclosure types.

Mounting and installation
Installation is carried out by securing to the door frame profile using the screws included in the delivery. No additional tools or components are required. Positioning can be done at any height, allowing individual adaptation to the workflow. Installation is quick and does not require extensive modifications to the enclosure.

Advantages in operation
The circuit diagram pocket provides direct and quick access to technical documents directly at the enclosure. Mounting on the door frame profile ensures a stable and secure installation that remains reliable even with frequent use. The clear dimensions of 855 mm width and 210 mm height allow multiple documents to be stored simultaneously. The use of sheet steel ensures high mechanical strength and durability under industrial conditions. The colour RAL 7035 matches visually with the standard colour palette of Rittal enclosures.

General
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Clear height210 mm
Light width855 mm
Suitable for door width1.000 mm
Depth90 mm


Product data sheet
Datasheet for Rittal 4124000, EAN: 4028177091948
