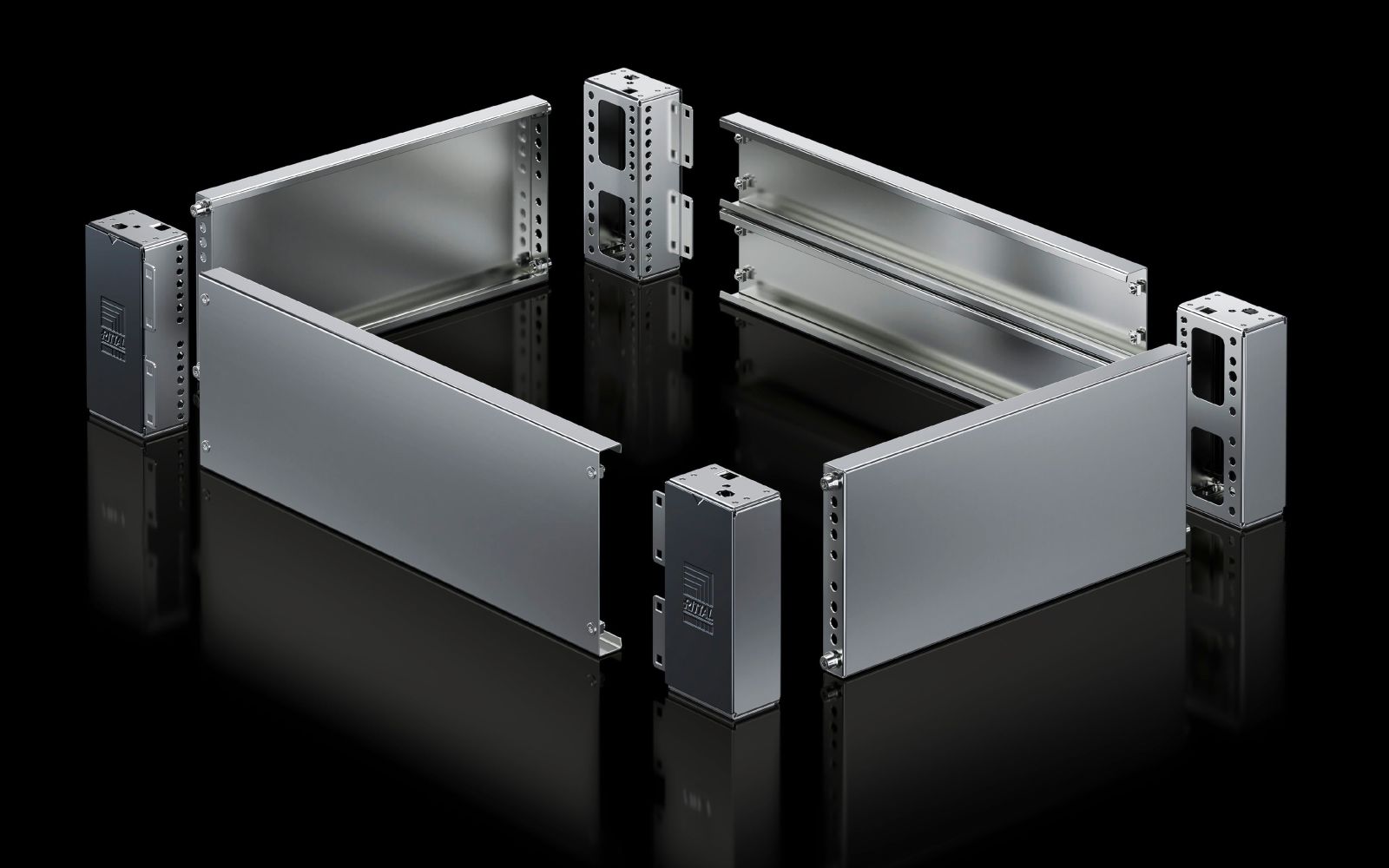

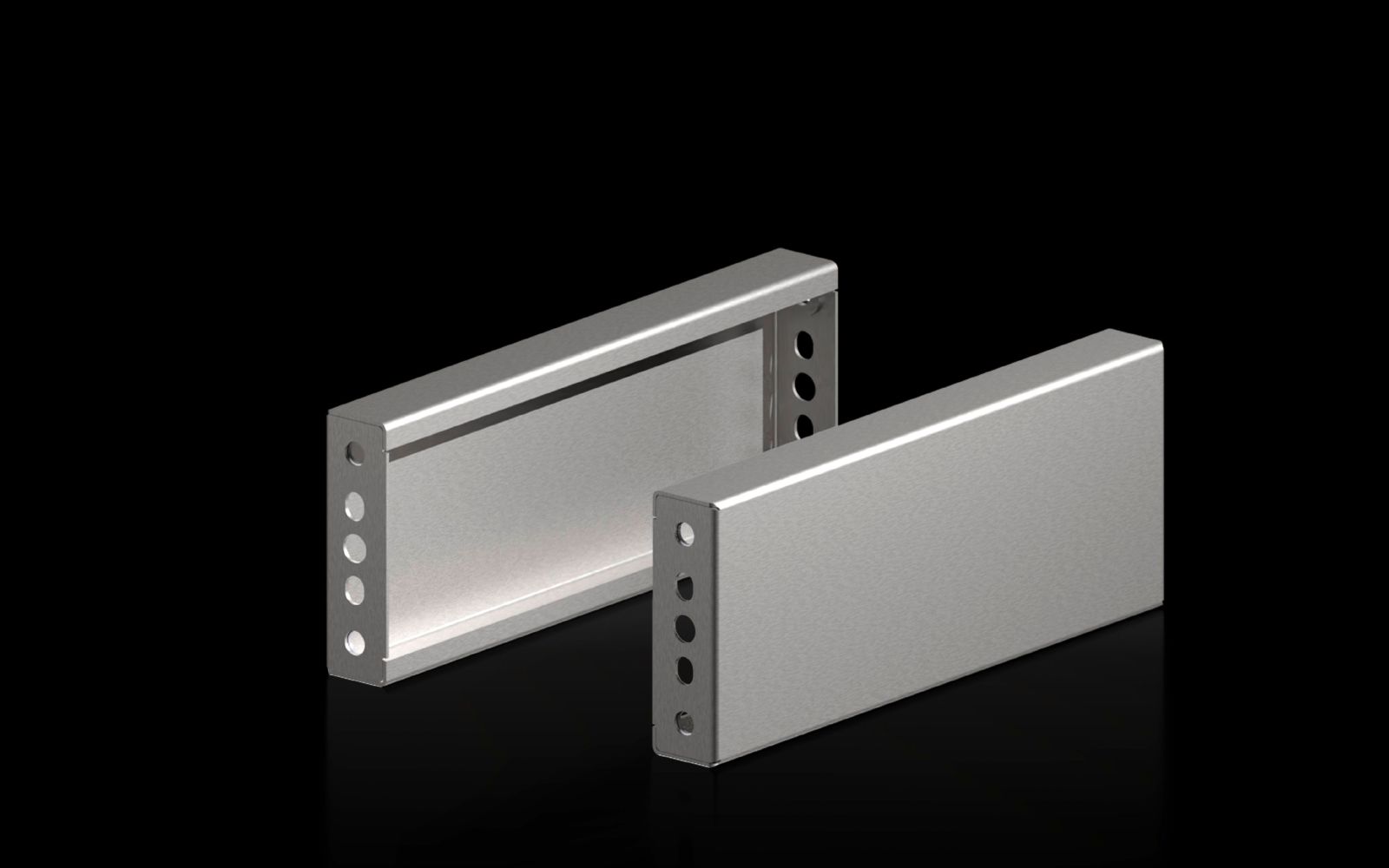

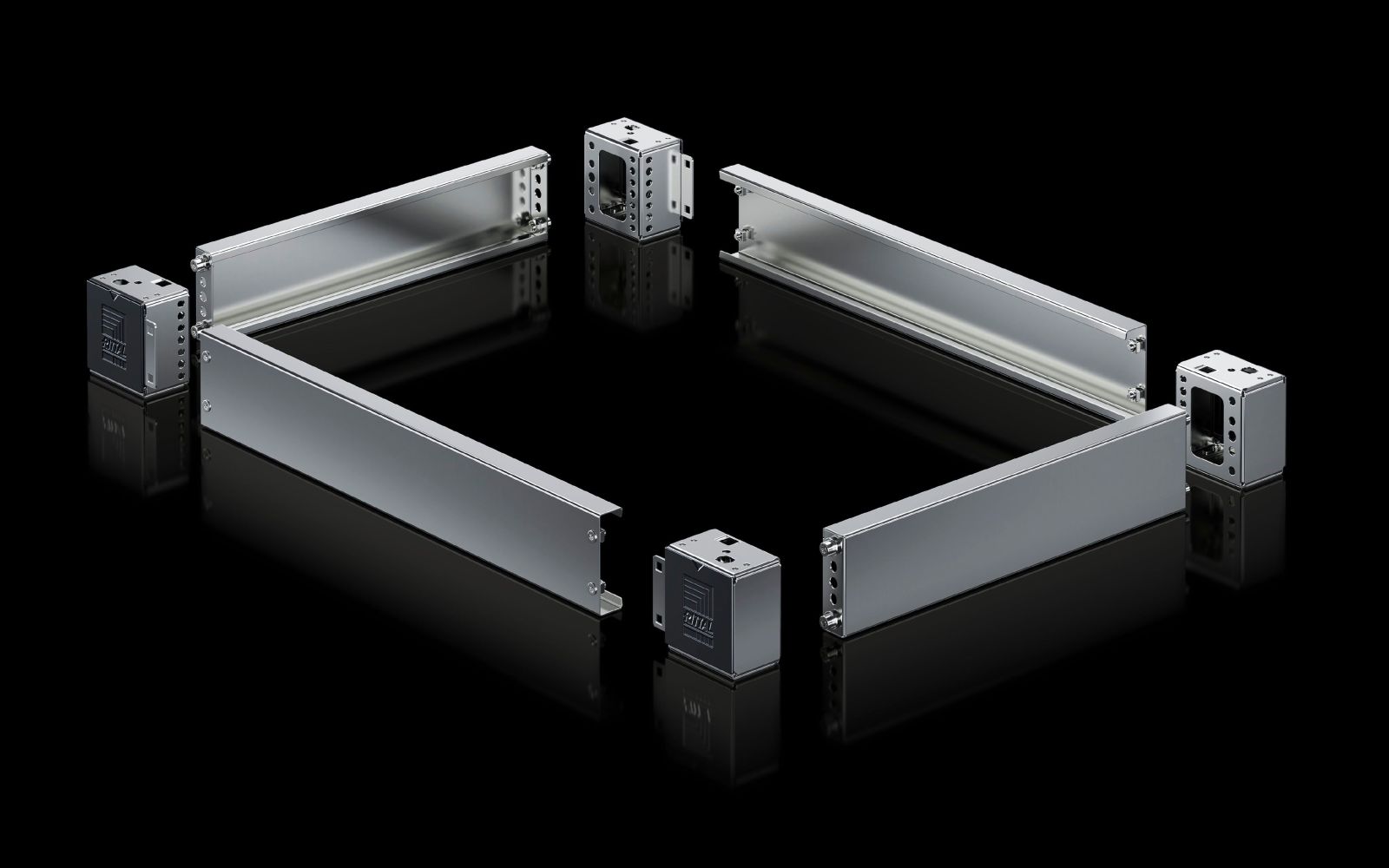

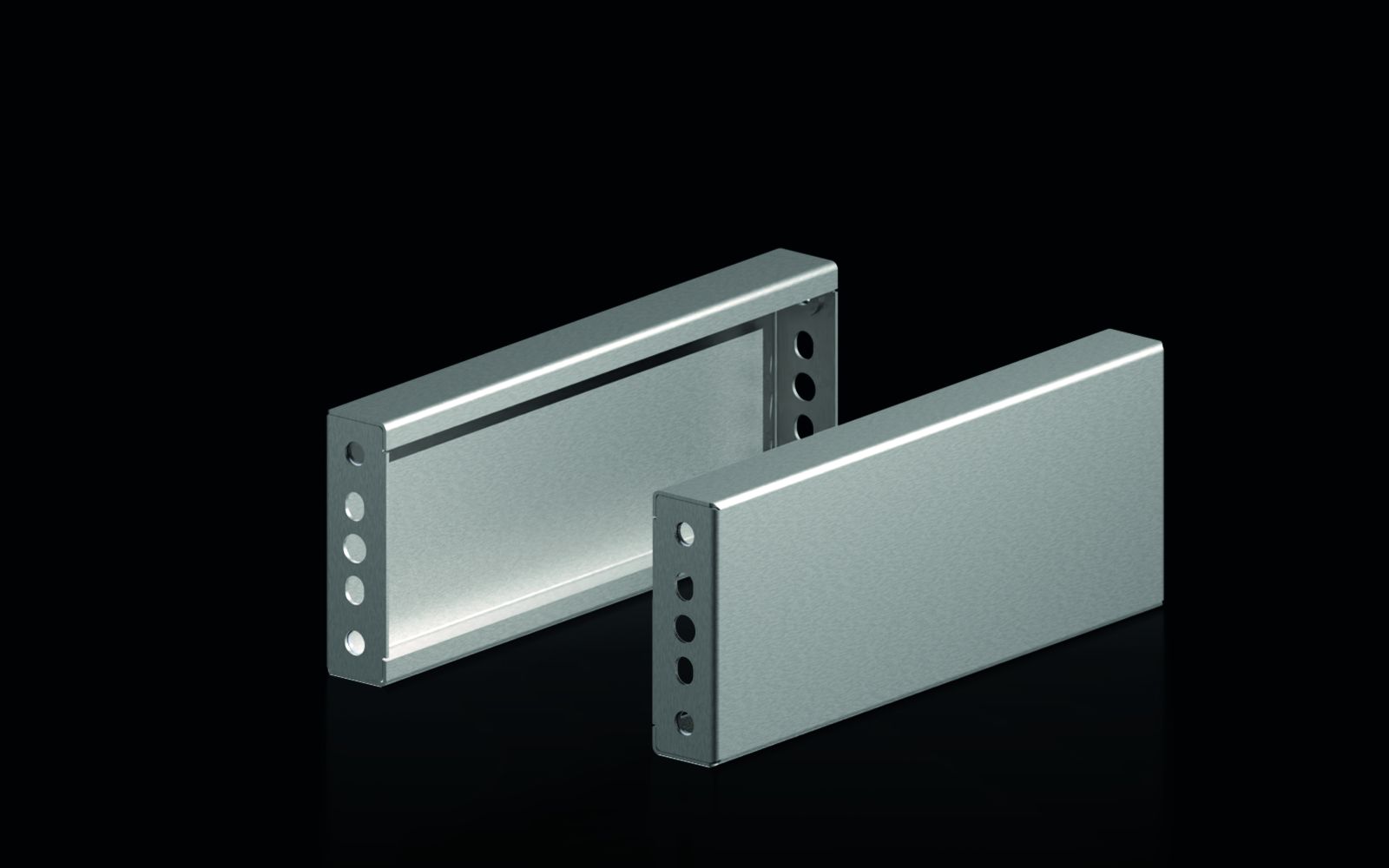

Rittal 8660070 VX VX plinth trim panel 1=2 side H:100 mm for D:400 mm stainless steel

Your rating:
Average rating
product review for Rittal 8660070 VX VX plinth trim panel 1=2 side H:100 mm for D:400 mm stainless steel
( 4.5 / 5 ) 2 ratings
Rittal 8660070
This image may differ from the desired article.
Rittal 8660070Rittal 8660070Rittal 8660070
-14% 107,17 EUR 125,03 EUR
( 127,53 EUR incl. VAT )
≈ £89.70  |  ≈ $117.78
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660070 VX VX plinth trim panel 1=2 side H:100 mm for D:400 mm stainless steel
Datasheet:file_download Download
Lieske Part No.:877360
Mfg Part No: 8660070
UPC/EAN: 4028177037793
Weight:1.651 kg
Type:VX 8660070

Product information for Rittal 8660070:

The VX plinth trim panel, side, type VX 8660070, from Rittal is a system accessory for finishing the side surfaces of plinth units in industrial and enclosure construction. The component serves for the optical and functional closure of the side edges of plinth systems, particularly for enclosures with a depth of 400 mm. It is manufactured from stainless steel 1.4301 (AISI 304), a material suitable for its high corrosion resistance and mechanical strength in industrial environments. The surface features a brushed finish with grit 400, providing an even, slightly structured appearance that integrates well into professional installations.

Applications

The plinth trim panel is specifically designed for use with enclosure types VX, VX SE, TS and PC, which have a depth of exactly 400 mm. It serves as an aesthetic and protective finish on the side surfaces of plinth units, achieving a clean and closed front view. Use is typical in industrial electrical engineering, during the installation of enclosures or control systems, where proper covering of plinth elements is required.

Functions and equipment in detail

The trim panel has a height of 100 mm and is mounted on the side of the plinth unit. It is part of Rittal’s plinth system and serves to cover the side edges, ensuring a closed and professional appearance. The use of stainless steel 1.4301 ensures high resistance to moisture, chemical influences and mechanical stress.

Technology explained simply

The processing from stainless steel 1.4301 (AISI 304) provides excellent resistance to rust and corrosion, which is particularly advantageous in damp or aggressive environments. The surface treatment with a brushed finish, grit 400, ensures an even, slightly structured surface that visually integrates well into industrial installations. The height of 100 mm is matched to the standard dimensions of plinth systems to ensure a perfect fit.

Compatibility and accessories

The plinth trim panel is compatible with enclosure types VX, VX SE, TS and PC, provided they have a depth of 400 mm. It is important to note that components from the 1st generation of the plinth system cannot be combined with components from the 2nd generation. The trim panel is therefore only usable with other components of the same generation. Use with other plinth systems or other depths is not intended.

Mounting and installation

Mounting is performed on the side edges of the plinth unit. The included mounting material enables simple and secure fastening. The trim panel is directly attached to the plinth unit, with the fit tailored to the specified enclosure types and the depth of 400 mm.

Advantages in operation

The use of the plinth trim panel ensures a clean, closed appearance of the plinth units, which is particularly important in professional installations. The material choice of stainless steel 1.4301 ensures high durability and resistance to environmental influences. The integrated fastening allows for quick and easy installation, reducing installation time. The trim panel is also certified to UL 50E Type Ratings Type 1, Type 3R, Type 4, Type 4X and Type 12, confirming its suitability for various environmental conditions.

The packaging unit includes 2 pieces, sufficient for mounting on both sides of a plinth unit. The net weight is 1.31 kg, indicating the material thickness and size of the trim panel. The UL 50E certifications confirm suitability for use in various industrial environments, including damp or dusty areas.

Type rating according to UL 50E

The plinth trim panel meets the requirements of UL 50E Type Ratings Type 1, Type 3R, Type 4, Type 4X and Type 12. These certifications refer to protection against dust, water and mechanical influences. For example, Type 4 and Type 4X guarantee protection against splashing water and dirt, enabling use outdoors or in damp indoor areas. Type 3R protects against rain and splashing water, while Type 12 is intended for enclosed environments with minimal dust and splashing water exposure.

The plinth trim panel is thus a reliable and durable accessory for the professional finishing of plinth systems in industrial electrical engineering. The combination of high-quality stainless steel, precise fit and integrated fastening material makes it a practical and aesthetically pleasing component for enclosure installations.

General
MaterialStainless steel 1.4301 (AISI 304)
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting hardware
NoteComponents of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system.
Height100 mm
Suitable forCabinet type: VX, VX SE, TS, PC, Depth: = 400 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8660070, EAN: 4028177037793
