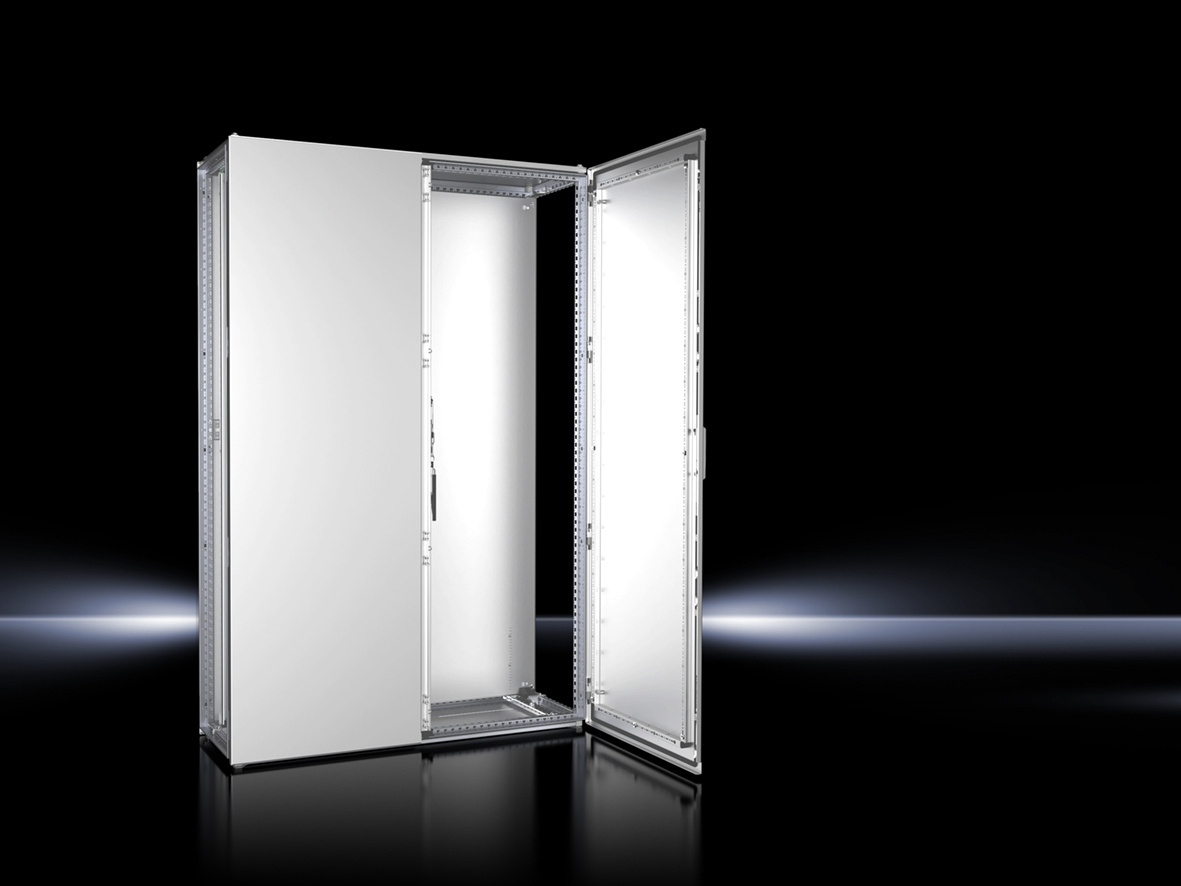

Rittal 8456000 VX bayed enclosure system, 2-door, W x H x D: 1200x1800x400 mm

Your rating:
Average rating
product review for Rittal 8456000 VX bayed enclosure system, 2-door, W x H x D: 1200x1800x400 mm
( 4.5 / 5 ) 13 ratings
Rittal 8456000
This image may differ from the desired article.
Rittal 8456000Rittal 8456000Rittal 8456000Rittal 8456000Rittal 8456000Rittal 8456000Rittal 8456000
3.192,40 EUR
( 3.798,96 EUR incl. VAT )
≈ £2,672.04  |  ≈ $3,508.45
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8456000 VX bayed enclosure system, 2-door, W x H x D: 1200x1800x400 mm
Datasheet:file_download Download
Lieske Part No.:1440954
Mfg Part No: 8456000
UPC/EAN: 4028177920156
Weight:167.2 kg
Type:VX 8456.000

Product information for Rittal 8456000:

The Rittal VX 8456.000 is a bayed enclosure system made of high-quality stainless steel 1.4301 (AISI 304), designed for use in industrial environments with high requirements for material strength and corrosion resistance. The enclosure system features a front width of 1,200 mm, a height of 1,800 mm, and a depth of 400 mm. It is double-door configured, with doors mounted on the front side and equipped with a 3 mm double-barrel lock. Door hinges are standardly mounted on the right side but can be tool-free repositioned to the left. The doors open up to an angle of 130°, with a tool-free extension to 180° possible. The floor clearance is 17 mm, facilitating access to cables and installation components at the base.

Applications
This enclosure system is suitable for use in production plants, automation technology, power supply systems, and other industrial applications where high mechanical load capacity and protection against dust and splashing water are required. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making it suitable for outdoor areas or humid indoor environments. Additionally, the device meets protection ratings NEMA 1 and NEMA 12, as well as Type ratings Type 1 and Type 12 according to UL 50E, enabling use in various international markets. The IK code IK10 indicates high mechanical resistance against impact and shock loading.

Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of stainless steel 1.4301 with a wall thickness of 1.5 mm, equipped with a symmetrical profile frame construction. The horizontal profiles feature an additional groove above the PU foam seal, enhancing protection against splashing water. The doors are made of 2.0 mm thick stainless steel and feature an externally brushed surface (grit 400), enabling an attractive visual design. The rear panel and roof plate are also made of 1.5 mm thick stainless steel and fitted with PU foam seals to ensure a tight seal. The base plates are triple-divided, removable, and replaceable, facilitating internal installation and maintenance. The mounting plate made of steel sheet (3.0 mm) is C-bent on the sides and depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. The mounting plate features an integrated mounting grid, simplifying component positioning.

Technology Explained Simply
The construction of the enclosure system is based on a closed and profiled hollow profile structure with perforation in a 25 mm grid, enabling flexible and space-saving mounting of components. The frame profiles are equipped with integrated blind rivet nuts M6, allowing protection-rated fastening of fittings. The entire construction is designed to withstand a load capacity of up to 15,000 N. The doors are fitted with removable square tube frames, also perforated in a 25 mm grid, enabling cable strain relief and additional mounting points. The PU foam seals ensure a tight seal, preventing ingress of dust and moisture. The mounting plate is depth-adjustable via integrated plastic glides and mounting rails, allowing flexible adaptation to different installation scenarios.

Compatibility and Accessories
The enclosure system is bayable on all sides and can be combined with additional VX modules. Compatible accessories include stainless steel 1.4301 transport eyes, mounting plate spacers, TS mounting brackets for external mounting plane, C-profile rails 30/15 according to EN 60715, circuit diagram pockets, VX plinth corner pieces and trim panels, VX levelling feet, VX mounting rails, VX partition panels, VX support rollers, VX cable strain relief rails, VX swing frames, and door latches. These components enable individual adaptation of the enclosure to specific requirements and installation conditions.

Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 in the frame profile, enabling secure and protection-rated fastening of fittings. The mounting plate is depth-adjustable and can be adapted via integrated plastic glides and mounting rails. The base plates are removable, facilitating installation and maintenance of components. The doors are tool-free repositionable, making mounting flexible. The entire construction is designed to enable simple and quick installation.

Operational Advantages
The enclosure system offers high mechanical stability and corrosion resistance due to the use of stainless steel 1.4301. The IP 55 protection rating and IK10 rating ensure high reliability in demanding environments. The depth-adjustable mounting plate and removable base plates facilitate internal installation and maintenance. The integrated mounting planes and 25 mm grid enable flexible and space-saving mounting of components. The use of PU foam seals ensures a tight seal, preventing ingress of dust and moisture. The doors are equipped with a 3 mm double-barrel lock, ensuring secure closure. The door hinges are tool-free repositionable, making mounting flexible. The entire construction is designed to withstand a high load capacity of up to 15,000 N, enabling use in demanding industrial applications. Due to the material hardness, it is recommended to use the internal hexagon sheet metal screw 2486.400 for internal installation to ensure secure and damage-free mounting.

General
MaterialCabinet frame: stainless steel 1.4301 (AISI 304), 1.5 mm, roof: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed finish, rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, floor plates: stainless steel 1.4301 (AISI 304), 1.5 mm, mounting plate: steel sheet, 3.0 mm
Surface protectionCabinet frame and base plates: plain, door, roof and rear panel: exterior brushed finish, grit 400, mounting plate: galvanized
Scope of deliveryCabinet frame, door(s), door hinge right, reversible to left, roof sheet, floor sheets, rear panel, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm
Width1.200 mm
Height1.800 mm
Depth400 mm
Mounting plate dimensions (W x H)1.099 mm x 1.696 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK10
Number of doors2
NoteDue to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)486,6


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8456000, EAN: 4028177920156
