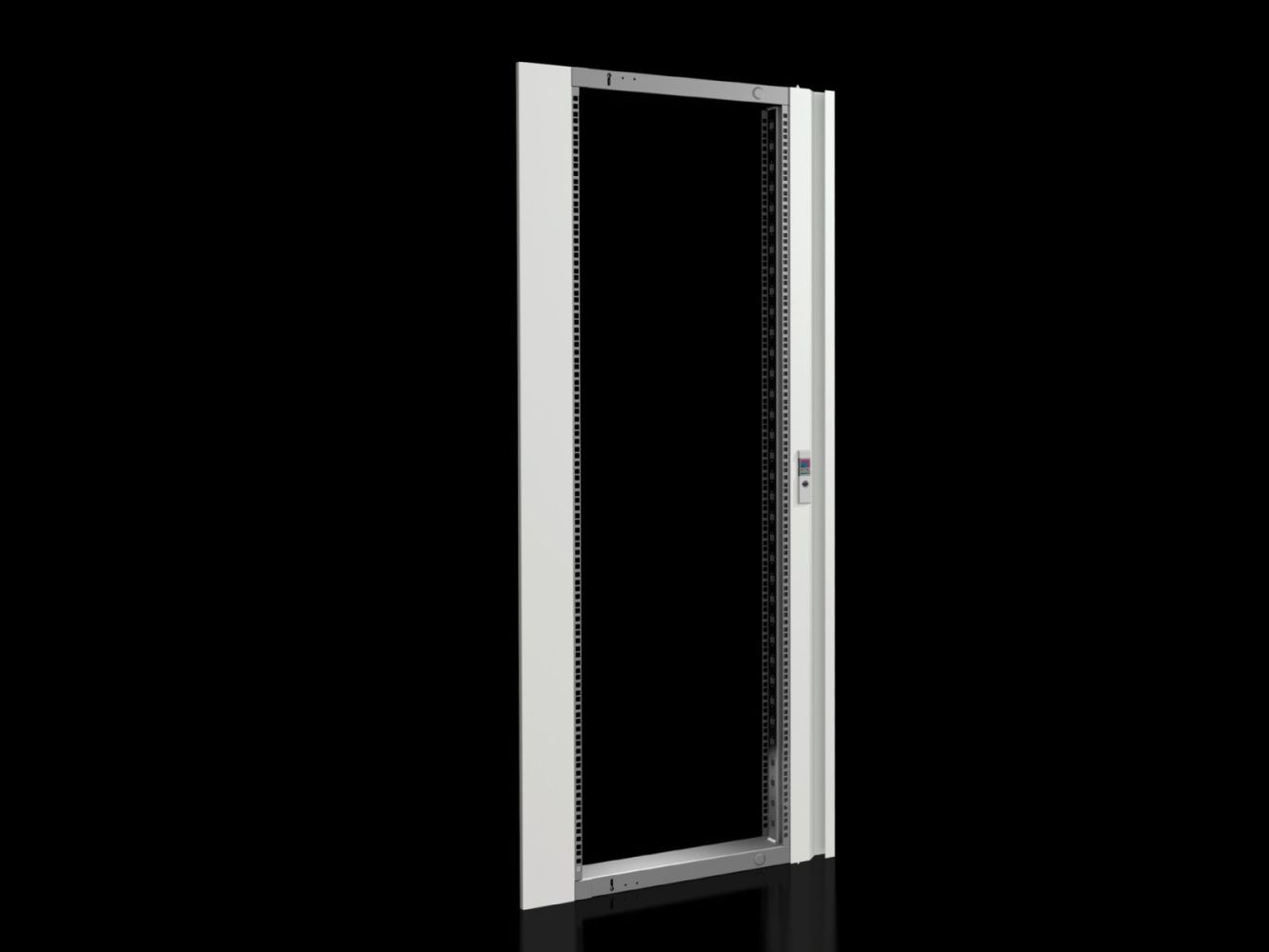

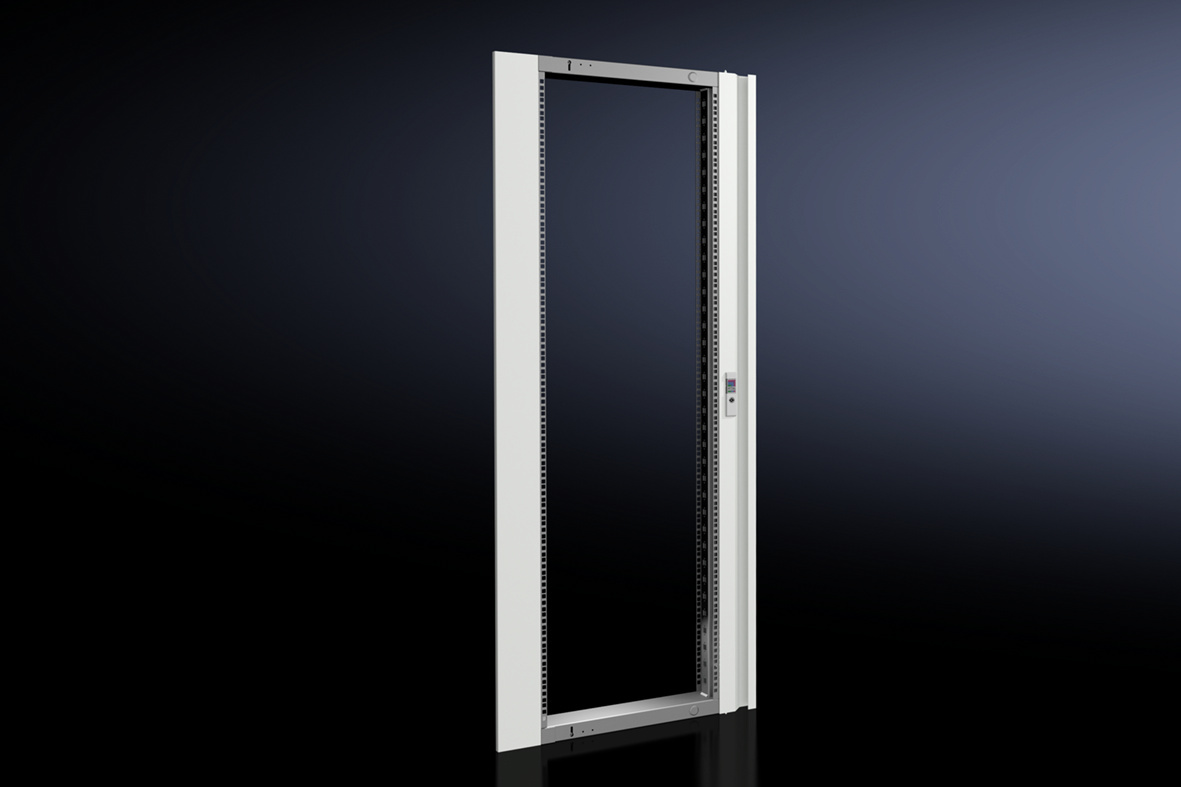

Rittal 8619032 VX swing frame large, trim panel on both sides, W: 800 mm
|
-7% 351,56 EUR 377,38 EUR |
|
|
( 418,36 EUR incl. VAT ) ≈ £294.26 | ≈ $386.36 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441935 |
| Mfg Part No: | 8619032 |
| UPC/EAN: | 4028177920354 |
| Weight: | 18.7 kg |
| Type: | VX 8619.032 |
Product information for Rittal 8619032:
Applications
The swing frame is used for integrating standard 48,3 cm ( 19 inch ) devices into industrial VX enclosures. It is particularly suitable for installations with limited space or when flexible accessibility to mounted components is required. Installation is carried out in enclosures with a width of 800 mm and a height of at least 1,800 mm, where the 35 HE define the maximum installation length for the devices. The flanges on both sides ensure a clean front design and protect the devices from dust and mechanical impacts.
Functions and equipment in detail
The swing frame is supplied with a locking system and a 130° hinge, enabling secure and stable latching. The flange can be opened up to 130°, ensuring good access to the mounted devices. The mounting hardware for attaching to the mounting kit is also included, facilitating installation on the corresponding enclosure structures. The use of galvanized sheet steel for the frame ensures high corrosion resistance, while the painted flange in RAL 7035 provides a uniform and durable surface.
Technology explained simply
The construction of the swing frame allows mounting of 48,3 cm ( 19 inch ) devices in an industrial enclosure, where the flanges on both sides serve both aesthetic and functional purposes. The 130° opening of the frame provides sufficient space for maintenance work without having to open the entire enclosure. The galvanization of the frame protects against corrosion, especially in humid or industrial environments. The RAL 7035 color is a gray, neutral tone that integrates well into industrial installations. The 35 HE correspond to a total height of approximately 1,575 mm, defining the maximum installation length for the devices.
Compatibility and accessories
The swing frame is specifically designed for VX enclosures with a width of 800 mm. Depending on the expansion configuration, system chassis with dimensions of 23 x 64 mm are required for mounting. Suitable accessories include lock inserts made of zinc die-cast, as well as various VX system chassis in widths of 400, 500, 600, and 800 mm. Additionally, mounting kits for swing frames in widths of 800 mm and 1,200 mm are available.
Mounting and installation
Installation is carried out at the designated mounting points in the enclosure, using the included mounting materials. Depending on the expansion configuration, system chassis with dimensions of 23 x 64 mm are required to ensure secure mounting. Installation requires no additional tools beyond standard screwdrivers or wrenches. The flanges on both sides are attached after mounting the devices, with the locking system and 130° hinge ensuring secure latching.
Advantages in operation
The swing frame enables flexible and secure mounting of 48,3 cm ( 19 inch ) devices in industrial enclosures. The flanges on both sides ensure a clean and professional front design, while the 130° opening allows easy access to the devices. The galvanization of the frame increases the product's lifespan in demanding environments. The use of standard 48,3 cm ( 19 inch ) dimensions ensures compatibility with a wide range of devices. Installation is simple and requires no special tools, accelerating maintenance and installation.
| General | |
| Model | Blind plate on both sides |
| Material | steel sheet |
| Surface protection | Frame: galvanised, faceplate: painted |
| Colour | Shutter: RAL 7035 |
| Scope of delivery | Including closure system, 130° hinge, material for mounting on installation kit |
| Mounting note | Depending on the expansion situation, system chassis 23 x 64 mm are required |
| Note | To lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail" |
| Suitable for | Width: = 800 mm, Height: ≥ 1,800 mm |
| Height units | 35 HE |
Questions & answers
What is the delivery time of Rittal 8619032 VX swing frame large, trim panel on both sides, W: 800 mm?
The article Rittal 8619032 VX swing frame large, trim panel on both sides, W: 800 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619032 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8619032 VX swing frame large, trim panel on both sides, W: 800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619032 VX swing frame large, trim panel on both sides, W: 800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
