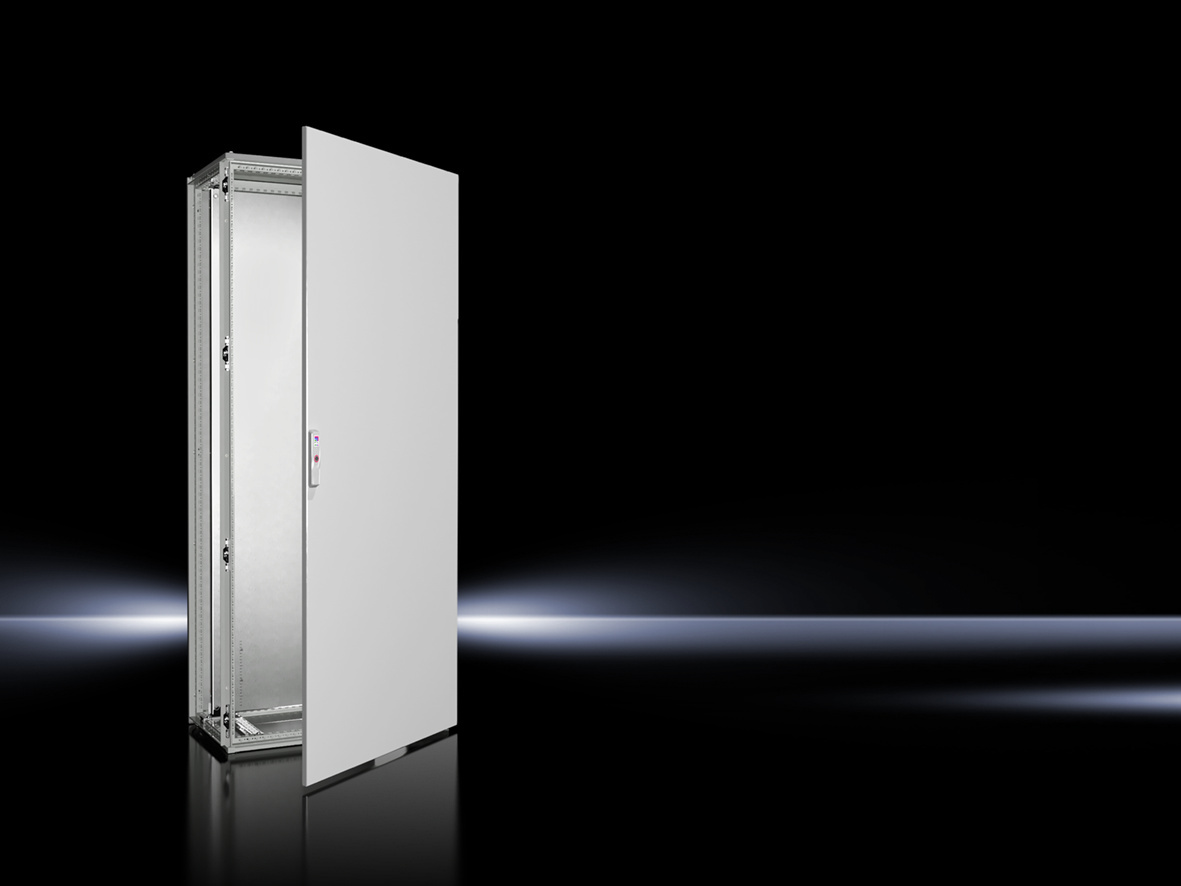

Rittal 8884000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x400 mm,
|
579,88 EUR 581,90 EUR |
|
|
( 690,06 EUR incl. VAT ) ≈ £485.36 | ≈ $637.29 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440180 |
| Mfg Part No: | 8884000 |
| UPC/EAN: | 4028177813922 |
| Weight: | 109.2 kg |
| Type: | VX 8884.000 |
Product information for Rittal 8884000:
Applications
This enclosure system is suitable for use in production plants, automation technology, power supply systems, and other industrial applications where high mechanical load capacity and protection against dust and splashing water are required. The protection class IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making it suitable for outdoor use as well. Additionally, the unit meets protection classes NEMA 1 and NEMA 12, as well as Type ratings Type 1 and Type 12 according to UL 50E. The IK code IK10 indicates high mechanical strength against impacts such as shocks and vibrations.
Functions and Equipment in Detail
The enclosure system consists of a frame made of sheet steel with a wall thickness of 1.5 mm, a door made of 2.0 mm sheet steel, rear panel, roof plate, and floor panels, also made of 1.5 mm sheet steel. The mounting plate is made of 3.0 mm sheet steel and provides a stable base for mounting components. The frame surface is dip-primed, while the door, roof, and rear panel are additionally powder-coated externally using a textured lacquer. The mounting plate and floor panels are galvanized to prevent corrosion. The door is fitted with a PU foam seal ensuring a tight closure and features a four-point locking rod lock with a 3 mm double-barrel lock insert according to DIN 43668. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame with closed and profiled hollow profiles, which are perforated on a 25 mm grid. This allows for flexible mounting of components and quick interior fitting. The horizontal profiles feature an additional groove above the seal, serving as protection against splashing water. Integrated blind rivet nuts M6 enable protection-class-compliant fastening of fittings. The mounting plate is depth-adjustable in 25 mm increments and includes integrated plastic glides as well as reusable mounting rails. The rear panel, roof plate, and floor panels are electrically connected to the frame, ensuring automatic equipotential bonding according to DIN 62 208 and enabling installation of earthing straps.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for installation and operation. These include, for example, levelling feet with an adjustment height of 18–43 mm, mounting plate spacers, C-profile rails, transport eyes, dust protection strips, cable entry ferrules in various diameters, multi-point locking systems for padlocks, circuit diagram pockets, monitor mounts with VESA connection, comfort handles, and system chassis in various sizes. These components enable an adaptable and secure installation.
Mounting and Installation
Mounting is performed via the integrated mounting levels, which are accessible from both inside and outside. The mounting plate is depth-adjustable and provides a stable base for installing components. The floor panels are divided into three parts, removable and replaceable, allowing flexible adaptation to different floor conditions.
Advantages in Operation
The enclosure system offers high mechanical stability, reliable protection against dust and splashing water, and easy and quick mounting. The integrated mounting levels and the 25 mm perforation grid facilitate component installation. The conductive connection between flat parts and the frame ensures safe equipotential bonding. The toolless repositioning of the door hinge side and the extendable door opening increase flexibility during maintenance and servicing. The use of galvanized and powder-coated components ensures high corrosion resistance and long service life.
The delivery includes the enclosure frame, door, roof plate, rear panel, floor panels, mounting plate, two mounting rails 18 x 39 mm, and the lock with 3 mm double-barrel insert. The surface is coated as specified, and protection classes IP 55, NEMA 1, NEMA 12, Type 1, Type 12, and IK10 are complied with. The load capacity of the enclosure system is up to 15,000 N. The color of the enclosure system is RAL 7035. The PCF values (Cradle-to-Gate) amount to 311.85 kg CO2 eq (Category B), calculated approximately based on product weight and self-declared.
The enclosure system is designed for industrial environments and offers a robust, flexible, and maintenance-friendly solution for enclosure construction. The integrated functions and compatibility with various accessories enable individual adaptation to specific requirements.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 311.85 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
