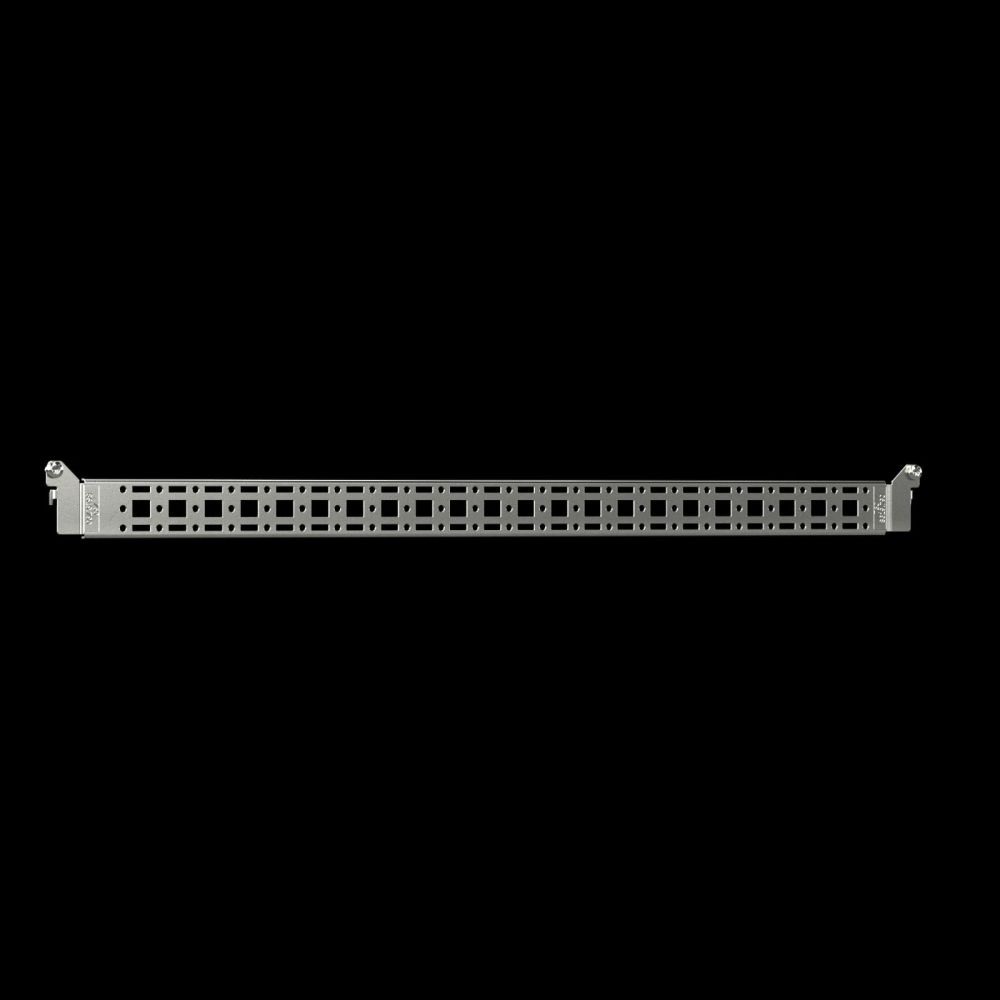

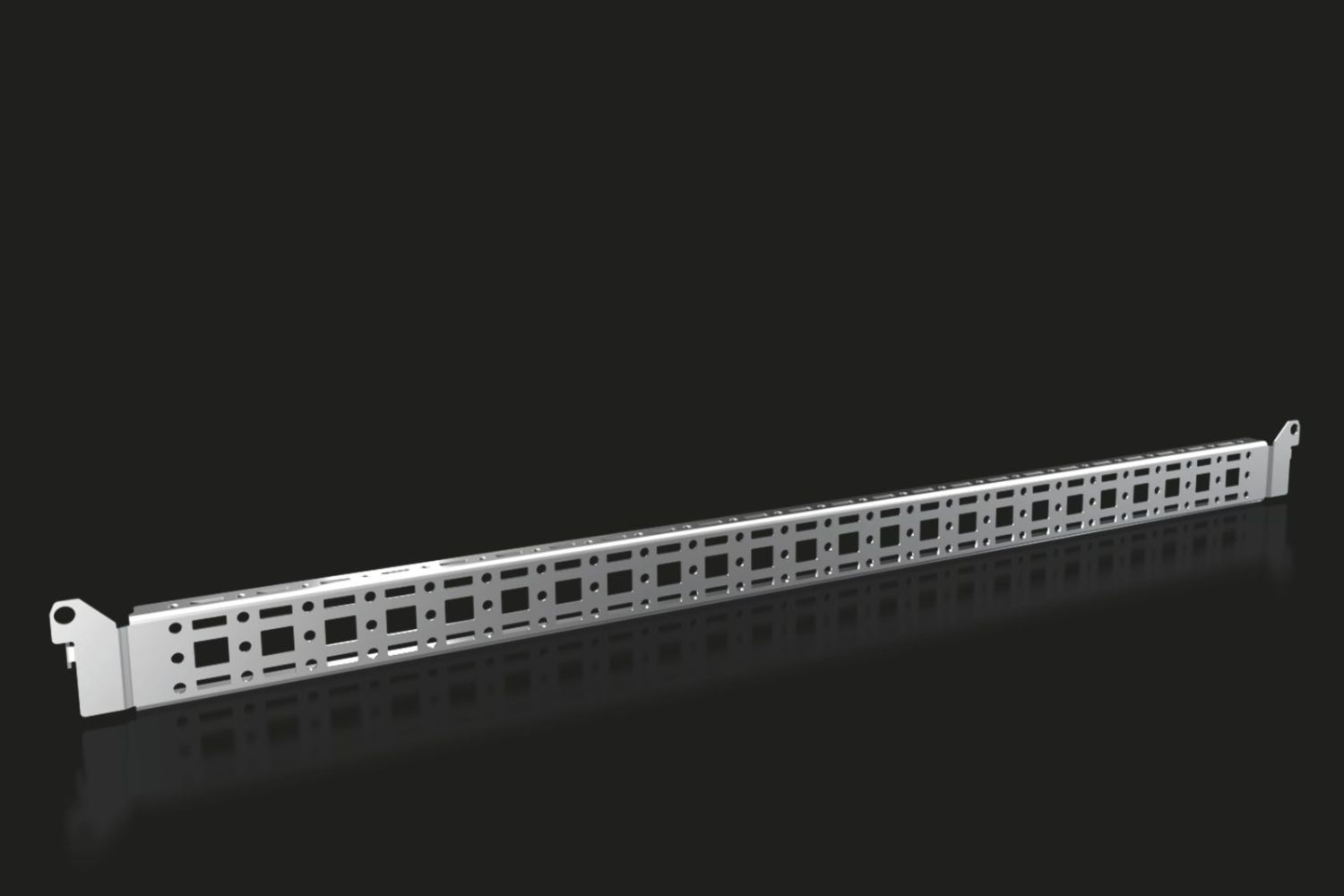

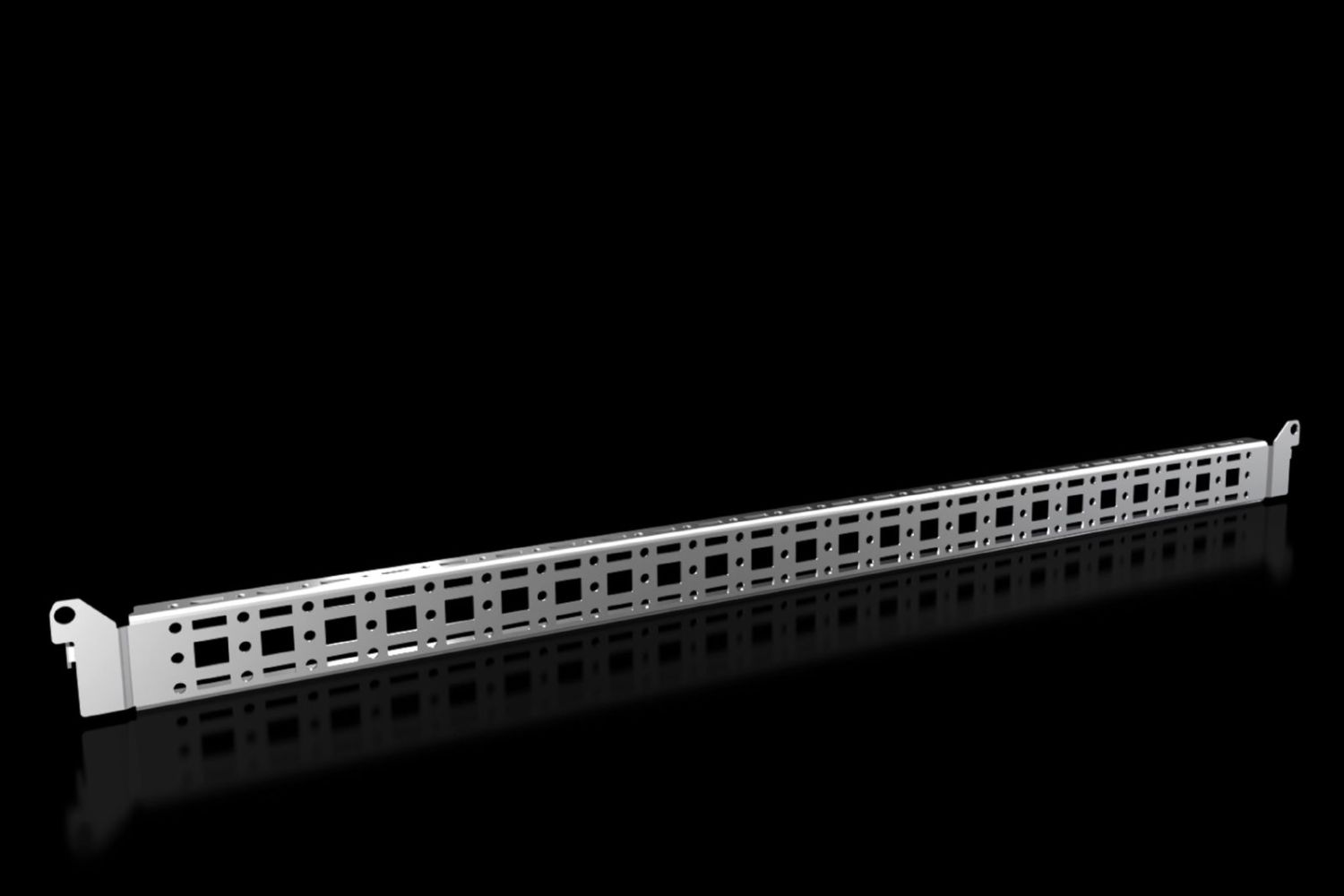

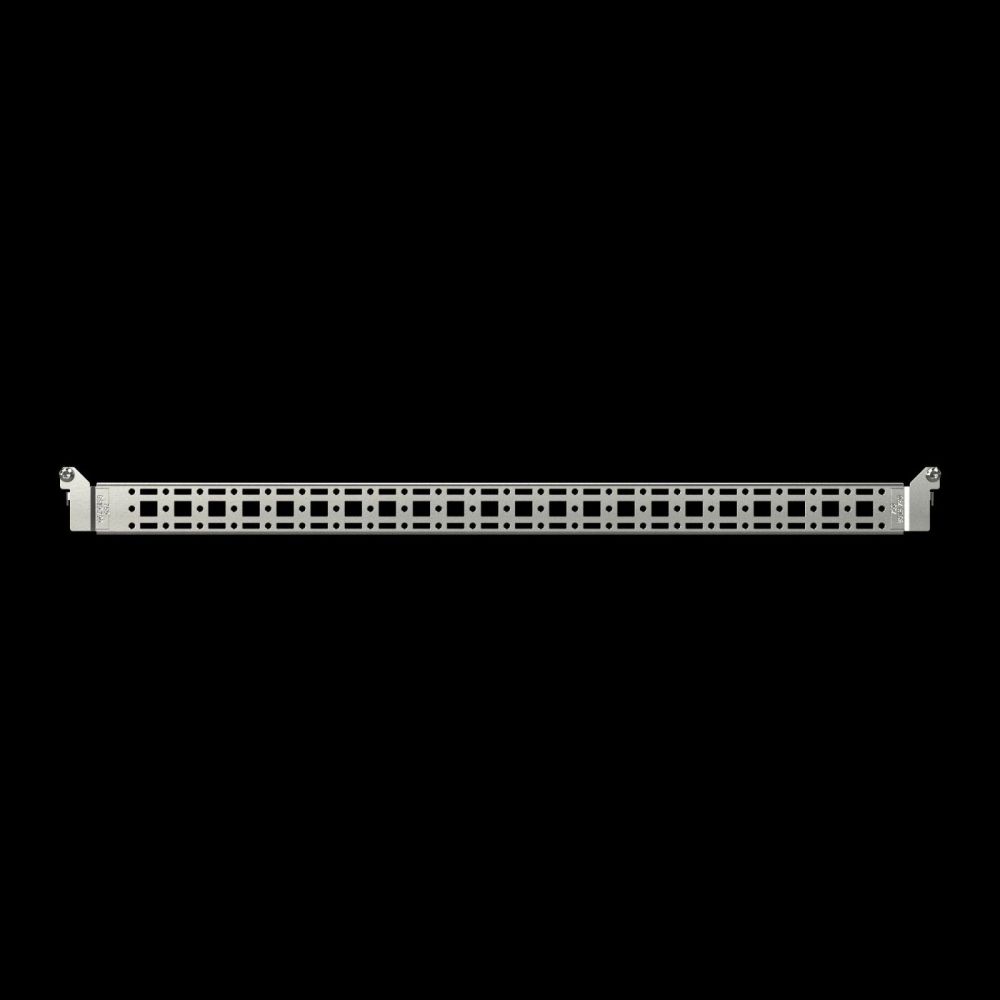

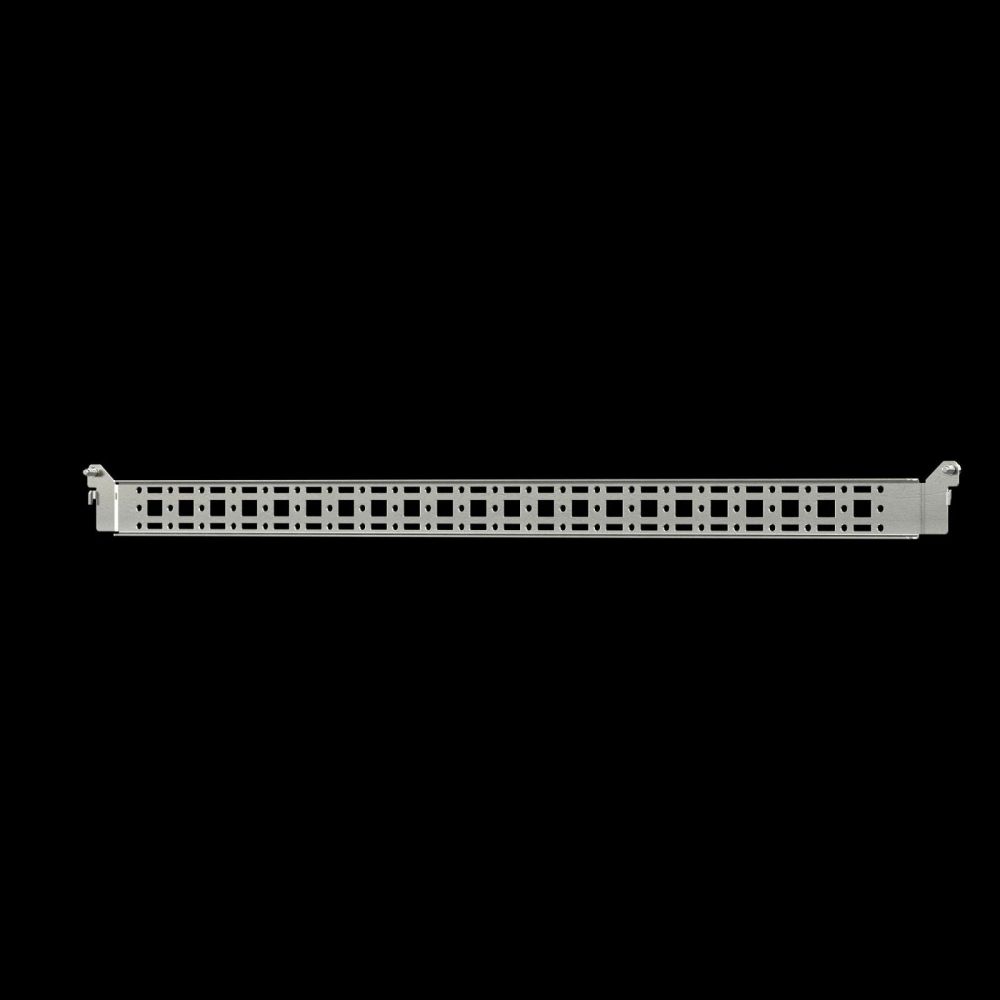

Rittal 8619730 VX system chassis 14 x 39 mm, door width: 800 mm,
|
51,74 EUR |
|
|
( 61,57 EUR incl. VAT ) ≈ £43.31 | ≈ $56.86 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1349705 |
| Mfg Part No: | 8619730 |
| UPC/EAN: | 4028177924666 |
| Weight: | 1.588 kg |
| Type: | VX 8619.730 |
Product information for Rittal 8619730:
Applications
This system chassis is suitable for various enclosure types, including VX, VX SE, PC, AX, AX stainless steel, AX plastic, stand console CX and console base CX. It can be installed in enclosures with a door width or enclosure height of 800 mm. When mounted in a VX plinth, a plinth width of 850 mm is required, with mounting to the plinth corner pieces. Use in AX sheet steel requires combination with the AX internal mounting rail.
Functions and Equipment in Detail
The chassis features a mounting point spacing of 675 mm, allowing flexible positioning of components. It is supplied in a pack of 4 pieces and includes mounting hardware. Installation is carried out using the included mounting elements. For installation in AX sheet steel, the use of the AX internal mounting rail is required to ensure secure mounting.
Technology Explained Simply
The system chassis is made of sheet steel protected against corrosion by galvanisation. The dimensions of 14 x 39 mm allow stable mounting of cable ducts and other components. The mounting points spaced at 675 mm provide sufficient space for mounting various components. The galvanised surface ensures longer service life, especially in damp or corrosive environments.
Compatibility and Accessories
The chassis is compatible with enclosure types VX, VX SE, PC, AX, AX stainless steel, AX plastic, stand console CX and console base CX. It can be installed in enclosures with a door width or enclosure height of 800 mm. When used in a VX plinth, a plinth width of 850 mm is required. Mounting in AX sheet steel requires combination with the AX internal mounting rail. For custom component installation on the system chassis, sheet metal screws or thread-forming screws M5 are required.

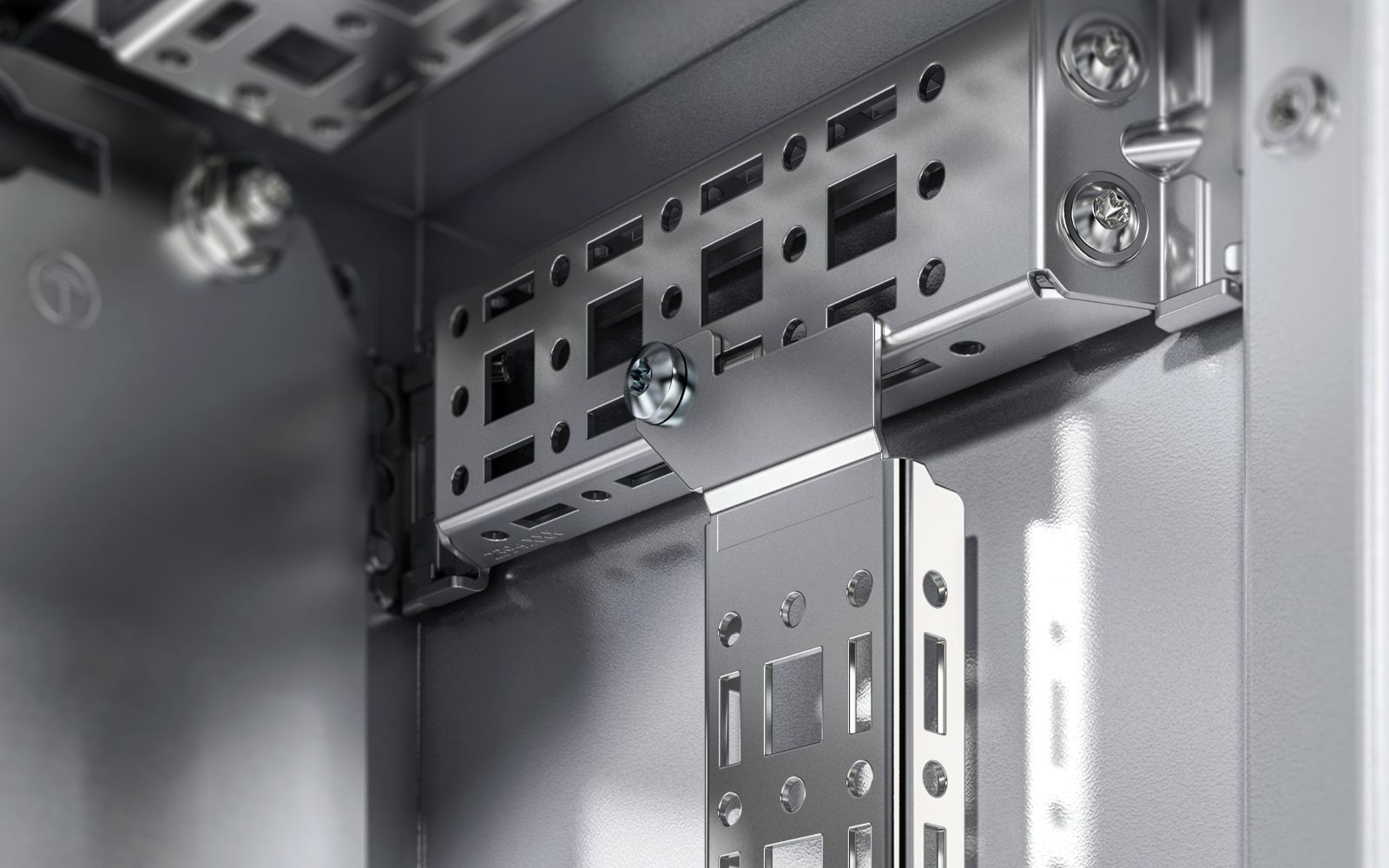

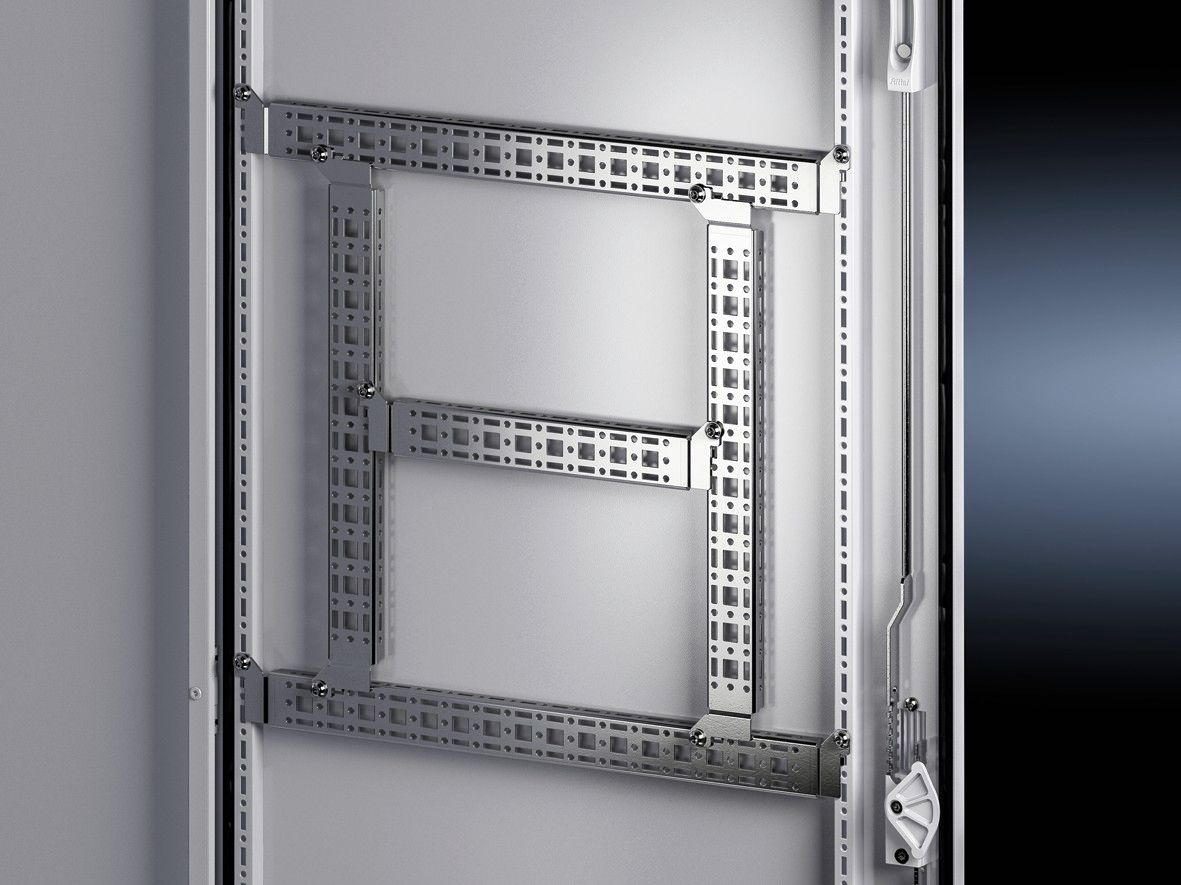

Mounting and Installation
Installation is carried out using the included mounting materials. When used in AX sheet steel, combination with the AX internal mounting rail is necessary. The mounting points spaced at 675 mm allow flexible positioning of components. Installation is performed in enclosures with a door width or enclosure height of 800 mm.
Advantages in Operation
The system chassis provides a stable and secure mounting option for cable ducts, cable conduit holders and other door inserts. The galvanised surface ensures increased corrosion resistance. The flexible mounting in various enclosure types and the use of mounting materials simplify installation and maintenance in industrial applications. The pack of 4 pieces enables efficient fitting of larger enclosures.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Distance between mounting points | 675 mm |
| Suitable for door width | 800 mm |
| Mounting options VX | In door width 800 mm |
| Mounting options VX SE | In door width 800 mm |
| Mounting options AX | In housing height 800 mm, in combination with the rail for indoor installation AX |
| Mounting options AX stainless steel | In housing height 800 mm |
| Mounting options AX plastic | In door width 800 mm |
| PC mounting options | In door width 800 mm |
| Mounting options CX | In door width 800 mm |
| Mounting options VX socket | In base width 850 mm when mounted on base corner pieces |
| Mounting note | For installation in AX sheet metal only in conjunction with mounting rail for indoor installation AX |
| Note | For expansion with own components on the system chassis, sheet metal screws or thread-forming screws M5 are required |
| Suitable for | Cabinet type: VX, VX SE, PC, AX, AX plastic, floor-standing cabinet CX, CX base unit, suitable for width or height or depth: 800 mm |
| PCF/VE (Cradle-to-Gate) | 10,52 |
