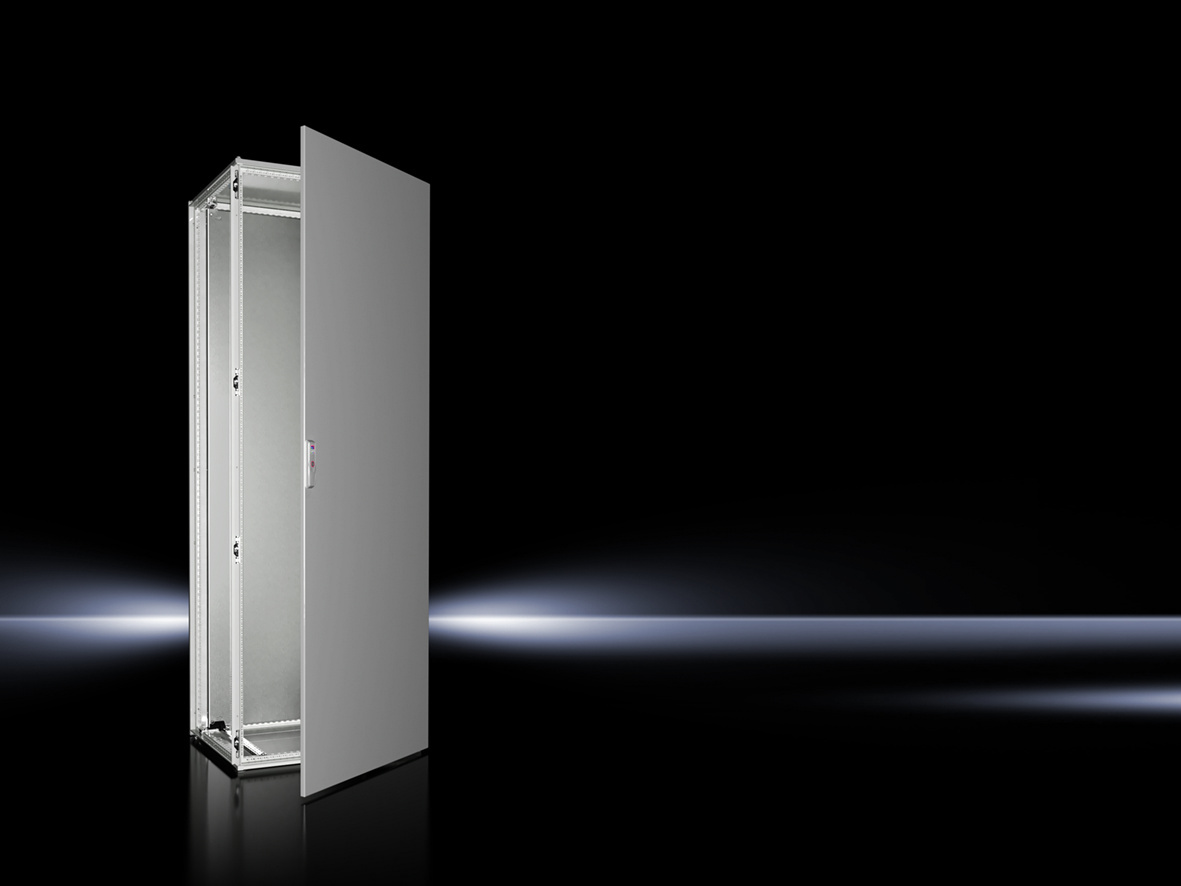

Rittal 8826000 VX bayed enclosure system, 1-door, W x H x D: 800x2200x600 mm
|
700,35 EUR |
|
|
( 833,42 EUR incl. VAT ) ≈ £586.19 | ≈ $769.68 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441160 |
| Mfg Part No: | 8826000 |
| UPC/EAN: | 4028177813878 |
| Weight: | 135.8 kg |
| Type: | VX 8826.000 |
Product information for Rittal 8826000:
Applications
This enclosure system is suitable for indoor use as well as in environments with increased contamination risk, where a protection rating of IP 55 according to EN 60 529 is required. This protection rating ensures dust-tightness and protection against water sprayed from any direction, making it suitable for industrial plants, machine controls, and distribution enclosures. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor environments and areas with light contamination. The IK code IK10 indicates high mechanical resistance against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure system consists of a frame made of sheet steel with a wall thickness of 1.5 mm, a door made of 2.0 mm sheet steel, a roof, rear panel, and base plates, also made of 1.5 mm sheet steel. The mounting plate is made of 3.0 mm sheet steel and provides a stable base for mounting components. The frame surface is dip-primed, while the door, roof, and rear panel are dip-primed and externally powder-coated with a textured finish in RAL 7035. The mounting plate and base plates are galvanized, providing an additional corrosion protection layer. The door is fitted with a PU foam seal and features a four-point locking rod lock with double-bar insert according to DIN 43668. The door hinges are tool-free adjustable from right to left, and the door opening angle can be extended from 130° to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The construction of the enclosure system allows for flexible mounting of components. The mounting plate is depth-adjustable in 25 mm increments and is secured using integrated plastic glides and reusable mounting rails. The entire construction features a 25 mm grid pattern, enabling mounting of cage nuts and metric screws up to M8. The rear panel, roof, and base plates are electrically conductive to the frame, ensuring automatic equipotential bonding according to DIN 62 208 and simplifying electrical earthing. A QR code is printed on the roof, door, mounting plate, rear panel, and type plate to enable unique identification.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for internal installation. These include circuit diagram pockets for various sub-assemblies, levelling feet with an adjustment height of 18–43 mm, C-profile rails, transport eyes, dust protection strips, monitor brackets with VESA mounting, comfort handles for various locking systems, mounting brackets, cable entry ferrules in various diameters, multi-point locking mechanisms, and a multitool. These accessories enable adaptable and secure installation of controls, monitors, cables, and other components.
Mounting and Installation
Mounting is performed using the integrated mounting levels and the 25 mm grid pattern. The mounting plate is depth-adjustable and can be secured using the included mounting rails 18 x 39 mm. The base plates are split and removable, allowing flexible adaptation to different floor conditions. The enclosure construction is bayable on all sides and can withstand a load of up to 15,000 N, ensuring secure fastening to substrates. The integrated blind rivet nuts M6 allow protection-rated fastening of fittings to the profile.
Advantages in Operation
The enclosure system offers high mechanical stability, reliable protection rating, and flexible mounting options. The powder-coated surface in RAL 7035 ensures an attractive appearance and high corrosion resistance. The integrated mounting plate and depth-adjustable mounting elements simplify installation and maintenance. The electrical conductivity between the frame and flat parts ensures safe equipotential bonding, which is crucial for safety in electrical installations. The tool-free adjustment of door hinges and door opening angles increases flexibility during installation and maintenance. The use of sheet steel in various wall thicknesses ensures high strength and durability of the enclosure system.
The Rittal VX 8826.000 is therefore a reliable and versatile enclosure system for industrial applications, designed for quality, safety, and ease of maintenance.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 800 mm |
| Height | 2.200 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 699 mm x 2.096 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 379.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8826000 VX bayed enclosure system, 1-door, W x H x D: 800x2200x600 mm?
The article Rittal 8826000 VX bayed enclosure system, 1-door, W x H x D: 800x2200x600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8826000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8826000 VX bayed enclosure system, 1-door, W x H x D: 800x2200x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8826000 VX bayed enclosure system, 1-door, W x H x D: 800x2200x600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
