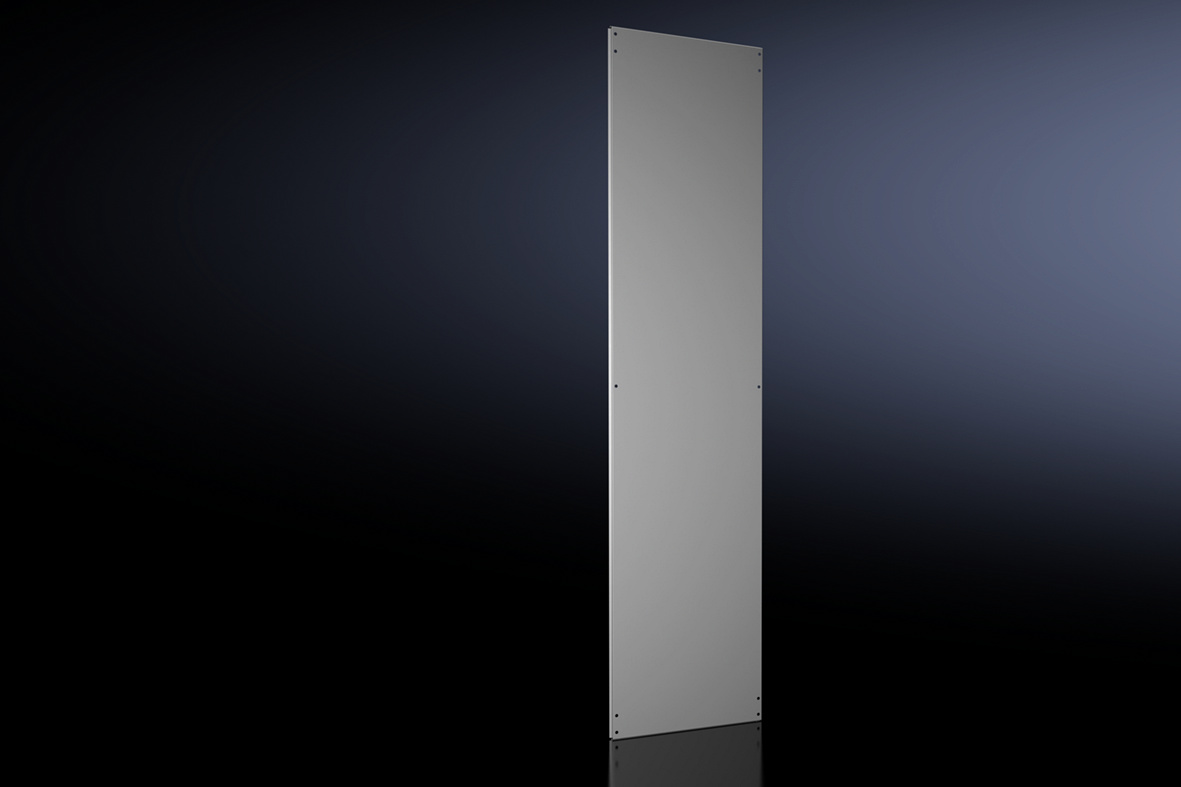

Rittal 8609207 VX partition panel, height: 2200 mm, width: 600 mm

Your rating:
Average rating
product review for Rittal 8609207 VX partition panel, height: 2200 mm, width: 600 mm
( 4.3 / 5 ) 24 ratings
Rittal 8609207
This image may differ from the desired article.
Rittal 8609207Rittal 8609207Rittal 8609207
102,35 EUR
( 121,80 EUR incl. VAT )
≈ £85.67  |  ≈ $112.48
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8609207 VX partition panel, height: 2200 mm, width: 600 mm
Datasheet:file_download Download
Lieske Part No.:1440938
Mfg Part No: 8609207
UPC/EAN: 4028177817814
Weight:14.5 kg
Type:VX 8609.207

Product information for Rittal 8609207:

The Rittal VX 8609.207 partition panel is a system accessory for enclosures of type VX, specifically designed for compartmentalizing individual enclosure cells. The product serves to structurally divide the interior space of enclosures, enabling the spatial separation of different electrical or electronic components. The partition panel is designed for enclosures with a height of 2,200 mm and a depth of 600 mm, and is mounted on the outer mounting plane, leaving the inner plane free for additional installations. Installation is carried out using included mounting hardware, which is part of the delivery scope.

Applications
The partition panel is particularly suitable for spatial separation of devices with differing requirements regarding cooling, electromagnetic interference, or accessibility. A typical application example is the installation of frequency converters, whose cooling fins are oriented outward to optimize heat dissipation. In such cases, the partition panel can also be mounted on the rear side of the enclosure, enabled by the symmetrical construction of the frame system. This allows for flexible use of the enclosure interior and integration of devices requiring specific mounting positions.

Functions and Equipment in Detail
The partition panel is made of steel sheet with a thickness of 1.5 mm and is galvanized, ensuring high corrosion resistance and long service life. The continuous, double hemming provides additional stability and also serves as a mounting surface for a seal, ensuring effective compartmentalization. The protection class IP 54 according to IEC 60 529 protects against dust and splashing water, making the partition panel suitable for use in industrial environments where some contamination or moisture exposure is expected.

Technology Explained Simply
The construction of the partition panel is based on a symmetrical frame system, allowing mounting on either the front or rear side of the enclosure. The double hemming along the edge increases mechanical strength and ensures a clean, tight connection when the partition panel is installed in the enclosure. The galvanized surface protects the material from oxidation and extends service life, especially in moist or slightly corrosive environments. Protection class IP 54 means the partition panel is protected against dust and splashing water, making it suitable for use in production halls or other industrial spaces.

Compatibility and Accessories
The partition panel is specifically designed for enclosures of type VX with a height of 2,200 mm and a depth of 600 mm. For baying multiple enclosures in combination with a partition panel, additional components are required: either the internal baying bracket (part number 8617500) or the external baying connector (part number 8617502). These components enable a secure and stable connection between enclosures. Other compatible accessories available in the range include the VX external baying connectors made of steel sheet with a length of 1,200 mm, as well as the internal VX baying bracket in a pack of 6 pieces.

Installation and Mounting
Mounting of the partition panel is carried out on the outer mounting plane of the enclosure. The inner mounting plane remains free to allow installation of additional components or devices. The included mounting hardware facilitates installation, with the exact mounting instructions corresponding to the respective enclosure system. When baying multiple enclosures, the use of the specified baying brackets or connectors is necessary to ensure a stable connection.

Operational Advantages
The partition panel provides clear spatial separation within the enclosure, simplifying maintenance and inspection of individual devices. The ability to mount the partition panel at the rear increases flexibility in device arrangement, especially for devices with high heat dissipation. Protection class IP 54 ensures reliable protection against environmental influences, enhancing operational safety. The galvanized surface ensures long service life and low maintenance requirements.

General
MaterialSheet steel, 1.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable forEnclosure type: VX, height: = 2.200 mm, depth: = 600 mm
Mounting optionsInstallation is on the outer mounting plane; the inner plane remains free for further expansion
Mounting noteFor mounting in combination with a partition, the mounting bracket inside 8617500 or the mounting connector outside 8617502 is required
Degree of protection IP according to IEC 60 529IP 54


Product data sheet
Datasheet for Rittal 8609207, EAN: 4028177817814

Questions & answers

What is the delivery time of Rittal 8609207 VX partition panel, height: 2200 mm, width: 600 mm?

The article Rittal 8609207 VX partition panel, height: 2200 mm, width: 600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8609207 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8609207 VX partition panel, height: 2200 mm, width: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8609207 VX partition panel, height: 2200 mm, width: 600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
