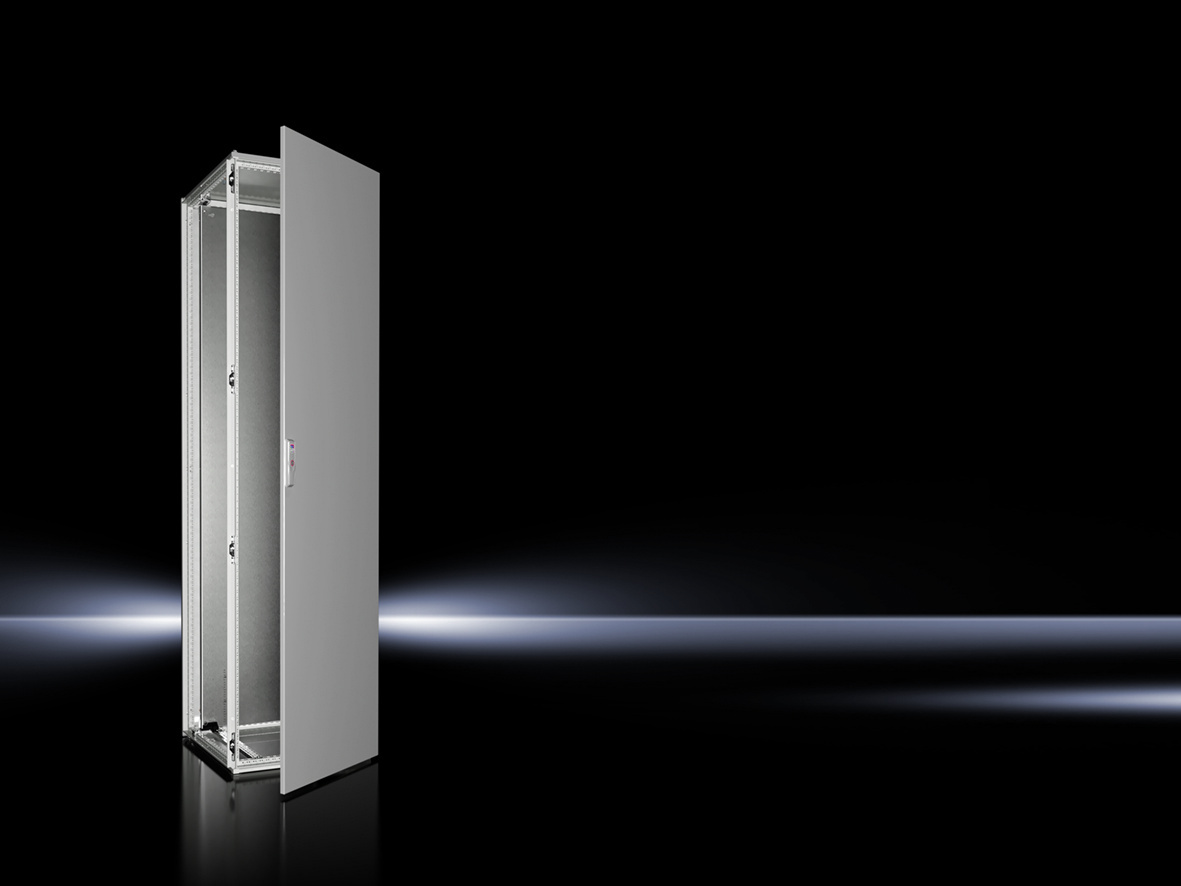

Rittal 8626000 VX bayed enclosure system, 1-door, W x H x D: 600x2200x600 mm
|
661,25 EUR |
|
|
( 786,89 EUR incl. VAT ) ≈ £553.47 | ≈ $726.71 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440999 |
| Mfg Part No: | 8626000 |
| UPC/EAN: | 4028177813762 |
| Weight: | 106 kg |
| Type: | VX 8626.000 |
Product information for Rittal 8626000:
Applications
This enclosure system is designed for use in industrial plants, such as machine building, manufacturing technology, or automation technology. It is suitable for modular construction of enclosures that can be bayed and offer high mechanical load capacity up to 15,000 N. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for use in damp or dusty environments. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), comply with international standards for indoor use and lightly contaminated environments. The IK code IK10 indicates high mechanical impact resistance, making the enclosure system suitable for environments with mechanical stress.
Functions and Equipment in Detail
The enclosure system consists of a steel sheet frame with a wall thickness of 1.5 mm, a roof made of steel sheet (1.5 mm), a door made of steel sheet (2.0 mm), a rear panel (1.5 mm), and floor sheets (1.5 mm). The mounting plate is made of steel sheet with a wall thickness of 3.0 mm. The surface of the frame is dip-primed, while the door, roof, and rear panel are dip-primed and externally powder-coated with a textured lacquer in RAL 7035. The mounting plate and floor sheets are galvanized. The delivery includes the frame, door, roof plate, rear panel, floor sheets, mounting plate, two mounting rails (18 x 39 mm), and the 3 mm double bar lock. The floor sheets are triple-divided, removable, and replaceable. The rear panel and roof plate are removable and fitted with PU foam seals. The rear panel features a positioning aid, and the roof includes M12 mounting screws.
Technology Explained Simply
The symmetrical profile frame construction enables even load distribution and easy assembly. The integrated blind rivet nuts M6 on the profiles allow for protection-rated fastening of fittings. The horizontal profiles feature a groove above the seal, providing additional protection. The entire construction has rounded edges, facilitating handling. The mounting plate is C-flanged on the sides and depth-adjustable via integrated plastic gliding pieces. The mounting rails are reusable and allow flexible adjustment of mounting height. The electrical conductivity between frame, rear panel, roof, and floor sheets ensures automatic equipotential bonding according to DIN 62 208 and is prepared for earthing strap mounting.
Compatibility and Accessories
The enclosure system is baying-capable and can be extended with various accessories. Compatible accessories include levelling feet M12 (adjustable height 18–43 mm), cable routing spaces, transport eyes, dust protection strips, TFT/monitor mounts with VESA connection, comfort handles, C-profile rails, mounting brackets, cable entry ferrules (various diameters, IP 55), multi-locking systems, circuit diagram pockets (T600 mm, T90 mm), multitools, and partial mounting plates in various sizes (500x775 mm, 500x700 mm, 500x500 mm, 500x400 mm). These components enable individual adaptation of the enclosure system to specific requirements.
Mounting and Installation
Mounting is performed via the integrated mounting levels and the 25 mm perforation. The mounting plate is depth-adjustable and can be adapted using the reusable mounting rails. The floor sheets are removable, enabling flexible installation. The door can be toollessly extended to 180°, facilitating access to components. The rear panel and roof plate are removable and can be detached for component installation. Ground mounting is achieved via the integrated floor frame with floor reinforcement.
Operational Advantages
The enclosure system offers high mechanical stability, easy mounting and maintenance, and high protection rating. The modular design enables flexible expansion and adaptation to different requirements. The integrated mounting levels and 25 mm perforation simplify component installation. The electrical conductivity between components ensures safe equipotential bonding. The use of sheet steel with various wall thicknesses ensures high strength and durability. The powder-coated surface in RAL 7035 provides good corrosion protection and an attractive appearance. Integrated QR codes on the roof, door, mounting plate, rear panel, and nameplate enable unique identification and labeling of the enclosure system.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 600 mm |
| Height | 2.200 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 499 mm x 2.096 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 308.77 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8626000 VX bayed enclosure system, 1-door, W x H x D: 600x2200x600 mm?
The article Rittal 8626000 VX bayed enclosure system, 1-door, W x H x D: 600x2200x600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8626000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8626000 VX bayed enclosure system, 1-door, W x H x D: 600x2200x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8626000 VX bayed enclosure system, 1-door, W x H x D: 600x2200x600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
