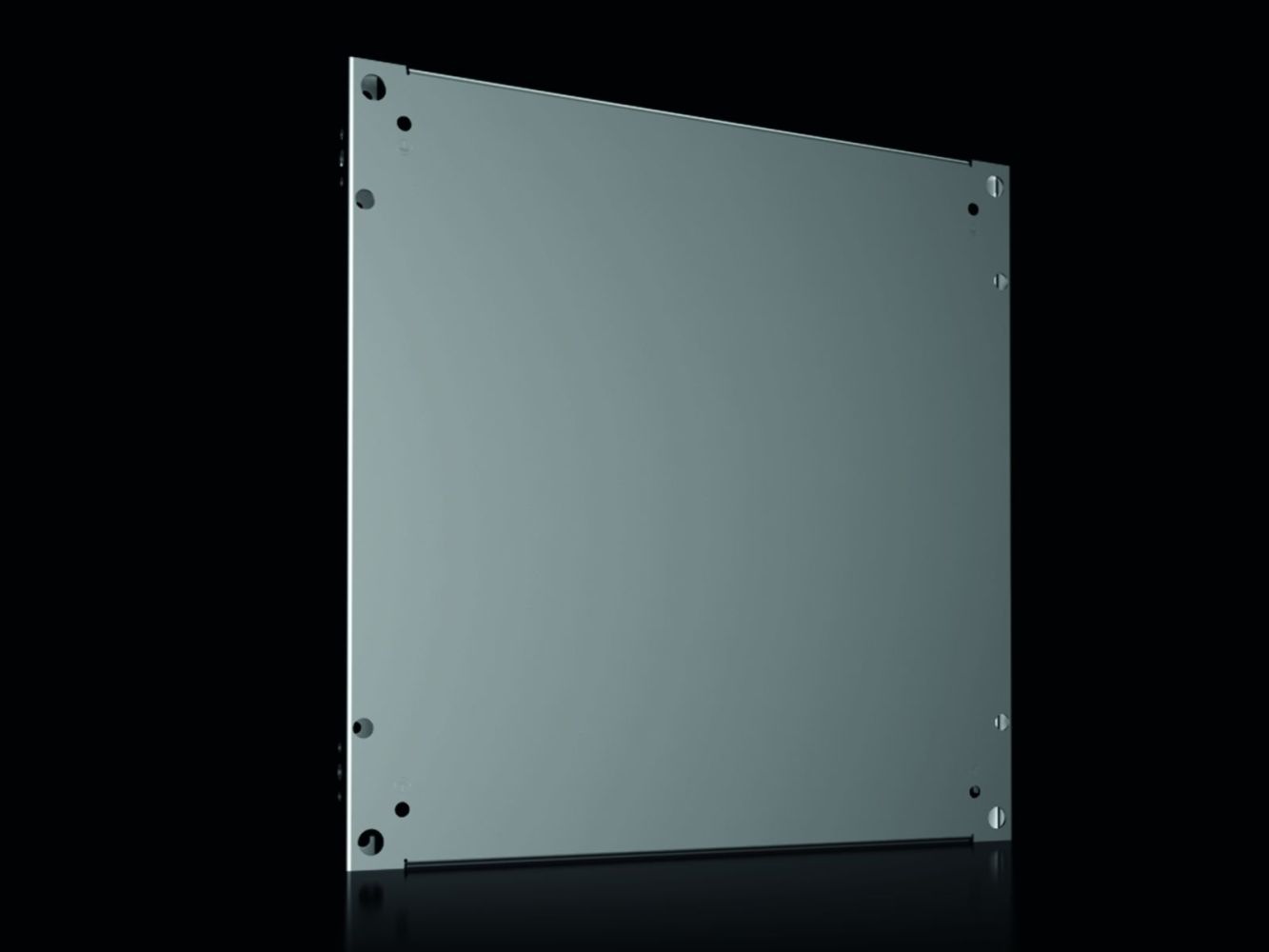

Rittal 8617530 VX partial mounting plate, W x H: 500x500 mm

Your rating:
Average rating
product review for Rittal 8617530 VX partial mounting plate, W x H: 500x500 mm
( 4.6 / 5 ) 13 ratings
Rittal 8617530
This image may differ from the desired article.
Rittal 8617530Rittal 8617530Rittal 8617530
47,15 EUR
( 56,11 EUR incl. VAT )
≈ £39.46  |  ≈ $51.82
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617530 VX partial mounting plate, W x H: 500x500 mm
Datasheet:file_download Download
Lieske Part No.:1440880
Mfg Part No: 8617530
UPC/EAN: 4028177919389
Weight:6.8 kg
Type:VX 8617.530

Product information for Rittal 8617530:

The Rittal VX 8617.530 is a partial mounting plate made of sheet steel with a thickness of 2.5 mm, specifically developed for use in enclosures of the VX, VX SE and PC series. The plate has dimensions of 500 mm width and 500 mm depth and is intended for mounting additional components within the enclosure. It enables flexible installation and provides a stable platform for various applications in industrial environments.

Applications
The partial mounting plate is designed for enclosures with a door width of 600 mm and thus fits into enclosures of types VX, VX SE and PC that have these dimensions. It is frequently used to securely and systematically mount additional assemblies such as controls, power supply modules, sensors or other electronic components within the enclosure. The flexible mounting design allows adaptation to various requirements in enclosure construction.

Functions and Equipment in Detail
The plate can be installed either vertically as a vertical mounting surface or horizontally as a horizontal base. Mounting is done directly to the enclosure profile. In a recessed construction, installation is carried out via system chassis at any mounting level within the enclosure. For multi-level installations, where multiple partial mounting plates are arranged in sequence, a swivel version with hinge mounting can be selected to enable quick access to the rear levels. The delivery includes the mounting hardware required for installation.

Technology Explained Simply
The use of sheet steel with a thickness of 2.5 mm ensures high mechanical stability and load capacity. The zinc-coated surface provides effective corrosion protection, especially in environments with high humidity or aggressive atmospheres. The dimensions of 500 mm × 500 mm are matched to the standard dimensions of the mentioned enclosure types, ensuring precise fit and secure mounting. The swivel mounting option enables efficient maintenance and inspection, as individual levels can be accessed without dismantling the entire structure.

Compatibility and Accessories
The partial mounting plate is intended for enclosure types VX, VX SE and PC, which have a door width of 600 mm and a depth of 600 mm. For installation in VX SE, PC and IW, the use of the VX adapter rail is required. This rail enables correct mounting of the plate in these enclosure types. Compatibility is therefore limited to the mentioned enclosure series, with exact dimensions being crucial.

Mounting and Installation
Mounting is done either directly to the enclosure profile or via system chassis in a recessed construction. The mounting hardware included in the delivery simplifies installation. In multi-level arrangements, the plate can be mounted swivel via hinges, improving access to rear levels. The installation solutions are designed to adapt to the respective enclosure configuration without requiring additional tools or materials.

Advantages in Operation
The partial mounting plate provides a structured and secure mounting surface for electronic assemblies within the enclosure. The flexible mounting in vertical or horizontal position, as well as the swivel version, increases accessibility and simplifies maintenance. The use of zinc-coated sheet steel ensures long service life and resistance to environmental influences. The precise fit for enclosures with 600 mm door width and depth guarantees secure and stable installation without additional adjustments.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable for door width600 mm
Mounting optionsInstallation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width500 mm
Depth500 mm
Suitable for housing typeVX, VX SE, PC
Suitable forCabinet type: VX, VX SE, PC, width: = 600 mm, depth: = 600 mm
PCF/VE (Cradle-to-Gate)24.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617530, EAN: 4028177919389

Questions & answers

What is the delivery time of Rittal 8617530 VX partial mounting plate, W x H: 500x500 mm?

The article Rittal 8617530 VX partial mounting plate, W x H: 500x500 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617530 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617530 VX partial mounting plate, W x H: 500x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617530 VX partial mounting plate, W x H: 500x500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
