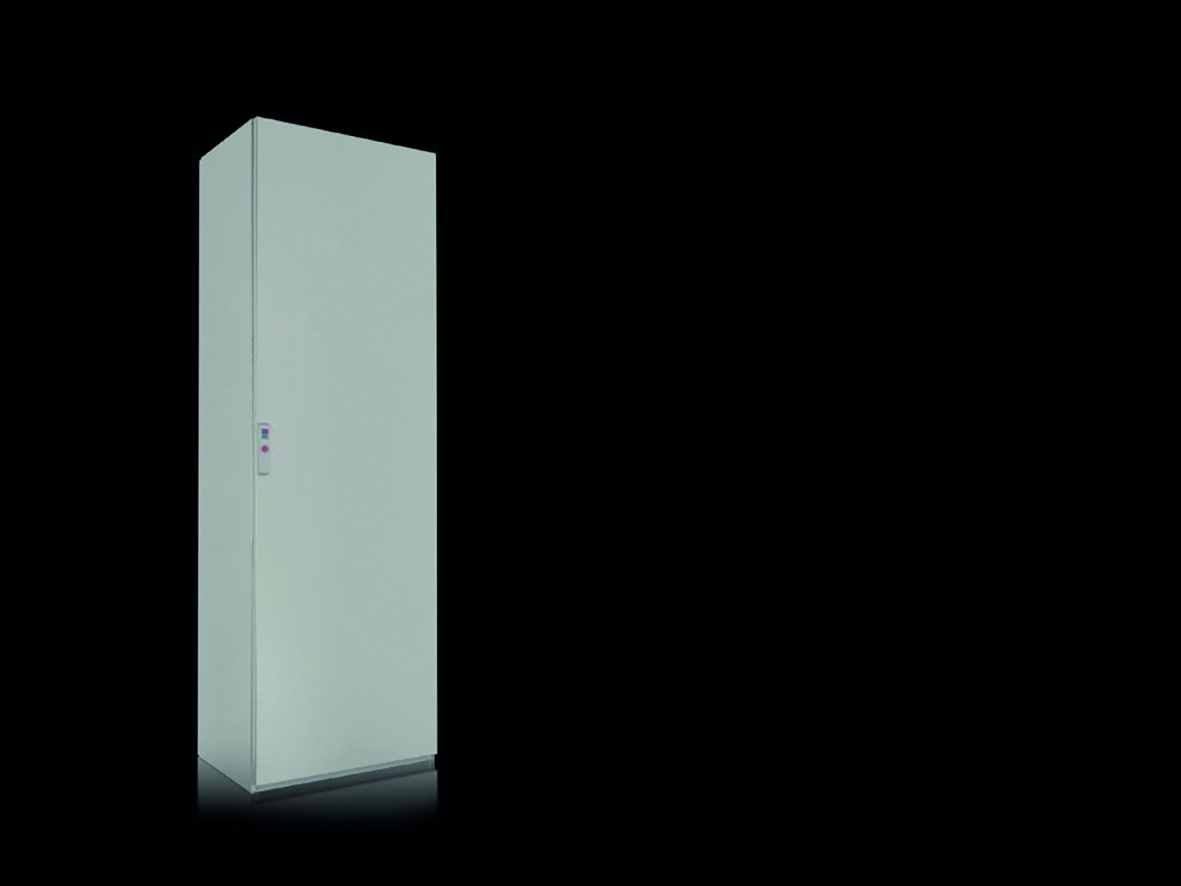

Rittal 5830600 VX SE system single enclosure 600x1800x400 mm steel
|
581,90 EUR |
|
|
( 692,46 EUR incl. VAT ) ≈ £487.05 | ≈ $639.51 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910632 |
| Mfg Part No: | 5830600 |
| UPC/EAN: | 4028177959156 |
| Weight: | 97.4 kg |
| Type: | SE 5830600 |
Product information for Rittal 5830600:
Applications
This enclosure is suitable for use in production plants, automation technology, power supply systems, and other industrial environments where a robust and flexible enclosure solution is required. The construction allows for efficient installation, as the side panels are already integrated and no additional assembly is necessary. Large enclosure widths replace smaller baying combinations, reducing space requirements and accelerating installation.
Functions and Equipment in Detail
The enclosure is made of 1.5 mm sheet steel for the walls, roof, and rear panel, while the door is made of 2.0 mm sheet steel. The mounting plate is made of 3.0 mm sheet steel and is C-flanged on the sides to ensure stable fastening. The surface of the enclosure, door, and rear panel is dip-primed and externally powder-coated with textured paint in RAL 7035. The mounting plate and base plates are zinc-coated to prevent corrosion. The door features a horizontally double-foamed seal and a removable square tube frame with perforation in the 25 mm DIN grid. The door opening angle is 130° according to VDI and can be retrofitted to 180°. The hinges are fitted with non-removable hinge pins, enabling secure installation.
Technology Explained Simply
The protection rating IP 55 according to EN 60 529 means the enclosure is dust-tight and protected against splashing water, making it suitable for outdoor use or in damp indoor environments. The protection ratings NEMA 3R and NEMA 12 as well as the type rating according to UL 50E (Type 1, 2, 3, 3R, 12) ensure protection against dust, splashing water, and contaminated environments. The IK code IK10 guarantees high mechanical protection against mechanical impacts such as shocks or vibrations. The rear panel is screwed and features a foamed seal for a tight cover. The base plates are divided into three parts, removable, and replaceable, allowing flexible adaptation to different mounting conditions.
Compatibility and Accessories
The enclosure is system-compatible with accessories from the VX25 system. Suitable accessories include, among others, system chassis, levelling feet, lock inserts, comfort handles, support rollers, transport eyes, mounting brackets, and C-profile rails. These components allow individual adaptation to specific mounting and operating requirements. The mounting plate is depth-adjustable in 25 mm increments and features integrated plastic glides and mounting rails, simplifying component positioning.
Mounting and Installation
Mounting is done via the integrated mounting levels in the enclosure. The mounting plate is C-flanged on the sides and depth-adjustable via plastic glides and mounting rails. The base plates are pre-installed, enabling easy installation. The rear panel is removable, allowing flexible mounting and maintenance. The door can be retrofitted to the left side, providing flexibility in room placement.
Advantages in Operation
The enclosure offers high mechanical stability and a high protection level against environmental influences. The integrated mounting levels and systematic perforation in 25 mm grid simplify the installation of components and reduce mounting time. The robust construction from sheet steel and high-quality surface coating ensure long service life and resistance against corrosion, mineral oils, lubricants, and solvents. The automatic equipotential bonding function between door, rear panel, and enclosure body ensures a secure electrical connection and prevents voltage differences.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 600 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 283.54 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5830600 VX SE system single enclosure 600x1800x400 mm steel?
The article Rittal 5830600 VX SE system single enclosure 600x1800x400 mm steel is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5830600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5830600 VX SE system single enclosure 600x1800x400 mm steel always at the best possible price. We can give you a discount of 2% on Rittal 5830600 VX SE system single enclosure 600x1800x400 mm steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
