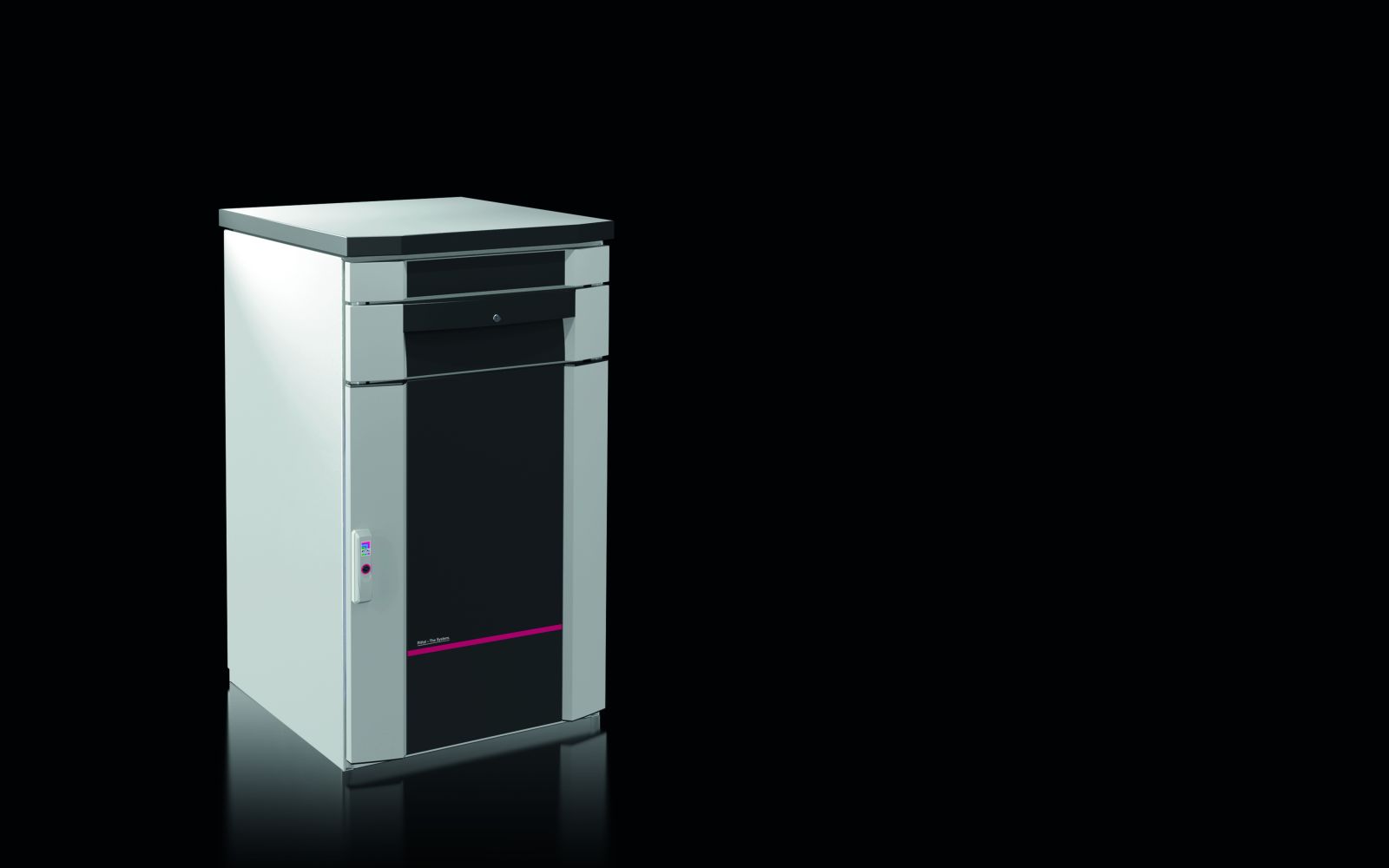

Rittal 6900740 IW Industrial Workstation 600x1000x645 mm
|
-9% 1.458,59 EUR 1.606,67 EUR |
|
|
( 1.735,72 EUR incl. VAT ) ≈ £1,220.84 | ≈ $1,602.99 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2014570 |
| Mfg Part No: | 6900740 |
| UPC/EAN: | 4028177968547 |
| Weight: | 74 kg |
| Type: | IW 6900740 |
Product information for Rittal 6900740:
Applications
This workstation is suitable for use in industrial environments where a robust, dust- and splash-proof work surface is required. It is particularly suitable for mounting control and operating systems, such as industrial PCs, touch panels or control consoles. The integrated keyboard drawer enables ergonomic operation, while the design door and rear door ensure protection of internal components. The protection rating IP 54 according to IEC 60 529 protects the enclosure against dust and splashing water, enabling use indoors under industrial conditions.
Functions and Equipment in Detail
The enclosure is made of sheet steel and is dip-primed and externally powder-coated with a textured lacquer. The colour of the decorative panels is RAL 7015. The worktop is made of particleboard and laminated on both sides with plastic (edging), which provides high mechanical load capacity and easy cleaning. The delivery scope includes the enclosure with side panels closed, three-piece base plates, levelling feet, the worktop, the keyboard drawer, the design door, and the rear door. The base plates and levelling feet enable stable and level mounting on various subfloors.
Technology Explained Simply
The protection rating IP 54 means that the enclosure is protected against dust and splashing water. This makes it suitable for use in industrial environments where no direct moisture or heavy splashing occurs. The use of sheet steel for the enclosure and doors ensures high mechanical stability and durability. The powder-coated surface provides additional corrosion protection. The worktop made of laminated particleboard is resistant to mechanical stress and easy to clean.
Compatibility and Accessories
Various accessories are available to extend the functionality and are compatible with the system. These include cable entry plates for worktops, component shelves in various designs, mounting rails, comfort handles, drawer trays, paper extraction flaps, as well as support rails and C-profile rails. These elements allow individual adaptation of the workstation to specific requirements, such as device mounting, cable management integration, or improved accessibility.
Mounting and Installation
Mounting is carried out using the included levelling feet and base plates, ensuring stable and level positioning. The workstation is closed on the sides, enabling easy integration into existing installations. The keyboard drawer and worktop are already integrated, so no additional mounting work is required for these components. The design door and rear door are designed for secure access to internal components.
Advantages in Operation
The Rittal IW 6900740 offers an integrated solution for the industrial workstation, designed both functionally and aesthetically. The combination of a robust sheet steel enclosure, an ergonomic keyboard drawer, and a clean work surface creates an efficient and safe working environment. The protection rating IP 54 protects internal components from environmental influences, while the modular equipment allows flexible adaptation to different requirements. The use of standardised components simplifies maintenance and replacement of parts.
| General | |
| Model | Worktop, keyboard drawer, design door, rear door |
| Material | Enclosure, keyboard drawer, design door, rear door: sheet steel, worktop: particleboard (both sides laminated with plastic (edge banding)) |
| Surface protection | Housing: dip primed, externally powder coated, textured lacquer |
| Colour | Decorative bezels: RAL 7015 |
| Scope of delivery | Cabinet side closed, base plates, three-part, levelling feet, worktop, keyboard drawer, design door, rear door, worktop, BxHxT 610 x 38 x 645 mm |
| Width | 600 mm |
| Height | 1.000 mm |
| Depth | 645 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 |
| Dimensions with worktop | Width: 610 mm, Height: 1.043 mm, Depth: 645 mm |
| PCF/VE (Cradle-to-Gate) | 281.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 6900740 IW Industrial Workstation 600x1000x645 mm?
The article Rittal 6900740 IW Industrial Workstation 600x1000x645 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6900740 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 6900740 IW Industrial Workstation 600x1000x645 mm always at the best possible price. We can give you a discount of 2% on Rittal 6900740 IW Industrial Workstation 600x1000x645 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
