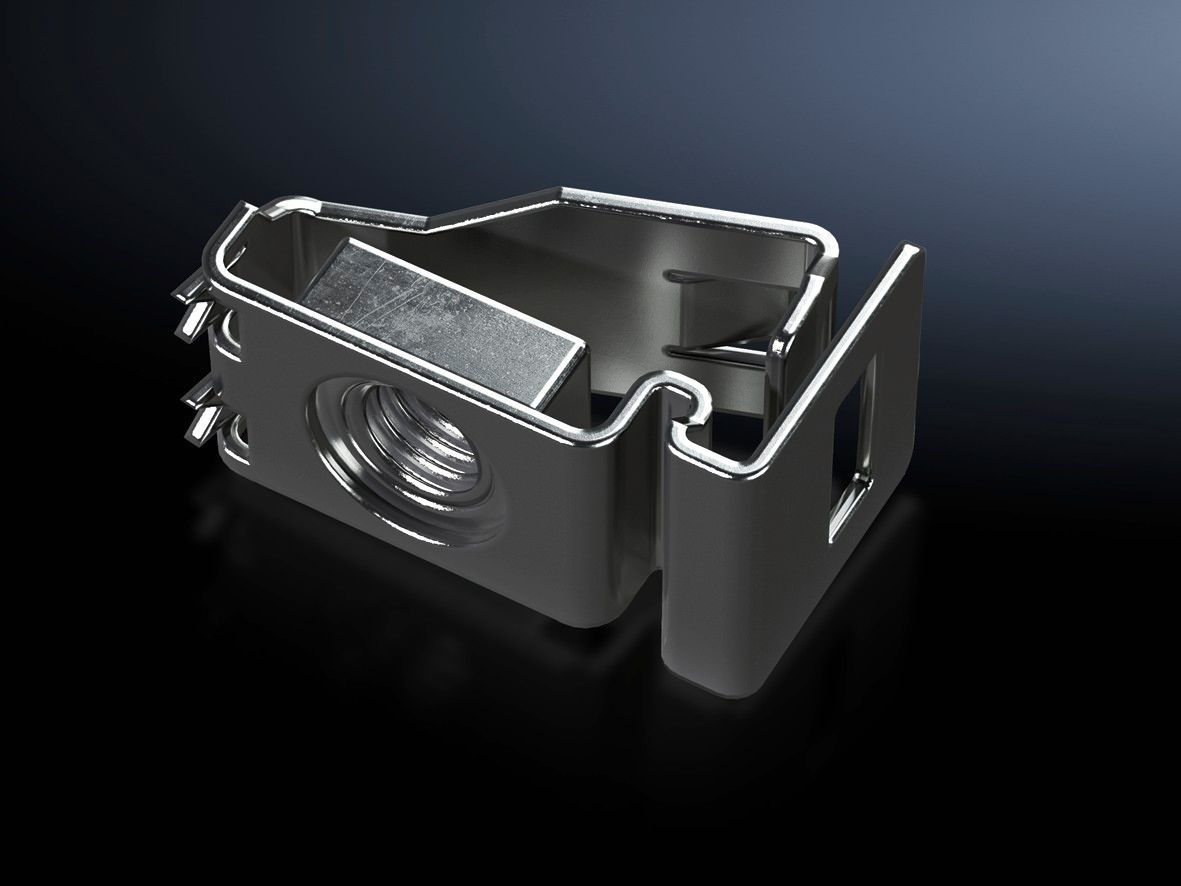

Rittal 4165500 VX cage nut, M8
|
18,99 EUR 19,11 EUR |
|
|
( 22,60 EUR incl. VAT ) ≈ £15.89 | ≈ $20.87 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440737 |
| Mfg Part No: | 4165500 |
| UPC/EAN: | 4028177920989 |
| Weight: | 0.158 kg |
| Type: | VX 4165.500 |
Product information for Rittal 4165500:
Applications
The cage nut is intended for use in various configurations of VX enclosures. It can be mounted on horizontal and vertical VX enclosure profiles, as well as on system chassis with dimensions 23 x 64 mm and 23 x 89 mm, the latter being made of stainless steel. Additionally, mounting chassis with 23 x 64 mm and enclosures or rails with a rectangular system hole of 12.5 x 11 mm are compatible. In VX SE systems, it can be used on the enclosure profile in combination with a VX adapter rail, in the base frame, and in the roof area in combination with a VX adapter rail in depth.
Functions and Features in Detail
The cage nut features a spring-loaded mechanism that acts as an insertion aid and ensures a secure mechanical and electrical connection in the system hole. Installation is done by simply sliding it in from the side, enabling quick and precise mounting. The nut can be safely and easily removed using a screwdriver without falling out of the hole.
Technology Explained Simply
The design of the cage nut allows for a firm connection between the fastening element and the enclosure profile. The spring ensures that the nut remains securely in the hole, even when no screw is inserted. This prevents shifting or loss of the nut during the mounting process. The M8 thread is a standard size widely used in industry and is compatible with corresponding screws and nuts.
Compatibility and Accessories
The cage nut is specifically designed for use in VX enclosures. It is compatible with various system chassis and mounting chassis used in industry for securing components and devices. Use in VX SE systems may require combination with a VX adapter rail to enable mounting on the enclosure profile, base frame, or roof area.
Mounting and Installation
Mounting is performed by sliding the cage nut sideways into the designated system hole. The spring ensures the nut remains securely in place. After insertion, an M8 threaded screw can be tightened to secure the device or module being mounted. Removal is done by unscrewing the screw and then extracting the nut using a screwdriver.
Advantages in Operation
The cage nut offers reliable and quick mounting in VX systems. The integrated spring prevents the nut from being lost during installation and ensures a stable connection. The use of standard M8 thread allows compatibility with common screws and tools. The cage nut is designed for industrial environments and supports modular mounting of components in enclosures.
| General | |
| Mounting options | On horizontal and vertical VX cabinet profile, on System-Chassis 23 x 64 mm, on System-Chassis 23 x 89 mm, stainless steel, on Mounting-Chassis 23 x 64 mm, on cabinets and rails with rectangular system hole 12.5 x 11 mm, in VX SE on cabinet profile in combination with adapter rail VX, in VX SE base frame, in VX SE ceiling in combination with adapter rail VX in depth |
| Thread | M8 |
| Suitable for housing type | VX |
