Rittal 9686000 SV busbar holder (baying) 4-pole, 80 mm

Your rating:
Average rating
product review for Rittal 9686000 SV busbar holder (baying) 4-pole, 80 mm
( 4.7 / 5 ) 3 ratings

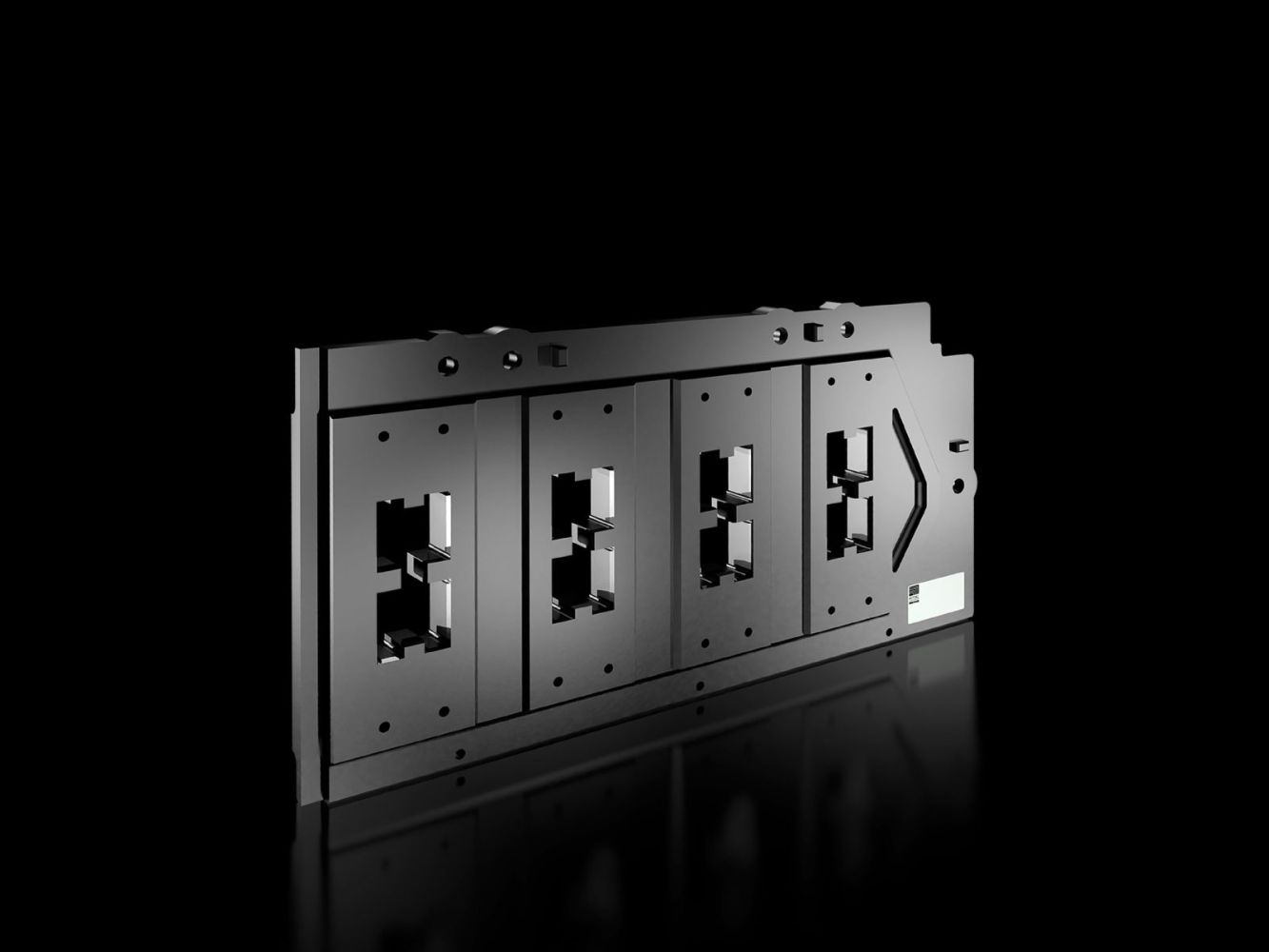

Rittal 9686000
This image may differ from the desired article.
Rittal 9686000Rittal 9686000
189,98 EUR
( 226,08 EUR incl. VAT )
≈ £159.01  |  ≈ $208.79
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9686000 SV busbar holder (baying) 4-pole, 80 mm
Datasheet:file_download Download
Lieske Part No.:1908955
Mfg Part No: 9686000
UPC/EAN: 4028177935631
Weight:3.88 kg
Type:SV 9686000

Product information for Rittal 9686000:

The Rittal SV 9686000 is a busbar holder for baying of 3- or 4-pole busbar systems made of flat copper in the roof area of enclosures. It enables secure and structured connection from enclosure to enclosure, with the busbars arranged at a center-to-center spacing of 80 mm. The product is made of thermosetting plastic with flame retardant properties according to UL 94-V0, ensuring high fire protection performance and self-extinguishing capability. The color corresponds approximately to RAL 9005, a dark gray commonly used in industrial environments.

Applications
This busbar holder is specifically designed for use in the roof area of enclosures, where a stable and secure connection between multiple enclosures is required. It is used in industrial electrical installations, such as in manufacturing technology, power distribution systems, or installations with high current loads. The baying enables continuous power supply across multiple enclosures, with the electrical connection made via flat copper busbars (E-Cu 30x10 mm).

Functions and Equipment in Detail
The holder is designed for mounting busbars with dimensions 30 x 10 mm. It allows installation of up to four busbars (conductor sections) per phase, providing high flexibility for power distribution. The delivery includes the necessary mounting hardware required for installation on the enclosure profile.

Technology Explained Simply
The thermosetting plastic offers high mechanical stability and resistance to mechanical stress, chemical influences, and temperature fluctuations. The UL 94-V0 certification ensures that the material quickly self-extinguishes when exposed to fire and does not release flammable gases, which is crucial in electrical installations. The RAL 9005 color ensures visual harmony with other components in industrial enclosures.

Compatibility and Accessories
The busbar holder is specifically designed for flat copper busbars with dimensions 30 x 10 mm. Compatible accessories include the busbar E-Cu 30x10 mm (length 2400 mm), the VX cage nut M8, the SV longitudinal connector (H: 60 mm) for connecting multiple busbars, and the SV end cap for finishing the busbar holder. These components enable modular and secure installation.

Mounting and Installation
Installation takes place in the roof area of the enclosure, where the holder is attached to the enclosure profile. For this, the cage nut (M8) 4165.500 is required. The busbars are positioned in the designated holders with a center-to-center spacing of 80 mm. The maximum of four busbars per phase allows flexible adaptation to different loads and power distribution requirements.

Advantages in Operation
The use of SV 9686000 ensures reliable and secure power distribution across multiple enclosures. The robust construction from thermosetting plastic and UL 94-V0 certification increase safety in application. The modular design with compatible accessories enables flexible and adaptable installation, tailored to the specific requirements of each installation. The clear structuring of busbars in the roof area improves clarity and maintainability of the system.

General
MaterialThermosetting plastic, flammability rating according to UL 94-V0
ColourSimilar to RAL 9005
Scope of deliveryIncluding mounting hardware
Suitable for busbars30 x 10 mm
Center-to-center spacing of busbars80 mm
Mounting noteMaximum 4 busbars (partial conductors) can be installed per phase; for mounting the busbar holder to the cabinet profile, the cage nut (M8) 4165.500 is required


Product data sheet
Datasheet for Rittal 9686000, EAN: 4028177935631

Questions & answers

What is the delivery time of Rittal 9686000 SV busbar holder (baying) 4-pole, 80 mm?

The article Rittal 9686000 SV busbar holder (baying) 4-pole, 80 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9686000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9686000 SV busbar holder (baying) 4-pole, 80 mm always at the best possible price. We can give you a discount of 2% on Rittal 9686000 SV busbar holder (baying) 4-pole, 80 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 9686000 SV busbar holder (baying) 4-pole, 80 mm

Rittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm Rittal LogoRittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm The Rittal SV 3586005 is a busbar made of E-Cu F30 copper, designed for use in power distribution components and enclosures. With a cross-section of 30 mm x 10 mm and a length of 2,400 mm, it provides ...

Lieske Part No.: 915671
Mfg Part No: 3586005
Type: SV 3586005
263,81 EUR 264,62 EUR
Rittal 3586005 plus VAT
≈ £220.81  |  ≈ $289.93
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
Rittal 4165500 VX cage nut, M8 Rittal LogoRittal 4165500 VX cage nut, M8 The Rittal VX 4165.500 is a cage nut with M8 thread, specifically developed for mounting in VX enclosures and compatible systems. It serves as a metric fastening element and enables circumferential ...

Lieske Part No.: 1440737
Mfg Part No: 4165500
Type: VX 4165.500
18,99 EUR 19,11 EUR
Rittal 4165500 plus VAT
≈ £15.89  |  ≈ $20.87
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 9686200 SV longitudinal connector H: 60 mm, for E-Cu 2x/4x30x10 mm Rittal LogoRittal 9686200 SV longitudinal connector H: 60 mm, for E-Cu 2x/4x30x10 mm The Rittal SV 9686200 is a longitudinal connector for main busbar systems, specifically designed for connecting enclosures together. It serves for the safe and conductive connection of busbars in ...

Lieske Part No.: 1908516
Mfg Part No: 9686200
Type: SV 9686200
34,06 EUR
Rittal 9686200 plus VAT
≈ £28.51  |  ≈ $37.43
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 9686080 SV end cover for busbar holder 9686.0X0 Rittal LogoRittal 9686080 SV end cover for busbar holder 9686.0X0 The Rittal SV 9686080 is an end cover for busbar holders of type 9686.0X0, designed for shock-protected covering of exposed ends of busbars. This component ensures safety in electrical installations ...

Lieske Part No.: 1908961
Mfg Part No: 9686080
Type: SV 9686080
33,24 EUR
Rittal 9686080 plus VAT
≈ £27.82  |  ≈ $36.53
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
