Rittal 9686080 SV end cover for busbar holder 9686.0X0

Your rating:
Average rating
product review for Rittal 9686080 SV end cover for busbar holder 9686.0X0
( 5 / 5 ) 2 ratings

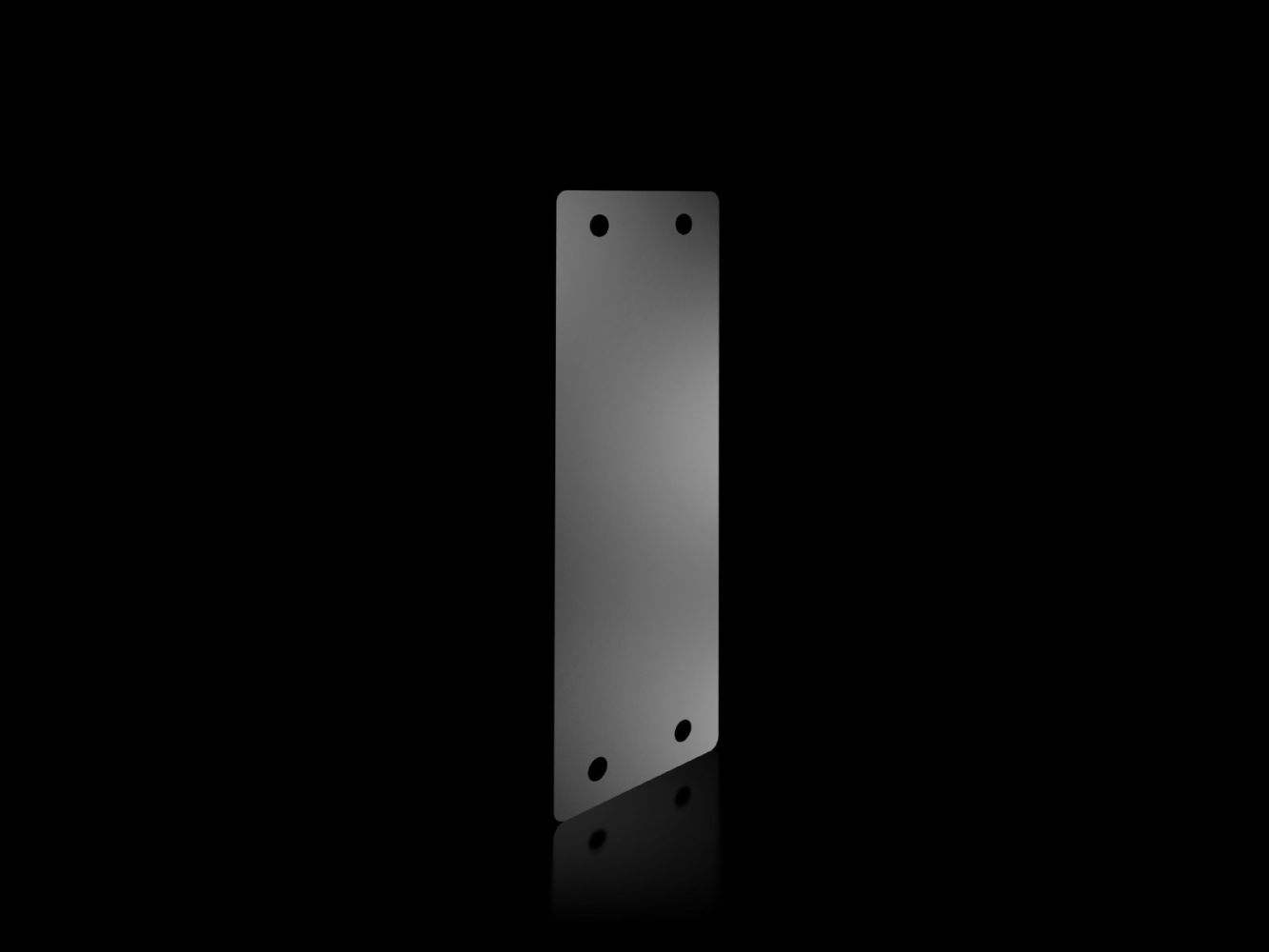

Rittal 9686080
This image may differ from the desired article.
Rittal 9686080Rittal 9686080Rittal 9686080
33,24 EUR
( 39,56 EUR incl. VAT )
≈ £27.82  |  ≈ $36.53
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9686080 SV end cover for busbar holder 9686.0X0
Datasheet:file_download Download
Lieske Part No.:1908961
Mfg Part No: 9686080
UPC/EAN: 4028177936935
Weight:0.089 kg
Type:SV 9686080

Product information for Rittal 9686080:

The Rittal SV 9686080 is an end cover for busbar holders of type 9686.0X0, designed for shock-protected covering of exposed ends of busbars. This component ensures safety in electrical installations by protecting electrically conductive ends of busbars from unintended contact. The cover is mounted directly onto the busbar holder and is specifically designed for use in enclosures and power distribution systems where high safety requirements apply to operation and maintenance.

End cover for busbar holders
The SV 9686080 is a specific end cover intended exclusively for busbar holders of the 9686.0X0 series. It fits precisely onto the ends of the holder and prevents persons or tools from accidentally coming into contact with the conductive busbar ends. Thus, the cover is an integral part of electrical safety in industrial installations, particularly in environments where protection against electric shock is of high priority.

Material and flammability
The end cover is made of polyamide, a robust plastic known for its mechanical strength and chemical resistance. The material meets flammability requirements according to UL 94-HB, meaning it burns slowly and does not promote flame spread when exposed to fire. This property is especially important in enclosed enclosures, where controlled reaction in case of fire is necessary.

Color and visual integration
The cover is manufactured in a color matching RAL 9005, a dark gray to black shade commonly used in industrial electrical engineering. This color scheme enables visual harmonization with other components in the enclosure and supports professional design of installations.

Scope of delivery and installation
The scope of delivery includes the end cover and the required mounting hardware intended for installation on the 9686.0X0 busbar holder. Installation is performed by simply attaching the cover to the ends of the holder profile, using the included mounting hardware. The packaging unit contains three pieces, suitable for equipping multiple holders simultaneously or for spare parts.

Compatibility and fields of application
The SV 9686080 is exclusively compatible with busbar holders of the 9686.0X0 series from Rittal. It is used in enclosures, power distributors, and other electrical distribution systems where secure covering of busbar ends is required. The cover is not intended for other holder types or manufacturers and meets the requirements for electrical safety according to applicable standards for shock-protected covers.

Advantages in operation
The use of the SV 9686080 reduces the risk of electrical accidents caused by contact with conductive parts. The simple installation and robust plastic construction ensure a long-lasting and maintenance-friendly solution. The cover remains stable even under industrial conditions and retains its protective function. Compliance with the UL 94-HB standard for flammability further increases safety in case of fire, especially in enclosed installation spaces.

General
MaterialPolyamide, flammability rating according to UL 94-HB
ColourSimilar to RAL 9005
Scope of deliveryIncluding mounting hardware


Product data sheet
Datasheet for Rittal 9686080, EAN: 4028177936935

Questions & answers

What is the delivery time of Rittal 9686080 SV end cover for busbar holder 9686.0X0?

The article Rittal 9686080 SV end cover for busbar holder 9686.0X0 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9686080 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9686080 SV end cover for busbar holder 9686.0X0 always at the best possible price. We can give you a discount of 2% on Rittal 9686080 SV end cover for busbar holder 9686.0X0 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
