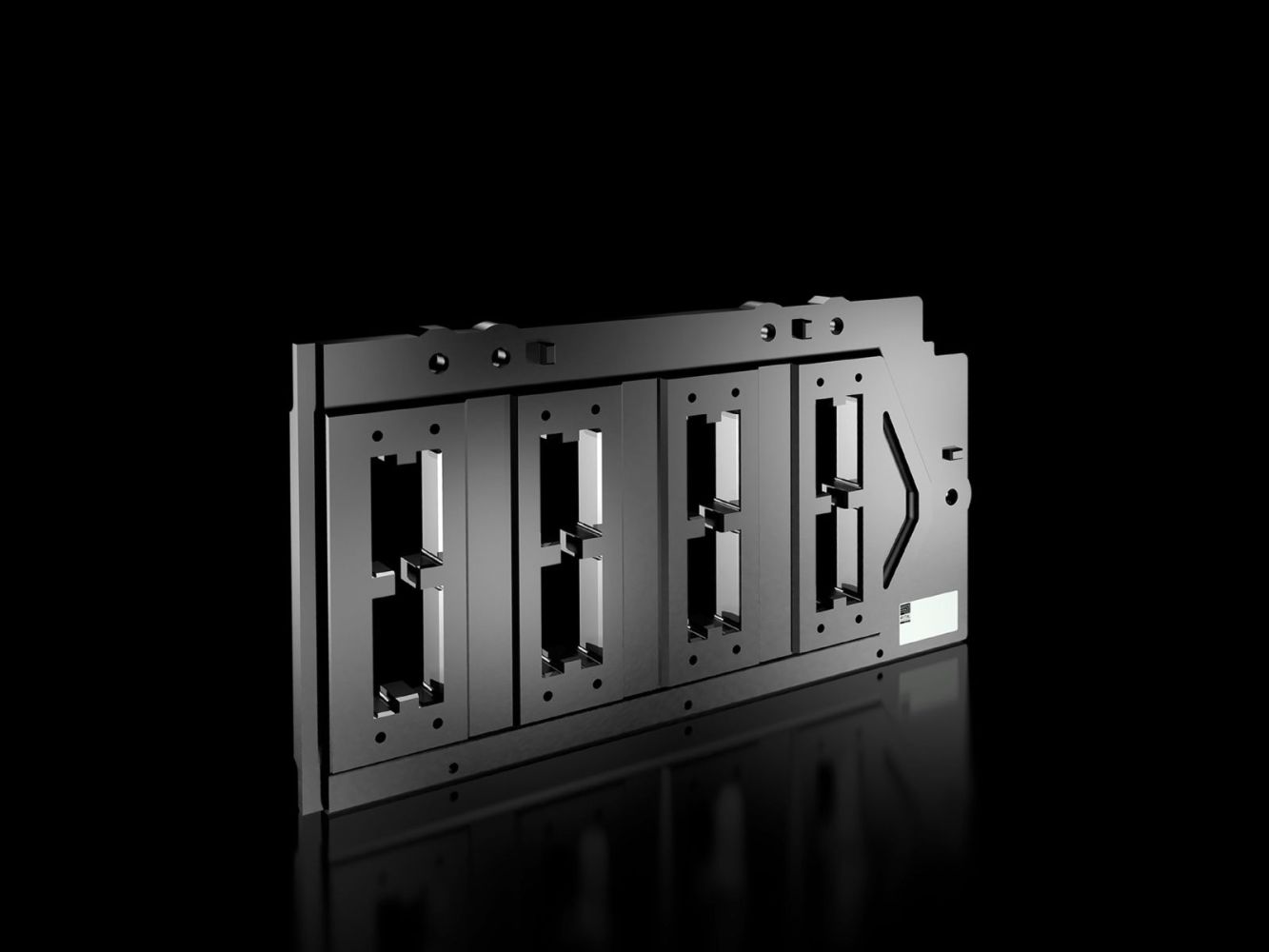

Rittal 9686030 SV busbar holder (baying) 4-pole, 80 mm

Your rating:
Average rating
product review for Rittal 9686030 SV busbar holder (baying) 4-pole, 80 mm
( 4 / 5 ) 2 ratings
Rittal 9686030
This image may differ from the desired article.
Rittal 9686030Rittal 9686030
182,74 EUR
( 217,46 EUR incl. VAT )
≈ £152.95  |  ≈ $200.83
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9686030 SV busbar holder (baying) 4-pole, 80 mm
Datasheet:file_download Download
Lieske Part No.:1908957
Mfg Part No: 9686030
UPC/EAN: 4028177935655
Weight:3 kg
Type:SV 9686030

Product information for Rittal 9686030:

The SV 9686030 from Rittal is a busbar holder for baying 3- or 4-pole busbar systems made of flat copper in the roof area of enclosure to enclosure. It serves for the safe and structured connection of power distribution systems in industrial enclosures and enables continuous power supply across multiple enclosures. The holder is made of thermosetting plastic with flame behaviour according to UL 94-V0, ensuring high flame resistance and low smoke development under heat stress. The colour corresponds approximately to RAL 9005, a dark grey that integrates well in industrial environments.

Applications

The busbar holder is specifically designed for use in the roof area of enclosures, where it establishes the electrical connection between adjacent enclosures. It is commonly used in industrial plants, such as in manufacturing technology, power supply, or automation systems, where stable and secure power distribution across multiple units is required. Baying is performed using flat copper busbars with dimensions 50 x 10 mm, with a centre-to-centre spacing of 80 mm.

Functions and Equipment in Detail

The holder is designed for mounting up to four busbars (partial conductors) per phase, enabling high flexibility in dimensioning the power supply. It includes mounting hardware in the delivery scope, ensuring secure mounting to enclosure profiles.

Technology Explained Simply

The thermosetting plastic offers high mechanical stability and resistance to chemical influences, making it suitable for use in industrial environments. The UL 94-V0 approval ensures that the material is not easily flammable under heat stress and does not propagate flame. The holder’s construction allows precise alignment of the busbars with a fixed centre-to-centre spacing of 80 mm, ensuring uniform and secure connection.

Compatibility and Accessories

The holder is specifically designed for busbars with dimensions 50 x 10 mm. Compatible accessories include the busbar E-Cu 50x10 mm (length 2400 mm), VX cage nuts M8, SV longitudinal connectors in heights 55 mm and 100 mm (for 1x and 2x/4x50x10 mm), and the SV end cap for busbar holder 9686.0X0. These components enable complete and secure installation of busbar systems.

Mounting and Installation

Installation takes place in the roof area of enclosures, where the holder is fastened to the enclosure profiles. The use of cage nut M8 (4165.500) is required to securely fix the holder. The busbars are inserted into the holder, ensuring the centre-to-centre spacing of 80 mm is maintained. The maximum of four busbars per phase allows flexible dimensioning of the power supply.

Operational Advantages

The SV 9686030 provides a reliable and secure connection of power distribution systems across multiple enclosures. The use of flat copper busbars ensures low resistance heat and high current-carrying capacity. The robust construction from thermosetting plastic ensures long service life and resistance to industrial stresses. The clear structuring of the baying facilitates maintenance and inspection of the system.

General
MaterialThermosetting plastic, flammability rating according to UL 94-V0
ColourSimilar to RAL 9005
Scope of deliveryIncluding mounting hardware
Suitable for busbars50 x 10 mm
Center-to-center spacing of busbars80 mm
Mounting noteMaximum 4 busbars (partial conductors) can be installed per phase; for mounting the busbar holder to the cabinet profile, the cage nut (M8) 4165.500 is required


Product data sheet
Datasheet for Rittal 9686030, EAN: 4028177935655

Questions & answers

What is the delivery time of Rittal 9686030 SV busbar holder (baying) 4-pole, 80 mm?

The article Rittal 9686030 SV busbar holder (baying) 4-pole, 80 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9686030 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9686030 SV busbar holder (baying) 4-pole, 80 mm always at the best possible price. We can give you a discount of 2% on Rittal 9686030 SV busbar holder (baying) 4-pole, 80 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
