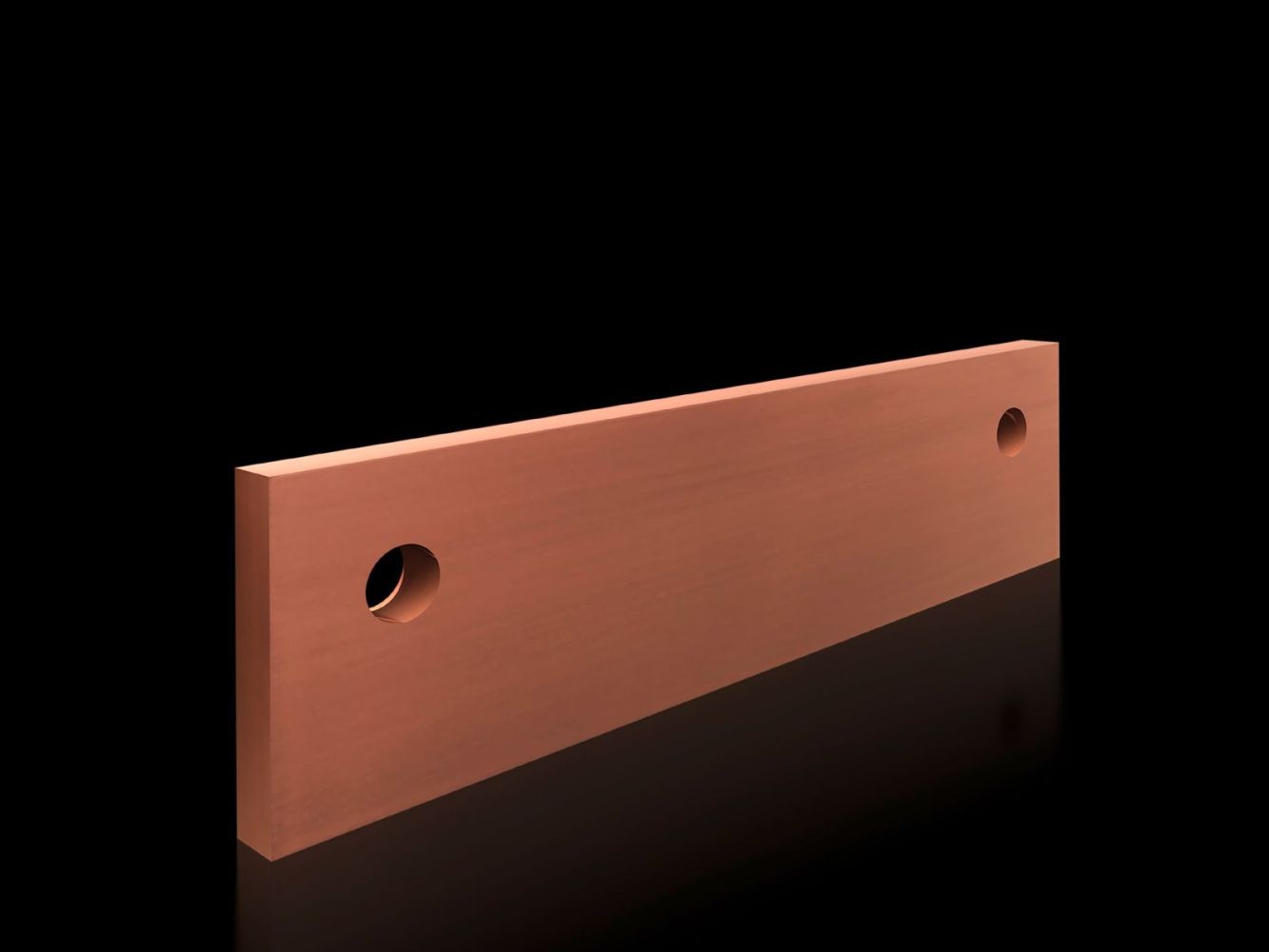

Rittal 9686260 SV longitudinal connector H: 55 mm, for E-Cu 1x50x10 mm

Your rating:
Average rating
product review for Rittal 9686260 SV longitudinal connector H: 55 mm, for E-Cu 1x50x10 mm
( 4.8 / 5 ) 4 ratings
Rittal 9686260
This image may differ from the desired article.
Rittal 9686260Rittal 9686260
41,95 EUR
incl. 7,91 EUR copper surcharge
( 49,92 EUR incl. VAT )
≈ £35.11  |  ≈ $46.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9686260 SV longitudinal connector H: 55 mm, for E-Cu 1x50x10 mm
Datasheet:file_download Download
Lieske Part No.:1989080
Mfg Part No: 9686260
UPC/EAN: 4028177936225
Weight:1.107 kg
Type:SV 9686260

Product information for Rittal 9686260:

The Rittal SV 9686260 is a longitudinal connector for main busbars in industrial applications, specifically designed for connecting enclosure to enclosure within a busbar system. The component is made of E-Cu, an electrolytic copper known for its high electrical conductivity and mechanical stability. It is used to safely and conductively connect electrical lines between multiple enclosures, ensuring continuous current flow throughout the entire system.

Applications

The longitudinal connector is intended for use in industrial electrical installations, particularly in enclosures where a stable and conductive connection between main busbars is required. It enables the baying of enclosures, allowing electrical energy to flow across multiple units without requiring additional connections or rerouting. Typical applications include electrical installations, distributor mounting, or systems with high current loads.

Functions and Equipment in Detail

The connector has a height of 55 mm and a length of 195 mm. It is designed for a busbar with dimensions 50 mm x 10 mm, with the connector's cross-section measuring 55 mm x 10 mm. This ensures a secure mechanical and electrical connection. One busbar connector is provided per conductor, enhancing the reliability of the connection. The delivery includes the component and the necessary mounting hardware required for installation on the busbars.

Technology Explained Simply

The E-Cu material offers high electrical conductivity, meaning the resistance in the connector is minimal, preventing unnecessary energy losses. The precise dimensions of the connector (55 mm x 10 mm) ensure a perfect fit with the busbar (50 mm x 10 mm), guaranteeing secure mechanical anchoring and stable electrical contact. The length of 195 mm allows sufficient bridging between enclosures without requiring additional extensions.

Compatibility and Accessories

The longitudinal connector is specifically designed for the main busbar with dimensions 50 mm x 10 mm. It is part of the Rittal busbar system and can be combined with other components of this system to ensure continuous power distribution. Its use is limited to systems featuring these busbar dimensions.

Mounting and Installation

Installation is carried out using the mounting hardware included in the delivery. The connector is screwed onto the busbar, with the exact mounting technique depending on the specific enclosure construction. No special tools are required beyond a screwdriver or appropriate wrench. The connection must be secure and tight to withstand mechanical stress and electrical loads.

Advantages in Operation

Using the longitudinal connector ensures continuous and reliable power supply across multiple enclosures. The use of E-Cu results in minimal resistance and thus low energy losses. The specified dimensions and included mounting hardware simplify installation and ensure standardized setup, making maintenance and replacement easier. The copper mass of 0.939 kg per piece highlights the robust construction of the component.

General
Modelfor main busbar 50 x 10 mm
MaterialE-Cu
Scope of deliveryIncluding mounting hardware
Length195 mm
Rails per conductor1
Cross section55 mm x 10 mm
Copper content (kg/piece)0,939


Please note...
This article contains a copper surcharge of 7,91 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9686260, EAN: 4028177936225

Questions & answers

What is the delivery time of Rittal 9686260 SV longitudinal connector H: 55 mm, for E-Cu 1x50x10 mm?

The article Rittal 9686260 SV longitudinal connector H: 55 mm, for E-Cu 1x50x10 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9686260 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9686260 SV longitudinal connector H: 55 mm, for E-Cu 1x50x10 mm always at the best possible price. We can give you a discount of 2% on Rittal 9686260 SV longitudinal connector H: 55 mm, for E-Cu 1x50x10 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




This product is recommended as accessory for
