Rittal 9684010 SV busbar E-Cu with integrated hole, L: 985 mm

Your rating:
Average rating
product review for Rittal 9684010 SV busbar E-Cu with integrated hole, L: 985 mm
( 4 / 5 ) 2 ratings

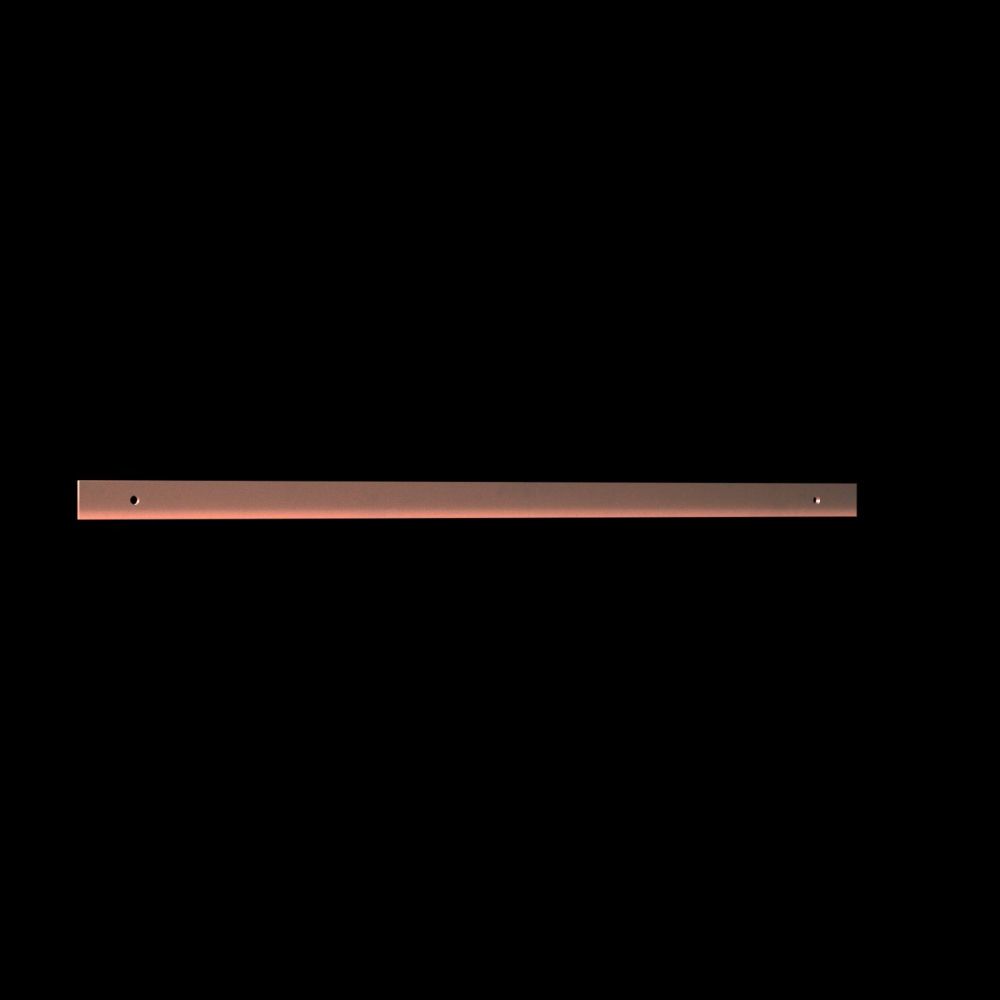

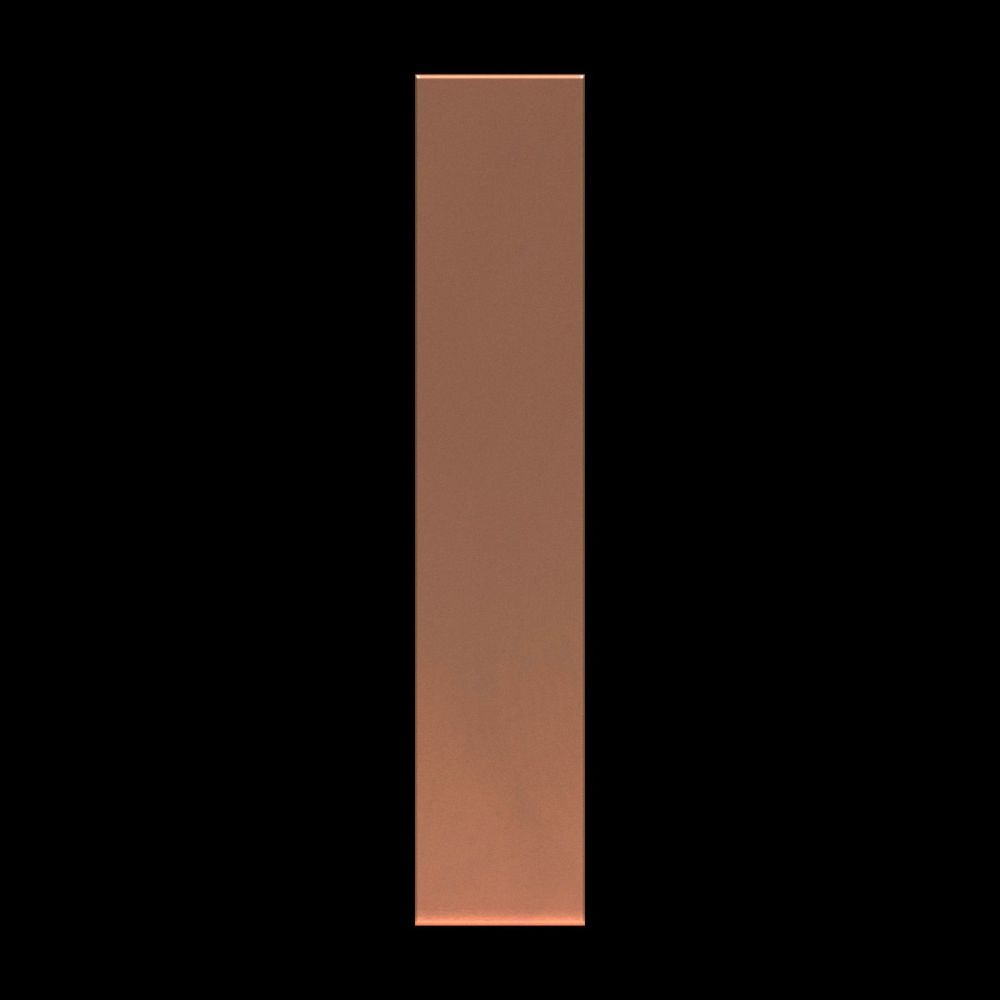

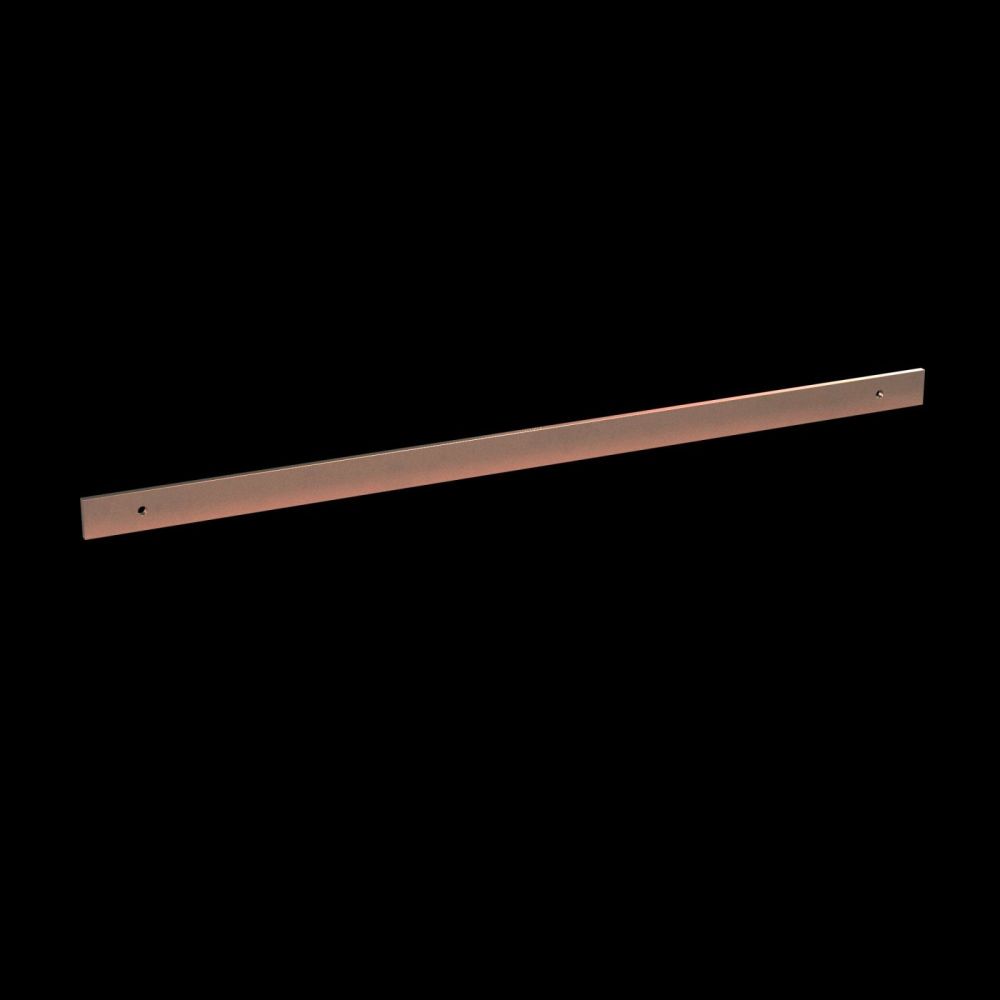

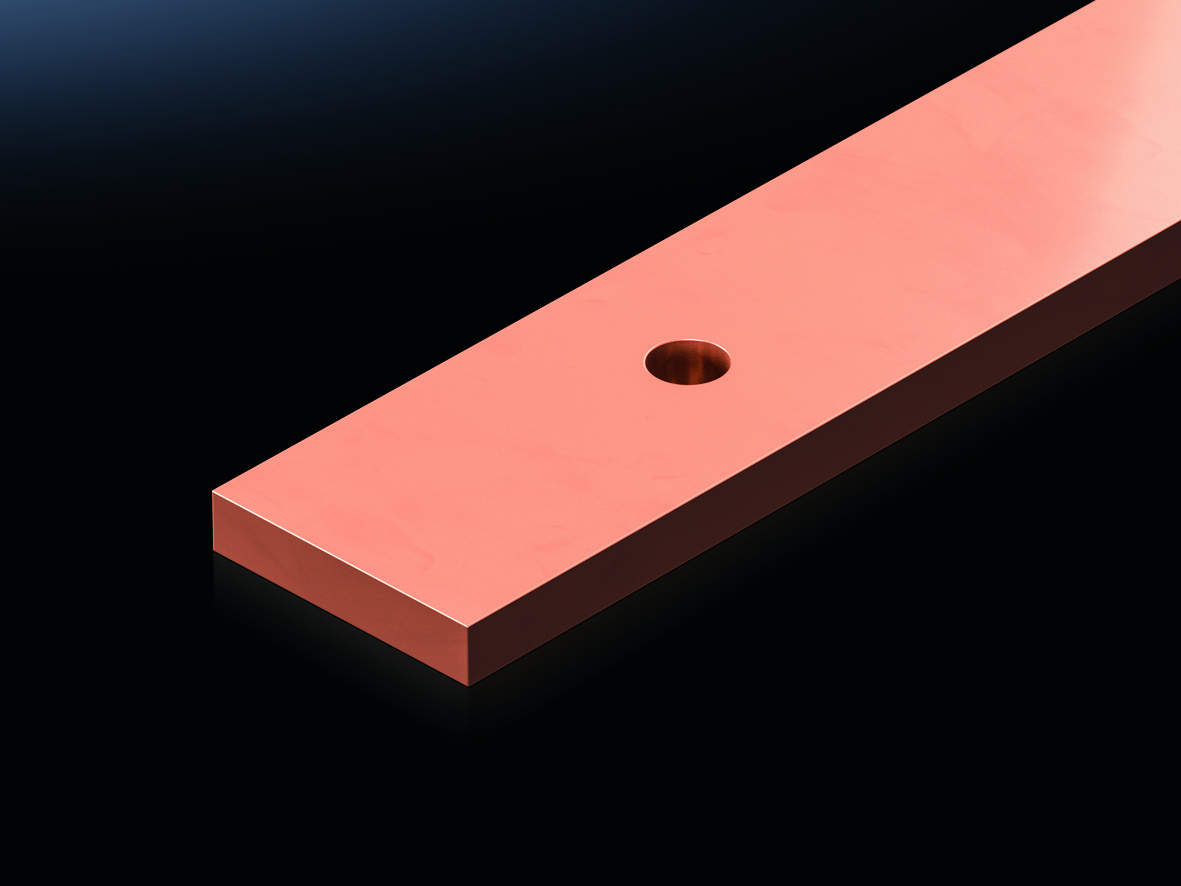

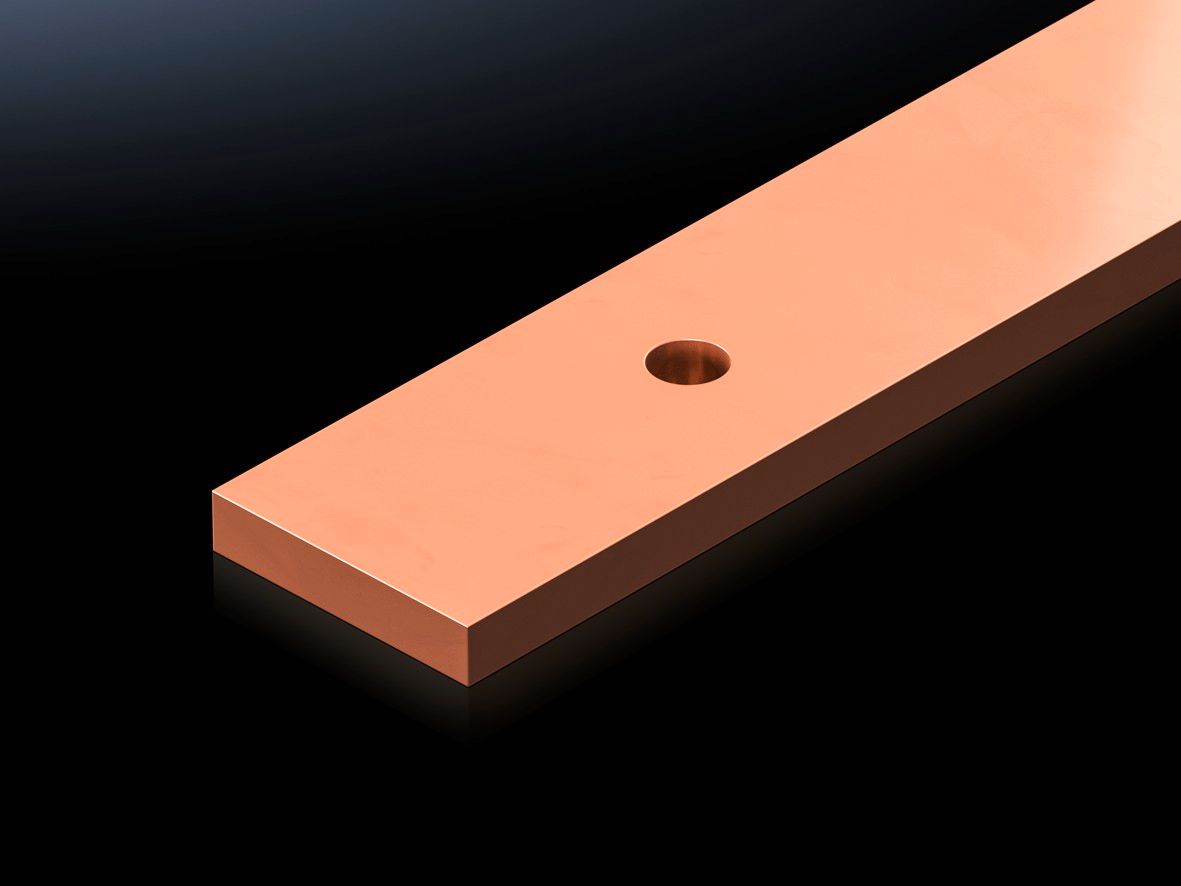

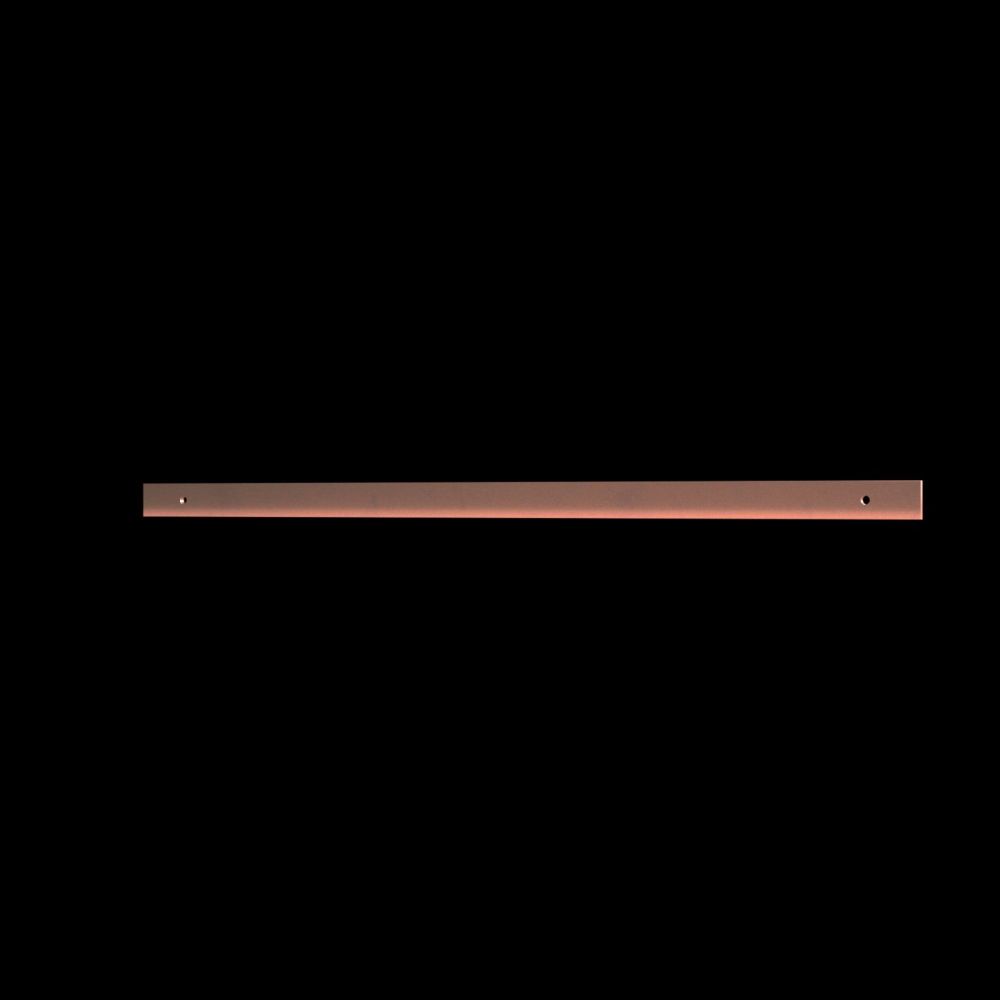

Rittal 9684010
This image may differ from the desired article.
Rittal 9684010Rittal 9684010Rittal 9684010Rittal 9684010Rittal 9684010Rittal 9684010Rittal 9684010
108,76 EUR
incl. 36,88 EUR copper surcharge
( 129,42 EUR incl. VAT )
≈ £91.03  |  ≈ $119.53
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9684010 SV busbar E-Cu with integrated hole, L: 985 mm
Datasheet:file_download Download
Lieske Part No.:1989104
Mfg Part No: 9684010
UPC/EAN: 4028177951211
Weight:4.4 kg
Type:SV 9684010

Product information for Rittal 9684010:

The Rittal SV 9684010 is a busbar made of E-Cu F30 with integrated drillings, specifically designed for use in power distribution components and enclosures. With a length of 985 mm and a cross-section of 50 mm x 10 mm, it provides a stable and conductive connection for electrical wiring in industrial installations. The integrated drillings with a diameter of 11.5 mm allow for easy and secure mounting of screw terminals, fuses, or other connection elements directly onto the bar. The bar complies with the standard DIN EN 13 601, which specifies requirements for the manufacture and testing of power distribution components, and is therefore suitable for use in professional electrical installations.

Applications
The busbar is used in industrial electrical installations where reliable power distribution over long distances is required. It is particularly suitable for enclosures, distribution boxes, and other switching systems in which multiple electrical consumers or components are connected to a common power source. The integrated drillings reduce installation time, as no additional drilling is necessary, and increase the mechanical stability of the connections.

Functions and Equipment in Detail
The bar is made of E-Cu F30, a copper alloy with high electrical conductivity and mechanical strength, optimized for use in electrical installations. The integrated drillings with a diameter of 11.5 mm are evenly spaced along the entire length of 985 mm and allow for flexible positioning of connection points. The bar is designed for use in power distribution components, where high reliability and maintainability are required.

Technology Explained Simply
The E-Cu F30 alloy offers excellent electrical conductivity, meaning the material’s resistance is low and thus losses during power transmission are minimized. The integrated drillings are pre-machined into the bar during manufacturing, which speeds up installation and avoids the risk of material damage caused by subsequent drilling. The standard DIN EN 13 601 ensures that the bar meets the requirements for safety, performance, and quality commonly expected in industrial electrical engineering.

Compatibility and Accessories
The busbar is compatible with suitable longitudinal connectors designed for E-Cu bars with cross-sections of 50 mm x 10 mm. Available longitudinal connectors in 55 mm and 100 mm versions enable the secure connection of multiple bar sections to create longer power distribution paths. These accessories are specifically designed for use with E-Cu bars and ensure a stable electrical and mechanical connection.

Installation and Mounting
Mounting is performed by securing the bar to a suitable support or within the enclosure using screws or brackets, utilizing the integrated drillings. The bar can be directly connected to screw terminals, fuses, or other connection elements without requiring additional drilling. The length of 985 mm allows for flexible adaptation to various enclosure sizes and arrangements.

Operational Advantages
The integrated drillings reduce installation time and increase the accuracy of positioning connection points. The use of E-Cu F30 ensures high electrical conductivity and mechanical stability, enhancing the reliability of power distribution in industrial installations. Compliance with the standard DIN EN 13 601 guarantees the product’s quality and safety. The bar is designed for use in power distribution components and is suitable for applications requiring stable and maintenance-friendly power distribution.

General
MaterialE-Cu F30
StandardsDIN EN 13 601
Cross section50 mm x 10 mm
Hole diameter11,5 mm
Length985 mm
Copper content (kg/piece)4,38


Please note...
This article contains a copper surcharge of 36,88 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9684010, EAN: 4028177951211

Questions & answers

What is the delivery time of Rittal 9684010 SV busbar E-Cu with integrated hole, L: 985 mm?

The article Rittal 9684010 SV busbar E-Cu with integrated hole, L: 985 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9684010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9684010 SV busbar E-Cu with integrated hole, L: 985 mm always at the best possible price. We can give you a discount of 2% on Rittal 9684010 SV busbar E-Cu with integrated hole, L: 985 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 9684010 SV busbar E-Cu with integrated hole, L: 985 mm

Rittal 9686250 SV longitudinal connector H: 100 mm, for E-Cu 2x/4x50x10 mm Rittal LogoRittal 9686250 SV longitudinal connector H: 100 mm, for E-Cu 2x/4x50x10 mm The Rittal SV 9686250 is a longitudinal connector for main busbar systems in enclosures. It serves to electrically connect busbars between multiple enclosures, ensuring a continuous power supply ...

Lieske Part No.: 1908517
Mfg Part No: 9686250
Type: SV 9686250
50,57 EUR
Rittal 9686250 plus VAT
≈ £42.33  |  ≈ $55.58
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 9686260 SV longitudinal connector H: 55 mm, for E-Cu 1x50x10 mm Rittal LogoRittal 9686260 SV longitudinal connector H: 55 mm, for E-Cu 1x50x10 mm The Rittal SV 9686260 is a longitudinal connector for main busbars in industrial applications, specifically designed for connecting enclosure to enclosure within a busbar system. The component is made ...

Lieske Part No.: 1989080
Mfg Part No: 9686260
Type: SV 9686260
41,95 EUR
Rittal 9686260 plus VAT
≈ £35.11  |  ≈ $46.10
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
