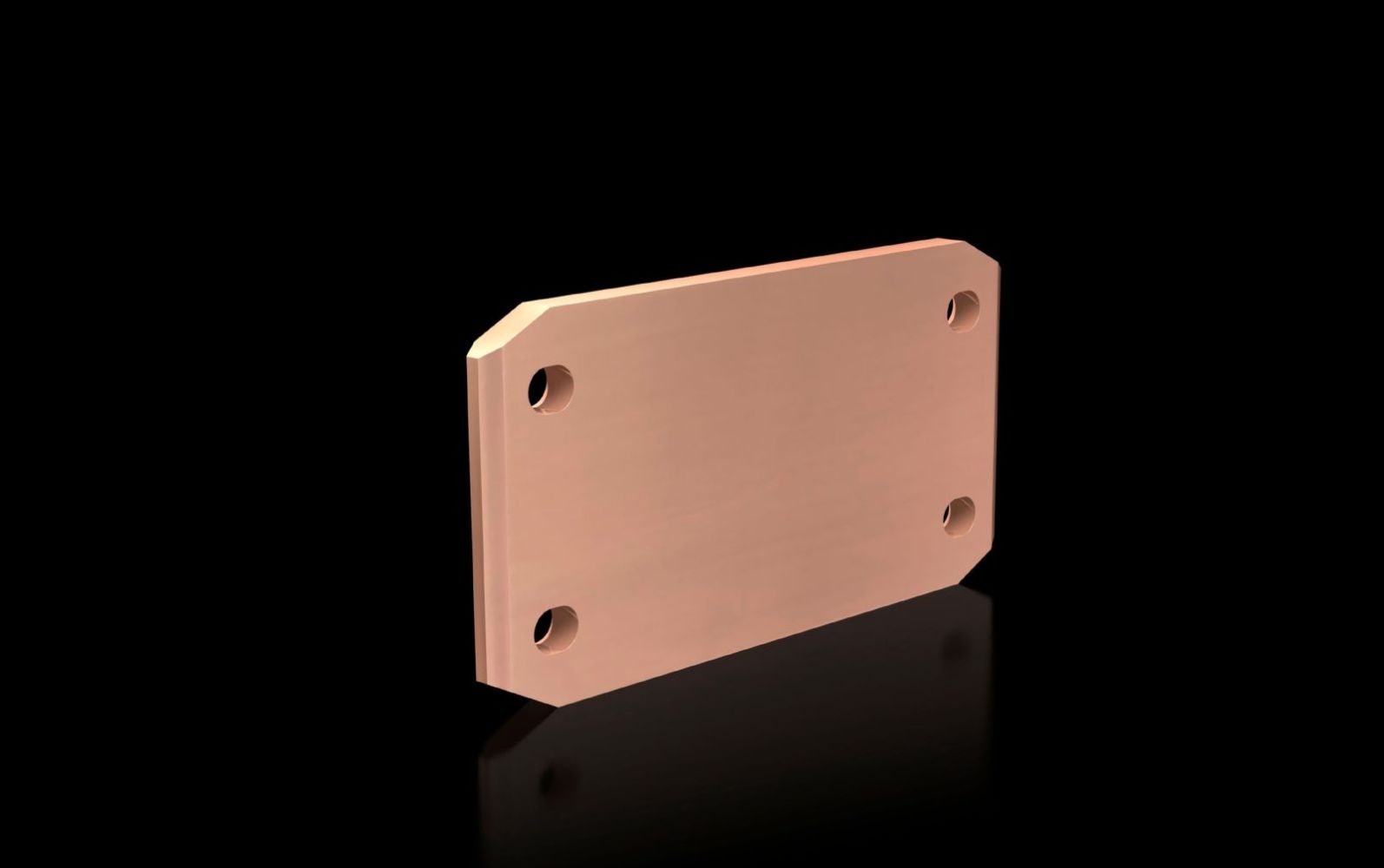

Rittal 9686250 SV longitudinal connector H: 100 mm, for E-Cu 2x/4x50x10 mm

Your rating:
Average rating
product review for Rittal 9686250 SV longitudinal connector H: 100 mm, for E-Cu 2x/4x50x10 mm
( 5 / 5 ) 3 ratings
Rittal 9686250
This image may differ from the desired article.
Rittal 9686250Rittal 9686250
50,57 EUR
incl. 14,34 EUR copper surcharge
( 60,18 EUR incl. VAT )
≈ £42.33  |  ≈ $55.58
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9686250 SV longitudinal connector H: 100 mm, for E-Cu 2x/4x50x10 mm
Datasheet:file_download Download
Lieske Part No.:1908517
Mfg Part No: 9686250
UPC/EAN: 4028177936119
Weight:1.92 kg
Type:SV 9686250

Product information for Rittal 9686250:

The Rittal SV 9686250 is a longitudinal connector for main busbar systems in enclosures. It serves to electrically connect busbars between multiple enclosures, ensuring a continuous power supply network. The connector is made of E-Cu (electrolytic copper), a material with high electrical conductivity and good mechanical strength, commonly used in industrial electrical applications. The design is specifically intended for main busbars with dimensions 50 mm x 10 mm, with the connector's cross-sectional area measuring 100 mm x 10 mm. The component length is 199 mm, enabling a secure and stable connection between the busbars. The copper content per piece is 1.703 kg, indicating the material quality and electrical conductivity.

Applications

The longitudinal connector is used in industrial enclosures where multiple enclosures are arranged in a row and require a common power supply system. It is particularly suitable for installations in the manufacturing industry, power supply, or automation technology, where reliable and uninterrupted power distribution across multiple enclosure modules is required. The connection is made between the main busbars, which serve as the network for power supply.

Functions and Equipment in Detail

The connector enables the connection of two or four busbars per conductor, allowing flexible adaptation to different switchgear configurations. The mounting is done using included mounting hardware, which is part of the delivery scope. This hardware ensures a secure and durable installation without requiring additional tools or components. The construction is designed to establish both mechanical and electrical connections between the busbars, with electrical conductivity ensured by the high copper content and cross-sectional area.

Technology Explained Simply

The longitudinal connector serves to connect electrical conductors between enclosures without requiring additional cables or connection pieces. The use of E-Cu ensures high electrical conductivity and resistance to corrosion. The cross-sectional area of 100 mm x 10 mm provides sufficient current-carrying capacity for typical industrial applications. The length of 199 mm allows for secure placement between the busbars, with the mounting hardware ensuring stable installation.

Compatibility and Accessories

The connector is specifically designed for main busbars with dimensions 50 mm x 10 mm. It is part of the Rittal busbar system and can be combined with other components of this system to create a consistent power supply system. Use with other manufacturers or different busbar dimensions is not intended and not supported.

Mounting and Installation

Installation involves securing the longitudinal connector to the ends of the busbars in adjacent enclosures. The included mounting hardware is used to fix the connector securely. The connection is made to ensure both electrical and mechanical stability.

Operational Advantages

Using the longitudinal connector ensures continuous and reliable power supply across multiple enclosures. The use of E-Cu guarantees high electrical conductivity and minimizes resistance and heat losses. The simple mounting and included mounting hardware reduce installation time and effort. The construction is robust and designed for industrial environments, ensuring long service life and low maintenance requirements.

General
Modelfor main busbar 50 x 10 mm
MaterialE-Cu
Scope of deliveryIncluding mounting hardware
Length199 mm
Rails per conductor2, 4
Cross section100 mm x 10 mm
Copper content (kg/piece)1,703


Please note...
This article contains a copper surcharge of 14,34 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9686250, EAN: 4028177936119
