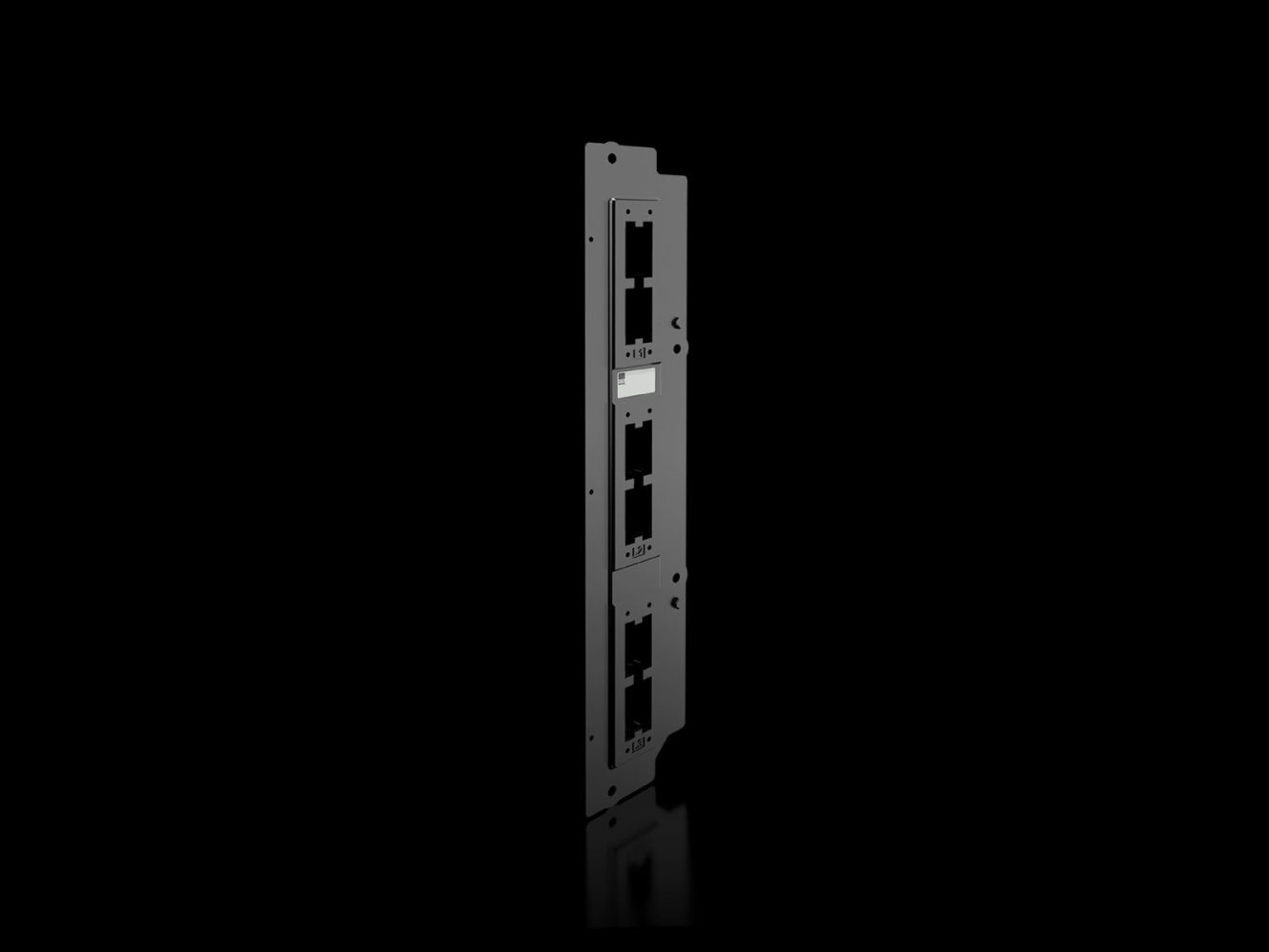

Rittal 9686060 SV busbar holder (baying) 3-pole, 185 mm

Your rating:
Average rating
product review for Rittal 9686060 SV busbar holder (baying) 3-pole, 185 mm
( 5 / 5 ) 3 ratings
Rittal 9686060
This image may differ from the desired article.
Rittal 9686060Rittal 9686060
187,68 EUR
( 223,34 EUR incl. VAT )
≈ £157.09  |  ≈ $206.26
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9686060 SV busbar holder (baying) 3-pole, 185 mm
Datasheet:file_download Download
Lieske Part No.:1908959
Mfg Part No: 9686060
UPC/EAN: 4028177935679
Weight:3.04 kg
Type:SV 9686060

Product information for Rittal 9686060:

The Rittal SV 9686060 is a busbar holder for the baying of 3-pole busbar systems made of flat copper in the rear area of enclosure to enclosure. It serves for the safe and structured connection of power distribution components in industrial enclosures and enables continuous power supply across multiple enclosures. The holder is made of thermosetting plastic with a flame behaviour according to UL 94-V0, ensuring high flame resistance and low smoke development under heat stress. The colour corresponds approximately to RAL 9005, a dark grey that integrates well in industrial environments.

Applications

The busbar holder is specifically designed for use in industrial electrical installations where reliable and safe power distribution across multiple enclosures is required. It is mounted in the rear area of enclosures to connect busbars between units. This is particularly relevant in installations with high power density and complex power distribution, such as production plants, power distribution systems, or automation technology. The baying enables flexible expansion of the installation without additional cabling.

Functions and Equipment in Detail

The holder is designed for busbars with dimensions 50 x 10 mm, which represents a standard size for flat copper conductors in industry. The centre-to-centre spacing of the busbars is 185 mm, ensuring uniform and precise mounting. Up to four busbars (partial conductors) per phase can be installed, offering high flexibility in power distribution. The delivery includes the mounting hardware required to attach the holder to the enclosure profiles.

Technology Explained Simply

The thermosetting plastic offers high mechanical stability and resistance to chemical influences, making it suitable for use in industrial environments. The UL 94-V0 rating for flame behaviour means the material is non-flammable when heated and self-extinguishes quickly, increasing safety in electrical installations. The RAL 9005 colour is standard in industry and ensures uniform visual design of enclosures. Mounting takes place in the rear area of enclosures, protecting the busbars from mechanical damage and ensuring a clear structure for power distribution.

Compatibility and Accessories

The busbar holder is compatible with busbars made of flat copper (E-Cu) with dimensions 50 x 10 mm. Suitable accessories include, among others, the busbar E-Cu 50x10 mm (length 2400 mm), the VX cage nut M8, longitudinal connectors in heights 55 mm and 100 mm, and the end cover for the busbar holder 9686.0X0. These components enable complete and secure installation of the busbar system, including connecting multiple busbars and end sealing.

Mounting and Installation

Installation takes place in the rear area of enclosures, where the holder is fastened to the enclosure profiles. The busbars are inserted into the holder, maintaining the 185 mm centre-to-centre spacing. The maximum of four busbars per phase allows flexible adaptation to different loads and current strengths. The mounting hardware included in the delivery simplifies installation and ensures a secure connection.

Advantages in Operation

Using the Rittal SV 9686060 enables structured and safe power distribution across multiple enclosures. Baying the busbars reduces the number of required cable connections, thereby lowering the risk of errors and failures. The high mechanical stability of the thermosetting plastic and the UL 94-V0 rating increase the safety of the installation. The clear structure and easy installation simplify maintenance and operation of the electrical installation. Compatibility with standardised components ensures easy integration into existing systems.

General
MaterialThermosetting plastic, flammability rating according to UL 94-V0
ColourSimilar to RAL 9005
Scope of deliveryIncluding mounting hardware
Suitable for busbars50 x 10 mm
Center-to-center spacing of busbars185 mm
Mounting noteMaximum 4 busbars (partial conductors) can be installed per phase; for mounting the busbar holder to the cabinet profile, the cage nut (M8) 4165.500 is required


Product data sheet
Datasheet for Rittal 9686060, EAN: 4028177935679
