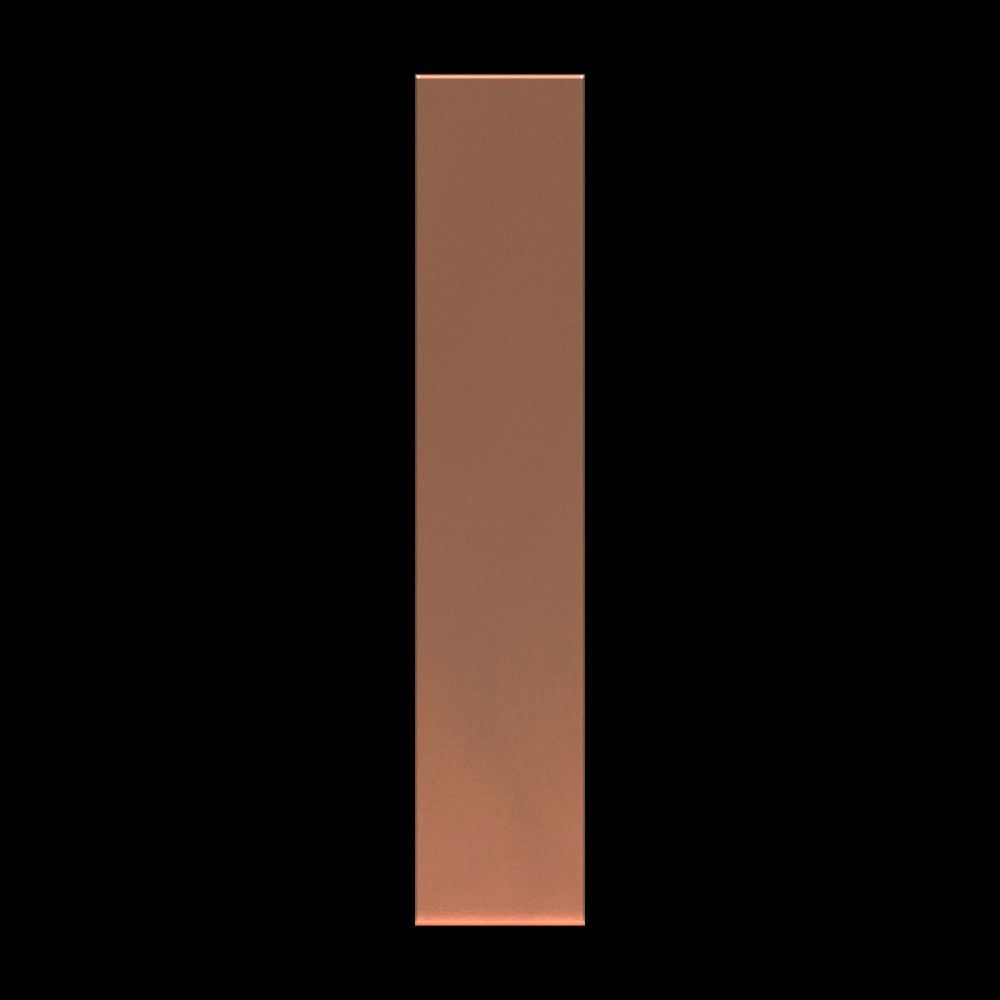

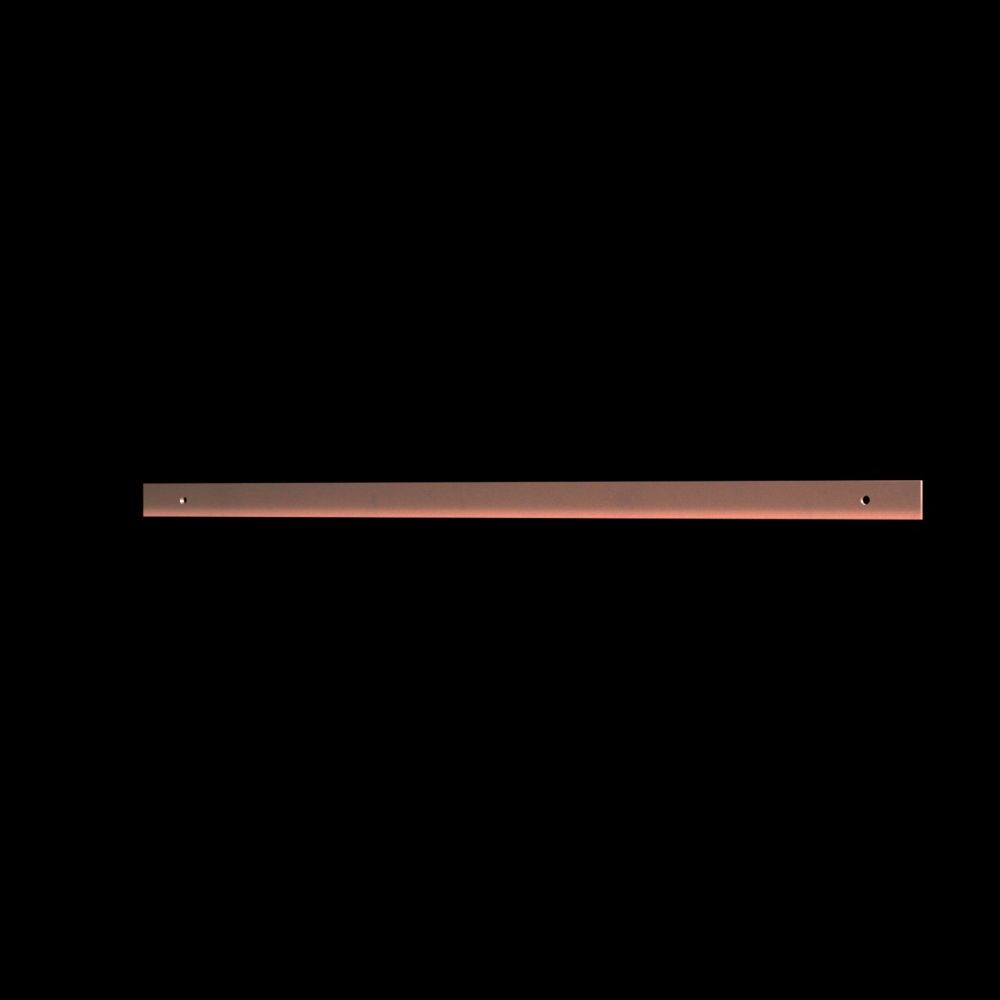

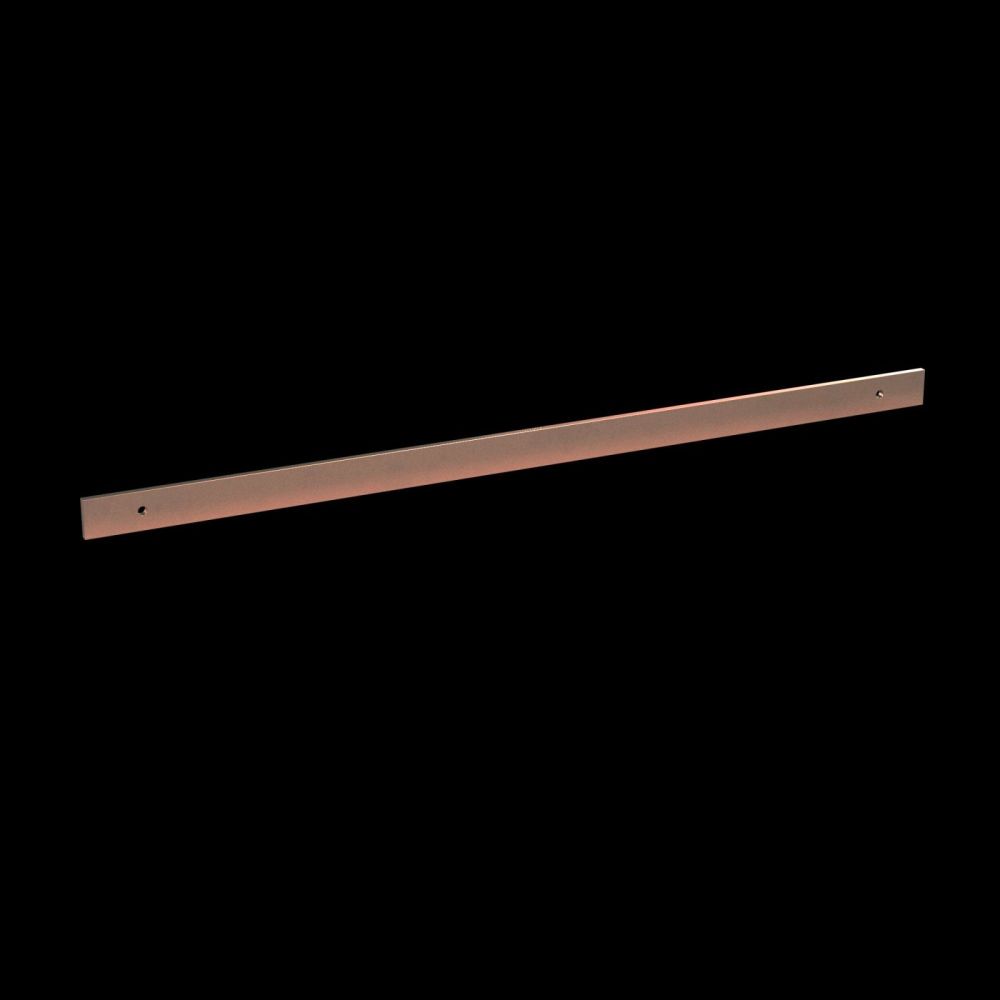

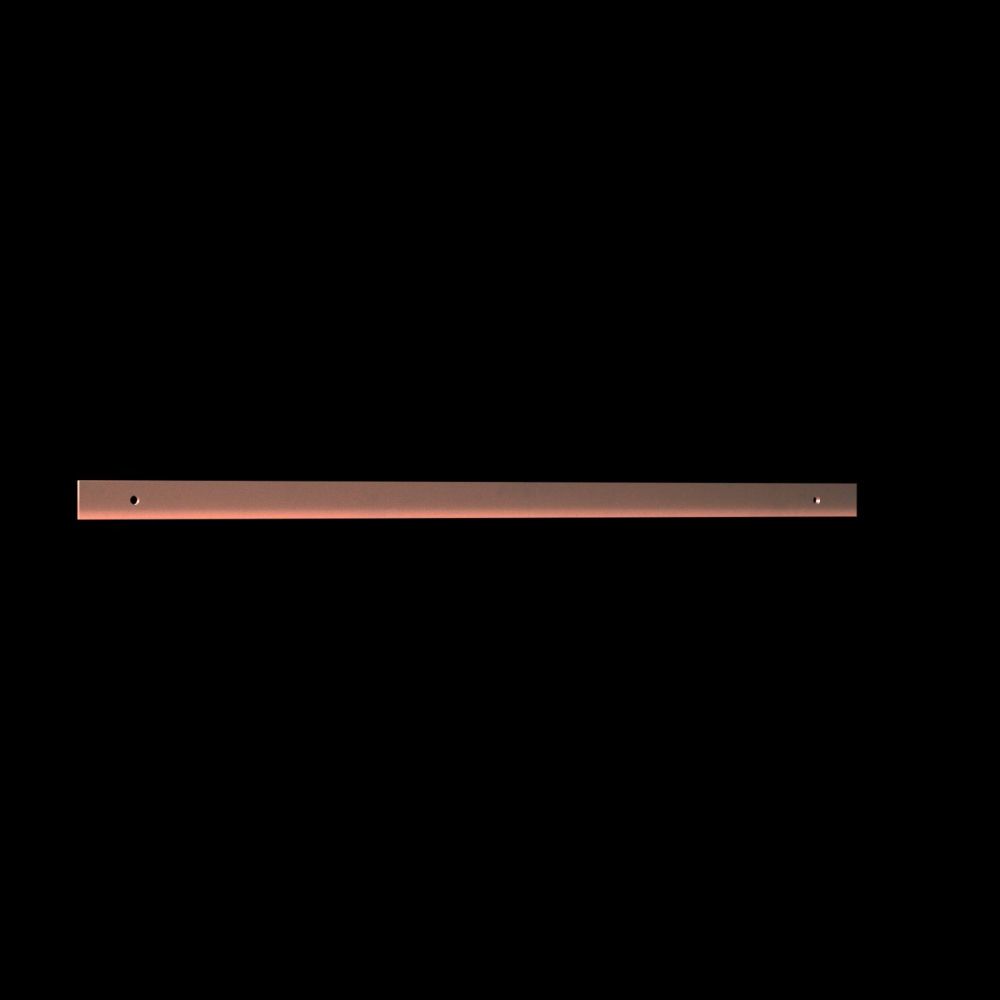

Rittal 9684008 SV busbar E-Cu with integrated hole, L: 785 mm

Your rating:
Average rating
product review for Rittal 9684008 SV busbar E-Cu with integrated hole, L: 785 mm
( 4.7 / 5 ) 3 ratings
Rittal 9684008
This image may differ from the desired article.
Rittal 9684008Rittal 9684008Rittal 9684008Rittal 9684008Rittal 9684008Rittal 9684008Rittal 9684008
89,79 EUR
incl. 29,30 EUR copper surcharge
( 106,85 EUR incl. VAT )
≈ £75.15  |  ≈ $98.68
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9684008 SV busbar E-Cu with integrated hole, L: 785 mm
Datasheet:file_download Download
Lieske Part No.:1909196
Mfg Part No: 9684008
UPC/EAN: 4028177951204
Weight:3.52 kg
Type:SV 9684008

Product information for Rittal 9684008:

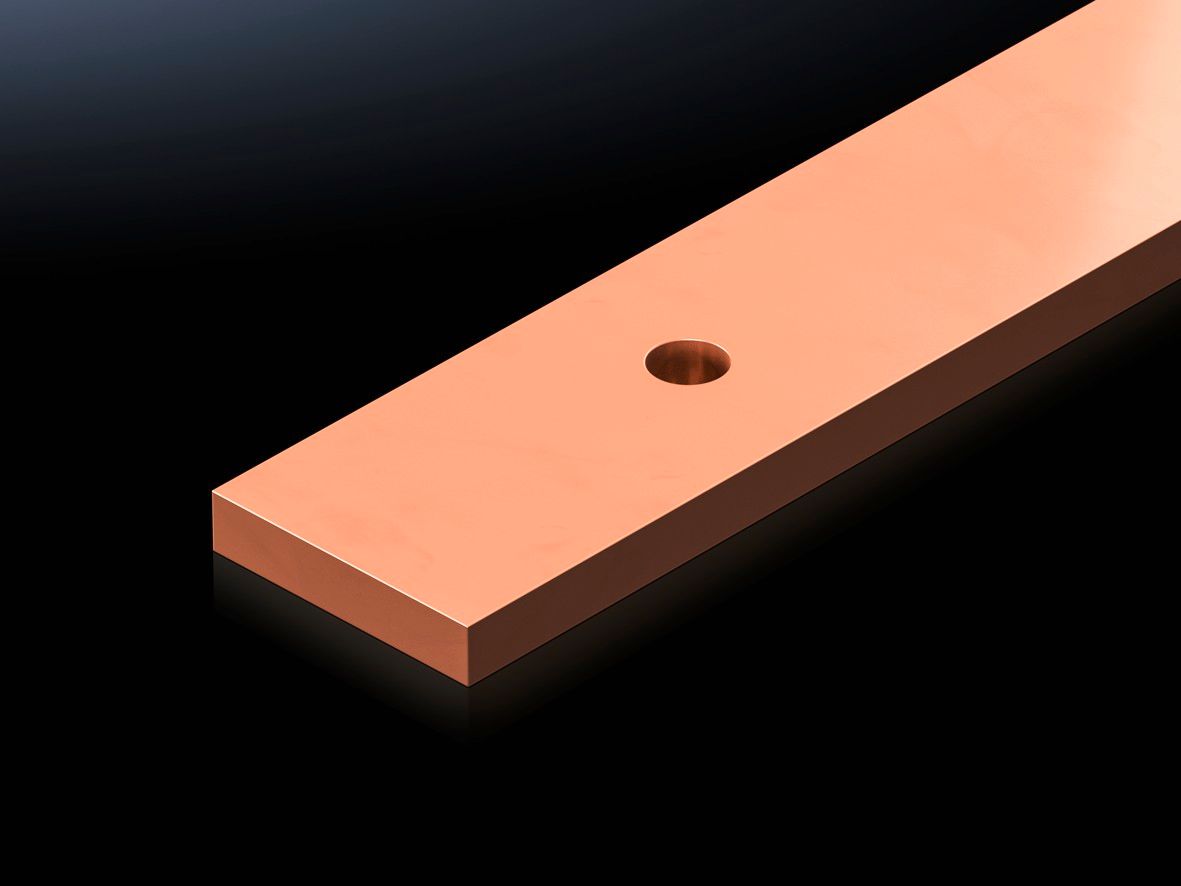

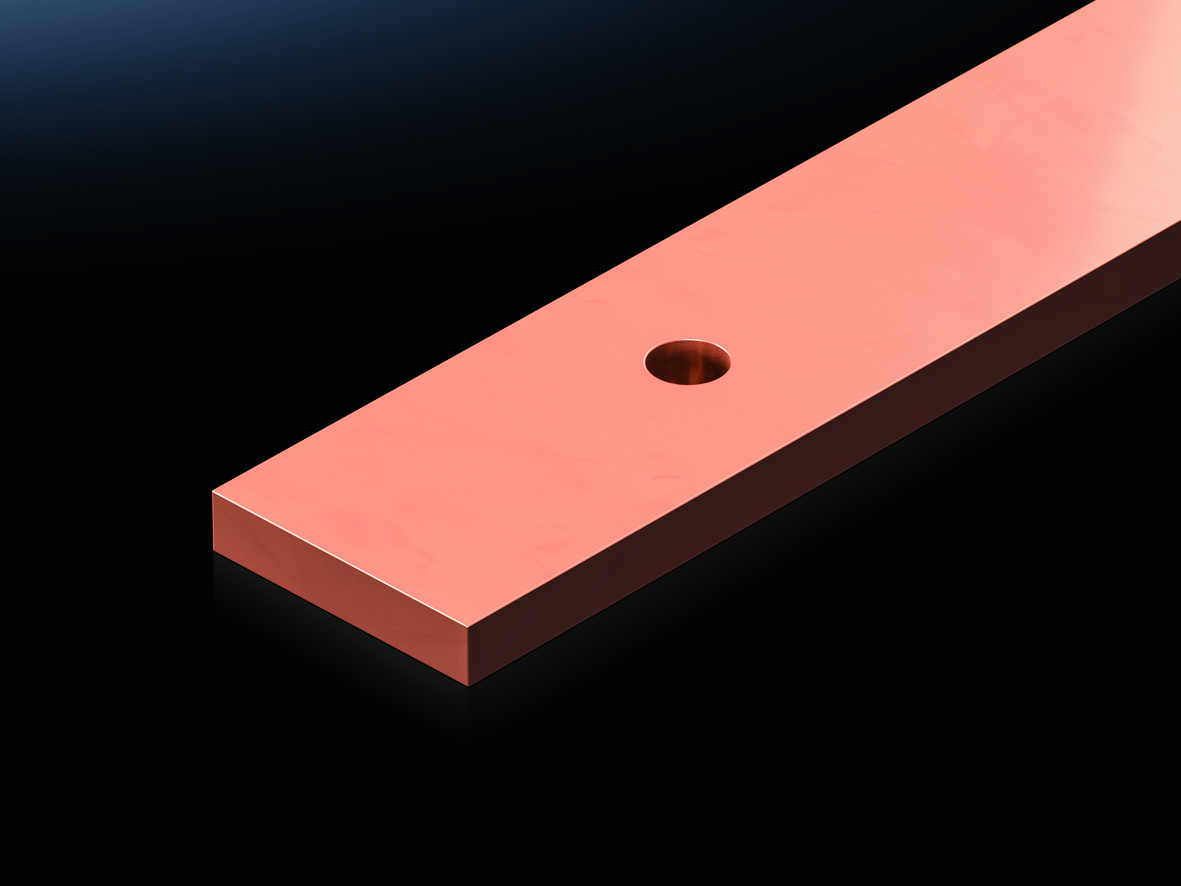

The Rittal SV 9684008 is a busbar made of E-Cu F30 with integrated perforations, designed for use in power distribution components and enclosures. With a length of 785 mm and a cross-section of 50 mm x 10 mm, it provides a stable electrical connection for power distribution in industrial installations. The busbar complies with the standard DIN EN 13 601, which specifies requirements for electrical conductor materials in industry. The hole diameter is 11.5 mm, enabling the mounting of screw terminals and other fastening elements. The copper content per piece is 3.48 kg, indicating high conductivity and electrical reliability.

Applications
The busbar is used in industrial electrical installations, particularly in enclosures where reliable power distribution is required. It is suitable for applications in power supply, machine building, and automation technology. The integrated perforations facilitate the mounting and fastening of terminals, switches, and other components, ensuring quick and secure installation.

Functions and Features in Detail
The busbar features a uniform, precise perforation along its entire length, ensuring secure mechanical fastening. The material E-Cu F30 is electrolytic copper with high purity, known for its excellent electrical conductivity and mechanical strength. The integrated perforations reduce the need for additional processing steps during installation, shortening assembly time. The busbar is available in a length of 785 mm, which is sufficient for many standard applications in enclosures.

Technology Explained Simply
The busbar serves as a central power distribution unit, supplying power to multiple electrical consumers or modules. The use of E-Cu F30 ensures high electrical conductivity and minimizes heat losses. The hole diameter of 11.5 mm is standardized and compatible with common screw terminals and fastening elements. The standard DIN EN 13 601 ensures that the material meets industrial requirements for electrical conductors, particularly regarding mechanical strength and electrical properties.

Compatibility and Accessories
To securely connect multiple busbars, SV longitudinal connectors H can be used. Compatible models are available in lengths of 55 mm (for 1x50x10 mm) and 100 mm (for 2x/4x50x10 mm). These connectors enable a stable electrical and mechanical connection between busbars, which is necessary for expanding power distribution systems. The combination with these accessories is intended for mounting in complex enclosure installations.

Installation and Mounting
Installation is performed by securing the busbar to designated mounting points in the enclosure, utilizing the integrated perforations. The busbar is fastened using screws or terminals, with the 11.5 mm hole size allowing the use of standardized fastening elements. No additional processing of the busbar is required, as the perforations are pre-drilled. The length of 785 mm is suitable for many standard configurations, with exact positioning in the enclosure varying according to system requirements.

Operational Advantages
The busbar provides reliable and low-maintenance power distribution. The use of E-Cu F30 ensures high electrical conductivity and minimizes the risk of overheating. The integrated perforations reduce installation time and increase fastening accuracy. Compliance with the standard DIN EN 13 601 guarantees product quality and safety. The busbar is designed for industrial environments where high loads and long service life are required.

General
MaterialE-Cu F30
StandardsDIN EN 13 601
Cross section50 mm x 10 mm
Hole diameter11,5 mm
Length785 mm
Copper content (kg/piece)3,48


Please note...
This article contains a copper surcharge of 29,30 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9684008, EAN: 4028177951204

Questions & answers

What is the delivery time of Rittal 9684008 SV busbar E-Cu with integrated hole, L: 785 mm?

The article Rittal 9684008 SV busbar E-Cu with integrated hole, L: 785 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9684008 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9684008 SV busbar E-Cu with integrated hole, L: 785 mm always at the best possible price. We can give you a discount of 2% on Rittal 9684008 SV busbar E-Cu with integrated hole, L: 785 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
