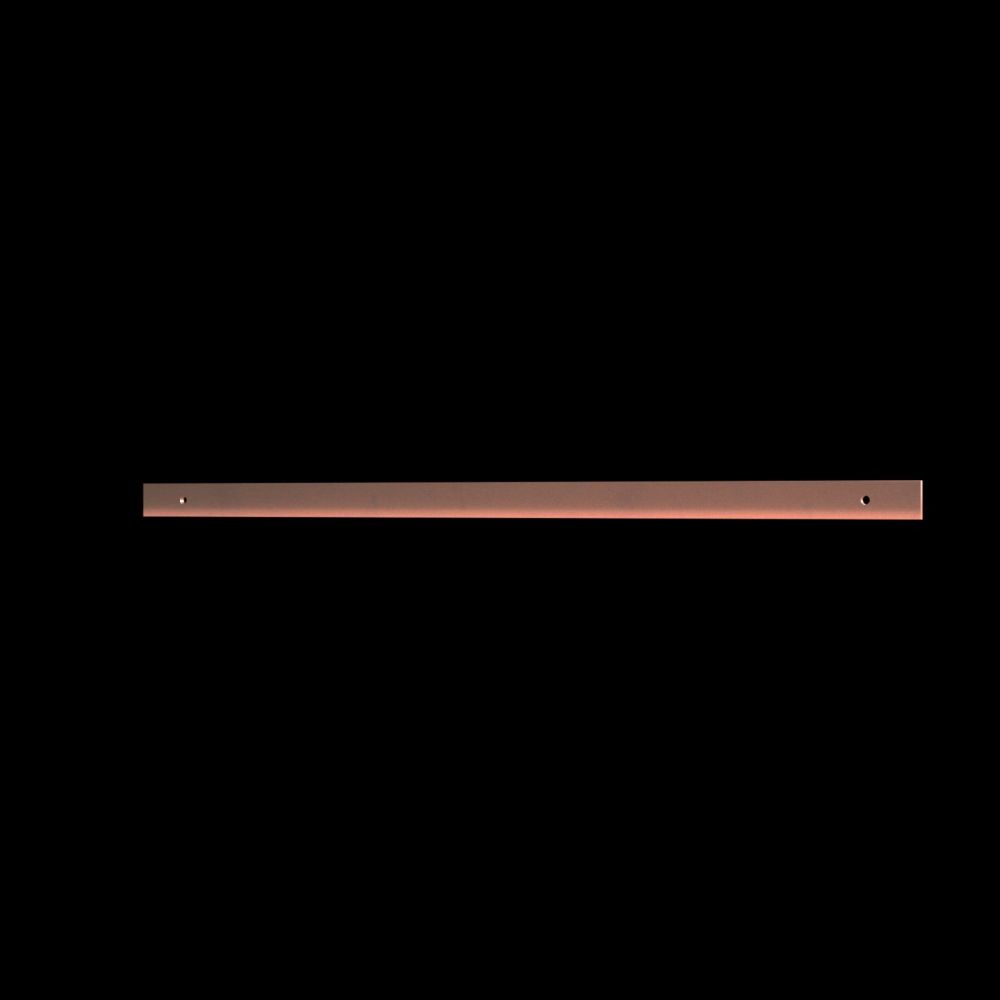

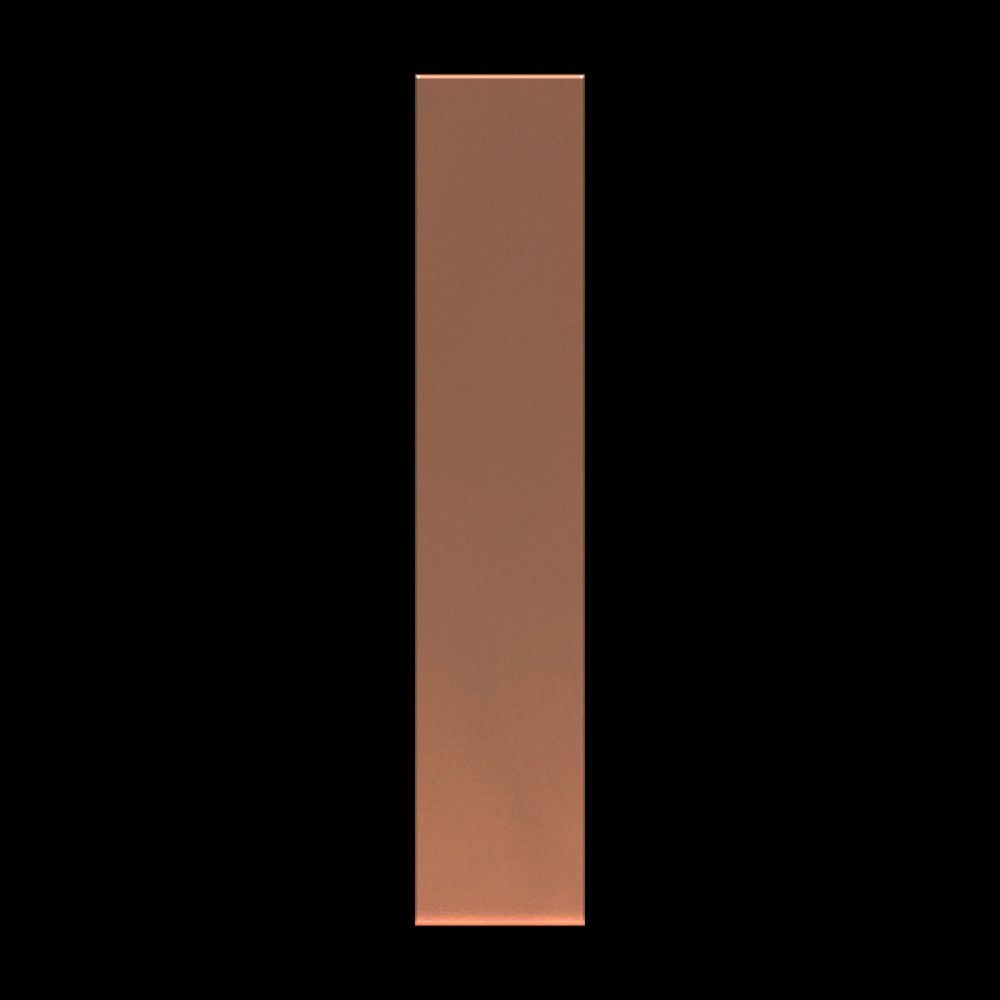

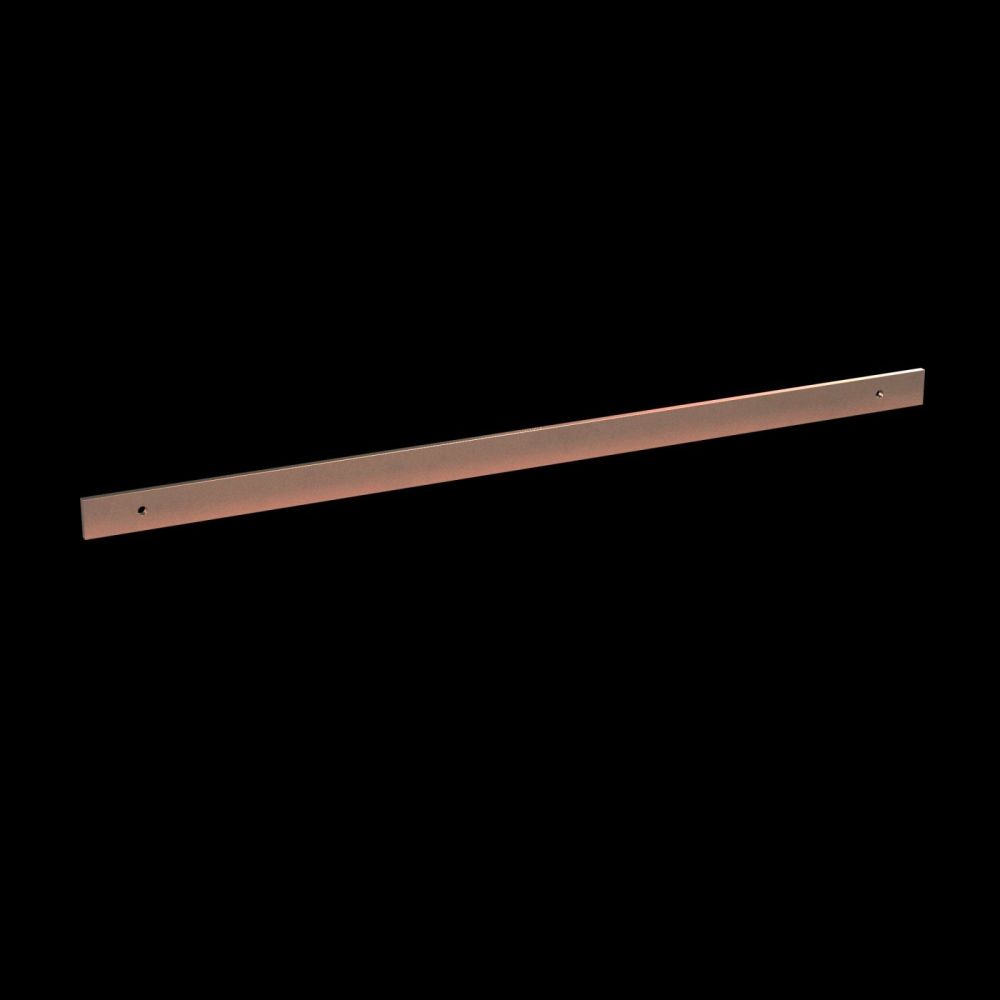

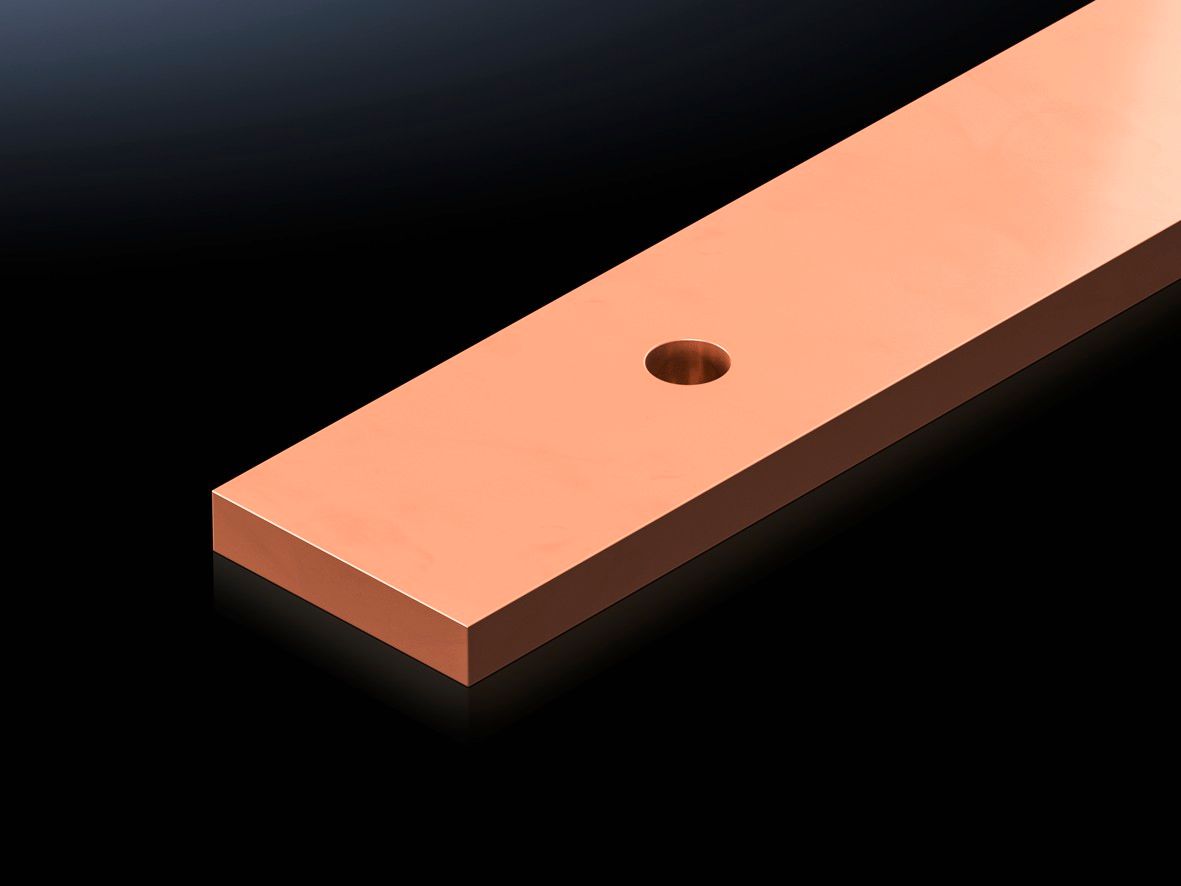

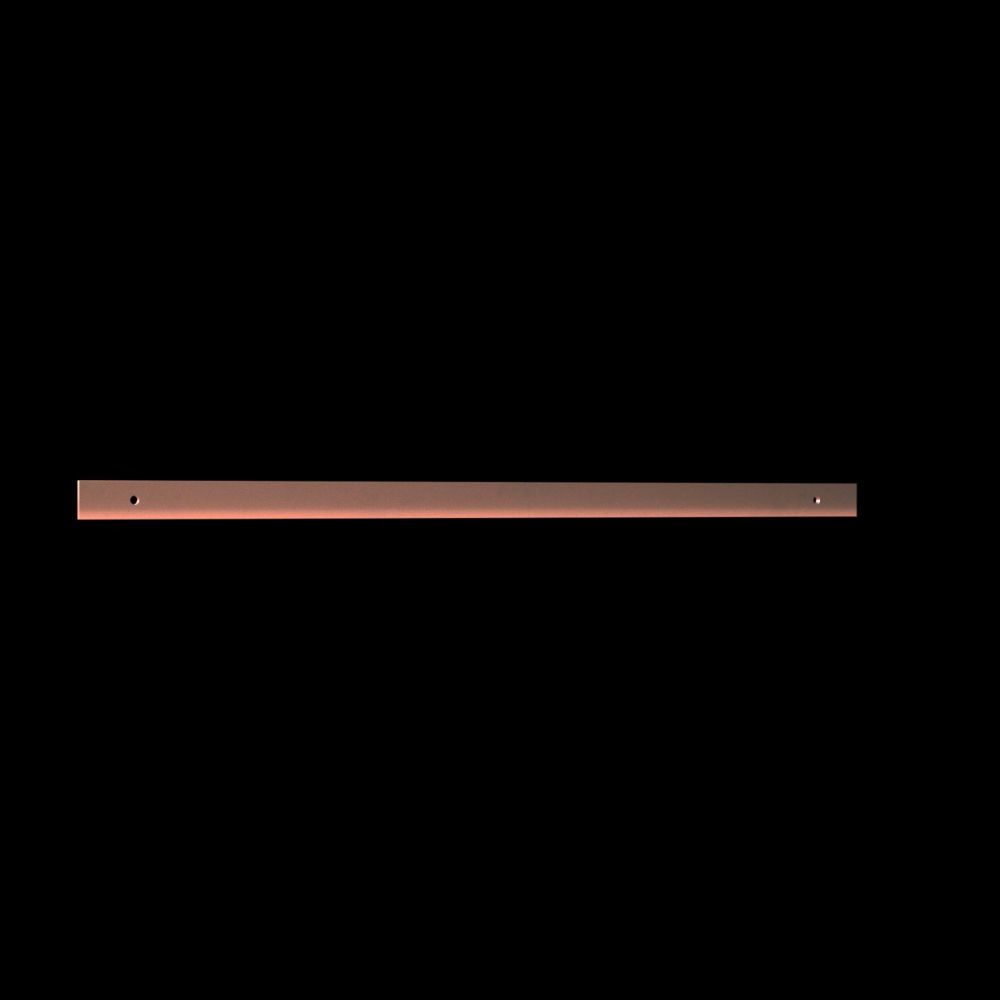

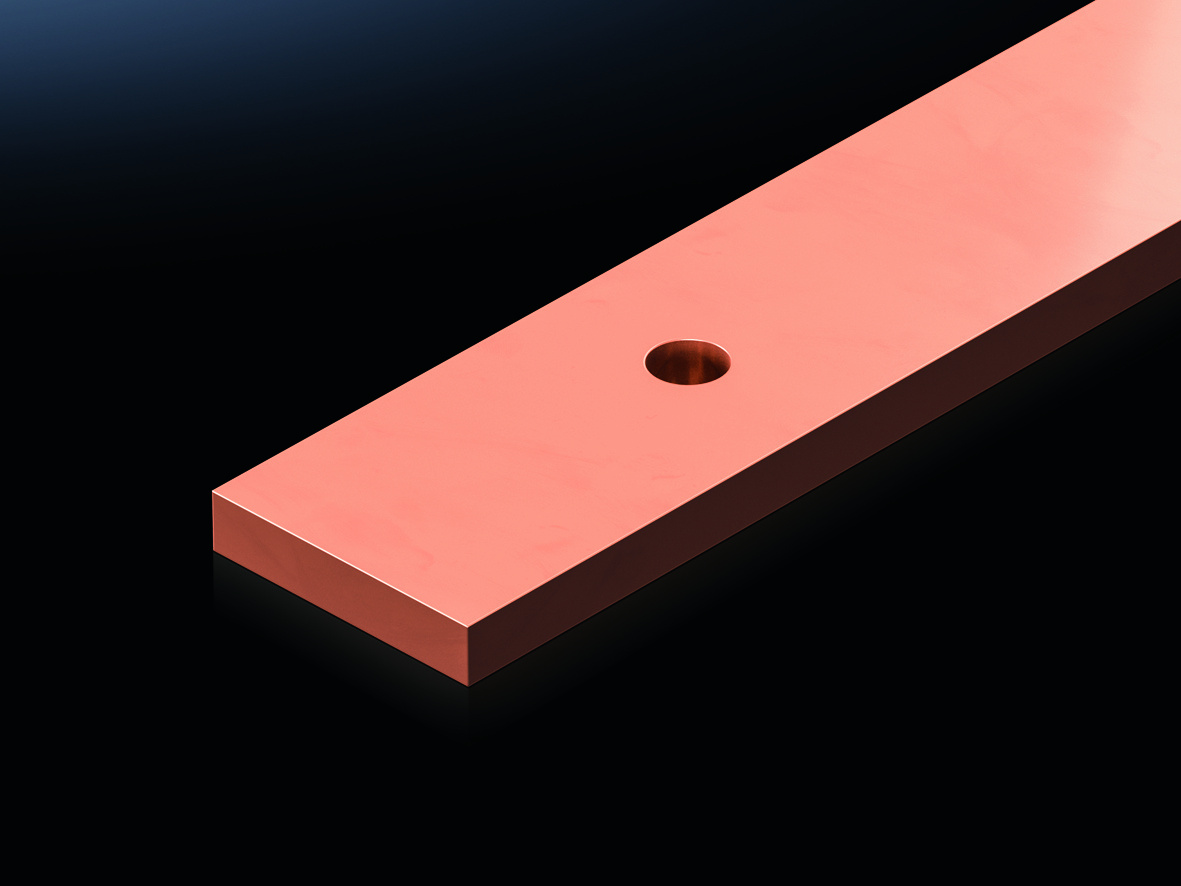

Rittal 9684006 SV busbar E-Cu with integrated hole, L: 585 mm

Your rating:
Average rating
product review for Rittal 9684006 SV busbar E-Cu with integrated hole, L: 585 mm
( 5 / 5 ) 3 ratings
Rittal 9684006
This image may differ from the desired article.
Rittal 9684006Rittal 9684006Rittal 9684006Rittal 9684006Rittal 9684006Rittal 9684006Rittal 9684006
70,60 EUR
incl. 21,72 EUR copper surcharge
( 84,01 EUR incl. VAT )
≈ £59.09  |  ≈ $77.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9684006 SV busbar E-Cu with integrated hole, L: 585 mm
Datasheet:file_download Download
Lieske Part No.:1908953
Mfg Part No: 9684006
UPC/EAN: 4028177951198
Weight:2.68 kg
Type:SV 9684006

Product information for Rittal 9684006:

The Rittal SV 9684006 is a busbar made of E-Cu F30 with integrated drillings, designed for use in power distribution components and enclosures. With a length of 585 mm and a cross-section of 50 mm x 10 mm, it provides a stable and conductive connection for electrical lines in industrial installations. The integrated drillings with a diameter of 11.5 mm allow for quick and secure mounting of terminals, screw connections, or other fastening elements. The busbar complies with the standard DIN EN 13 601, which specifies requirements for the construction and use of power distribution components in enclosures. The copper content is 2.58 kg per piece, ensuring high conductivity and electrical reliability.

Applications

The busbar is used in industrial electrical installations, particularly in enclosures where reliable power distribution is required. It is suitable for applications in the machine and plant engineering industry, where high electrical loads and mechanical stresses occur. The integrated drillings simplify installation and maintenance, as no additional drilling is required. The use of E-Cu F30 ensures high mechanical strength and corrosion resistance, extending the component’s service life.

Functions and Equipment in Detail

The busbar is equipped with integrated drillings directly incorporated into the bar. These drillings have a diameter of 11.5 mm and allow for direct mounting of terminals or other connection elements. The length of 585 mm provides sufficient space for multiple connections and is designed for standard enclosure configurations. The material E-Cu F30 is high-quality electrolytic copper with high conductivity and mechanical strength, ensuring stable power transmission. The standard DIN EN 13 601 ensures compliance with safety and quality requirements for power distribution components.

Technology Explained Simply

The busbar serves as a central power distribution component, connecting multiple electrical lines or devices. The integrated drillings reduce installation time, as no additional drilling is needed. The material E-Cu F30 offers high electrical conductivity, which is essential for efficient power transmission. The standard DIN EN 13 601 ensures the bar meets requirements for safety, reliability, and mechanical stability in industrial installations. The length of 585 mm is designed for typical enclosure dimensions and allows for flexible arrangement of connections.

Compatibility and Accessories

The busbar is compatible with various accessories, particularly longitudinal connectors. Suitable examples include the SV longitudinal connector H: 100 mm for E-Cu 2x/4x50x10 mm and the SV longitudinal connector H: 55 mm for E-Cu 1x50x10 mm. These connectors enable power distribution to be extended across multiple bars, allowing complex control systems to be assembled efficiently. Using these accessories requires no additional tools or modifications to the busbar.

Installation and Mounting

Mounting is done by securing the busbar to the enclosure wall or a support using the integrated drillings. The 11.5 mm diameter holes allow for standard screws or terminals. The bar is typically arranged horizontally or vertically, depending on the control system requirements. The length of 585 mm provides sufficient space for multiple connections, ensuring a structured and clear installation. Mounting requires no special tools, as the integrated drillings allow direct fastening.

Operational Advantages

The busbar provides reliable and conductive power distribution designed for industrial applications. The integrated drillings reduce installation time and increase mounting safety, as no additional drilling is required. The material E-Cu F30 ensures high mechanical strength and corrosion resistance, extending the component’s service life. Compliance with the standard DIN EN 13 601 ensures safety and reliability in operation. The length of 585 mm allows for flexible arrangement in enclosures and fits standard dimensions.

General
MaterialE-Cu F30
StandardsDIN EN 13 601
Cross section50 mm x 10 mm
Hole diameter11,5 mm
Length585 mm
Copper content (kg/piece)2,58


Please note...
This article contains a copper surcharge of 21,72 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9684006, EAN: 4028177951198
