Rittal 9686300 SV busbar holder (N-/PEN conductor), 1-pole, for

Your rating:
Average rating
product review for Rittal 9686300 SV busbar holder (N-/PEN conductor), 1-pole, for
( 4.7 / 5 ) 3 ratings
Rittal 9686300
This image may differ from the desired article.
Rittal 9686300Rittal 9686300Rittal 9686300
52,67 EUR
( 62,68 EUR incl. VAT )
≈ £44.08  |  ≈ $57.88
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces

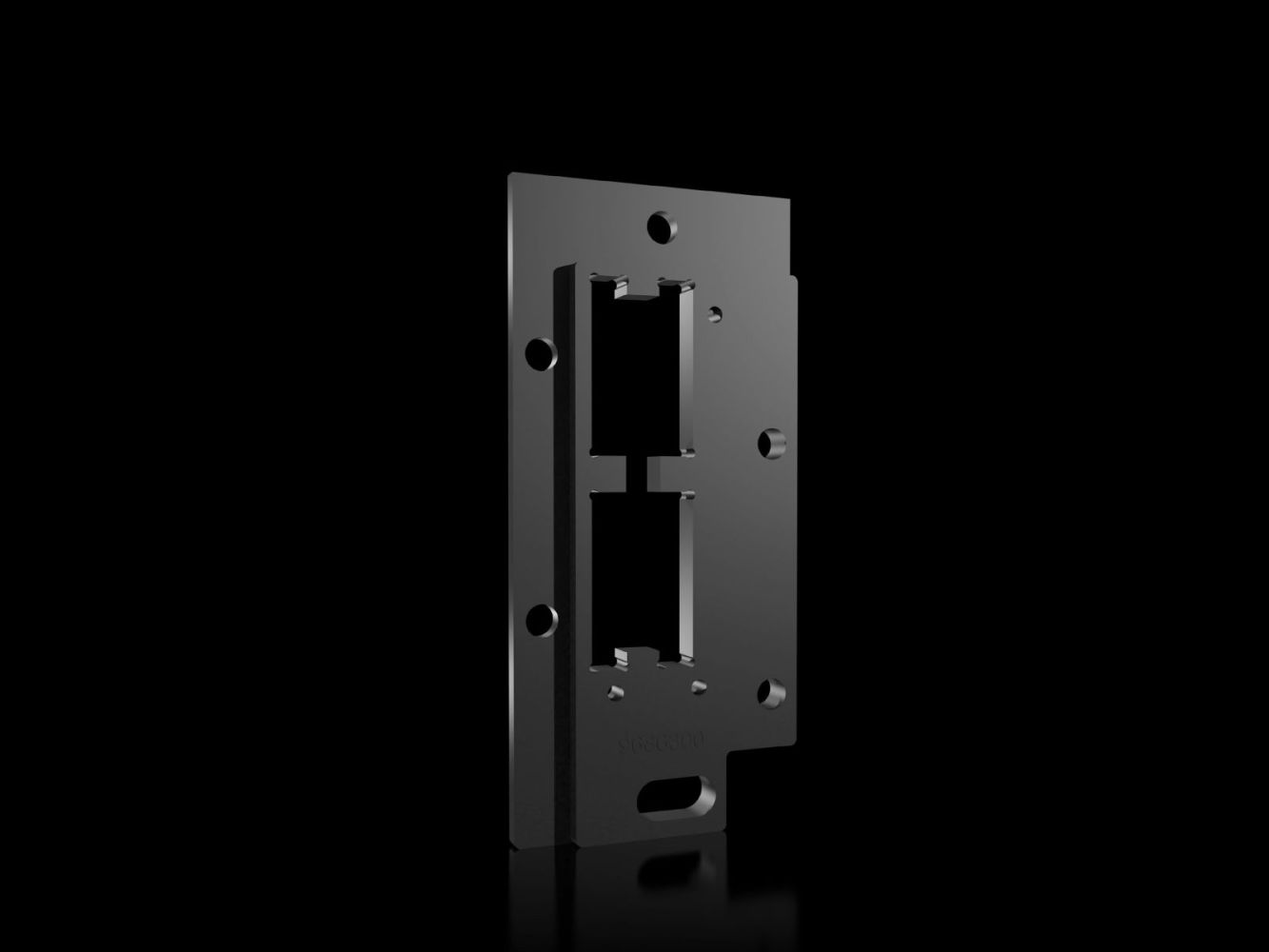

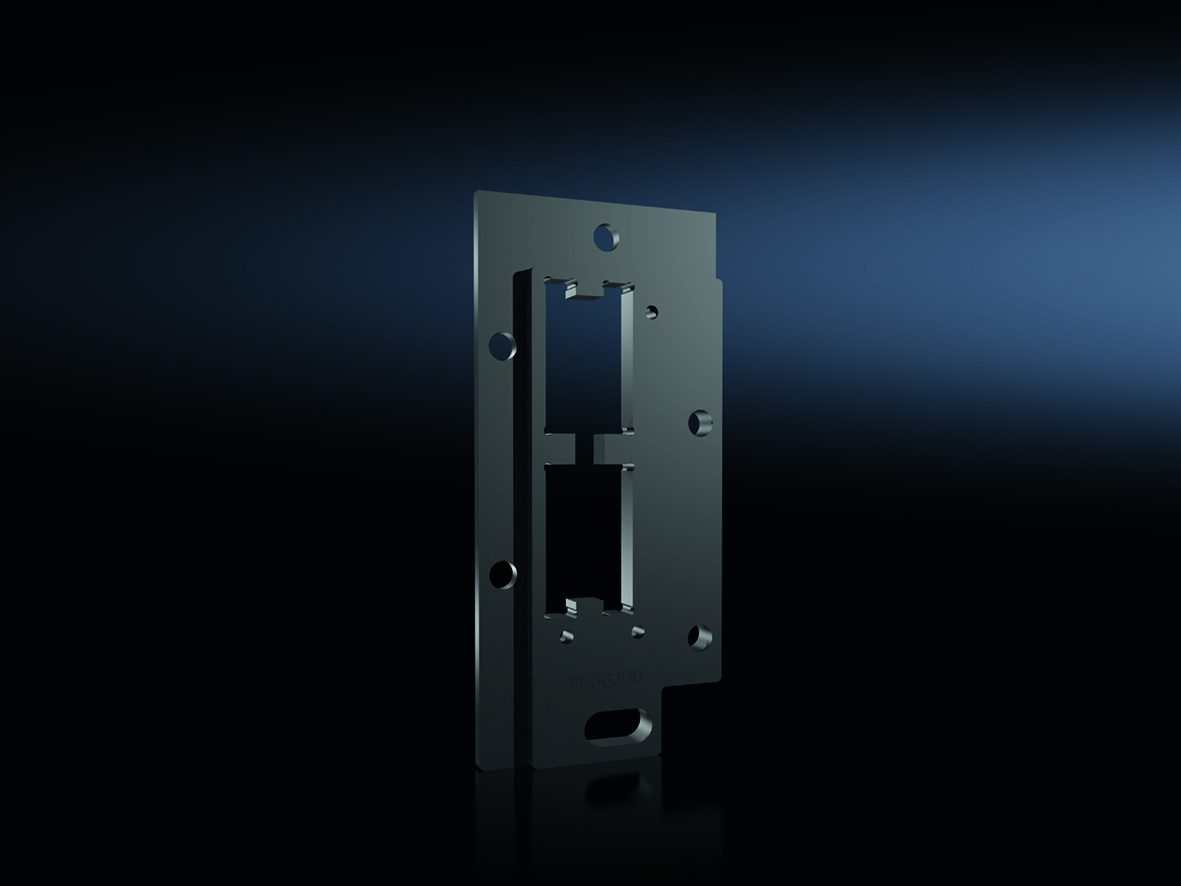

1x Rittal 9686300 SV busbar holder (N-/PEN conductor), 1-pole, for
Datasheet:file_download Download
Lieske Part No.:1908962
Mfg Part No: 9686300
UPC/EAN: 4028177935983
Weight:0.421 kg
Type:SV 9686300

Product information for Rittal 9686300:

The Rittal SV 9686300 is a busbar holder for use in power distribution components and is specifically designed for the assembly of single-pole neutral or PEN conductors in enclosures. It is designed to securely fix busbars with dimensions 50x10 mm and allows the mounting of up to four parallel conductors per phase. The fixation is done directly to the enclosure profile, ensuring a stable and secure anchoring. The product is delivered in a packaging unit of two pieces and is made of polyamide, which according to UL 94-HB exhibits a specific flammability behaviour. The colour corresponds approximately to RAL 9005, a dark grey that integrates well in industrial environments.

Applications

The busbar holder is intended for use in industrial electrical installations, particularly in enclosures where secure and orderly routing of neutral or PEN conductors is required. It is commonly used in distributors, enclosures, or power supply systems where multiple parallel busbars per phase must be mounted. The design enables clear separation of conductors and supports compliance with safety and installation standards.

Functions and Equipment in Detail

The holder is designed for mounting busbars with a width of 50 mm and a height of 10 mm. The maximum number of mountable conductors per phase is four, offering high flexibility in dimensioning distributors. The polyamide material ensures high mechanical stability and resistance to mechanical stress. The flammability standard UL 94-HB ensures sufficient self-extinguishing capability, which is relevant for use in enclosed enclosures. The delivery includes the fastening material required for mounting to the enclosure profile.

Technology Explained Simply

The busbar holder serves as a mechanical support for busbars, which function as main conductors in power distribution. The single-pole design means it is intended for a single conductor (e.g. N- or PEN-conductor). The mounting is done to the enclosure profile, anchoring the holder securely within the enclosure. The use of polyamide provides good insulation properties and resistance to environmental influences such as humidity or temperature fluctuations. The colour RAL 9005 is standard in industry and ensures a uniform visual appearance of enclosures.

Compatibility and Accessories

The holder is compatible with busbars of dimension 50x10 mm. Suitable accessories include, for example, the busbar E-Cu 50x10 mm with a length of 2400 mm, as well as longitudinal connectors in heights of 100 mm and 55 mm, suitable for connecting multiple busbars. These components enable a flexible and modular construction of power distributors.

Mounting and Installation

Mounting is done by fastening to the enclosure profile, using the included fastening material. The maximum of four parallel busbars per phase requires careful planning of placement to ensure sufficient spacing and mechanical stability. Mounting is common in industrial installations and is usually carried out during enclosure assembly.

Operational Advantages

The use of the Rittal SV 9686300 ensures orderly and secure routing of neutral or PEN conductors. The use of polyamide provides high mechanical strength and resistance to environmental influences. The possibility to mount up to four conductors per phase offers flexibility in dimensioning distributors. The uniform colouring supports visual clarity in enclosures.

General
MaterialPolyamide, flammability rating according to UL 94-HB
ColourSimilar to RAL 9005
Scope of deliveryIncluding mounting hardware
Mounting noteMaximum of 4 busbars (partial conductors) per phase can be installed


Product data sheet
Datasheet for Rittal 9686300, EAN: 4028177935983
