Rittal 9686010 SV busbar holder 4-pole 80 mm for E-Cu 30x

Your rating:
Average rating
product review for Rittal 9686010 SV busbar holder 4-pole 80 mm for E-Cu 30x
( 4.5 / 5 ) 6 ratings

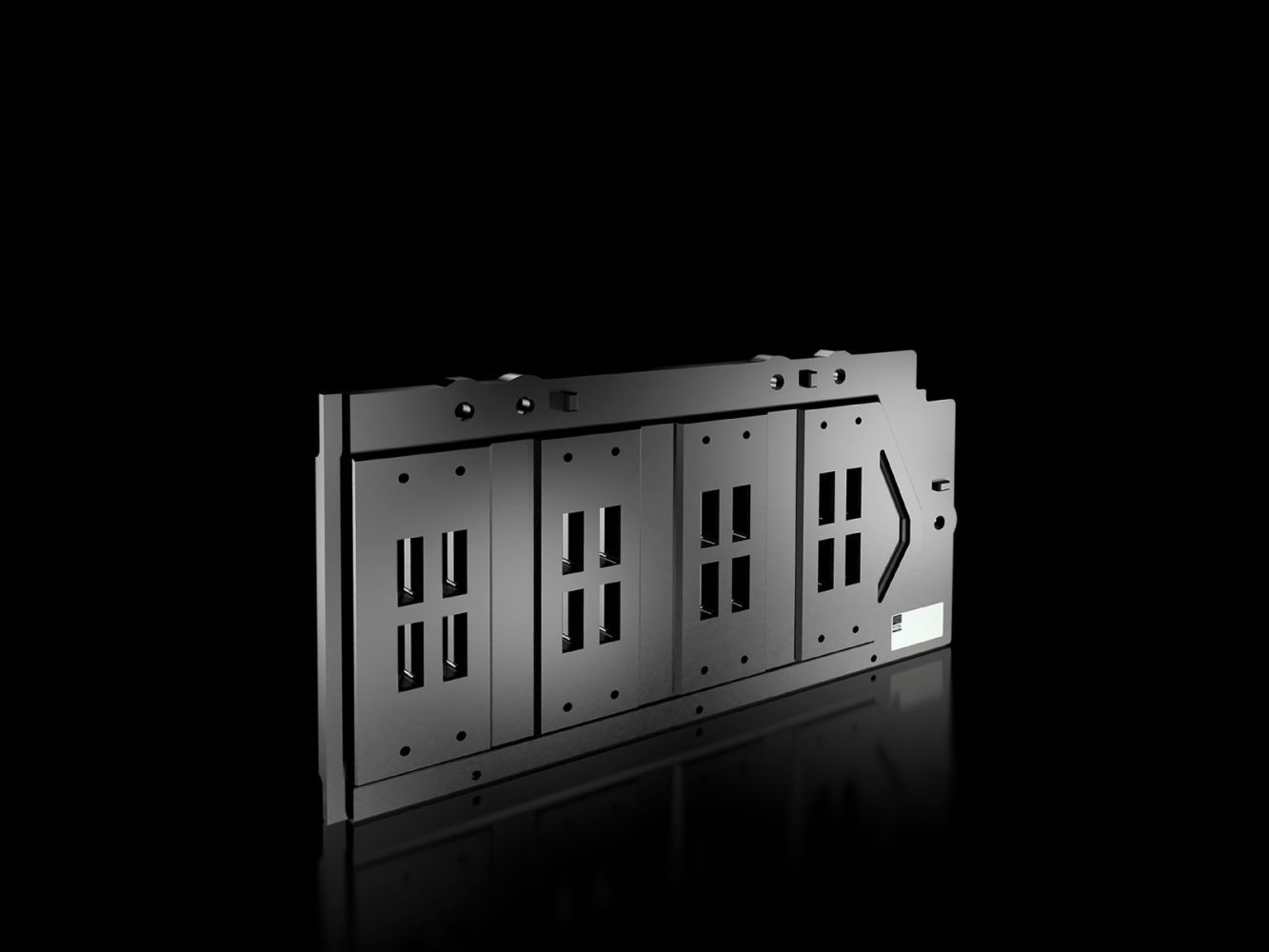

Rittal 9686010
This image may differ from the desired article.
Rittal 9686010Rittal 9686010Rittal 9686010
-23% 138,58 EUR 179,06 EUR
( 164,91 EUR incl. VAT )
≈ £115.99  |  ≈ $152.30
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9686010 SV busbar holder 4-pole 80 mm for E-Cu 30x
Datasheet:file_download Download
Lieske Part No.:1908956
Mfg Part No: 9686010
UPC/EAN: 4028177935648
Weight:3.98 kg
Type:SV 9686010

Product information for Rittal 9686010:

The Rittal SV 9686010 is a busbar holder for use in the roof area of enclosures. It is designed for the passage of busbar systems and is specifically intended for mounting E-Cu busbars with dimensions 30 x 10 mm. The holder is 4-pole designed, with a center-to-center distance of 80 mm between individual busbars. It is made of thermosetting plastic, which, according to UL 94-V0, exhibits high flame resistance, making it suitable for use in electrical installations. The color corresponds approximately to RAL 9005, a dark gray that integrates well in industrial environments.

Applications

The busbar holder is used in power distribution within enclosures, particularly where busbars must be routed through the roof of the enclosure. It is designed for use in industrial electrical installations where secure and orderly routing of conductors is required. The construction allows for stable fixation of the busbars, minimizing mechanical stress and movement of the conductors.

Functions and Equipment in Detail

The holder is designed for mounting up to four busbars per phase, enabling flexible use for different power requirements. The packaging unit includes two pieces of the busbar holder, with the mounting hardware already included in the delivery scope. The choice of thermosetting plastic ensures high mechanical stability and resistance to environmental influences.

Technology Explained Simply

The thermosetting plastic from which the holder is made is a hard, dimensionally stable material, characterized by high heat and chemical resistance. The flame resistance according to UL 94-V0 means that the material extinguishes quickly when exposed to flame and does not propagate flames, which is an important safety feature in electrical installations. The dimension 30 x 10 mm refers to the cross-sectional dimensions of the compatible busbars, made of electrolytic copper (E-Cu). The center-to-center distance of 80 mm is standardized and enables compatible mounting with other components in the enclosure.

Compatibility and Accessories

The busbar holder is specifically designed for busbars with dimensions 30 x 10 mm. As compatible accessories, the E-Cu 30x10 mm busbar, L=2400 mm, is offered, which can be directly inserted into the holder. Additionally, the SV end cap for busbar holder 9686.0X0 is available to cover the ends of the busbars and enhance safety.

Mounting and Installation

The busbars are inserted into the holder, ensuring the center-to-center distance of 80 mm is maintained. Up to four busbars (partial conductors) can be mounted per phase. Installation takes place in the roof area of the enclosure, ensuring mechanical stability and correct alignment of the busbars.

Advantages in Operation

The use of the Rittal SV 9686010 enables structured and secure routing of busbars within the enclosure. The high mechanical stability of the thermosetting plastic ensures long service life and resistance to mechanical stress. The clear structuring of conductors facilitates maintenance and inspection of the installation. Compatibility with standardized busbars and accessories ensures easy integration into existing systems.

General
MaterialThermosetting plastic, flammability rating according to UL 94
ColourSimilar to RAL 9005
Scope of deliveryIncluding mounting hardware
Suitable for busbars30 x 10 mm
Center-to-center spacing of busbars80 mm
Mounting noteMaximum 4 busbars (partial conductors) can be installed per phase; for mounting the busbar holder to the cabinet profile, the cage nut (M8) 4165.500 is required


Product data sheet
Datasheet for Rittal 9686010, EAN: 4028177935648

Questions & answers

What is the delivery time of Rittal 9686010 SV busbar holder 4-pole 80 mm for E-Cu 30x?

The article Rittal 9686010 SV busbar holder 4-pole 80 mm for E-Cu 30x is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9686010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9686010 SV busbar holder 4-pole 80 mm for E-Cu 30x always at the best possible price. We can give you a discount of 2% on Rittal 9686010 SV busbar holder 4-pole 80 mm for E-Cu 30x if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 9686010 SV busbar holder 4-pole 80 mm for E-Cu 30x

Rittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm Rittal LogoRittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm The Rittal SV 3586005 is a busbar made of E-Cu F30 copper, designed for use in power distribution components and enclosures. With a cross-section of 30 mm x 10 mm and a length of 2,400 mm, it provides ...

Lieske Part No.: 915671
Mfg Part No: 3586005
Type: SV 3586005
263,81 EUR 264,62 EUR
Rittal 3586005 plus VAT
≈ £220.81  |  ≈ $289.93
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
Rittal 4165500 VX cage nut, M8 Rittal LogoRittal 4165500 VX cage nut, M8 The Rittal VX 4165.500 is a cage nut with M8 thread, specifically developed for mounting in VX enclosures and compatible systems. It serves as a metric fastening element and enables circumferential ...

Lieske Part No.: 1440737
Mfg Part No: 4165500
Type: VX 4165.500
18,99 EUR 19,11 EUR
Rittal 4165500 plus VAT
≈ £15.89  |  ≈ $20.87
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 9686080 SV end cover for busbar holder 9686.0X0 Rittal LogoRittal 9686080 SV end cover for busbar holder 9686.0X0 The Rittal SV 9686080 is an end cover for busbar holders of type 9686.0X0, designed for shock-protected covering of exposed ends of busbars. This component ensures safety in electrical installations ...

Lieske Part No.: 1908961
Mfg Part No: 9686080
Type: SV 9686080
33,24 EUR
Rittal 9686080 plus VAT
≈ £27.82  |  ≈ $36.53
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
