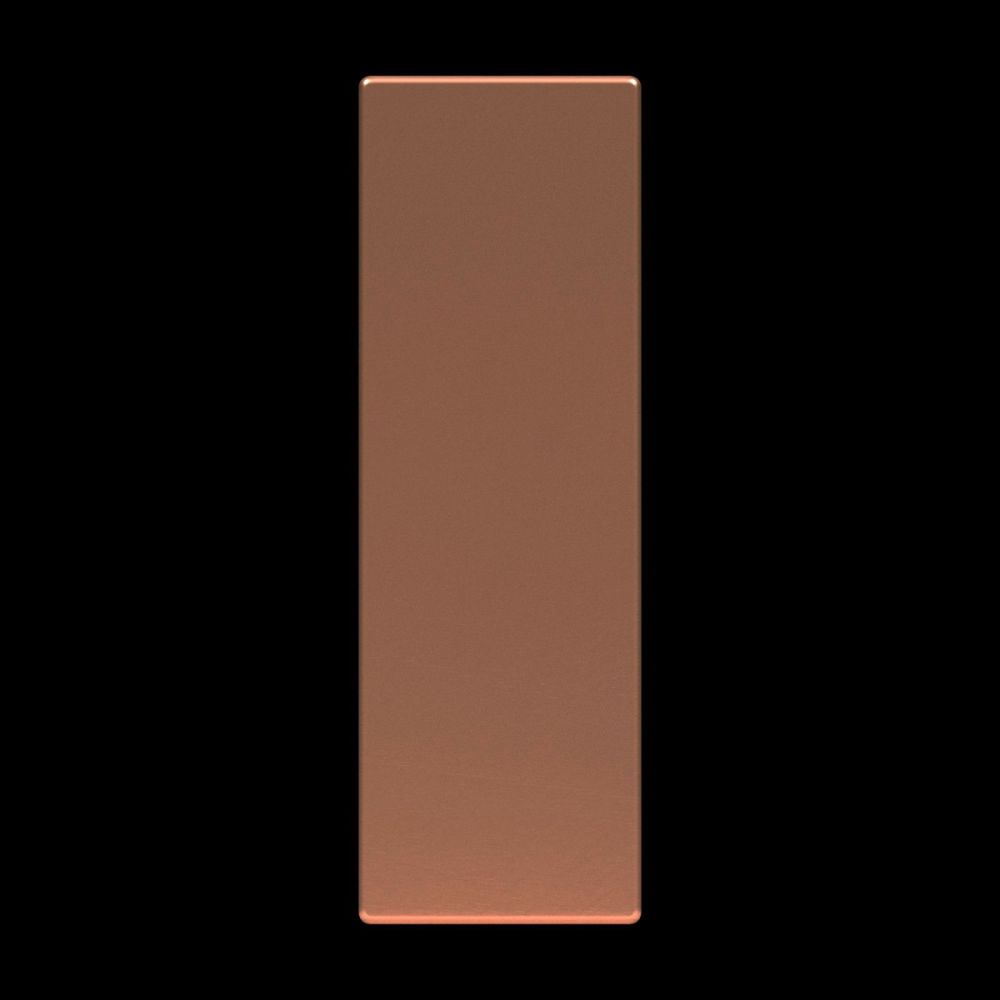

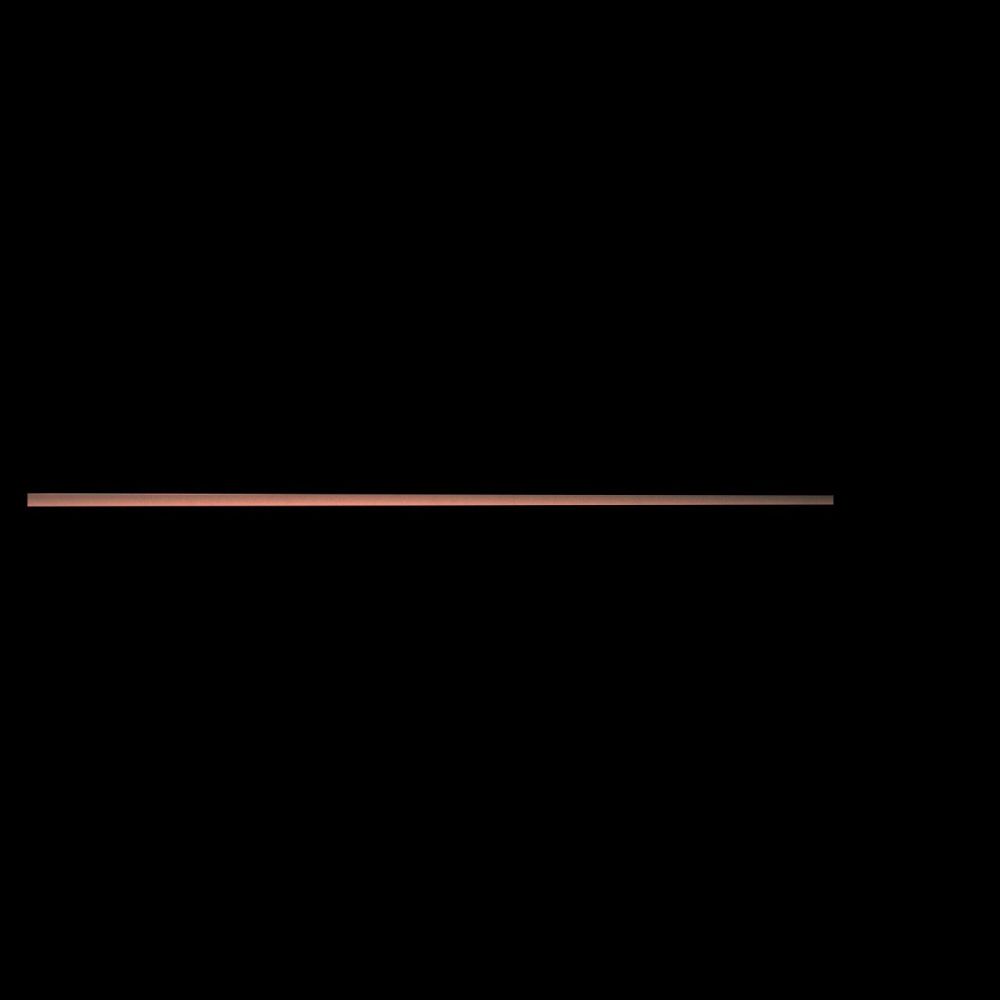

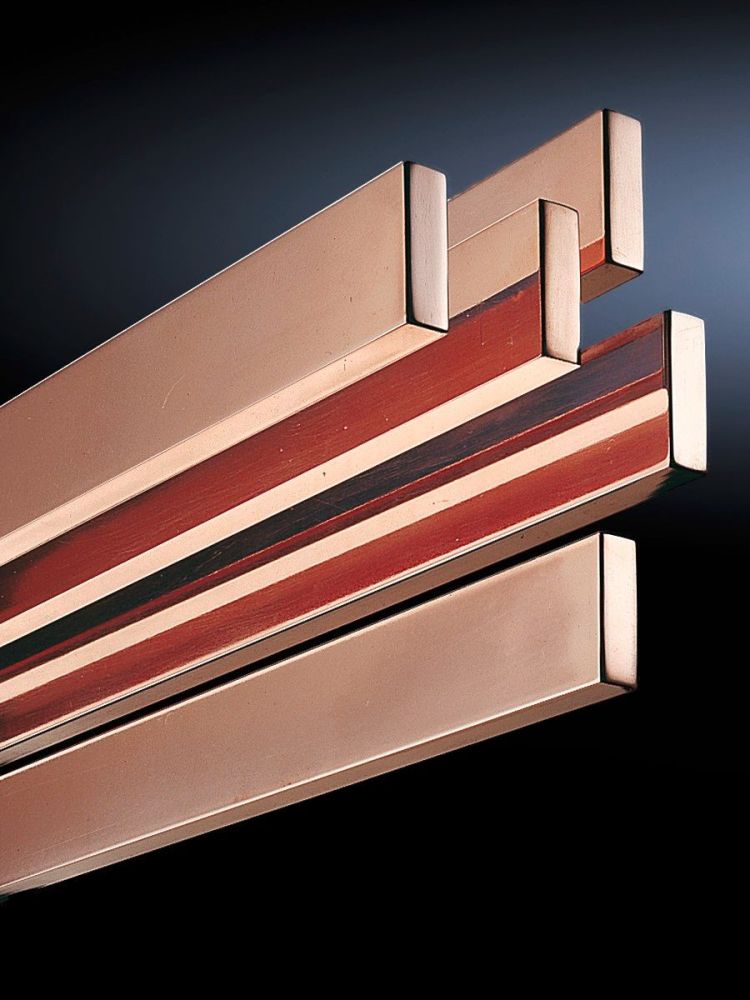

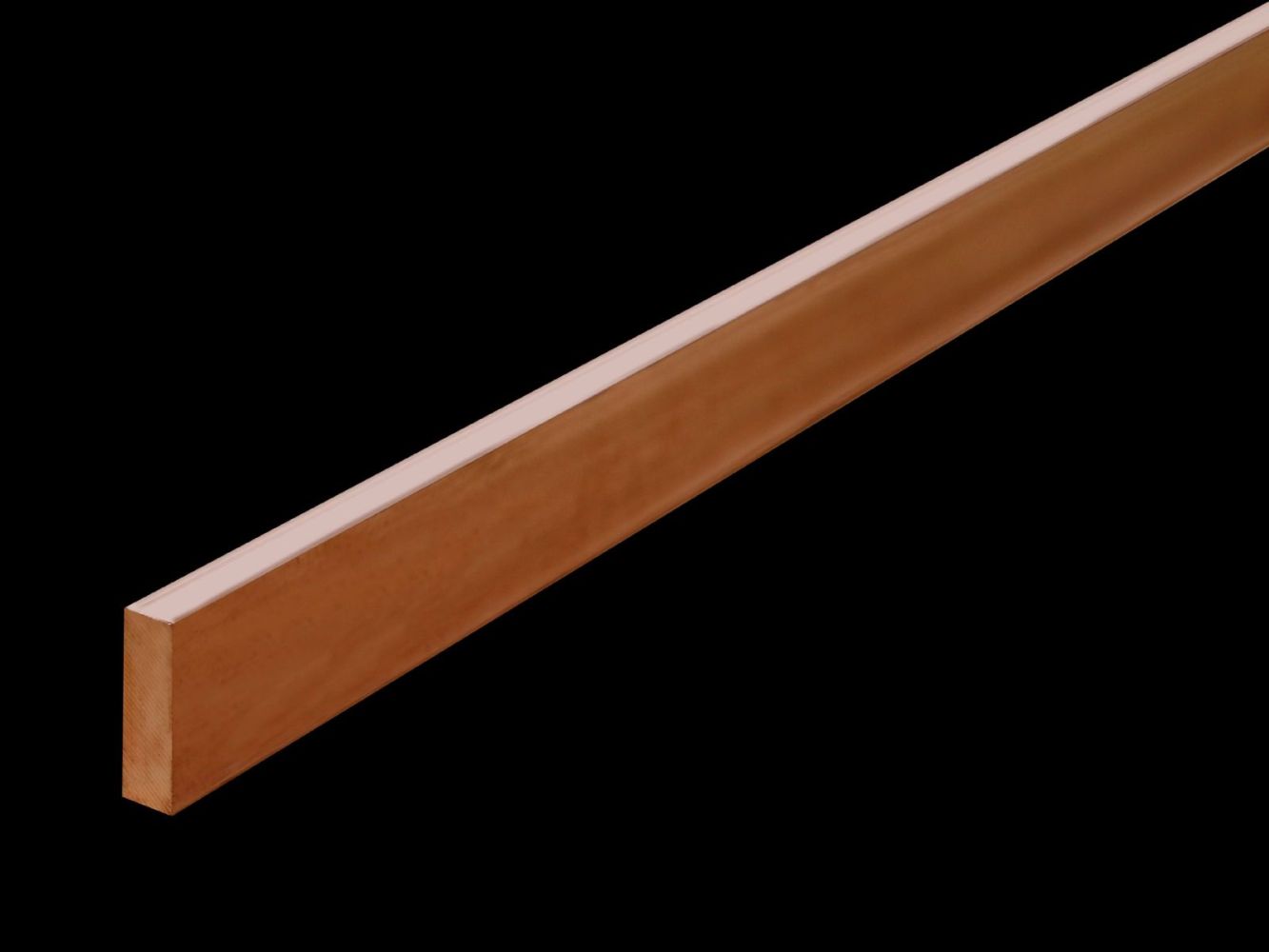

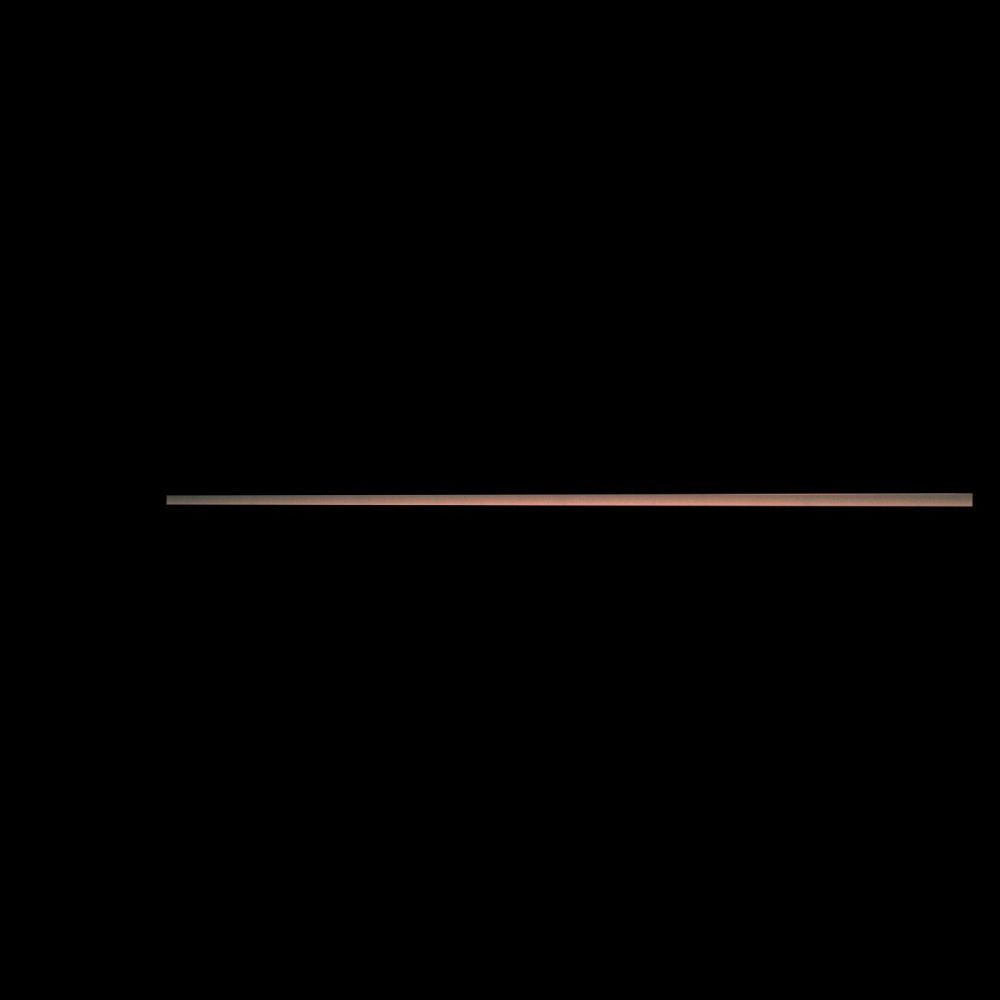

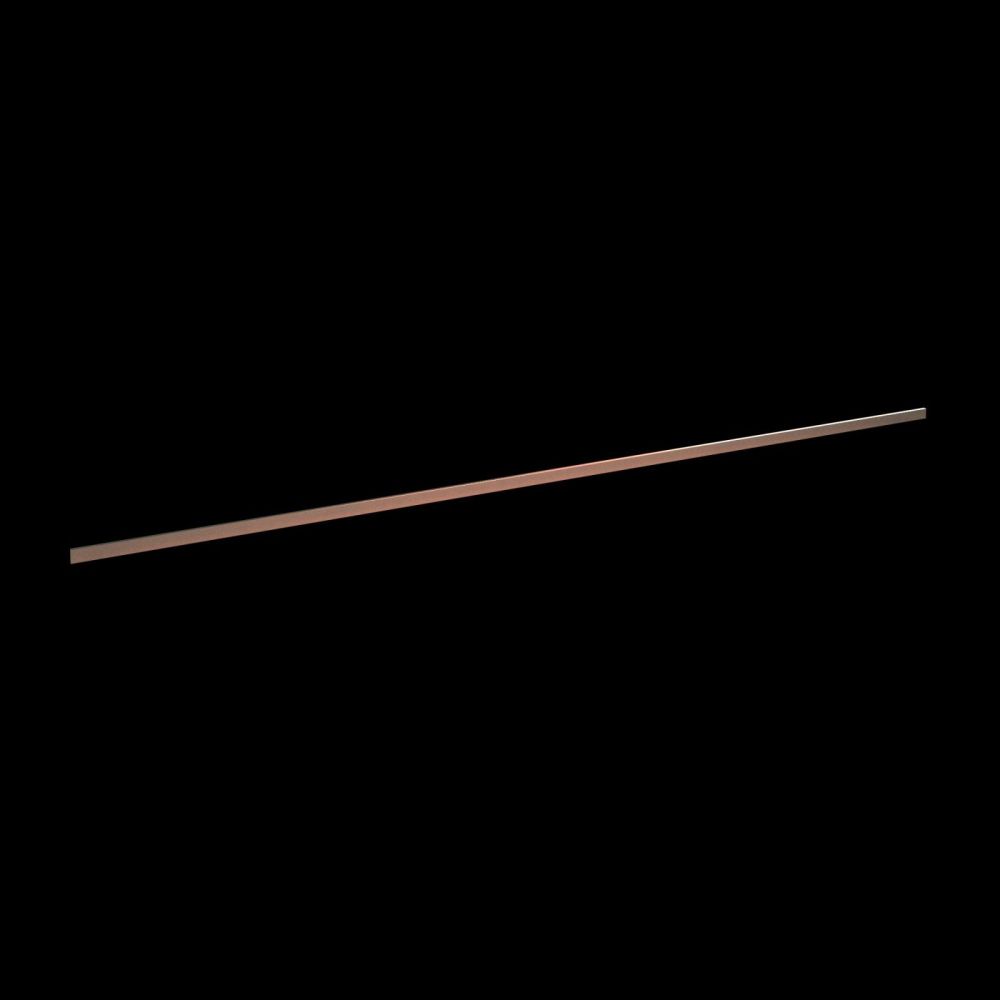

Rittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm

Your rating:
Average rating
product review for Rittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm
( 4.6 / 5 ) 63 ratings
Rittal 3586005
This image may differ from the desired article.
Rittal 3586005Rittal 3586005Rittal 3586005Rittal 3586005Rittal 3586005Rittal 3586005Rittal 3586005Rittal 3586005
263,81 EUR 264,62 EUR
( 313,93 EUR incl. VAT )
≈ £220.81  |  ≈ $289.93
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm
Datasheet:file_download Download
Lieske Part No.:915671
Mfg Part No: 3586005
UPC/EAN: 4028177684584
Weight:19.98 kg
Type:SV 3586005

Product information for Rittal 3586005:

The Rittal SV 3586005 is a busbar made of E-Cu F30 copper, designed for use in power distribution components and enclosures. With a cross-section of 30 mm x 10 mm and a length of 2,400 mm, it provides a robust conductor structure for the distribution of electrical power in industrial installations. The busbar is individually cuttable, allowing it to be adapted to specific installation requirements. It complies with the standard DIN EN 13 601, which defines requirements for electrical conductors in enclosures, and is therefore suitable for use in safety-critical installations. The copper content is 6.45 kg per piece, ensuring high conductivity and electrical stability of the busbar.

Applications
The busbar is used in industrial electrical engineering, particularly in enclosures, distribution boxes, and power supply systems. It serves as a main conductor for distributing power to various consumers or switching devices. Due to its dimensions and material quality, it is suitable for medium to high current loads, with the exact current-carrying capacity depending on the specific installation and environment. The busbar is designed for use in indoor and outdoor environments, provided the ambient conditions ensure the required insulation and protective measures.

Functions and Equipment in Detail
The busbar is made of E-Cu F30, a high-quality copper material with high electrical conductivity and mechanical strength. The dimensions of 30 mm width and 10 mm thickness provide sufficient cross-sectional area for transmitting larger current volumes. The length of 2,400 mm offers flexibility in planning enclosure installations. The individual cuttability allows precise adaptation to the specific enclosure geometry, reducing material waste and installation effort. The busbar is supplied in packaging units of three pieces, which is advantageous for larger projects or series installations.

Technology Explained Simply
The designation E-Cu F30 stands for electrolytic copper of strength class F30, which exhibits high electrical conductivity and good mechanical properties. The standard DIN EN 13 601 sets requirements for the construction, materials, and testing procedures for electrical conductors in enclosures. The busbar is therefore suitable for use in industrial environments with high demands on safety and reliability. The cuttability enables precise sizing, increasing installation efficiency. The high copper mass per piece (6.45 kg) ensures stable current conduction and minimizes resistive losses.

Compatibility and Accessories
The busbar is compatible with various accessories required for secure mounting and protection of the conductor. These include M12 insert nuts, used for securing the busbar to mounting points, as well as busbar cover profiles for cross-sections from 12x5 to 30x10 mm, which provide a mechanical protective layer. For connecting multiple busbars, busbar connectors are available, including single connectors (part number 9320020) and baying connectors, which ensure a secure electrical connection between the busbars.

Installation and Mounting
Mounting is performed by securing the busbar to suitable mounting points within the enclosure, with individual cuttability enabling precise fit. The use of M12 insert nuts or comparable fastening elements is recommended to ensure secure mechanical fixation. When connecting multiple busbars, busbar connectors should be used to create an electrically and mechanically stable connection. The busbar should be mounted in a clean, dry environment to avoid corrosion and contamination. Installation is typically carried out by qualified electricians.

Operational Advantages
The Rittal SV 3586005 provides reliable power distribution due to its high-quality copper and compliance with DIN EN 13 601. Individual cuttability reduces material waste and installation effort. The use of suitable accessories such as cover profiles and busbar connectors enhances the safety and functionality of the installation. The busbar is designed for industrial environments where high electrical loads and mechanical stresses occur. The packaging unit of three pieces facilitates procurement for larger projects.

General
MaterialE-Cu F30
NoteIndividually cuttable
StandardsDIN EN 13 601
Cross section30 mm x 10 mm
Length2.400 mm
Copper content (kg/piece)6,45


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3586005, EAN: 4028177684584

Questions & answers

What is the delivery time of Rittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm?

The article Rittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3586005 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm always at the best possible price. We can give you a discount of 2% on Rittal 3586005 busbar E-Cu 30x10 mm, L=2400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
