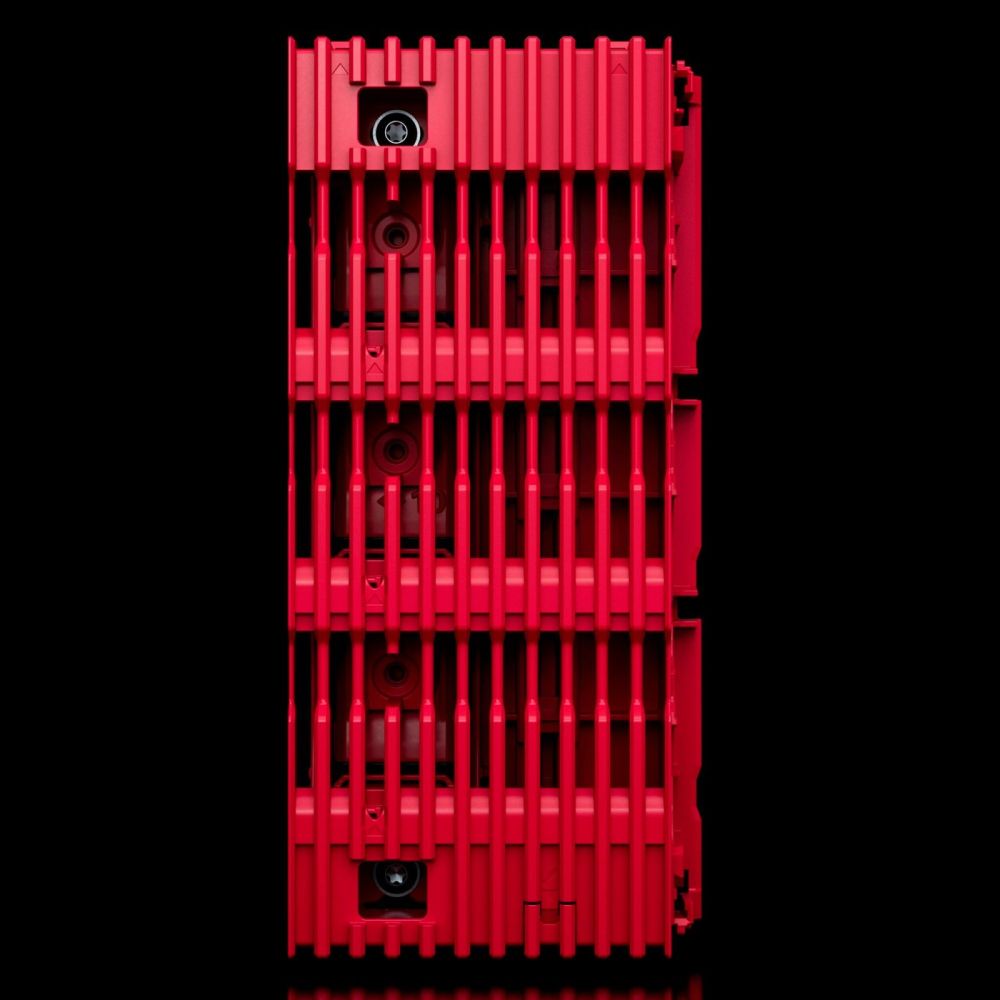

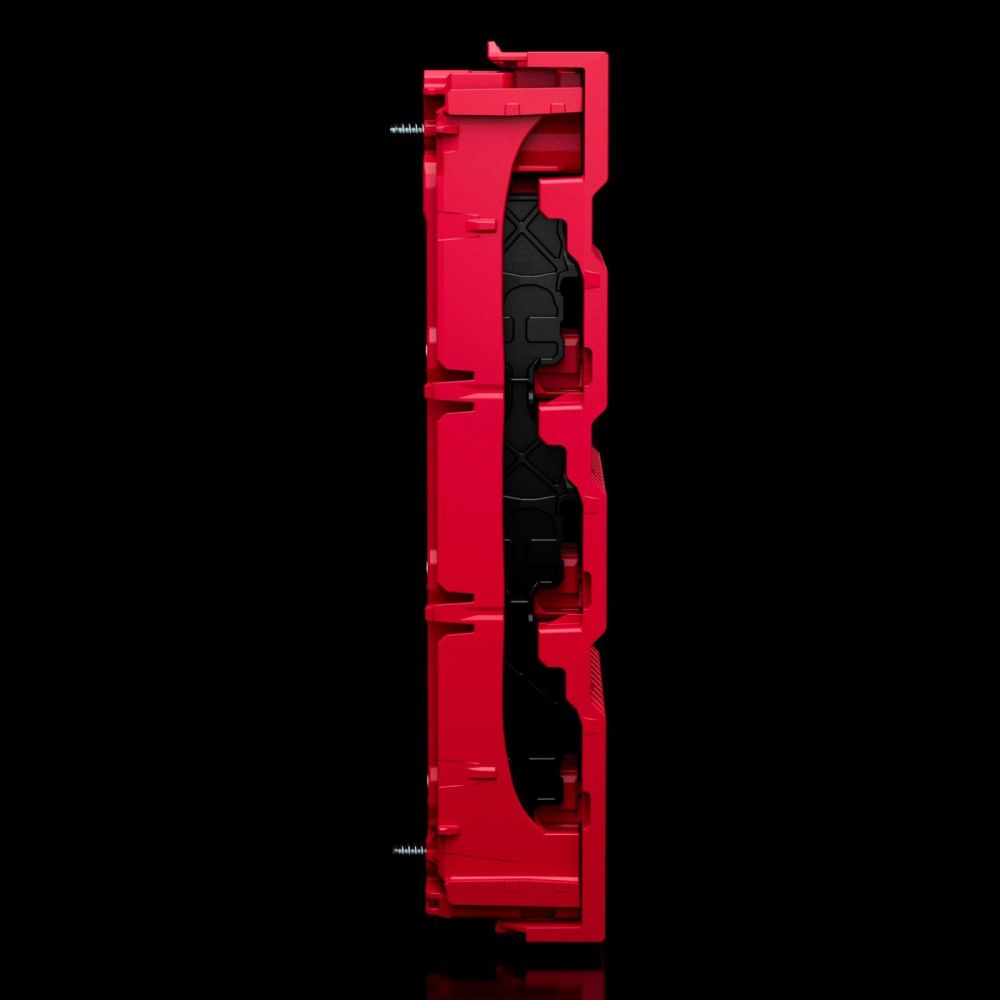

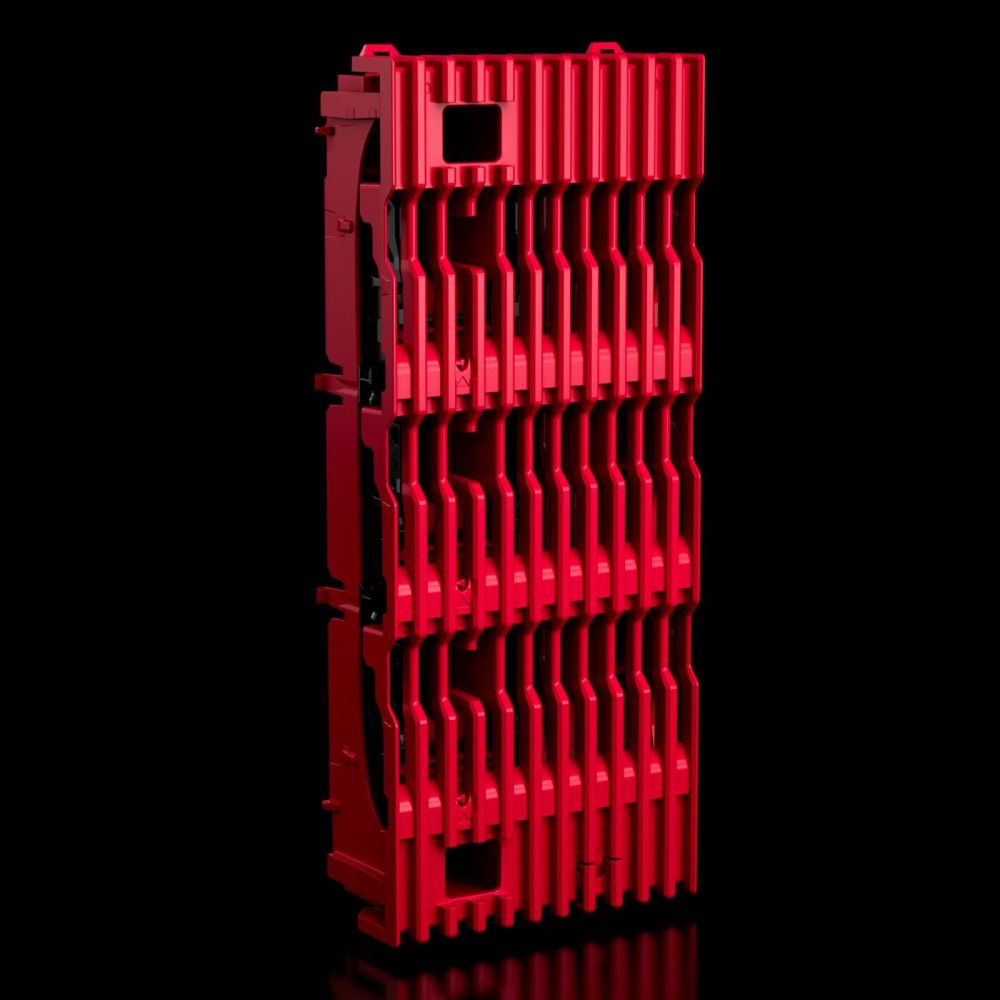

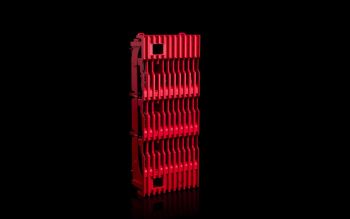

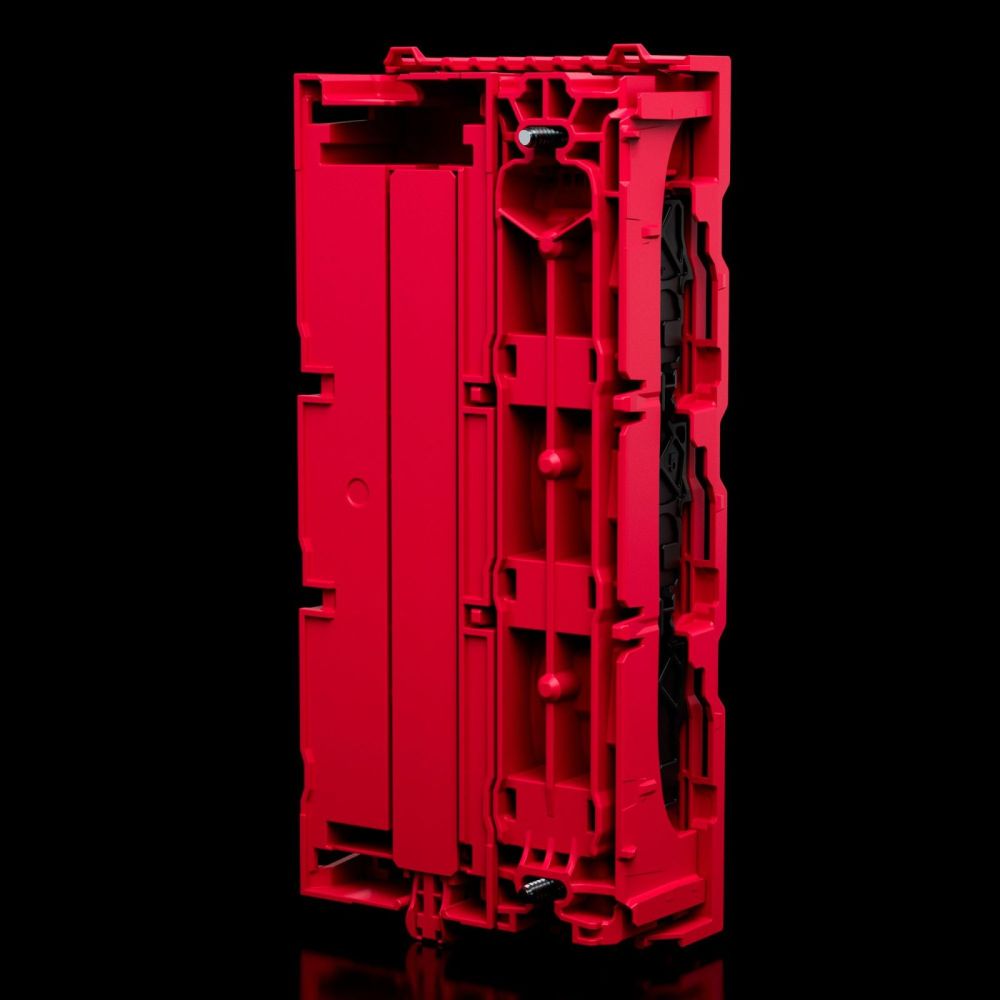

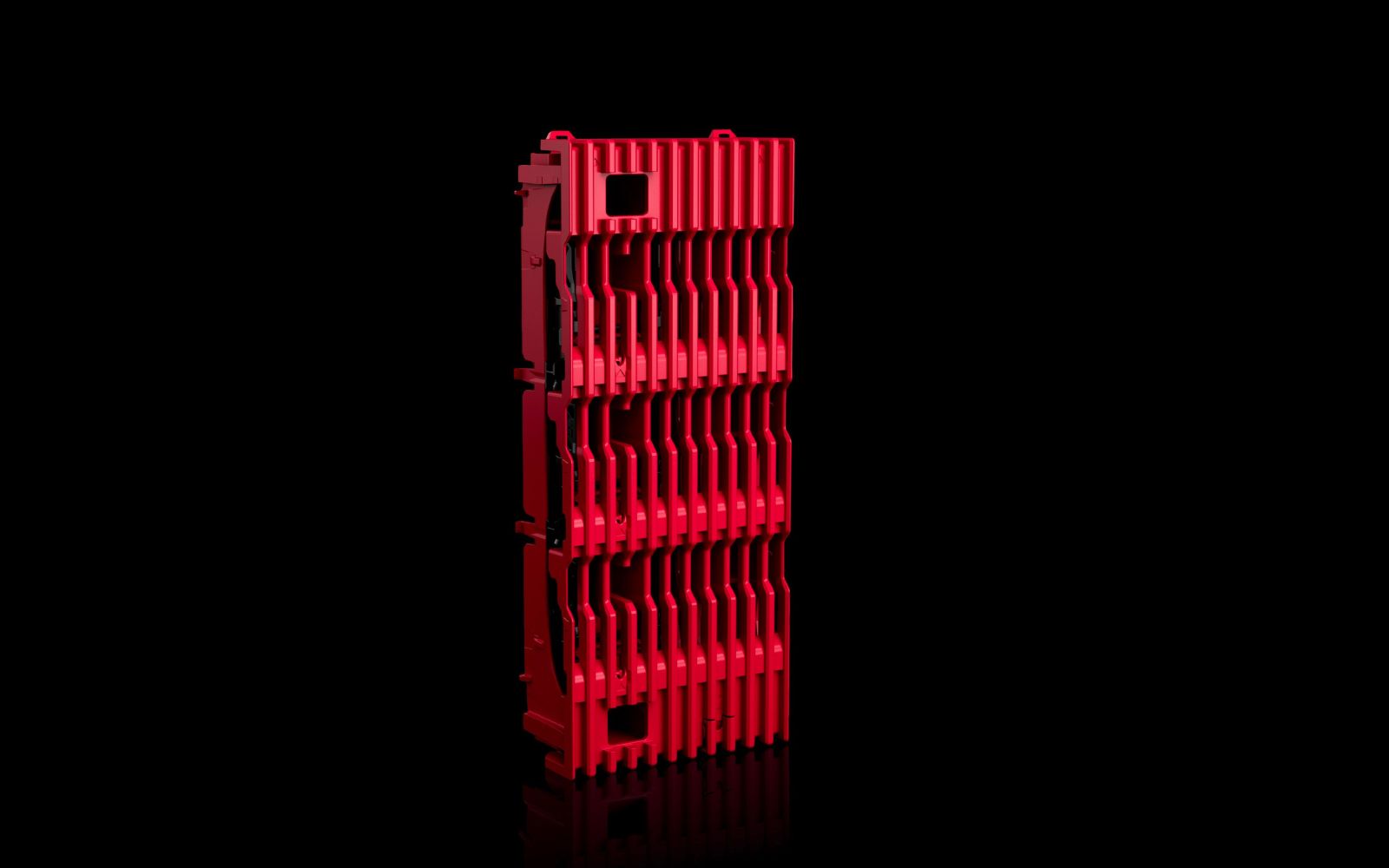

Rittal 9360110 RX RiLineX base module 3-pole L=100 mm, pack of 6 content_copy

The Rittal RiLineX base module, type RX 9360110, is a 3-pole module with a width of 100 mm, specifically designed for the modular construction structure of the RiLineX board. It features an integrated, overmouldable busbar holder, enabling the mounting of flat busbars in dimensions from 15 x 5 mm to 30 x 10 mm. The module consists of a lower section with the busbar holder and an upper section serving as a shock protection cover. Configuration is achieved by combining multiple base modules with end modules, baying sets, and busbars, with a maximum system length of up to 2400 mm. Installation requires no tools, simplifying the setup. Cable routing in the rear area of the board is possible, providing additional flexibility in system design.

Applications

The base module is suitable for applications in alternating current up to 1000 V AC and direct current up to 1500 V DC. It is used in industrial power distribution systems where a modular, scalable, and flexible solution is required. The systems can be mounted horizontally, vertically, or overhead, covering a wide range of installation scenarios.

Functions and Equipment in Detail

The module provides shock protection up to IP 2XB according to IEC 60 529, optionally upgradable to IP 3X. The rated voltage is 1,000 V AC and 1,500 V DC, with UL-compliant rated voltage at 600 V AC and 600 V DC. The rated insulation voltage Ui is 1,000 V AC and 1,500 V DC. The rated impulse voltage Uimp is 12 kV, and the overvoltage category is 4. The pollution degree is 3, indicating use in environments with increased pollution risk. The operating temperature ranges from -5 °C to 55 °C, and the storage temperature from -25 °C to 75 °C. The relative humidity (non-condensing) is 10 to 90 %.

Technology Explained Simply

The maximum rated current is 800 A, with short-time current withstand capability at 65 kA/500 ms. The electrical values according to UL (SCCR) include 65 kA at 600 V RMS (unprotected), 100 kA at 600 V with fuse class L max. 1600 A (JDDZ/7), 100 kA at 480 V with circuit breaker max. 800 A (DIVQ/7), and 65 kA at 600 V with circuit breaker max. 800 A (DIVQ/7). The module is designed for frequencies between 50 and 60 Hz. The center-to-center spacing of the busbars is 60 mm. The material is polyamide (PA 6) with flammability rating according to UL 94. The colors are RAL 35745 and RAL 9005.

Compatibility and Accessories

The base module is compatible with various busbar cross-sections: 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. Suitable accessories include baying sets such as RX 9360103 and RX 9360104, end modules such as RX 9360101, and various busbars in the specified dimensions.

Mounting and Installation

Mounting is tool-free, accelerating installation. The system can be mounted in various orientations, including horizontal, vertical, and overhead. Cable routing in the rear area of the board allows for flexible arrangement of control wiring.

Operational Advantages

The modular design offers maximum flexibility and individual customization options. The systems are tested and certified according to IEC/EN 61439-1 and UL 508. Fully digital product data enables time savings in planning and documentation. Simple expansion and field baying facilitate system scaling. The tested short-circuit withstand capability up to 65 kA ensures safe operation under high loads.

Scope of Delivery

The base module is delivered with the lower section, shock protection cover, and mounting screws.

Standards and Approvals

The product complies with standards IEC/EN 61439-1 and UL 508. It is UL + C-UL (listed) certified and includes a declaration of conformity as well as a PCF declaration.

Material and Environment

The module is made of polyamide (PA 6) with flammability rating according to UL 94. The fire load is 12,138 MJ/m², and the PCF/VE (Cradle-to-Gate) is 19.31. The packaging unit contains 6 pieces, the net weight is 3 kg, and the gross weight is 3.292 kg.

General
Material	Polyamide (PA 6), flammability according to UL 94
Scope of delivery	Base module lower part, base module (touch protection cover), including mounting screws
Degree of protection IP according to IEC 60 529	IP 2XB
Standards	IEC/EN 61439-1, UL 508
Rated current max.	800 A
Note	busbars are not included in the scope of delivery
Electrical values UL (SCCR)	65 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Fuse Class L max. 1600 A, JDDZ/7, 100 kA - 480 V, Circuit Breaker max. 800 A, DIVQ/7, 65 kA - 600 V, Circuit Breaker max. 800 A, DIVQ/7
Center-to-center spacing of busbars	60 mm
Rated impulse voltage Uimp	12 kV
Rated voltage	1.000 V AC, 600 V AC (UL), 1.500 V DC, 600 V DC (UL)
Rated insulation voltage Ui	1.000 V AC, 1.500 V DC
Rated short-time withstand current / t	65 kA/500 ms
Over voltage category	4
Pollution degree	3
Number of poles	3-pole
Frequency of fundamental wave	50...60 Hz
Humidity (non-condensing)	10...90 %
Suitable for busbars	15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Operating temperature range	-5 °C...55 °C
Storage temperature range	-25 °C...75 °C
Width	100 mm
Height	246 mm
Depth	49,2 mm
Fire load	12,138 MJ/m²
PCF/VE (Cradle-to-Gate)	19,31

---
