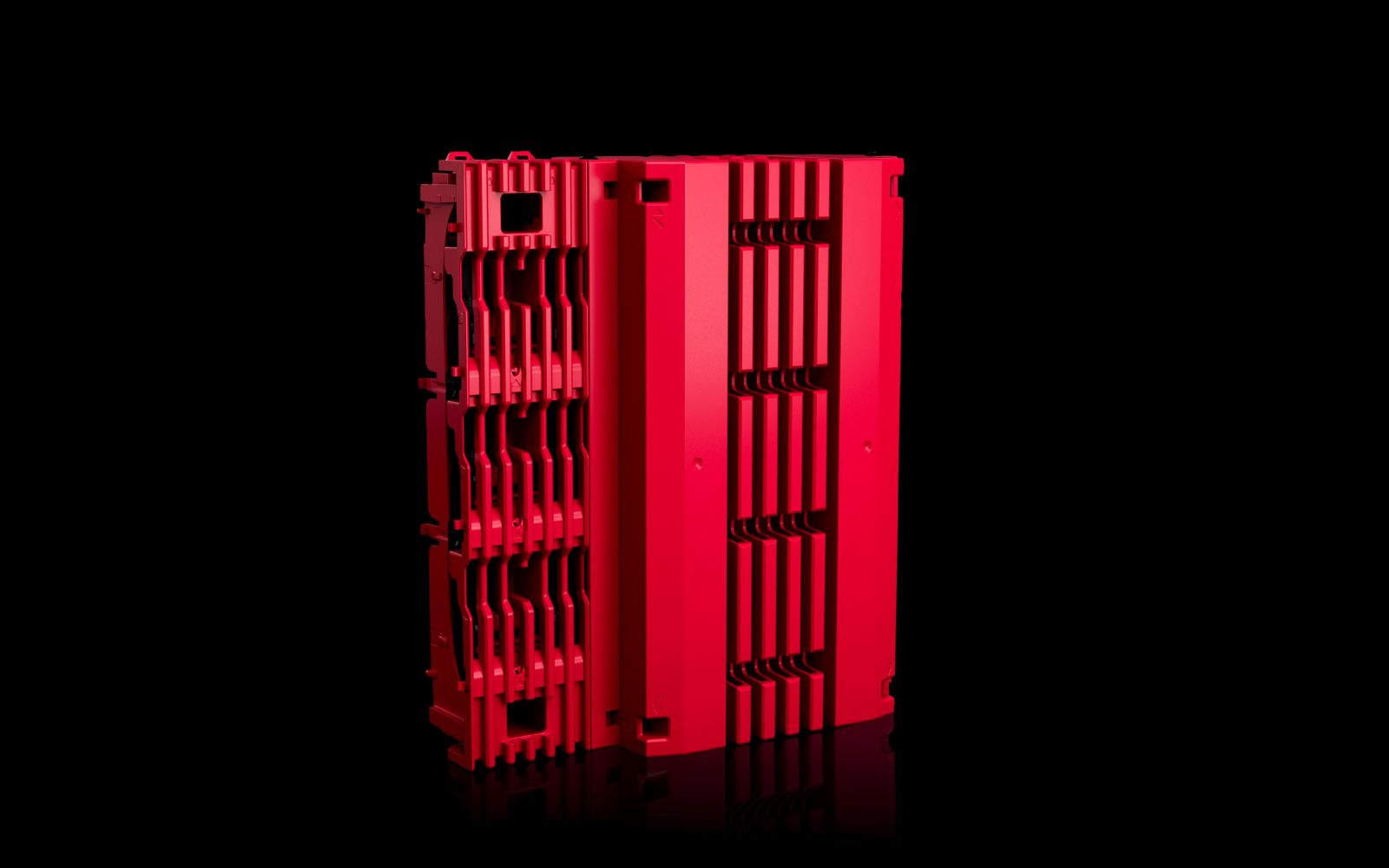

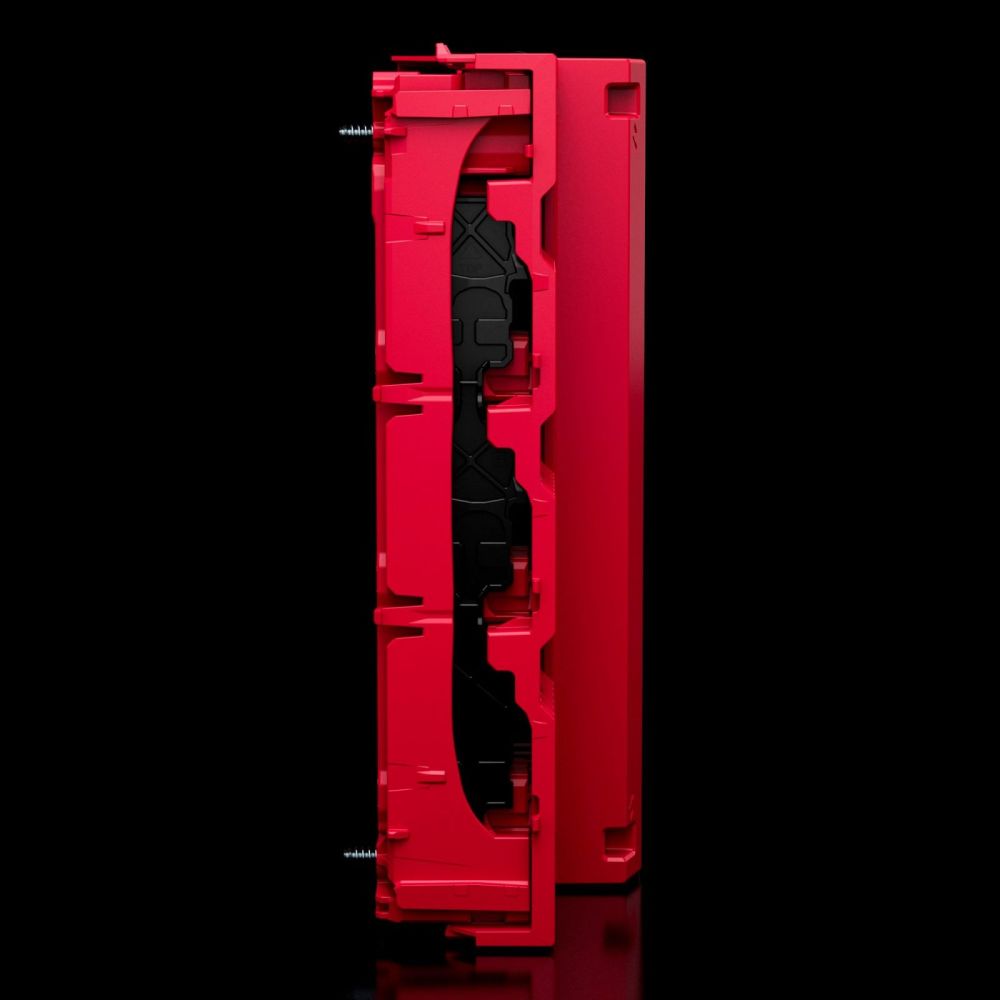

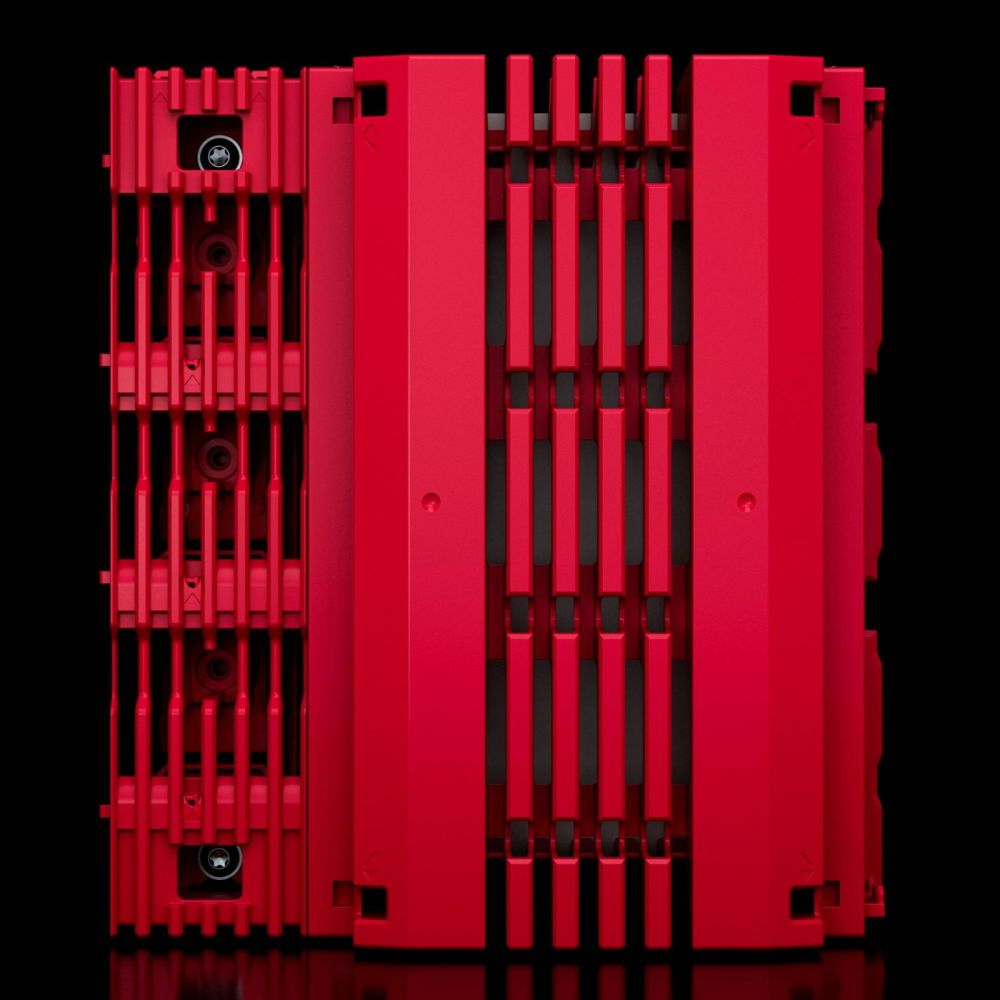

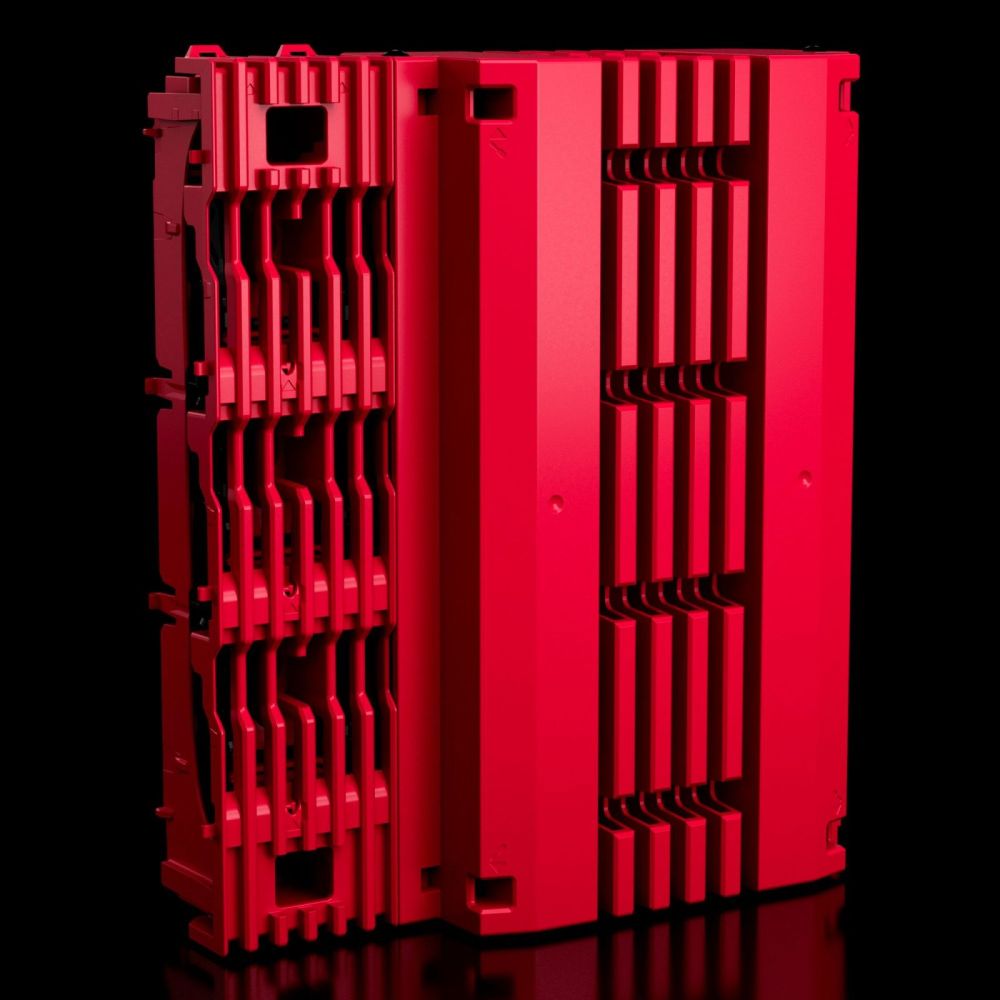

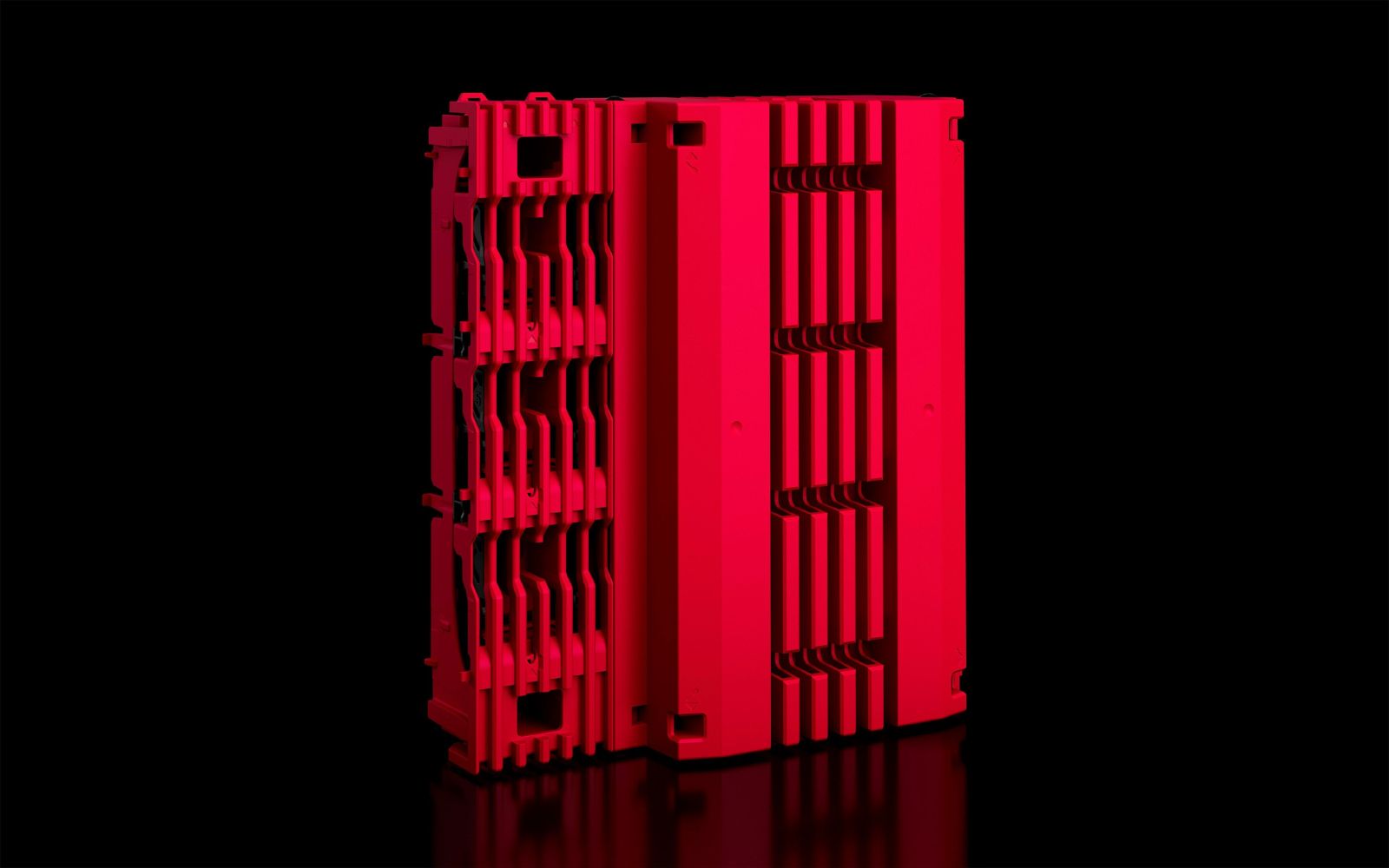

Rittal 9360104 RX baying set for RiLineX base module without connector, pack of 2 content_copy

The Rittal RiLineX baying set, type RX 9360104, is a 3-pole module for board baying between two adjacent enclosures in field baying operation. It enables scalable extension of power distribution systems and allows flexible expansion of system lengths through base modules. The set is specifically designed for use with RiLineX base modules and provides a secure and standard-compliant connection between units. The design includes shock protection covers at the front and rear to ensure safety during installation and operation.

Applications
This baying set is suitable for applications in the alternating current range up to 1000 V AC and direct current up to 1500 V DC. It is used in industrial electrical installations where modular and expandable power distribution is required. The tested short-circuit withstand capability up to 65 kA makes it suitable for installations with high electrical loads. Compatibility with base modules 9365.013, 9360.110, 9360.120, and 9360.150 enables flexible integration into existing systems.

Functions and equipment in detail

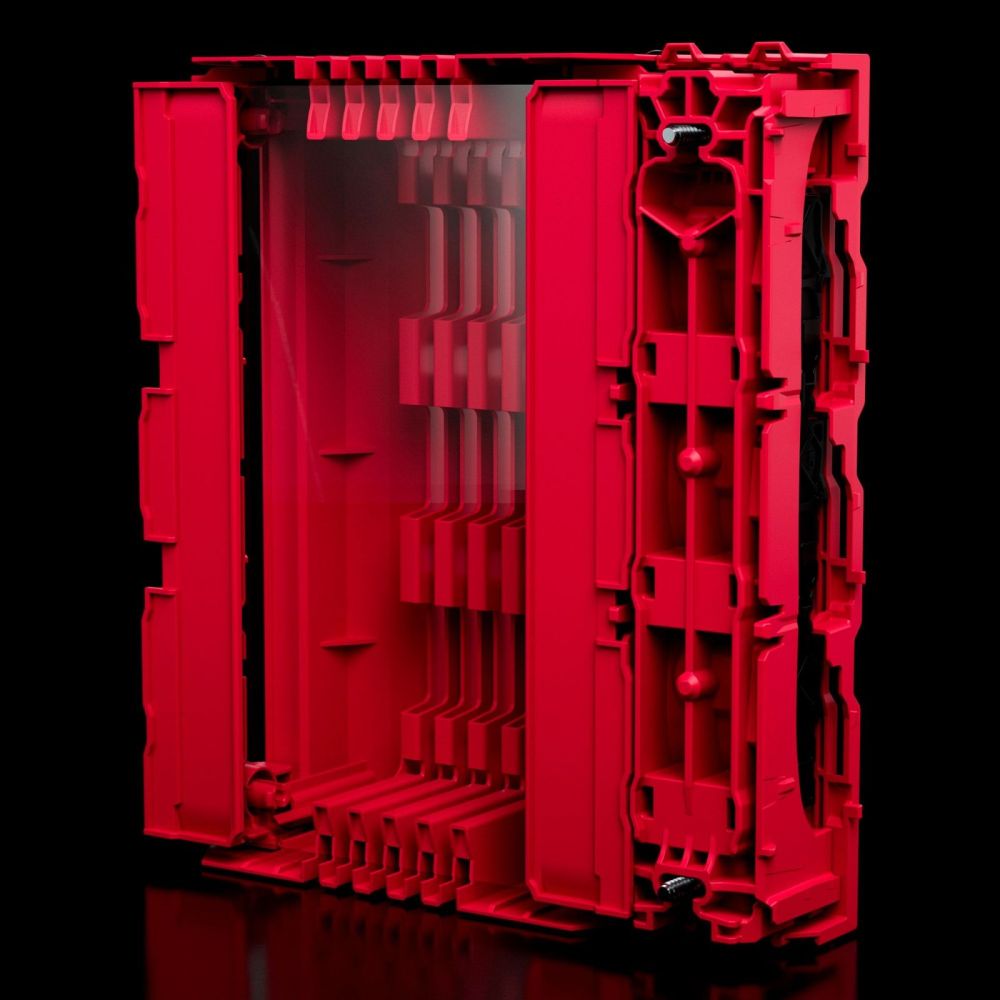

The set consists of a left and right end element, a cover, a base plate, and mounting hardware. The cover provides complete shock protection at the front and rear of the module. The base plate ensures stable mounting and a secure finish at the bottom edge. The end elements are designed for connecting switchboard modules and enable a secure electrical connection. The mounting hardware is intended for installation at the designated mounting points of the enclosures.

Technology explained simply
The baying set is made of polyamide (PA 6), a thermoplastic material with high mechanical strength and heat resistance. The material meets the requirements for flammability according to UL 94, ensuring safe use in electrical installations. The protection class IP 2XB according to IEC 60 529 protects against entry of solid foreign objects with a diameter of at least 12.5 mm and provides some protection against splashing water, although not against direct water jets. The colour RAL 35745 corresponds to a grey-silver tone that integrates well visually in industrial environments. Dimensions are a height of 240 mm and a depth of 77 mm, enabling compact installation.

Compatibility and accessories
The baying set is specifically designed for use with RiLineX base modules 9365.013, 9360.110, 9360.120, and 9360.150. The matching rail connector is available under article number 9365013 and enables a secure electrical connection between the modules. The use of the rail connector is necessary to ensure electrical conductivity and short-circuit withstand capability of the installation.

Installation and mounting
Mounting is done by securing the end elements to the designated mounting points of the adjacent enclosures. The base plate is mounted at the bottom edge to ensure a secure finish. The cover is installed at the front and rear to ensure shock protection. The mounting hardware is included in the delivery and enables easy and secure installation. Installation can be carried out without additional tools, provided the designated mounting points are present.

Advantages in operation
The RiLineX baying set offers a scalable solution for extending power distribution systems. The simple mounting and modular design enable quick and secure installation. The shock protection covers increase safety during operation and maintenance. The tested short-circuit withstand capability up to 65 kA ensures high reliability in demanding applications. Compatibility with various base modules allows flexible adaptation to different requirements. The use of polyamide (PA 6) ensures long service life and high mechanical stability.

The standards IEC 61 439-1/-2 and UL 508 guarantee compliance with international safety and quality standards. The fire load of 15,104 MJ/m² and the PCF value of 8.06 (Cradle-to-Gate) provide information on the environmental impact of the product. The packaging unit is 2 pieces, enabling economical procurement.

General
Material	Polyamide (PA 6), flammability according to UL 94
Colour	RAL 35745
Scope of delivery	Board end elements left and right, board module cover, board module base plate, including fastening material
Number of poles	3-pole
Suitable for part no.	9365.013, 9360.110, 9360.120, 9360.150
Height	240 mm
Depth	77 mm
Degree of protection IP according to IEC 60 529	IP 2XB
Fire load	15,104 MJ/m²
PCF/VE (Cradle-to-Gate)	8,06

---
