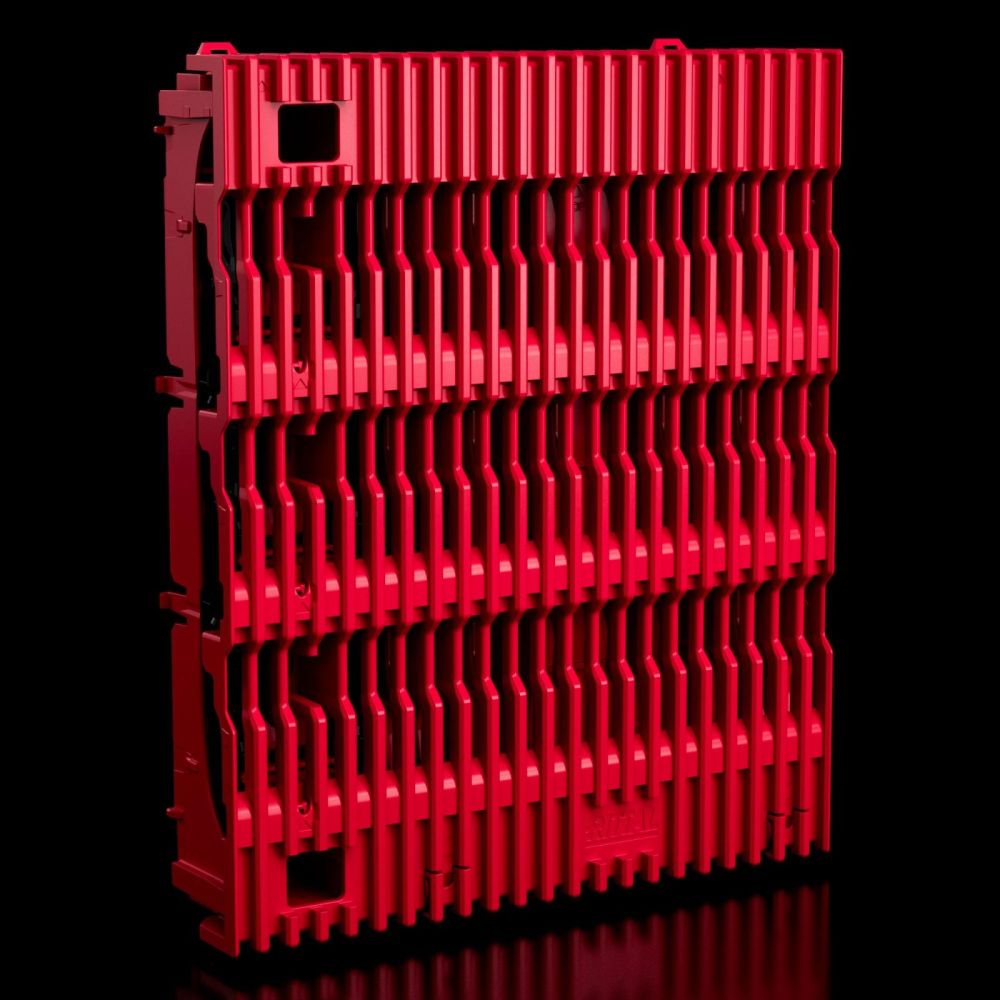

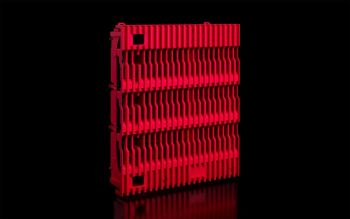

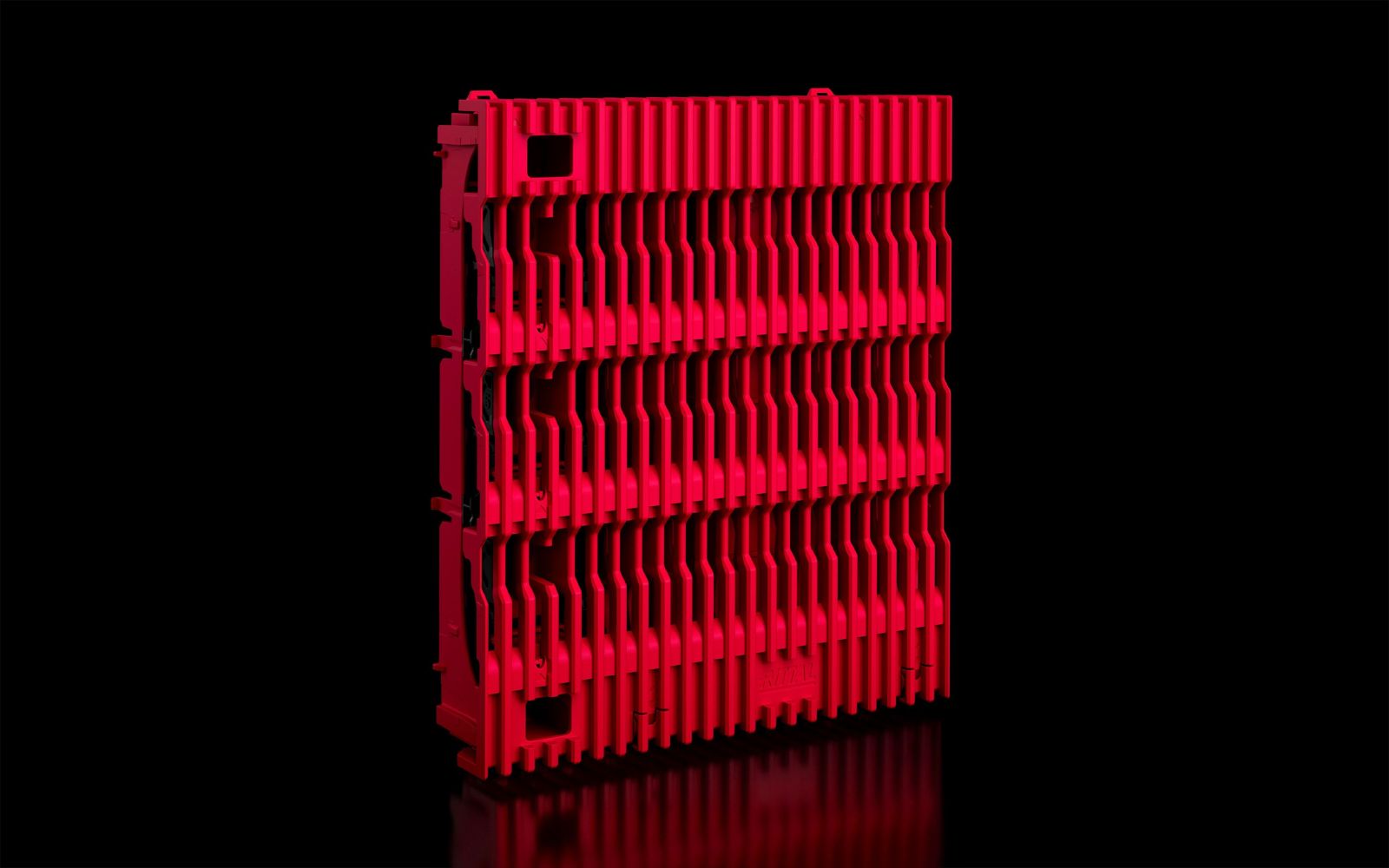

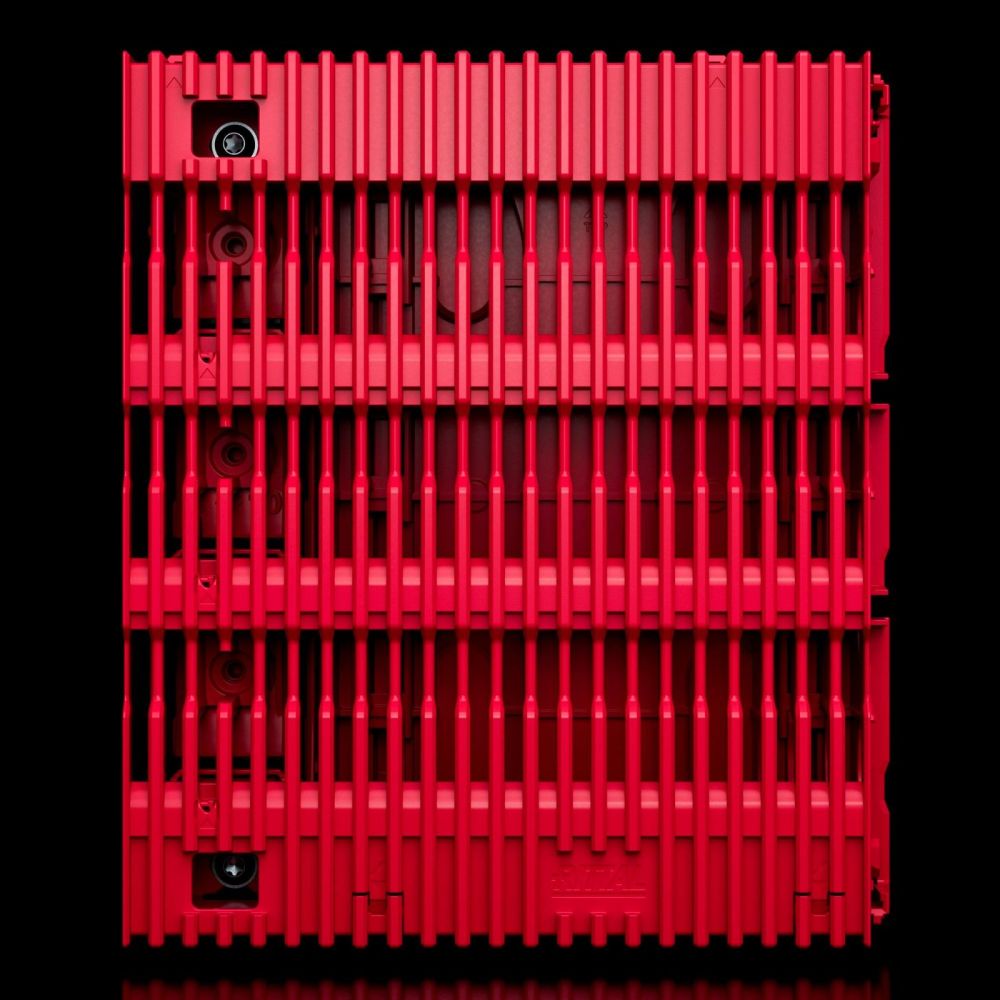

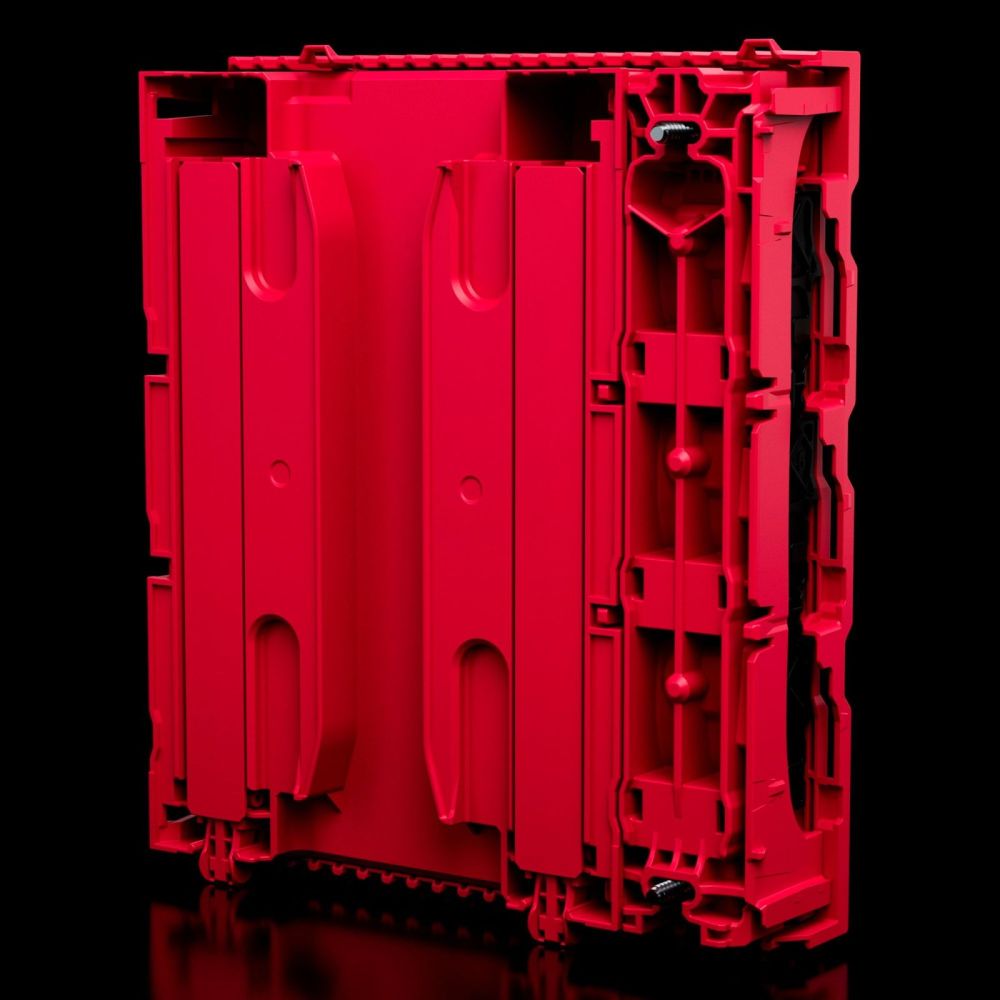

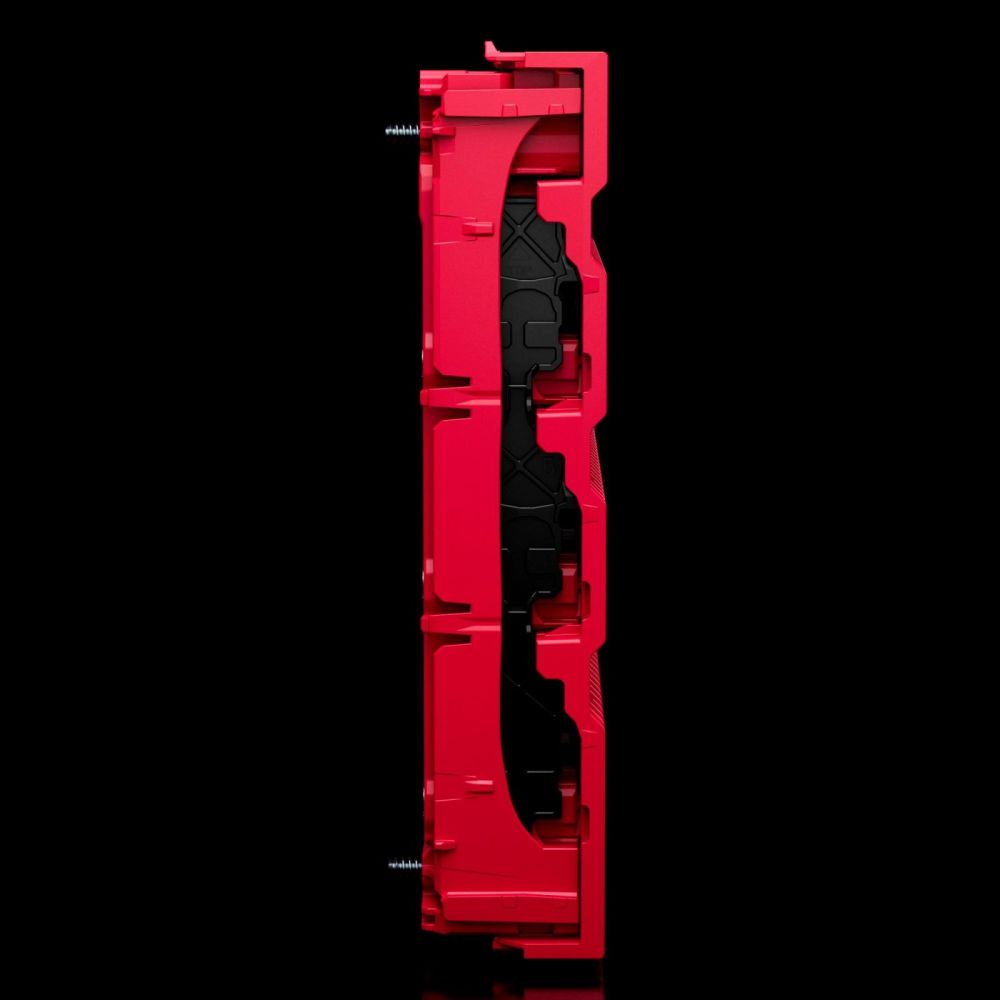

Rittal 9360120 RX RiLineX base module 3-pole L=200 mm, pack of 6 content_copy

The Rittal RiLineX base module, type RX 9360120, is a 3-pole module for modular power distribution solutions in industrial environments. It serves as a basic building block for the RiLineX board system and enables flexible, tool-free mounting of power distribution components. The module is made of polyamide (PA 6), which exhibits a specific flammability rating according to UL 94, and is available in the colours RAL 35745 and RAL 9005. It features an integrated, overmouldable busbar holder that accommodates flat busbars with cross-sections from 15 x 5 mm to 30 x 10 mm. System configuration is achieved by combining multiple base modules, end modules, baying sets and busbars, with a maximum system length of 2400 mm. Mounting is tool-free, simplifying installation and system expansion.

Applications

The base module is designed for applications in industrial power distribution, particularly in environments requiring modular, scalable and flexible power supply. It is suitable for alternating current applications up to 1000 V AC and direct current applications up to 1500 V DC. The systems can be mounted horizontally, vertically or overhead, covering a wide range of installation scenarios. Cable routing can also be done at the rear of the board, providing additional flexibility in planning and installation.

Functions and equipment in detail

The module provides shock protection up to IP 2XB according to IEC 60 529, which can be upgraded to IP 3X if required. It is equipped with a lower section and an upper section, with the upper section providing shock protection. The delivery includes the base module lower section, the base module (shock protection cover) and mounting screws. The system components are designed to allow easy expansion and field baying.

Technology explained clearly

The module is rated for a nominal current of up to 800 A and has a rated short-time withstand current of 65 kA/500 ms. The rated impulse withstand voltage is 12 kV, and the rated insulation voltage is 1000 V AC or 1500 V DC. The overvoltage category is 4, and the pollution degree is 3, indicating suitability for use in environments with increased pollution risk. The frequency of the fundamental wave is 50 to 60 Hz. The operating temperature ranges from -5 °C to 55 °C, and the storage temperature from -25 °C to 75 °C. The relative humidity (non-condensing) may range from 10 to 90 %. The electrical values according to UL (SCCR) include various configurations, such as 65 kA at 600 V RMS (unprotected) and 100 kA at 600 V with fuse class L max. 1600 A (JDDZ/7). Compliance with standards is tested and certified according to IEC/EN 61439-1 and UL 508.

Compatibility and accessories

The base module is compatible with various busbar components, including E-Cu busbars in dimensions 15 x 5 mm, 20 x 5 mm, 30 x 5 mm, 20 x 10 mm and 15 x 10 mm, each with a length of 2400 mm. Additionally, baying sets such as RX 9360103 or RX 9360104 and end modules such as RX 9360101 can be used for system expansion and termination. The combination of these components allows for custom adaptation to specific requirements.

Mounting and installation

Mounting is tool-free, enabling quick and easy installation. The modular design allows for flexible arrangement of components, with cable routing at the rear of the board providing additional planning freedom. The systems can be mounted in various orientations, facilitating integration into existing installations.

Advantages in operation

The RiLineX system offers high flexibility in configuration and expansion. Fully digital product data enables time savings in planning and documentation. The tested short-circuit withstand capability up to 65 kA and certification according to IEC/EN 61439-1 and UL 508 ensure safe and reliable use. The modular structure and easy mounting contribute to the efficiency and maintainability of the system. The systems are designed for use in industrial environments where high demands on safety, reliability and flexibility exist.

Accessories and alternatives

Compatible accessories include baying sets such as RX 9360103 and RX 9360104, end modules such as RX 9360101, and various busbars in the specified dimensions. These components enable individual adaptation of the system to specific requirements.

Standards and approvals

The product is tested and certified according to IEC/EN 61439-1 and UL 508. The approval covers both electrical and mechanical requirements for industrial power distribution systems. The UL 508 approval refers to requirements for industrial control equipment in the USA and Canada.

Material and environment

The module is made of polyamide (PA 6), which exhibits a specific flammability rating according to UL 94. The fire load is 20,633 MJ/m², and the PCF/VE (Cradle-to-Gate) is 33.09. The packaging unit is 6 pieces, the net weight is 5.16 kg and the gross weight is 5.547 kg. The tariff code is 85369010, the EAN is 4028177997288. The manufacturer's number is RX 9360120.

Operation and storage

The module can be used at an operating temperature of -5 °C to 55 °C and a storage temperature of -25 °C to 75 °C. The relative humidity (non-condensing) may range from 10 to 90 %. The frequency of the fundamental wave is 50 to 60 Hz. The rated voltage is 1000 V AC (600 V AC UL) and 1500 V DC (600 V DC UL). The rated insulation voltage is 1000 V AC and 1500 V DC. The rated impulse withstand voltage is 12 kV. The rated short-time withstand current is 65 kA/500 ms. The overvoltage category is 4, and the pollution degree is 3. The number of poles is 3-pole. The electrical values according to UL (SCCR) include various configurations, such as 65 kA at 600 V RMS (unprotected) and 100 kA at 600 V with fuse class L max. 1600 A (JDDZ/7). Compliance with standards is tested and certified according to IEC/EN 61439-1 and UL 508.

General
Material	Polyamide (PA 6), flammability according to UL 94
Scope of delivery	Base module lower part, base module (touch protection cover), including mounting screws
Degree of protection IP according to IEC 60 529	IP 2XB
Standards	IEC/EN 61439-1, UL 508
Rated current max.	800 A
Note	busbars are not included in the scope of delivery
Electrical values UL (SCCR)	65 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Fuse Class L max. 1600 A, JDDZ/7, 100 kA - 480 V, Circuit Breaker max. 800 A, DIVQ/7, 65 kA - 600 V, Circuit Breaker max. 800 A, DIVQ/7
Center-to-center spacing of busbars	60 mm
Rated impulse voltage Uimp	12 kV
Rated voltage	1.000 V AC, 600 V AC (UL), 1.500 V DC, 600 V DC (UL)
Rated insulation voltage Ui	1.000 V AC, 1.500 V DC
Rated short-time withstand current / t	65 kA/500 ms
Over voltage category	4
Pollution degree	3
Number of poles	3-pole
Frequency of fundamental wave	50...60 Hz
Humidity (non-condensing)	10...90 %
Suitable for busbars	15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Operating temperature range	-5 °C...55 °C
Storage temperature range	-25 °C...75 °C
Width	200 mm
Height	246 mm
Depth	49,2 mm
Fire load	20,633 MJ/m²
PCF/VE (Cradle-to-Gate)	33,09

---
