Rittal 9360103 RX baying set for RiLineX base module without connector, pack of 2 content_copy

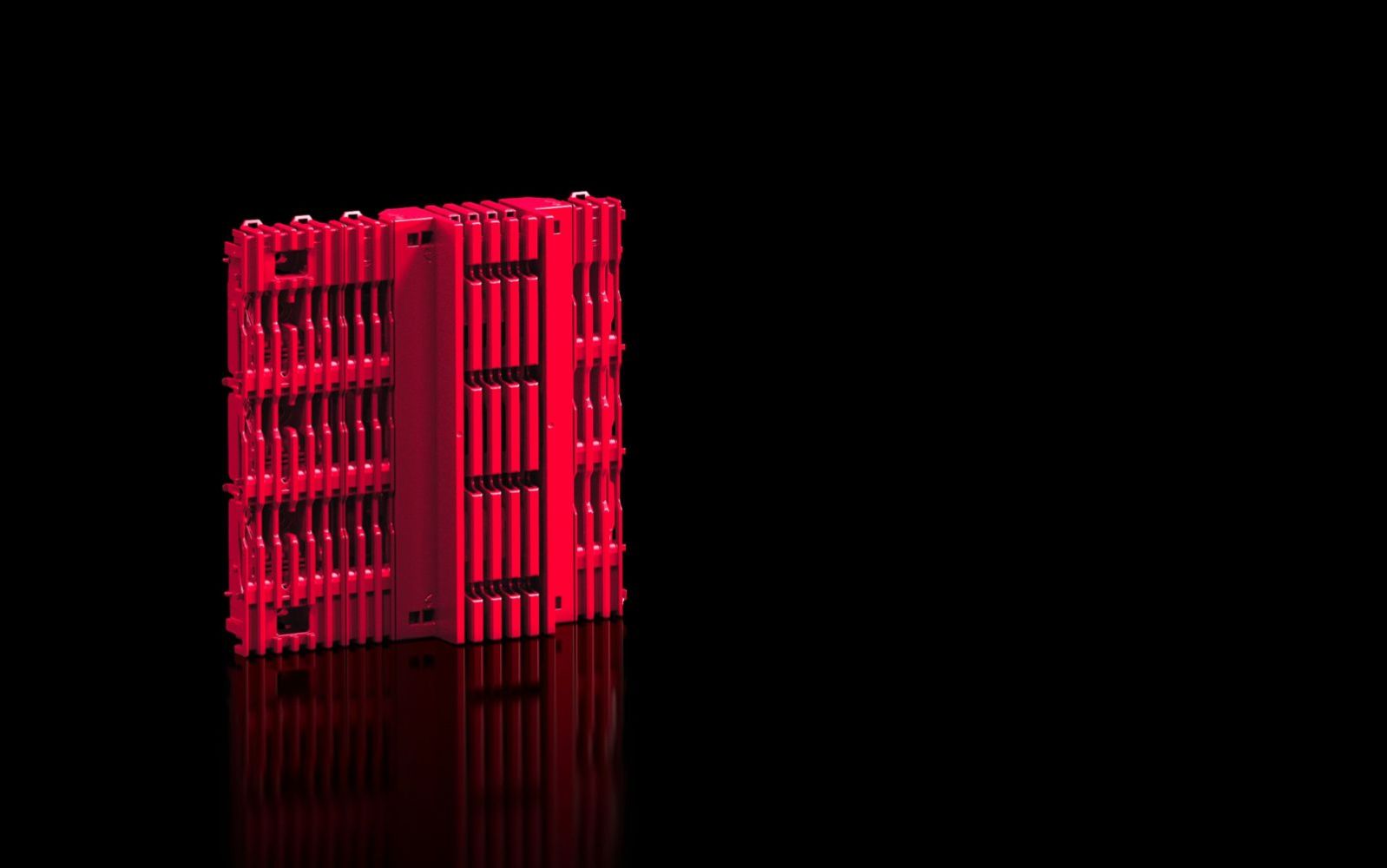

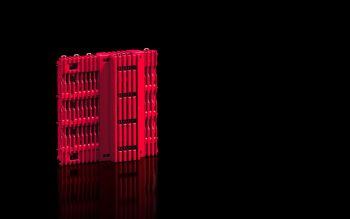

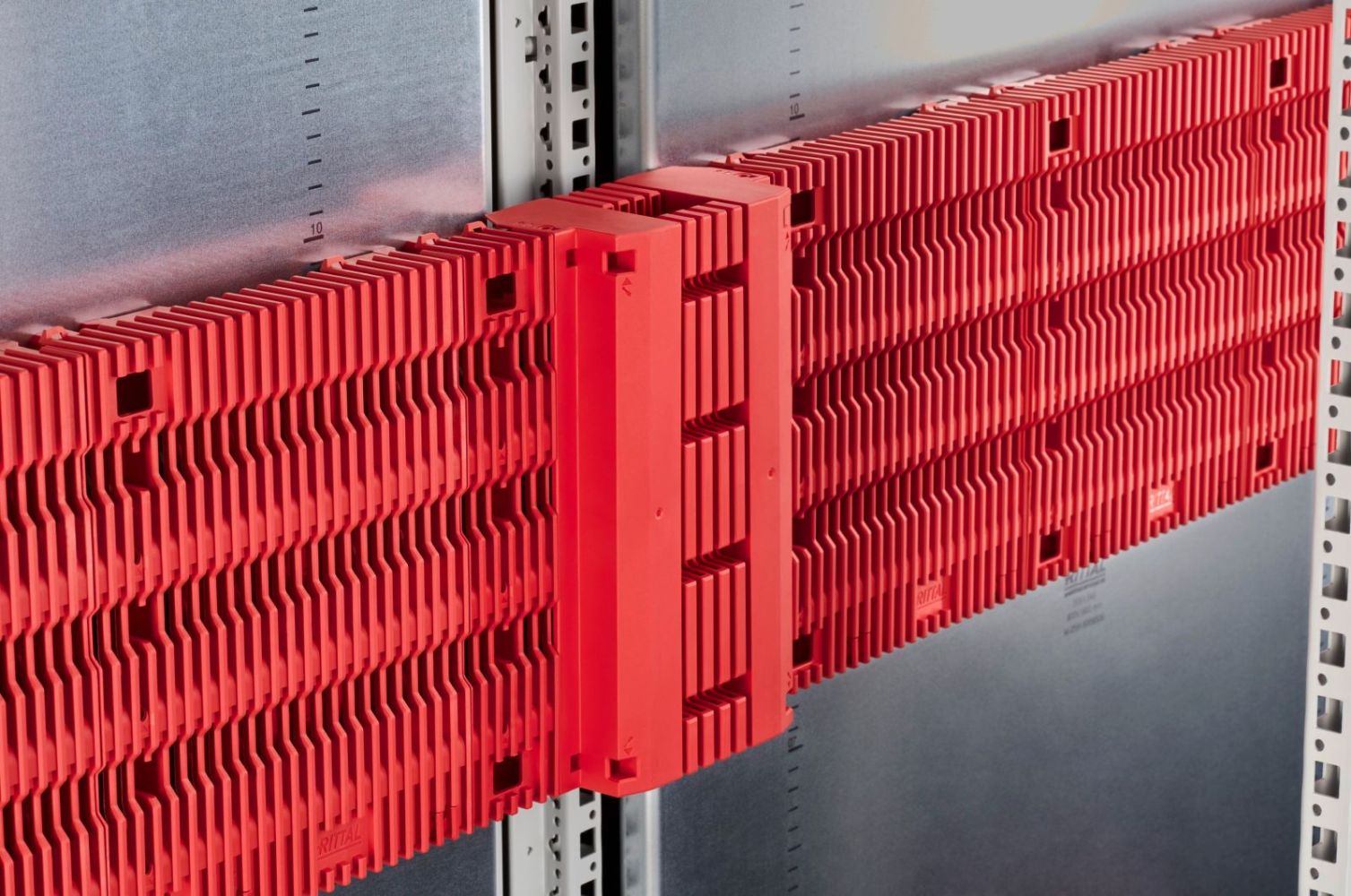

The Rittal RiLineX baying set, type RX 9360103, is a 3-pole module for compact baying of two power distribution boards within an enclosure. It serves for space-saving connection of base modules in the RiLineX system and is specifically designed for use in industrial electrical installations. The set is supplied in short version and includes all necessary components for installation, including a shock protection cover, ensuring safe operation. The components are made of polyamide (PA 6), which exhibits defined flammability characteristics according to UL 94, and are finished in RAL 35745, enabling visual harmonization with other RiLineX elements.

Applications
This baying set is intended for use in enclosures where a compact and secure connection of power distribution modules is required. It is particularly suitable for applications in alternating current up to 1000 V AC and direct current up to 1500 V DC. The tested short-circuit withstand capability up to 65 kA makes it suitable for industrial environments with high electrical loads. Installation takes place within an enclosure, with the short form minimizing space requirements.

Functions and Equipment in Detail

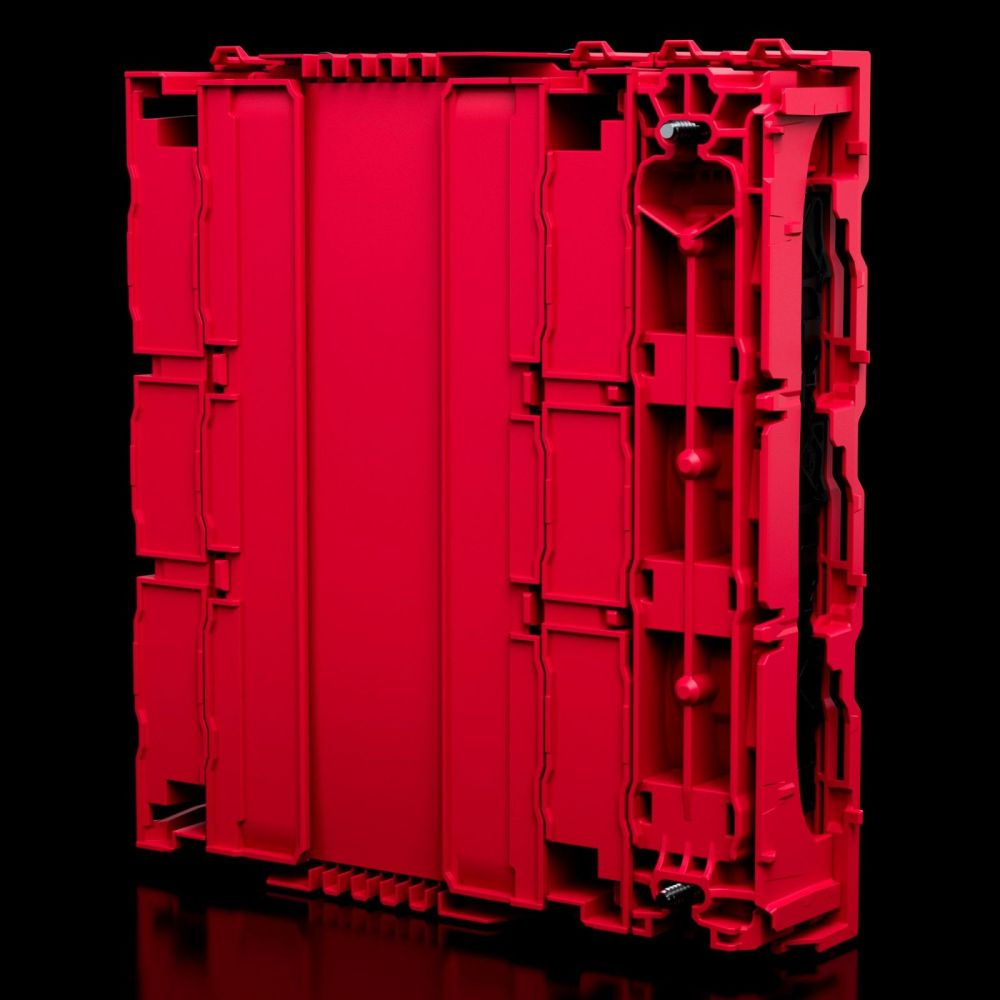

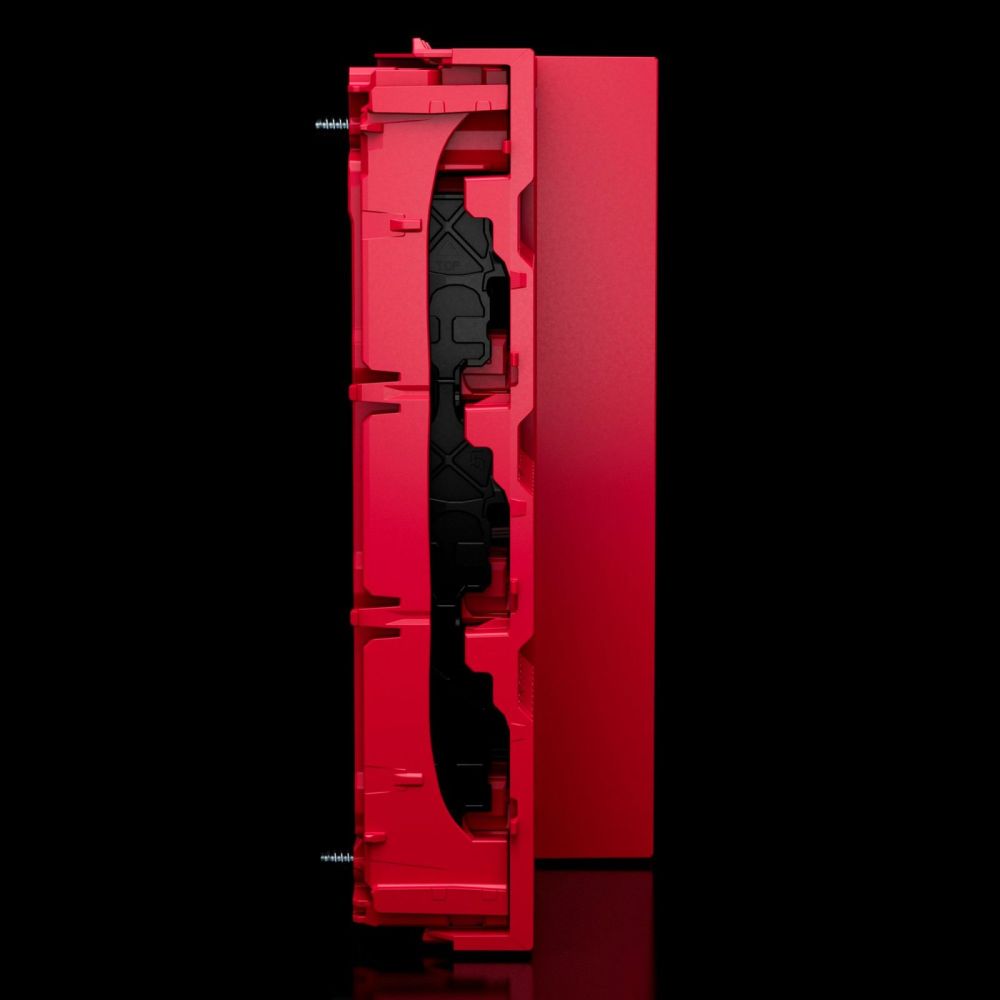

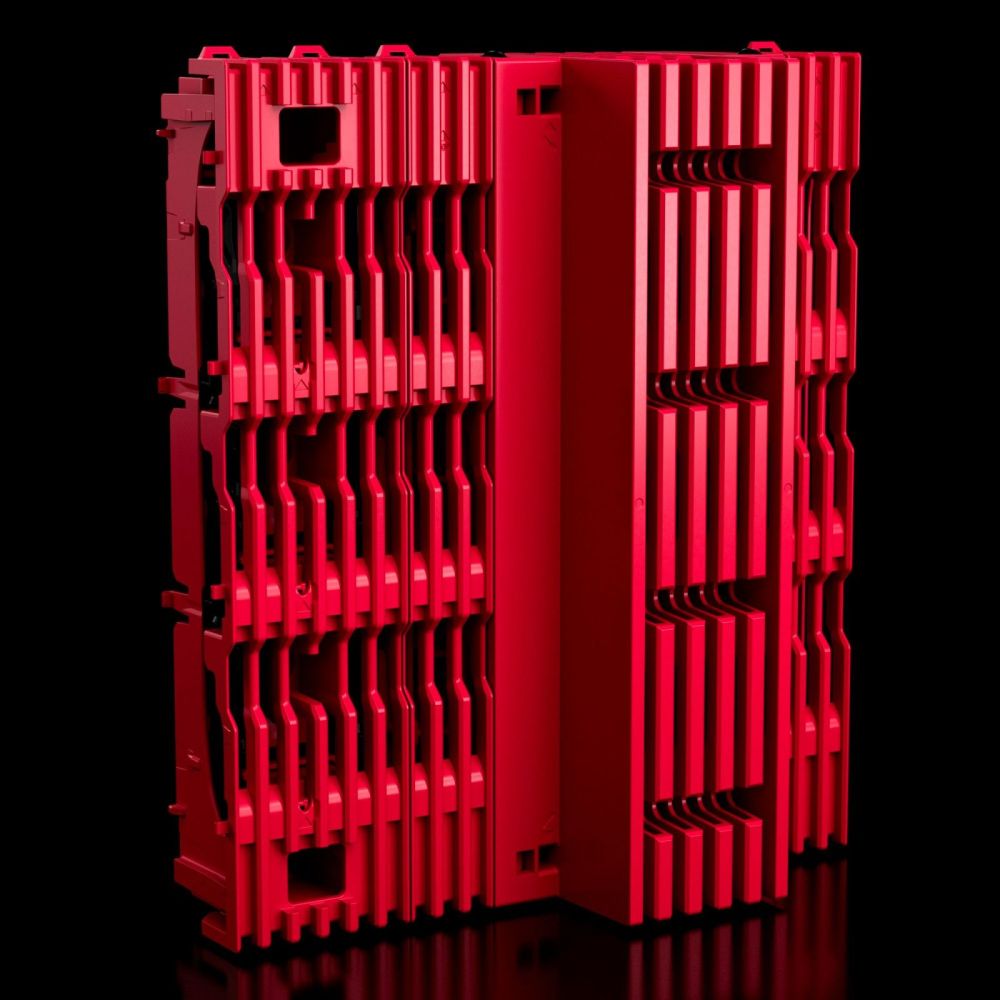

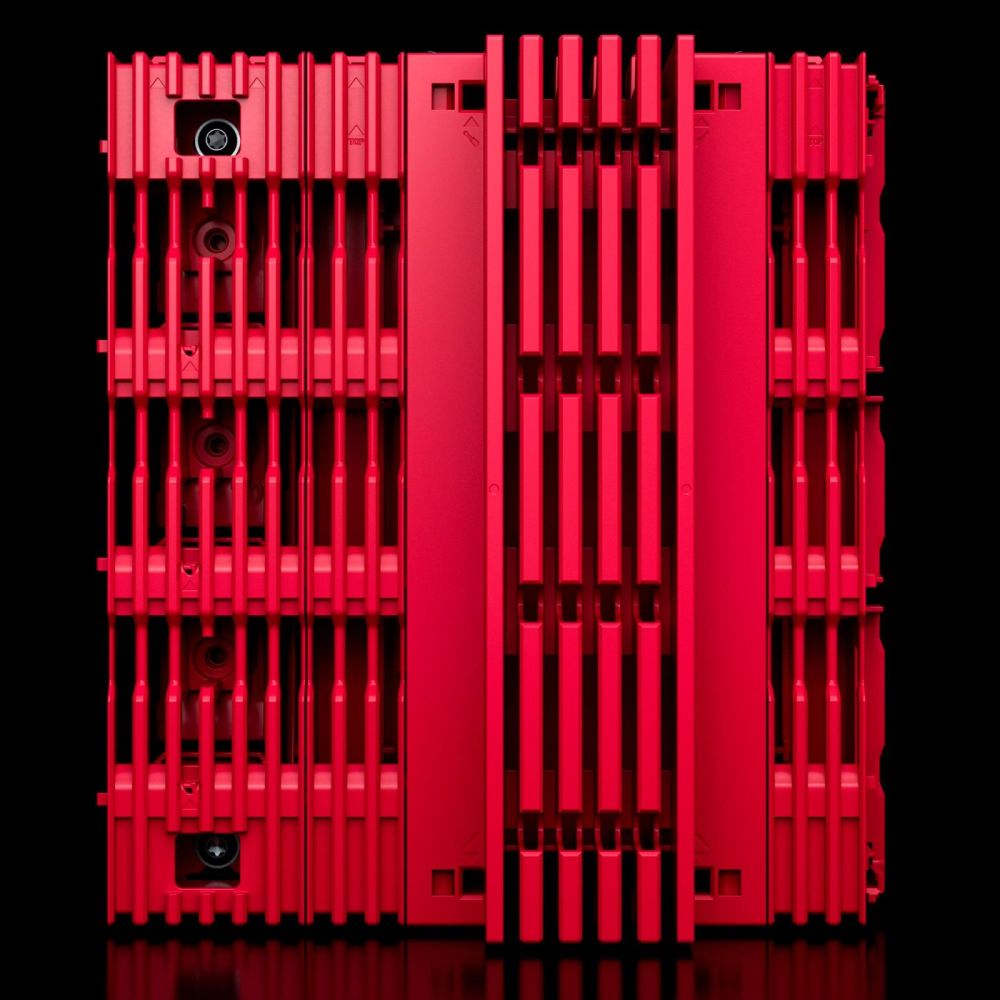

The set includes one end element on the left and one on the right, a cover, a base plate, and the required mounting hardware. The shock protection cover ensures safety during operation and prevents unintended contact with conductive parts. The end elements are designed to establish the electrical connection between two boards, with mechanical stability ensured by integrated mounting elements. Dimensions are 240 mm in height and 77 mm in depth, enabling compact integration into existing enclosure configurations.

Technology Explained Simply
The components of the set are made of polyamide (PA 6), a thermoplastic polymer known for its high mechanical strength and heat resistance. The flammability characteristics according to UL 94 ensure a defined reaction under heat exposure, which is important for safety in electrical installations. The protection class IP 2XB according to IEC 60 529 protects against contact with solid objects larger than 12.5 mm and against vertically falling water, which is sufficient for use in enclosed enclosures. Standards IEC 61 439-1/-2 and UL 508 guarantee compliance with international safety and quality standards.

Compatibility and Accessories
The baying set is compatible with RiLineX base modules with article numbers 9365.003, 9360.110, 9360.120, and 9360.150. The rail connector RX 9365003 is required for the electrical connection of busbars between the boards and must be ordered separately. The use of this additional component enables scalable system length and flexible adaptation to different rated currents through variable busbar cross-sections.

Mounting and Installation
Installation is carried out by securing the end elements to the respective boards, with the base plate and cover ensuring mechanical stability and shock protection. The included mounting materials facilitate installation.

Advantages in Operation
The RiLineX baying set offers simple and secure mounting, simplifying maintenance and expansion of power distribution systems. The scalable system length through base modules and the ability to adjust rated currents via variable busbar cross-sections increase flexibility in planning and implementation of electrical installations. The tested short-circuit withstand capability up to 65 kA ensures high safety in industrial applications. Compatibility with various RiLineX modules and extensive system accessories enable modular and future-proof equipping of enclosures.

General
Material	Polyamide (PA 6), flammability according to UL 94
Colour	RAL 35745
Scope of delivery	Board end elements left and right, board module cover, board module base plate, including fastening material
Number of poles	3-pole
Suitable for part no.	9365.003, 9360.110, 9360.120, 9360.150
Height	240 mm
Depth	77 mm
Degree of protection IP according to IEC 60 529	IP 2XB
Fire load	18,431 MJ/m²
PCF/VE (Cradle-to-Gate)	10,18

---
