Rittal 9360101 RX end module set for RiLineX base module 3-pole, pack of 2 content_copy

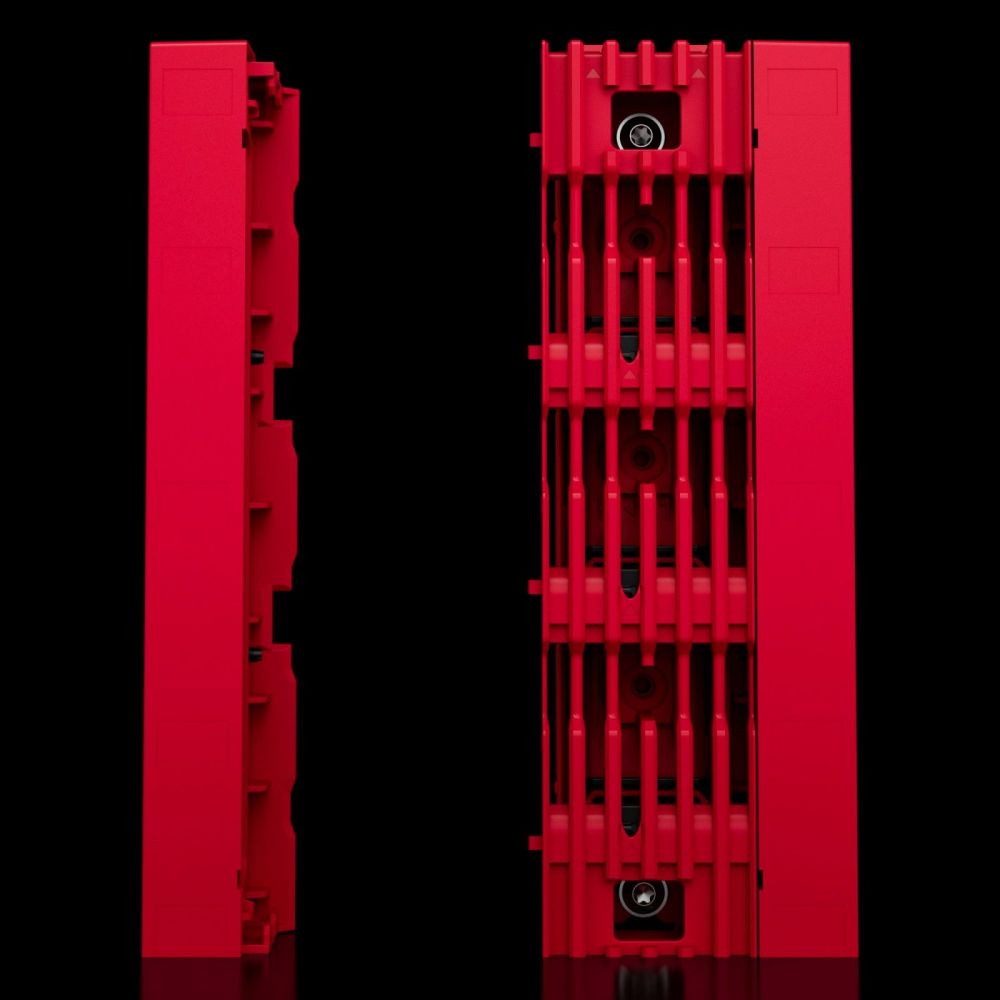

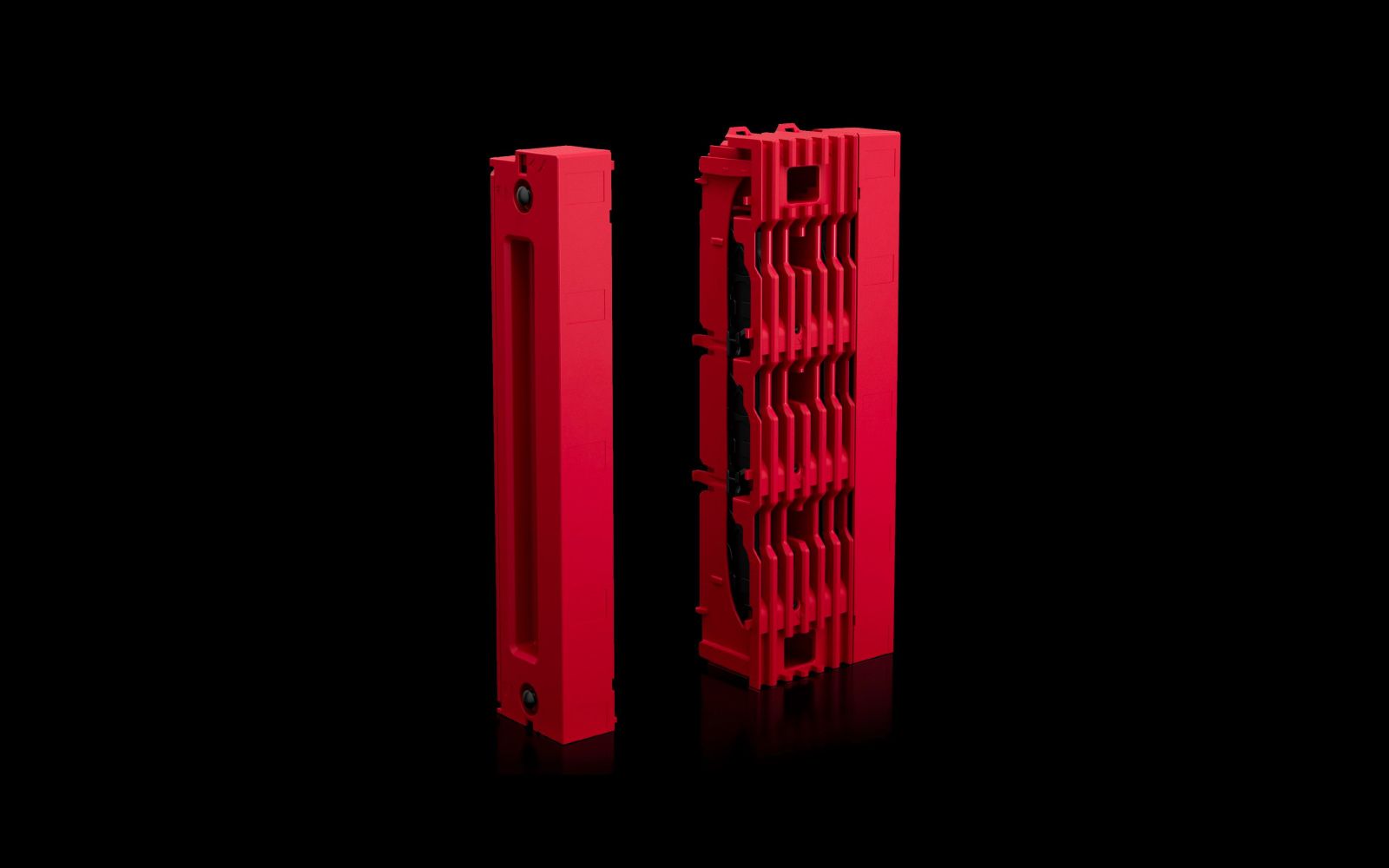

The Rittal RiLineX end module set, type RX 9360101, is a 3-pole end module for modular RiLineX board systems. It is designed for safe and structured termination of the left and right sides of a RiLineX board, featuring an integrated continuous shock protection. The set is required once per modular RiLineX board system and is specifically designed for use with base modules of part numbers 9360110, 9360120, and 9360150. The components are made of polyamide (PA 6) with flame resistance according to UL 94, ensuring high thermal and mechanical stability as well as good fire resistance. The end module colour corresponds to RAL 35745, a standardised grey tone commonly used in industrial installations.

Applications
This end module set is intended for use in industrial power distribution systems, particularly in installations handling alternating voltages up to 1000 V AC and direct voltages up to 1500 V DC. It is part of a modular system that allows flexible scaling of system lengths and rated currents. The tested short-circuit withstand capability up to 65 kA makes it suitable for applications involving high electrical loads. Certifications according to IEC and UL guarantee compliance with international safety and quality standards.

Functions and Equipment in Detail

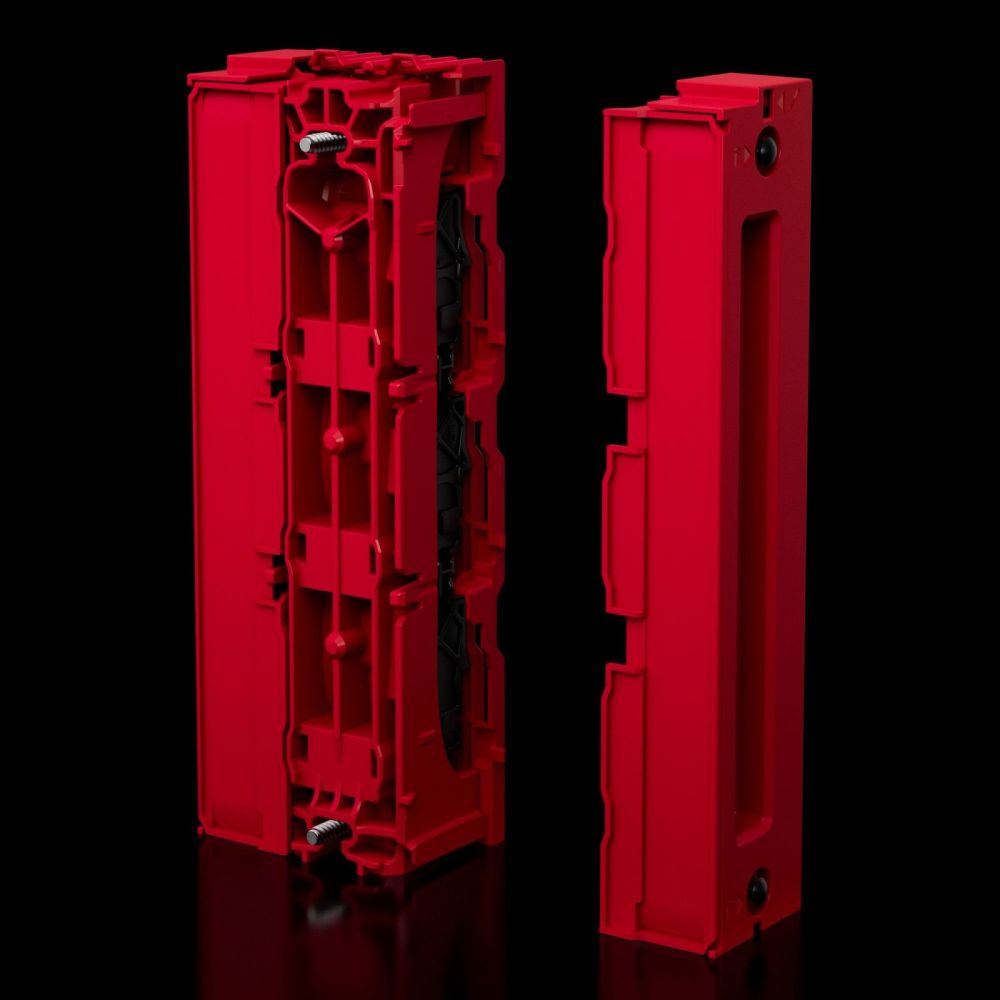

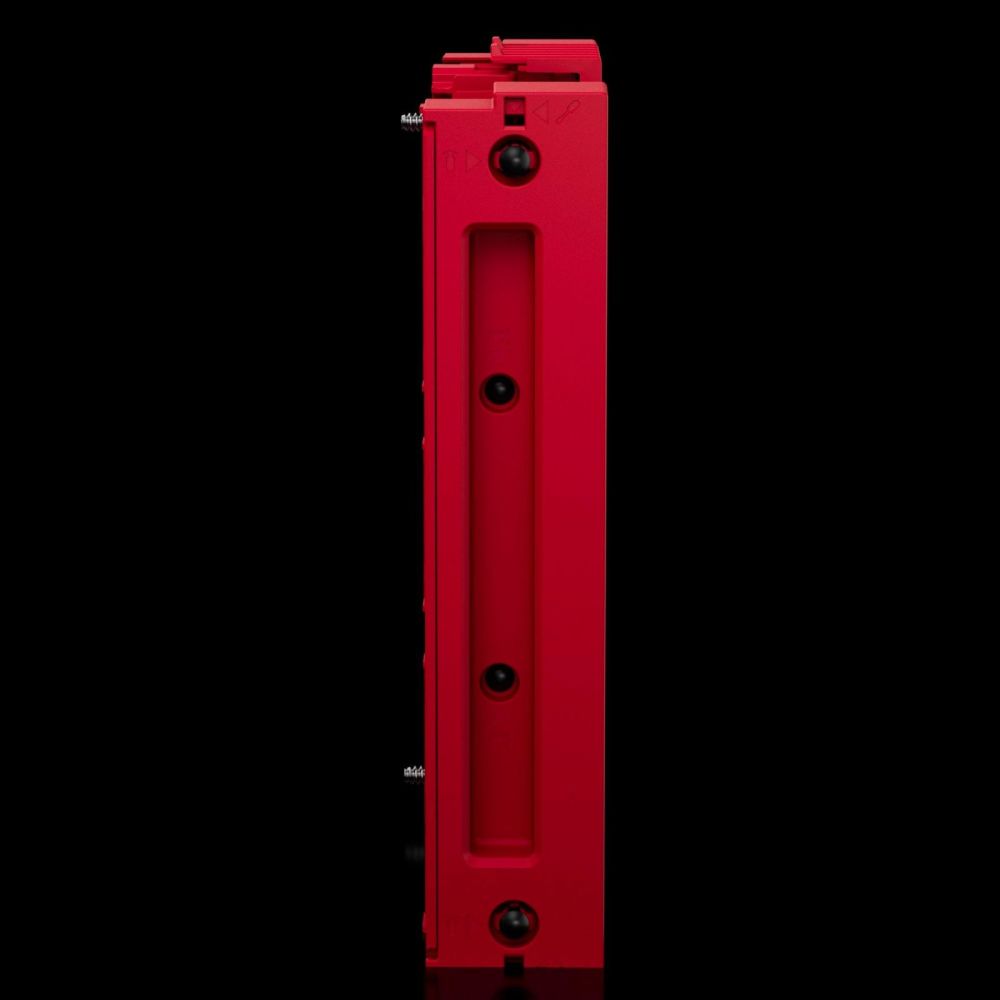

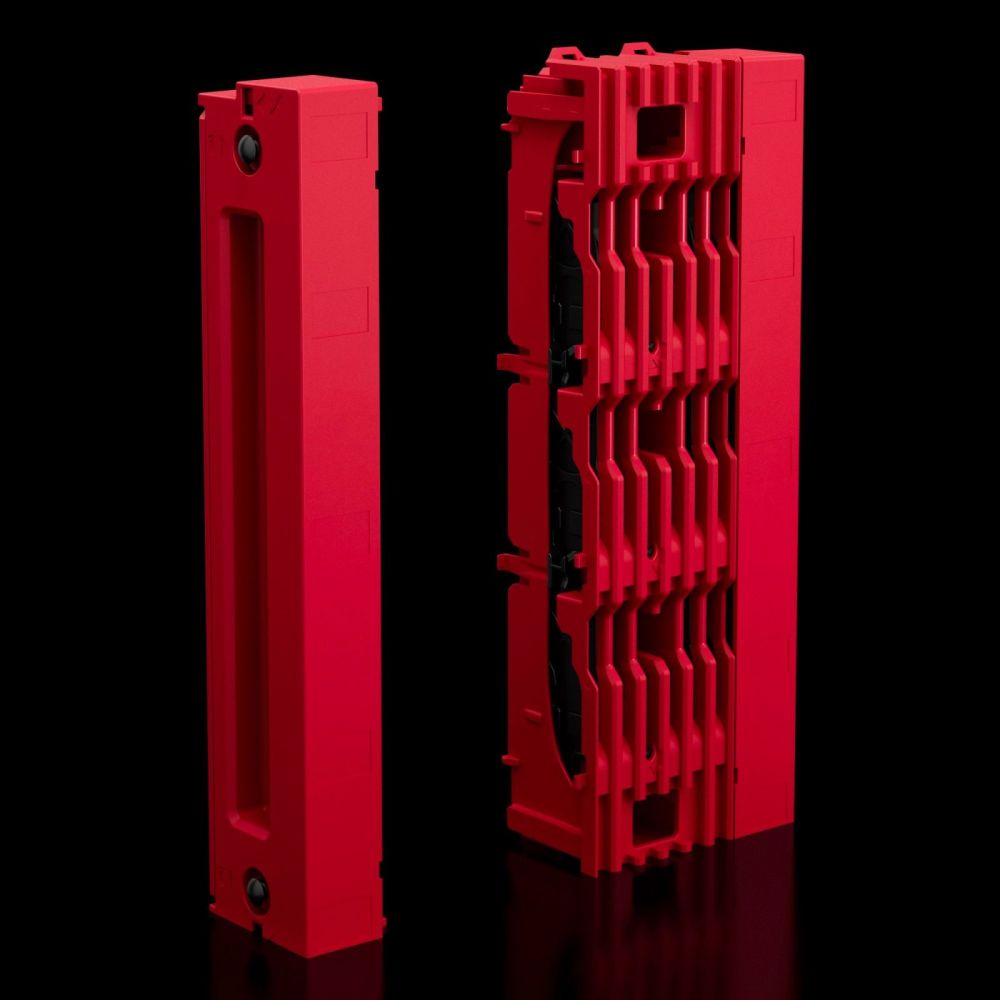

The set includes one end module for the left and one for the right side of the RiLineX board. Both modules feature a continuous shock protection, providing protection class up to IP 2XB and optionally upgradable to IP 3X. This protects against direct contact with conductive parts and increases operational safety. Installation is carried out using included mounting hardware, ensuring simple and secure assembly. Dimensions are 105 mm (width) × 240 mm (height) × 49.2 mm (depth), allowing the module to fit standard mounting configurations.

Technology Explained Simply
The use of polyamide (PA 6) as the material provides high mechanical strength, heat resistance, and chemical resistance, which is crucial for industrial environments. The flame resistance classification according to UL 94 ensures that the material is only limitedly flammable and does not propagate flames when heated. The integrated shock protection function protects personnel from electrical hazards, especially in areas where the system is operated or maintained. The scalability of the system allows adaptation to different performance requirements through the use of various busbar cross-sections.

Compatibility and Accessories
The end module set is specifically designed for base modules with part numbers 9360110, 9360120, and 9360150. It is part of an extensive system accessory range, including various busbar variants such as E-Cu busbars in different cross-sections (e.g. 15x5 mm, 20x5 mm, 30x5 mm, 20x10 mm, 30x10 mm) with a length of 2400 mm. These can be selected according to rated current (e.g. 550 A or 800 A) and requirements to optimise power distribution.

Mounting and Installation
Mounting is performed by securing the end modules to the respective ends of the RiLineX board. The modular design of the RiLineX system allows flexible expansion and bayed arrangement, enabling systems to be quickly adapted to changing requirements. Simple mounting and scalability reduce installation effort and increase efficiency in system design.

Operational Advantages
The end module set provides a safe termination solution for RiLineX boards, ensuring both electrical safety and structured system design. The integrated shock protection reduces the risk of accidents, while the modular design enables flexible adaptation to different requirements. Certifications according to IEC and UL, along with tested short-circuit withstand capability up to 65 kA, ensure high reliability and safety in industrial operation. The use of polyamide (PA 6) guarantees long service life and resistance to industrial stresses.

General
Material	Polyamide (PA 6), flammability according to UL 94
Colour	RAL 35745
Scope of delivery	Board end element left, board end element right, including fastening material
Suitable for part no.	9360110, 9360120, 9360150
Number of poles	3-pole
Width	105 mm
Height	240 mm
Depth	49,2 mm
PCF/VE (Cradle-to-Gate)	6,65

---
