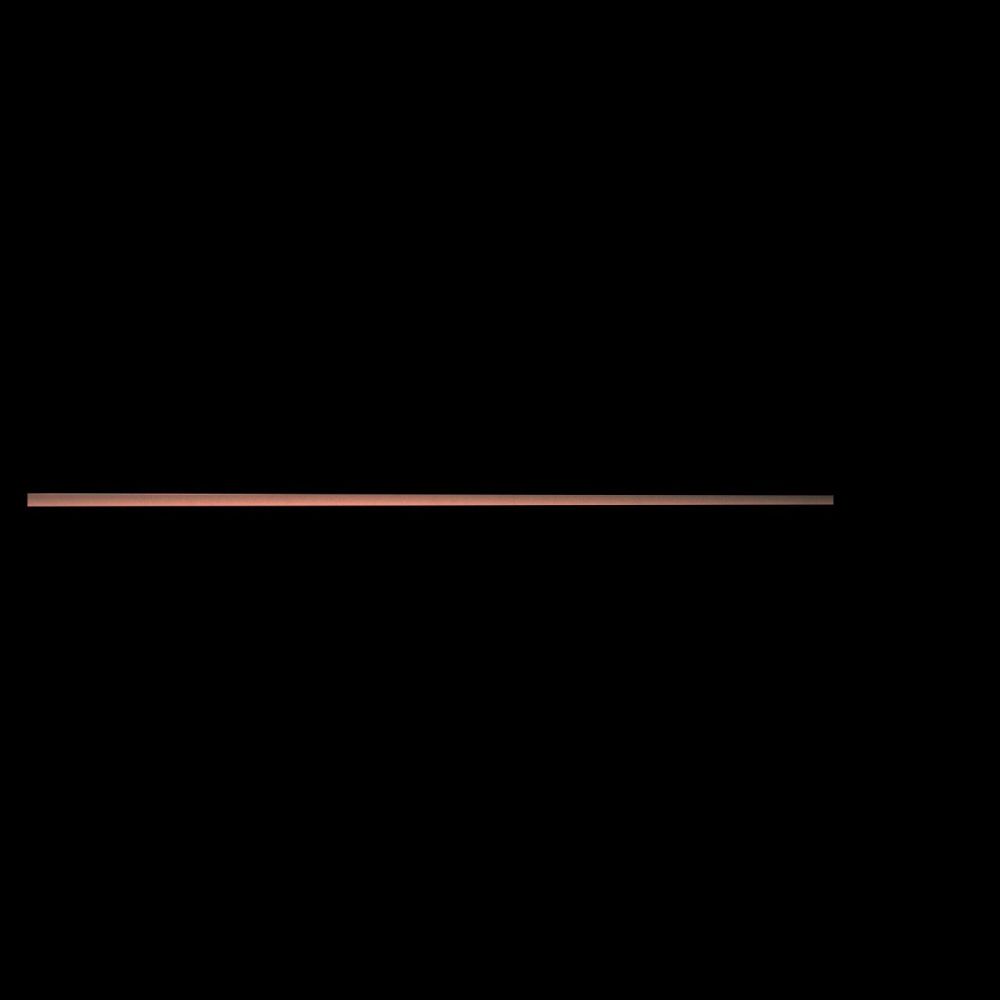

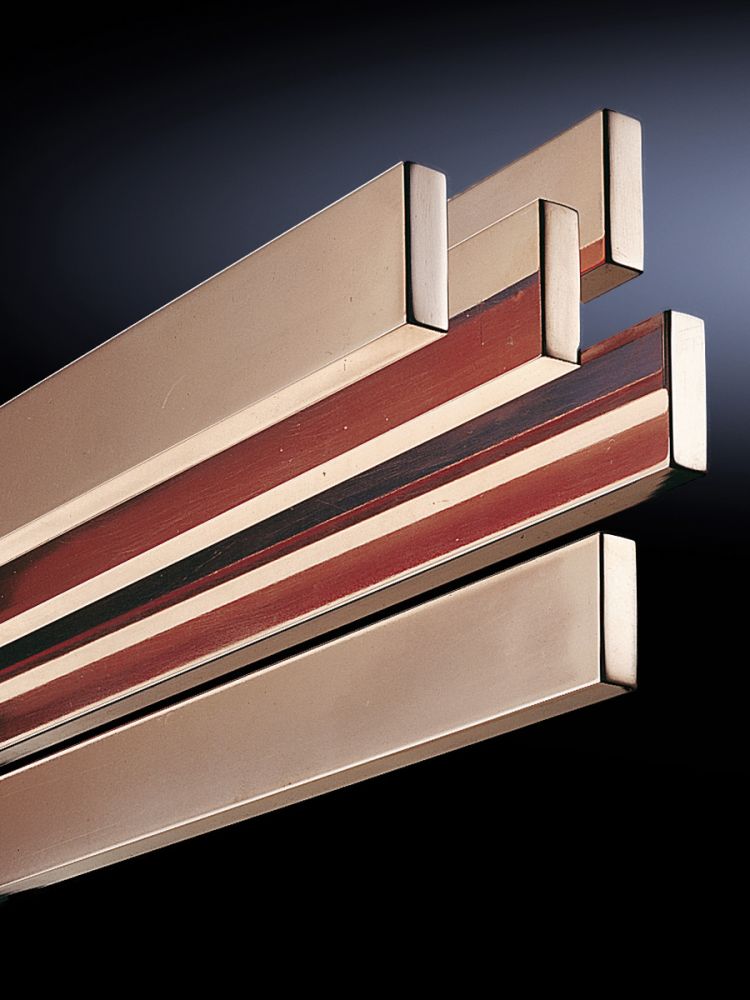

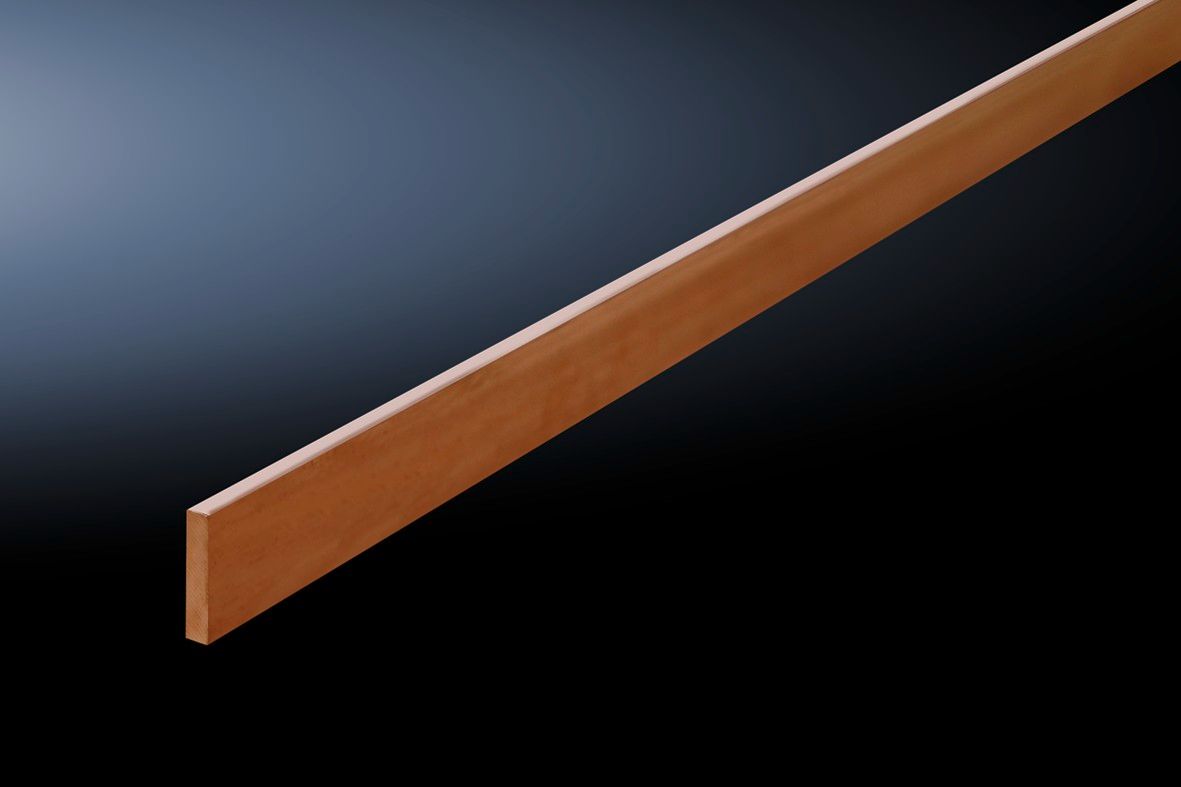

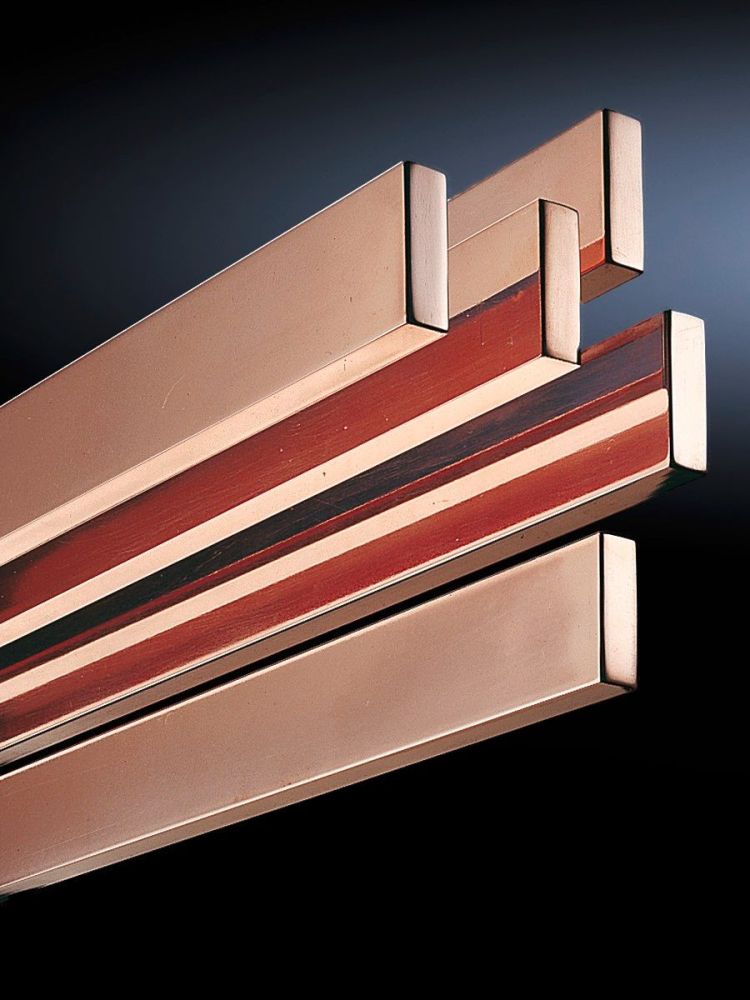

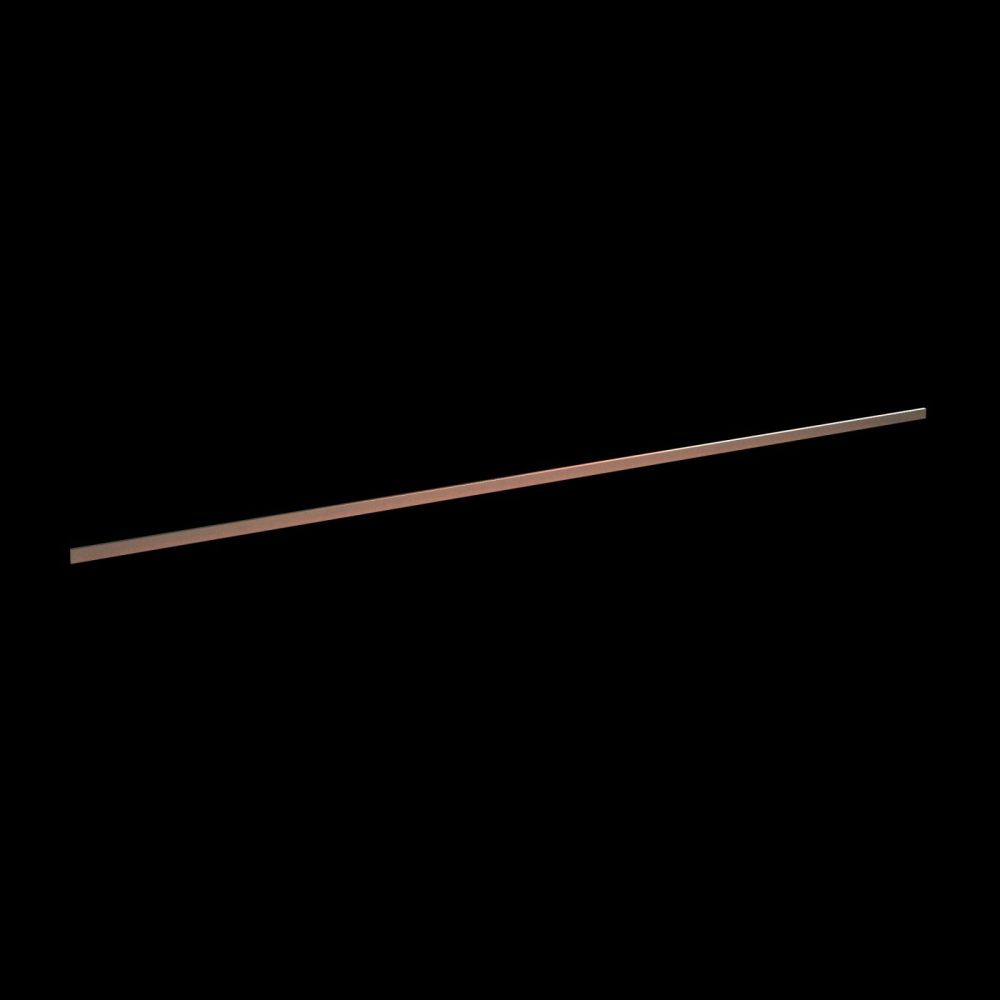

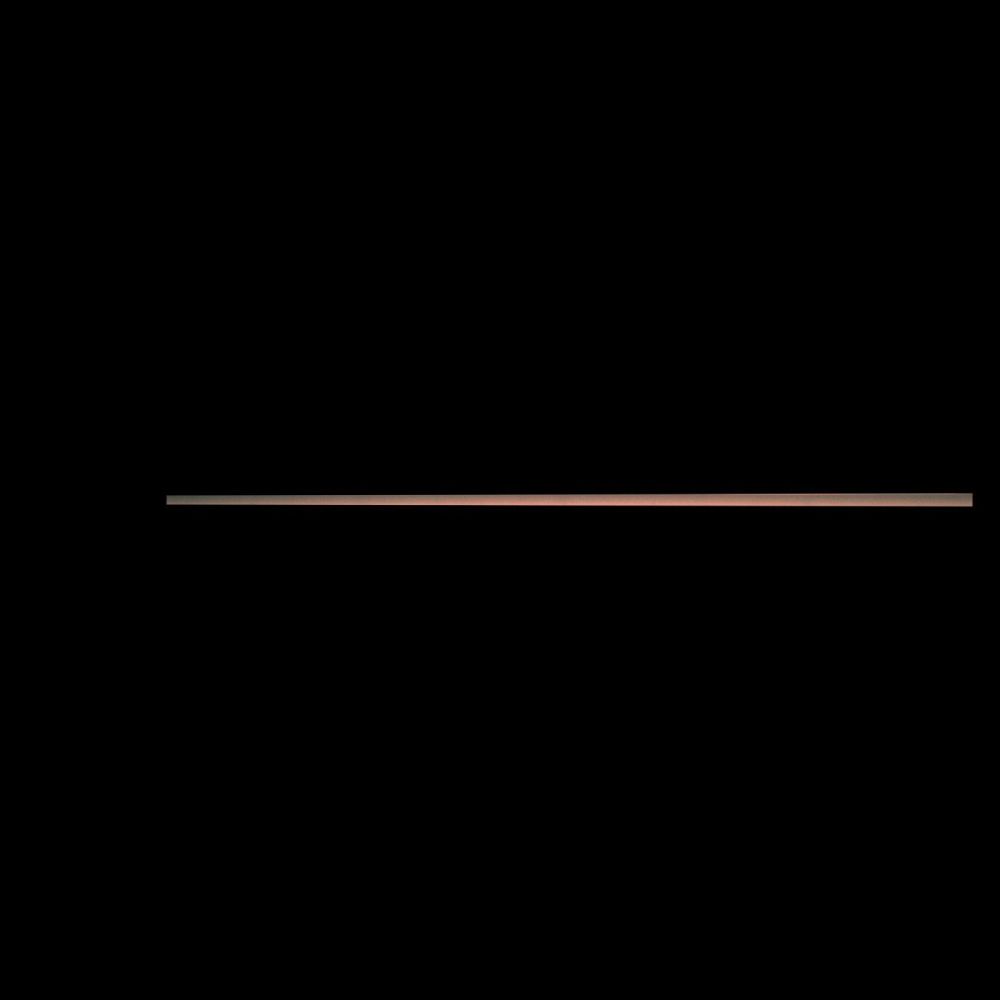

Rittal 3585005 busbar E-Cu 20x10 mm, L=2400 mm

Your rating:
Average rating
product review for Rittal 3585005 busbar E-Cu 20x10 mm, L=2400 mm
( 4.5 / 5 ) 70 ratings
Rittal 3585005
This image may differ from the desired article.
Rittal 3585005Rittal 3585005Rittal 3585005Rittal 3585005Rittal 3585005Rittal 3585005Rittal 3585005
285,57 EUR
incl. 108,35 EUR copper surcharge
( 339,83 EUR incl. VAT )
≈ £239.02  |  ≈ $313.84
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 3585005 busbar E-Cu 20x10 mm, L=2400 mm
Datasheet:file_download Download
Lieske Part No.:919004
Mfg Part No: 3585005
UPC/EAN: 4028177684577
Weight:12.94 kg
Type:SV 3585005

Product information for Rittal 3585005:

The Rittal SV 3585005 is an industrial busbar made of E-Cu F30, designed for use in enclosures and power distribution systems. With a cross-section of 20 mm x 10 mm and a length of 2.400 mm, it provides a stable and conductive connection for electrical wiring. The busbar complies with the DIN EN 13 601 standard, which specifies requirements for the manufacture and testing of power busbars. The material E-Cu F30 is electrolytic copper with high electrical conductivity and mechanical strength, making the busbar suitable for applications in industrial electrical engineering. The busbar is individually cuttable, allowing it to be adapted to specific mounting conditions and space requirements within the enclosure.

Applications

The busbar is used in industrial electrical installations, particularly in enclosures, distribution boxes, and power distribution systems. It serves as a main conductor for distributing electrical power to various loads, such as switches, relays, fuses, or control devices. Due to its dimensions and material quality, it is suitable for medium to high current loads, typically used in manufacturing plants, power supply systems, or automation technology.

Functions and Equipment in Detail

The busbar has a cross-section of 20 mm width and 10 mm height, providing sufficient current-carrying capacity for moderate to high loads. The length of 2.400 mm allows for flexible positioning within the enclosure, while the individual cuttability enables precise adaptation to the specific enclosure depth or mounting configuration. The material E-Cu F30 ensures high electrical conductivity and mechanical stability, ensuring the busbar remains secure even under load. The packaging unit includes 3 pieces per pack, which is advantageous for larger installations or series mounting.

Technology Explained Simply

The designation E-Cu F30 refers to electrolytic copper with a minimum purity of 99.9 %, known for its high conductivity and corrosion resistance. The DIN EN 13 601 standard sets requirements for mechanical strength, electrical conductivity, and testing procedures for power busbars. The cuttability of the busbar means it can be cut to the desired length using appropriate tools (e.g., cutting pliers or a grinding machine) without impairing its electrical or mechanical properties. The copper mass is 4.29 kg per piece, reflecting the material quality and the weight contribution of the conductive material.

Compatibility and Accessories

The busbar is compatible with various accessories required for secure mounting and connection. These include busbar cover profiles for cross-sections from 12x5 to 30x10 mm, which provide mechanical protection and improve the visual appearance of the enclosure. Busbar connectors for E-Cu 20x5 to 30x10 mm enable the connection of multiple busbars, with baying connectors used for connecting multiple busbars in series and single connectors for connecting two busbars. M12 insert nuts are used for secure fastening of the busbar to mounting points within the enclosure.

Mounting and Installation

Mounting is typically performed within the enclosure, where the busbar is fastened at designated mounting points using M12 insert nuts or other suitable fastening elements. The individual cuttability allows for precise adaptation to the enclosure depth. During installation, care must be taken to cut the busbar cleanly and without bends to ensure electrical conductivity and mechanical stability. Connections to other components are made via busbar connectors or directly at the connection points of the devices.

Advantages in Operation

Using the Rittal SV 3585005 provides reliable and low-maintenance power distribution. The high conductivity of the E-Cu F30 material minimizes voltage drops, while the mechanical strength ensures long service life and operational safety. The cuttability increases flexibility during planning and installation, and compatibility with standard accessories simplifies integration into existing systems. Compliance with the DIN EN 13 601 standard ensures the busbar meets industrial requirements and can be used in safety-critical applications.

General
MaterialE-Cu F30
NoteIndividually cuttable
StandardsDIN EN 13 601

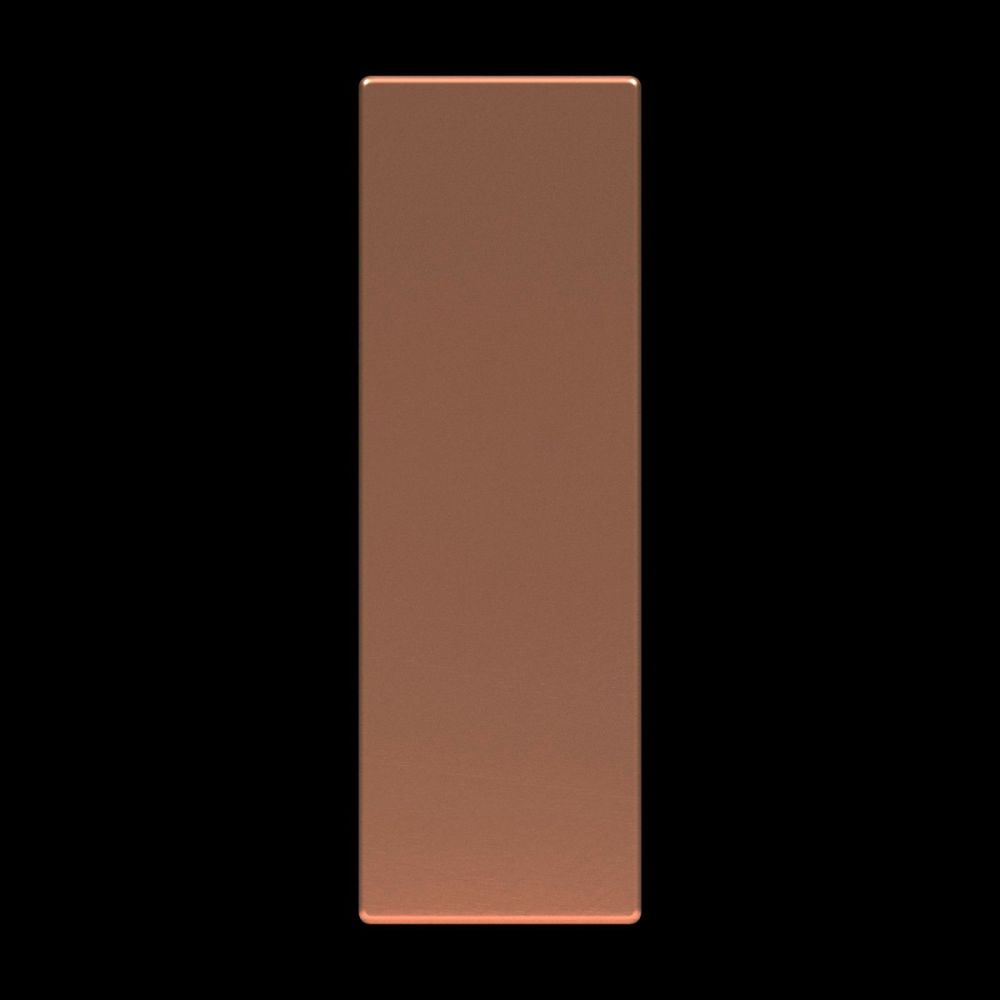

Cross section20 mm x 10 mm
Length2.400 mm
Copper content (kg/piece)4,29


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
This article contains a copper surcharge of 108,35 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 3585005, EAN: 4028177684577

Questions & answers

What is the delivery time of Rittal 3585005 busbar E-Cu 20x10 mm, L=2400 mm?

The article Rittal 3585005 busbar E-Cu 20x10 mm, L=2400 mm is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3585005 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3585005 busbar E-Cu 20x10 mm, L=2400 mm always at the best possible price. We can give you a discount of 2% on Rittal 3585005 busbar E-Cu 20x10 mm, L=2400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
