Rittal 9320030 rail connector for E-Cu 20x5-30x10 mm, baying connector
|
68,51 EUR |
|
|
incl. 10,05 EUR copper surcharge ( 81,53 EUR incl. VAT ) ≈ £57.14 | ≈ $76.66 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 767979 |
| Mfg Part No: | 9320030 |
| UPC/EAN: | 4028177149830 |
| Weight: | 2.02 kg |
| Type: | SV 9320030 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 9320030:

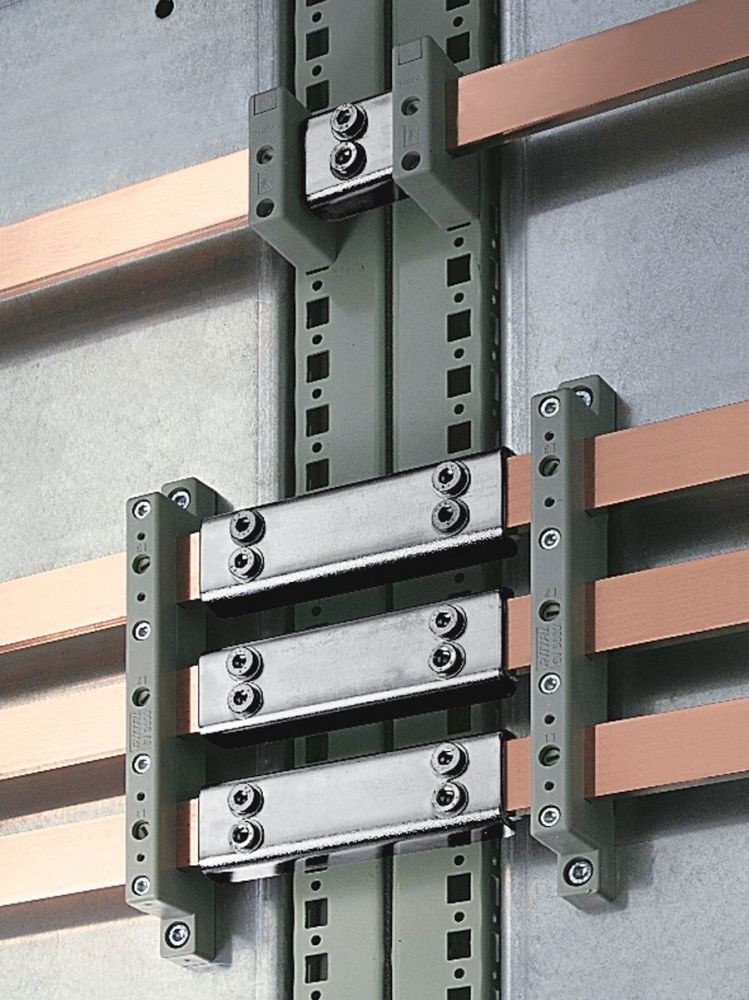

For connecting square busbars, no drilling required.
Material: Top piece: Sheet steel, zinc-plated, passivated
Contact plate: E-Cu, silver-plated
Packs of: 3 pc(s).
EAN: 4028177149830
Customs tariff number: 85369010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400606
ETIM 6.0: EC000713
To fit busbars: 20 x 5 - 30 x 10
Connection type: Baying connection from enclosure to enclosure (TS 8)
Weight/pack: 2.08 kg
Material: Top piece: Sheet steel, zinc-plated, passivated
Contact plate: E-Cu, silver-plated
Packs of: 3 pc(s).
EAN: 4028177149830
Customs tariff number: 85369010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400606
ETIM 6.0: EC000713
To fit busbars: 20 x 5 - 30 x 10
Connection type: Baying connection from enclosure to enclosure (TS 8)
Weight/pack: 2.08 kg
| General | |
| Material | Top section: sheet steel, galvanised, passivated, contact plate: E-Cu, silver-plated |
| Type of connection | Rack-to-rack interconnection |
| Suitable for busbars | 20 x 5 - 30 x 10 mm |
| Copper content (kg/piece) | 0,35 |
| PCF/VE (Cradle-to-Gate) | 7.9 kg CO2 eq (Cat B) |
Please note...
This article contains a copper surcharge of 10,05 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
