Rittal 9666533 ISV busbar module W x H 3/2

Your rating:
Average rating
product review for Rittal 9666533 ISV busbar module W x H 3/2
( 4.4 / 5 ) 25 ratings
Rittal 9666533
This image may differ from the desired article.
Rittal 9666533Rittal 9666533
115,12 EUR
( 136,99 EUR incl. VAT )
≈ £96.36  |  ≈ $126.52
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9666533 ISV busbar module W x H 3/2
Datasheet:file_download Download
Lieske Part No.:984829
Mfg Part No: 9666533
UPC/EAN: 4028177676428
Weight:2.62 kg
Type:SV 9666533

Product information for Rittal 9666533:

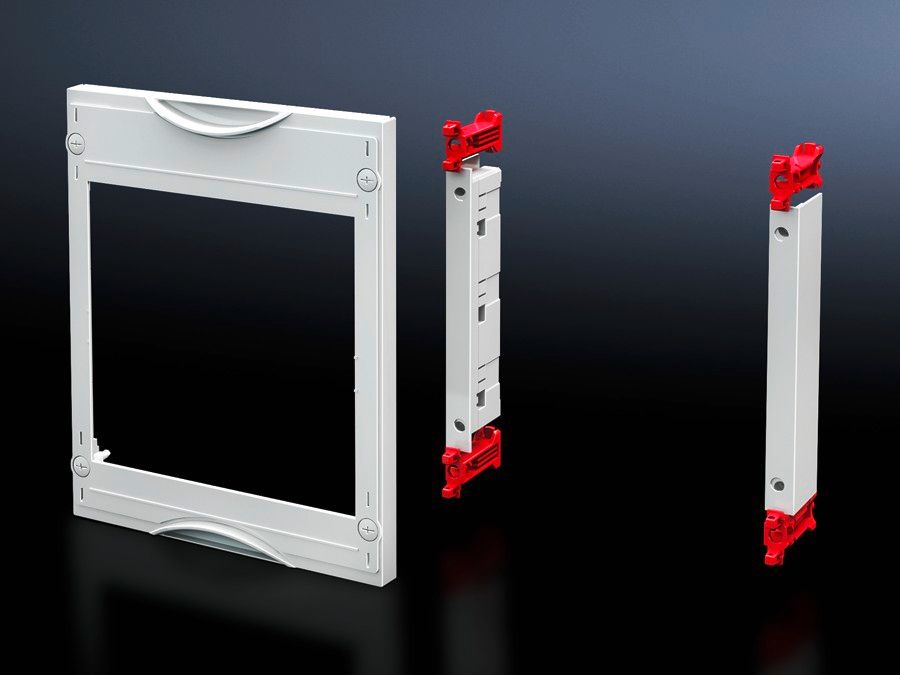

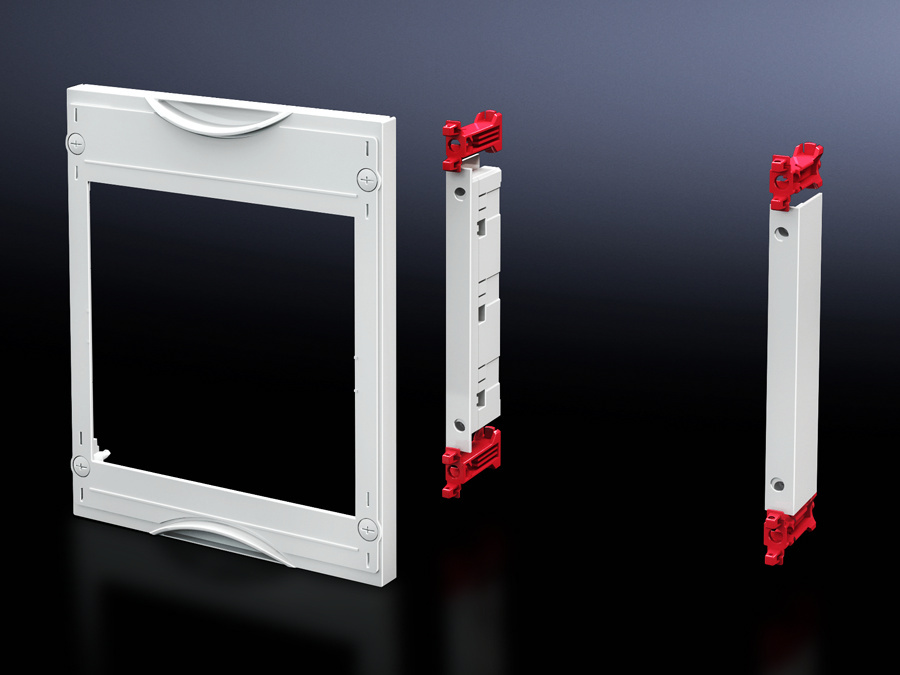

The Rittal SV 9666533 is a busbar module (ISV), specifically designed for use in industrial enclosures for mounting fuse components. It serves as a base for securing fuse carrier elements of types E18, E27, E33 as well as D-Switch and NH fuse switch disconnectors of sizes 000 and 00. The modules are designed for three-pole arrangements, with a busbar center-to-center spacing of 60 mm. The module has a width of 750 mm and a height of 300 mm, corresponding to a size of 3 width units (BE) at 250 mm each and 2 height units (HE) at 150 mm each. The cover is made of polystyrene, and the holder is made of glass-fiber-reinforced plastic, enabling a robust yet lightweight construction. The color is RAL 7035, a standard gray tone commonly used in industrial environments.

Applications
This module is used in industrial electrical engineering, particularly in enclosures where structured and secure mounting of fuse components is required. It is suitable for installations where clear separation and assignment of fuse components are necessary, for example in production plants, power distribution systems, or machine controls. The modular design allows for flexible adaptation to different enclosure configurations.

Functions and Equipment in Detail
The SV 9666533 is designed for mounting on busbars available in dimensions 12 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. Mounting is achieved via integrated holders designed for the specified busbar profiles. The polystyrene cover provides a secure closure of the mounting surface and protects against mechanical damage.

Technology Explained Simply
The module’s construction meets requirements for mechanical stability and electrical safety. The use of glass-fiber-reinforced plastic for the holder ensures high strength while maintaining low weight. The polystyrene cover is not only lightweight but also resistant to mechanical stress during operation. The precise fit for the specified fuse elements and switch disconnectors ensures secure and accurate mounting, minimizing installation errors.

Compatibility and Accessories
The module is compatible with article numbers 3418.010, 3427.010, 3433.010, 3431.020, 3431.030, 3431.035, and 9340.950, which represent specific fuse elements or switch disconnectors. Suitable accessories include the blank cover SV 9666660 (1=10, ISV, W:16-34 mm variable) and the busbar E-Cu 30x10 mm, L=2400 mm. These components can be used to complete the enclosure configuration, for example to close empty modules or to provide additional busbar lengths.

Mounting and Installation
Mounting is performed directly onto existing busbars in the enclosure. The integrated holders allow for easy and secure fastening. The included mounting hardware is used to secure the module to the busbar. Installation requires no additional tools or mounting aids, as the module is designed for direct mounting on standard busbars.

Advantages in Operation
The module provides clear structuring of fuse components within the enclosure, simplifying maintenance and inspection. The precise fit and robust construction ensure reliable performance even under industrial operating conditions. The use of standardized sizes (BE/HE) enables easy integration into existing enclosure configurations. The RAL 7035 color ensures visual harmony with other enclosure components.

General
MaterialCover: polystyrene, holder: glass-fibre-reinforced plastic
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Width750 mm
Height300 mm
Construction sizeWidth units (BE) at 250 mm: 3, Height units (HE) at 150 mm: 2
Suitable for part no.3418.010, 3427.010, 3433.010, 3431.020, 3431.030, 3431.035, 9340.950
Suitable for busbars12 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm


Product data sheet
Datasheet for Rittal 9666533, EAN: 4028177676428

Questions & answers

What is the delivery time of Rittal 9666533 ISV busbar module W x H 3/2?

The article Rittal 9666533 ISV busbar module W x H 3/2 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9666533 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9666533 ISV busbar module W x H 3/2 always at the best possible price. We can give you a discount of 2% on Rittal 9666533 ISV busbar module W x H 3/2 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
