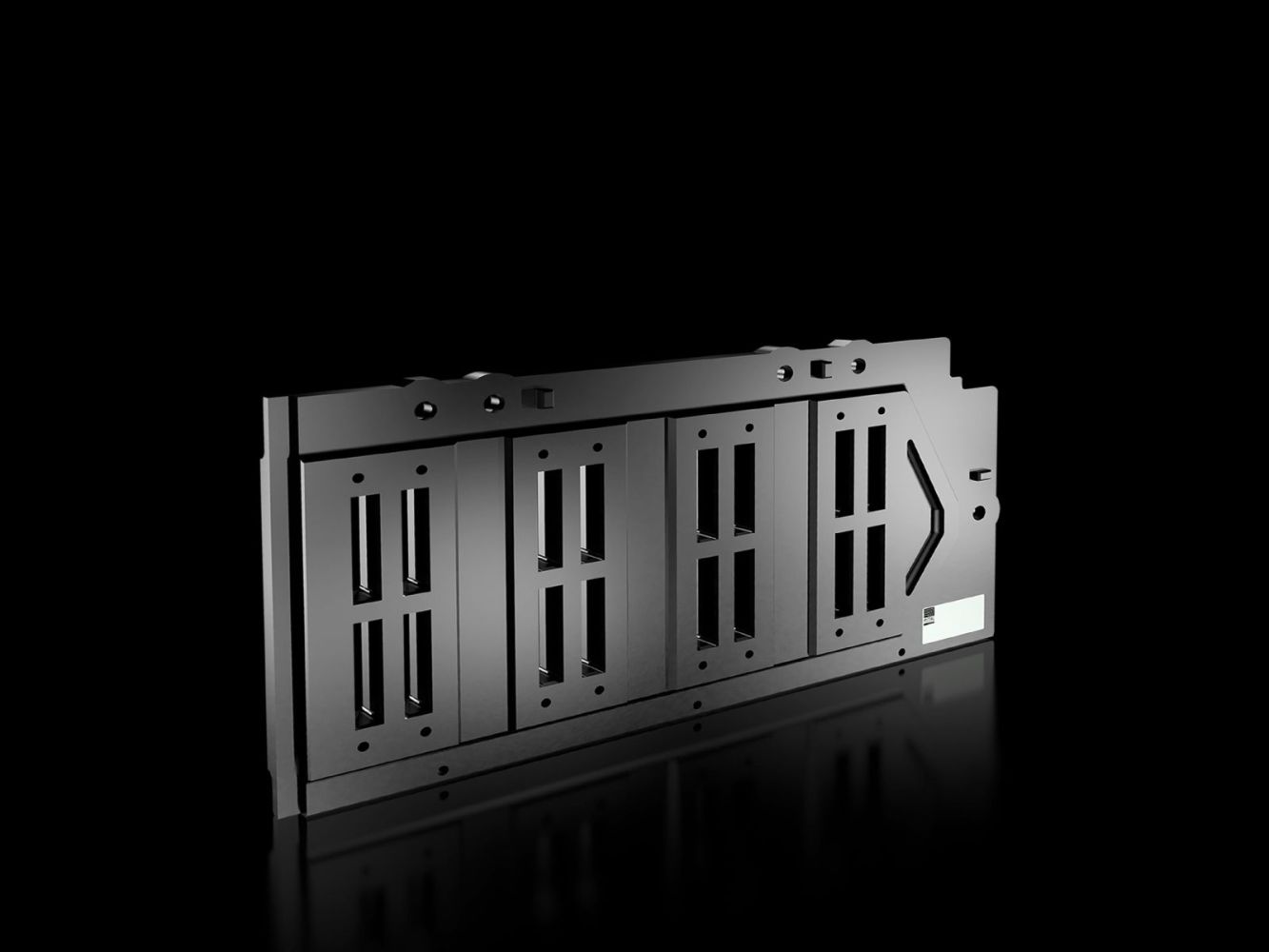

Rittal 9686040 SV busbar holder 4-pole 80 mm for E-Cu 50x

Your rating:
Average rating
product review for Rittal 9686040 SV busbar holder 4-pole 80 mm for E-Cu 50x
( 4.5 / 5 ) 4 ratings
Rittal 9686040
This image may differ from the desired article.
Rittal 9686040Rittal 9686040Rittal 9686040
-8% 136,85 EUR 149,12 EUR
( 162,85 EUR incl. VAT )
≈ £114.54  |  ≈ $150.40
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9686040 SV busbar holder 4-pole 80 mm for E-Cu 50x
Datasheet:file_download Download
Lieske Part No.:1908958
Mfg Part No: 9686040
UPC/EAN: 4028177935662
Weight:3.76 kg
Type:SV 9686040

Product information for Rittal 9686040:

The SV 9686040 from Rittal is a 4-pole busbar holder, specifically designed for the passage of busbar systems through the roof area of enclosures. It serves as a mounting element for E-Cu busbars with dimensions 50 x 10 mm and enables structured and secure installation in the upper area of the enclosure. The holder is made of duroplastic plastic, which exhibits flame behaviour according to UL 94-V0, ensuring high flame resistance and self-extinguishing properties. The colour corresponds approximately to RAL 9005, a dark grey that integrates well visually in industrial environments.

Applications
This busbar holder is used in power distribution within industrial enclosures, particularly where multiple busbars must be routed through the enclosure roof. It is suitable for applications in electrical and automation technology, where stable and secure mounting of conductors is required. The design allows for even load distribution and prevents mechanical stress on the busbars.

Functions and Equipment in Detail
The holder is designed for a centre-to-centre spacing of 80 mm between busbars, enabling standardised arrangement. Up to four busbars (partial conductors) can be installed per phase, offering flexible use for different power requirements. The delivery includes the necessary mounting hardware required for installation within the enclosure.

Technology Explained Simply
The duroplastic plastic offers high mechanical strength and heat resistance, making it suitable for use in industrial environments. Flame behaviour according to UL 94-V0 means the material is non-flammable when heated and self-extinguishes once the ignition source is removed. This is particularly important in enclosures, where high safety standards for electrical installations are required. The RAL 9005 colour ensures visual harmony with other components in the enclosure.

Compatibility and Accessories
The holder is specifically designed for busbars with dimensions 50 x 10 mm, made of E-Cu (electro-copper). Suitable accessories include the E-Cu 50x10 mm busbar (length 2400 mm), the VX cage nut M8, and the SV end cap for busbar holder 9686.0X0. These components enable complete and secure installation of the busbar system.

Mounting and Installation
Installation takes place in the roof area of the enclosure. The holder is fastened to the enclosure profile using the included mounting hardware. For secure connection to the enclosure profile, the M8 cage nut (part number 4165.500) is required. The busbars are placed in the designated holders, ensuring a centre-to-centre spacing of 80 mm. The maximum of four busbars per phase allows flexible adaptation to specific power requirements.

Advantages in Operation
The SV 9686040 provides stable and secure mounting of busbars, increasing the reliability of power distribution. The use of duroplastic plastic with UL 94-V0 flame behaviour ensures high safety. Standardised installation with 80 mm centre-to-centre spacing and the option to mount up to four busbars per phase enables flexible and efficient use in various application scenarios. The integrated mounting solution with included material reduces installation time and simplifies the installation process.

General
MaterialThermosetting plastic, flammability rating according to UL 94
ColourSimilar to RAL 9005
Scope of deliveryIncluding mounting hardware
Suitable for busbars50 x 10 mm
Center-to-center spacing of busbars80 mm
Mounting noteMaximum 4 busbars (partial conductors) can be installed per phase; for mounting the busbar holder to the cabinet profile, the cage nut (M8) 4165.500 is required


Product data sheet
Datasheet for Rittal 9686040, EAN: 4028177935662
