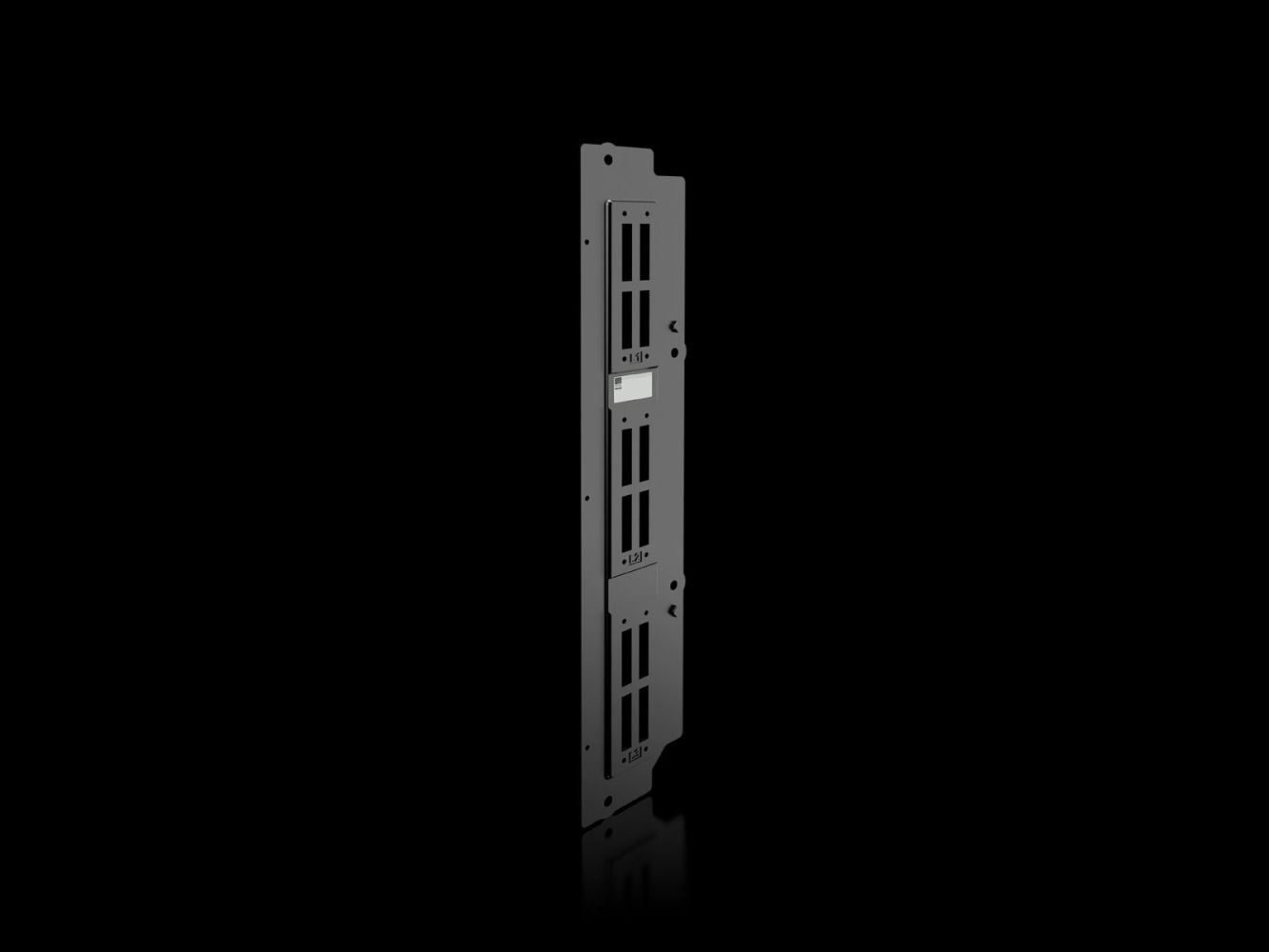

Rittal 9686070 SV busbar holder 3-pole 185 mm for E-Cu 50

Your rating:
Average rating
product review for Rittal 9686070 SV busbar holder 3-pole 185 mm for E-Cu 50
( 4.3 / 5 ) 4 ratings
Rittal 9686070
This image may differ from the desired article.
Rittal 9686070Rittal 9686070Rittal 9686070
186,19 EUR
( 221,57 EUR incl. VAT )
≈ £155.84  |  ≈ $204.62
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9686070 SV busbar holder 3-pole 185 mm for E-Cu 50
Datasheet:file_download Download
Lieske Part No.:1908960
Mfg Part No: 9686070
UPC/EAN: 4028177935686
Weight:3.06 kg
Type:SV 9686070

Product information for Rittal 9686070:

The SV 9686070 from Rittal is a 3-pole busbar holder, specifically designed for the passage of busbar systems in the rear area of enclosures. It serves as a mounting component for E-Cu busbars with dimensions 50 x 10 mm and enables a structured and secure routing of conductors within the enclosure. The product is made of thermosetting plastic, which according to UL 94-V0 exhibits high flame resistance, thereby increasing safety in electrical installations. The colour corresponds approximately to RAL 9005, a dark grey that integrates well visually in industrial environments.

Applications

The busbar holder is intended for use in industrial electrical installations, particularly in enclosures where stable and secure mounting of busbars is required. It is mounted in the rear area of the enclosure to enable the passage of conductors running from the front side to the rear area of the enclosure. The design is intended for use in switchgear systems where high mechanical load capacity and electrical safety are required.

Functions and Equipment in Detail

The holder is designed for a maximum of four busbars per phase, enabling flexible use with various conductor configurations. The centre-to-centre spacing of the busbars is 185 mm, ensuring standardised positioning of the conductors. The product is delivered including mounting hardware, allowing installation without additional components.

Technology Explained Simply

The thermosetting plastic from which the holder is made is characterised by high heat resistance and mechanical strength. The flame resistance class UL 94-V0 means that the material self-extinguishes after a short time when exposed to flame, increasing safety in electrical installations. The colour RAL 9005 is standard in industry and ensures uniform visual design of enclosures. The 3-pole design enables mounting of three conductors, each assigned to a phase (L1, L2, L3).

Compatibility and Accessories

The holder is specifically designed for busbars with dimensions 50 x 10 mm made of E-Cu (electro-copper). Suitable accessories include the E-Cu 50x10 mm busbar with a length of 2400 mm, the cage nut M8 (part number 4165.500), and the SV end cap for busbar holders (part number 9686.0X0), which enables a neat finishing appearance.

Mounting and Installation

Installation takes place in the rear area of the enclosure, where the holder is attached to the enclosure profile. Mounting is done via screw connection, aligning the pre-drilled holes in the holder and the enclosure profile. The maximum of four busbars per phase allows flexible adaptation to different conductor configurations. Installation is tool-assisted and does not require special skills.

Advantages in Operation

Using the SV 9686070 ensures proper and secure mounting of busbars within the enclosure. The standardised dimension of 185 mm centre-to-centre spacing ensures uniform positioning of conductors, facilitating maintenance and inspection. The high mechanical strength of the thermosetting plastic and the UL 94-V0 flame resistance class increase the safety of the installation. Delivery including mounting hardware reduces preparation time during installation. Compatibility with standard busbars and accessories enables easy integration into existing systems.

General
MaterialThermosetting plastic, flammability rating according to UL 94-V0
ColourSimilar to RAL 9005
Scope of deliveryIncluding mounting hardware
Suitable for busbars50 x 10 mm
Center-to-center spacing of busbars185 mm
Mounting noteMaximum 4 busbars (partial conductors) can be installed per phase; for mounting the busbar holder to the cabinet profile, the cage nut (M8) 4165.500 is required


Product data sheet
Datasheet for Rittal 9686070, EAN: 4028177935686
