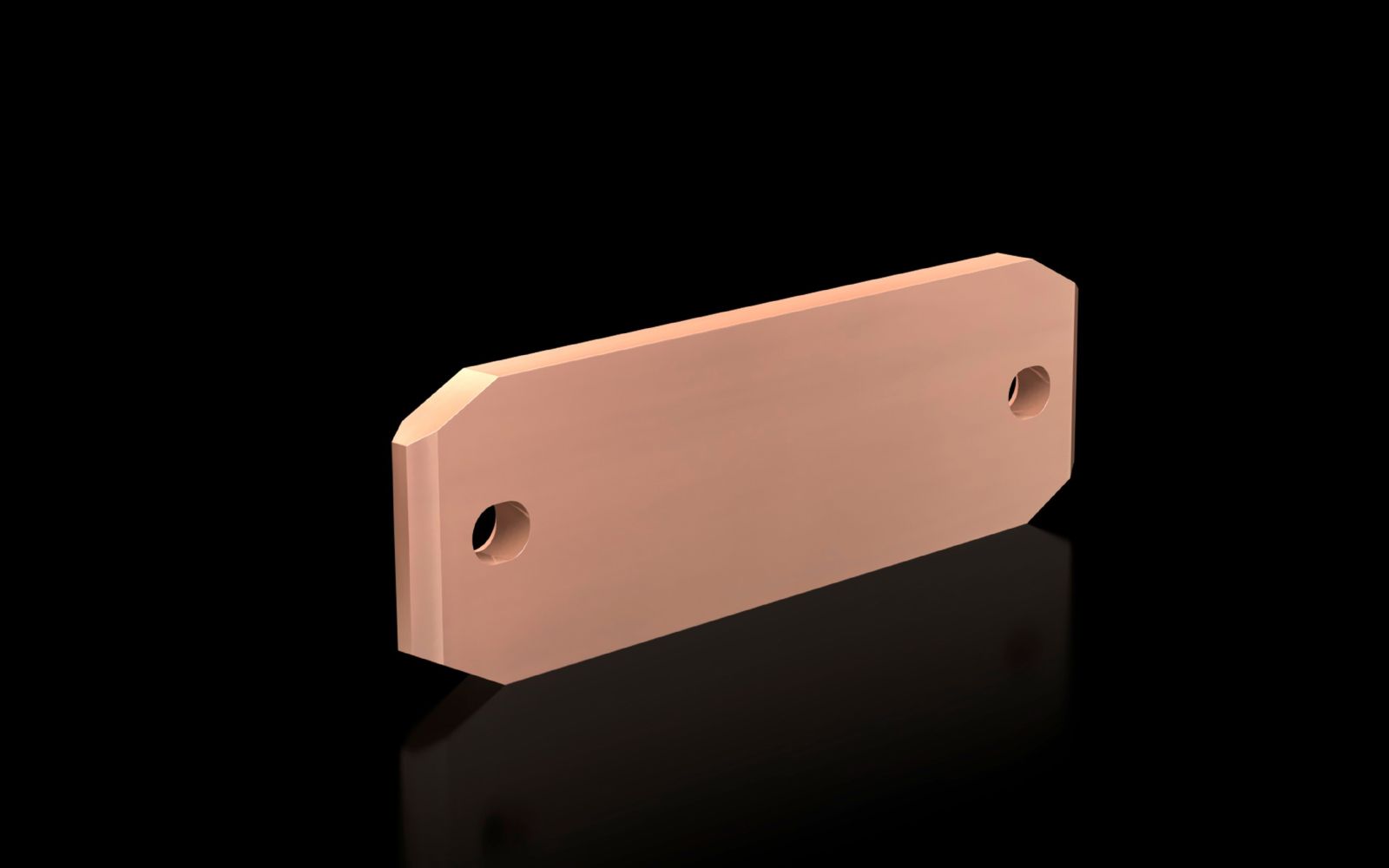

Rittal 9686200 SV longitudinal connector H: 60 mm, for E-Cu 2x/4x30x10 mm

Your rating:
Average rating
product review for Rittal 9686200 SV longitudinal connector H: 60 mm, for E-Cu 2x/4x30x10 mm
( 4.3 / 5 ) 3 ratings
Rittal 9686200
This image may differ from the desired article.
Rittal 9686200Rittal 9686200
34,06 EUR
incl. 8,64 EUR copper surcharge
( 40,53 EUR incl. VAT )
≈ £28.51  |  ≈ $37.43
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9686200 SV longitudinal connector H: 60 mm, for E-Cu 2x/4x30x10 mm
Datasheet:file_download Download
Lieske Part No.:1908516
Mfg Part No: 9686200
UPC/EAN: 4028177936102
Weight:1.193 kg
Type:SV 9686200

Product information for Rittal 9686200:

The Rittal SV 9686200 is a longitudinal connector for main busbar systems, specifically designed for connecting enclosures together. It serves for the safe and conductive connection of busbars in installations where multiple enclosures are arranged in series. The product is manufactured from E-Cu (electrolytic copper), a material used in electrical engineering for its high electrical conductivity and mechanical strength. The design is intended for main busbars with dimensions 30 x 10 mm, with the longitudinal connector having a height of 60 mm and a length of 195 mm. The cross-section is 60 mm x 10 mm, enabling sufficient current-carrying capacity for typical industrial applications. The copper content per piece is 1.026 kg, indicating the material quality and performance capability of the product.

Applications

The longitudinal connector is used in industrial electrical installations, particularly in enclosure systems where multiple enclosures are connected via a common busbar system. It is suitable for installations requiring continuous power supply across multiple enclosure modules, for example in production plants, power distribution systems, or automation technology. The connection is made between the main busbars of individual enclosures, ensuring an electrically stable and safe power distribution.

Functions and Equipment in Detail

The longitudinal connector enables the connection of two or four busbars per conductor, increasing flexibility in the arrangement of enclosures. The connection is made via designated mounting points, and the product is supplied with mounting hardware. This hardware includes the necessary screws or nuts to securely fasten the connector to the busbars. The connection is designed to exhibit minimal electrical resistance, which is important for efficient current transmission.

Technology Explained Simply

The use of E-Cu as material ensures high electrical conductivity, meaning the connector offers minimal resistance and thus minimizes losses during current transmission. The dimensions of 60 mm height and 195 mm length are matched to standard dimensions of main busbars, allowing direct mounting without additional modifications. The cross-sectional area of 60 mm x 10 mm provides sufficient conductor cross-section for most industrial applications. The connection is made via the mounting elements included in the delivery, ensuring a secure mechanical and electrical connection.

Compatibility and Accessories

The longitudinal connector is specifically designed for main busbars with dimensions 30 x 10 mm. It is therefore compatible with corresponding busbar systems from Rittal, which are installed in industrial enclosures. The connection is made between the busbars of individual enclosures, enabling continuous power distribution across multiple modules.

Mounting and Installation

Installation is carried out by fastening the longitudinal connector to the busbars of the respective enclosures. The designated mounting points allow for a secure and stable connection. The included mounting hardware is used to firmly attach the connector to the busbars. The connection is designed to exhibit minimal electrical resistance, which is important for efficient current transmission.

Operational Advantages

The use of the longitudinal connector ensures electrically stable and safe power distribution across multiple enclosures. The use of E-Cu ensures high conductivity and minimizes current losses. The predefined dimensions and compatibility with standard busbars simplify installation and reduce mounting time. The connection is designed for use in industrial environments and ensures reliable power supply over extended periods.

General
Modelfor main busbar 30 x 10 mm
MaterialE-Cu
Scope of deliveryIncluding mounting hardware
Length195 mm
Rails per conductor2, 4
Cross section60 mm x 10 mm
Copper content (kg/piece)1,026


Please note...
This article contains a copper surcharge of 8,64 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9686200, EAN: 4028177936102
