Rittal 9677541 System mounting for VX (W: 1200 mm)

Your rating:
Average rating
product review for Rittal 9677541 System mounting for VX (W: 1200 mm)
( 4.3 / 5 ) 4 ratings
Rittal 9677541
This image may differ from the desired article.
Rittal 9677541Rittal 9677541Rittal 9677541
-12% 109,71 EUR 124,91 EUR
( 130,55 EUR incl. VAT )
≈ £91.83  |  ≈ $120.57
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9677541 System mounting for VX (W: 1200 mm)
Datasheet:file_download Download
Lieske Part No.:1597958
Mfg Part No: 9677541
UPC/EAN: 4028177923331
Weight:5.54 kg
Type:SV 9677541

Product information for Rittal 9677541:

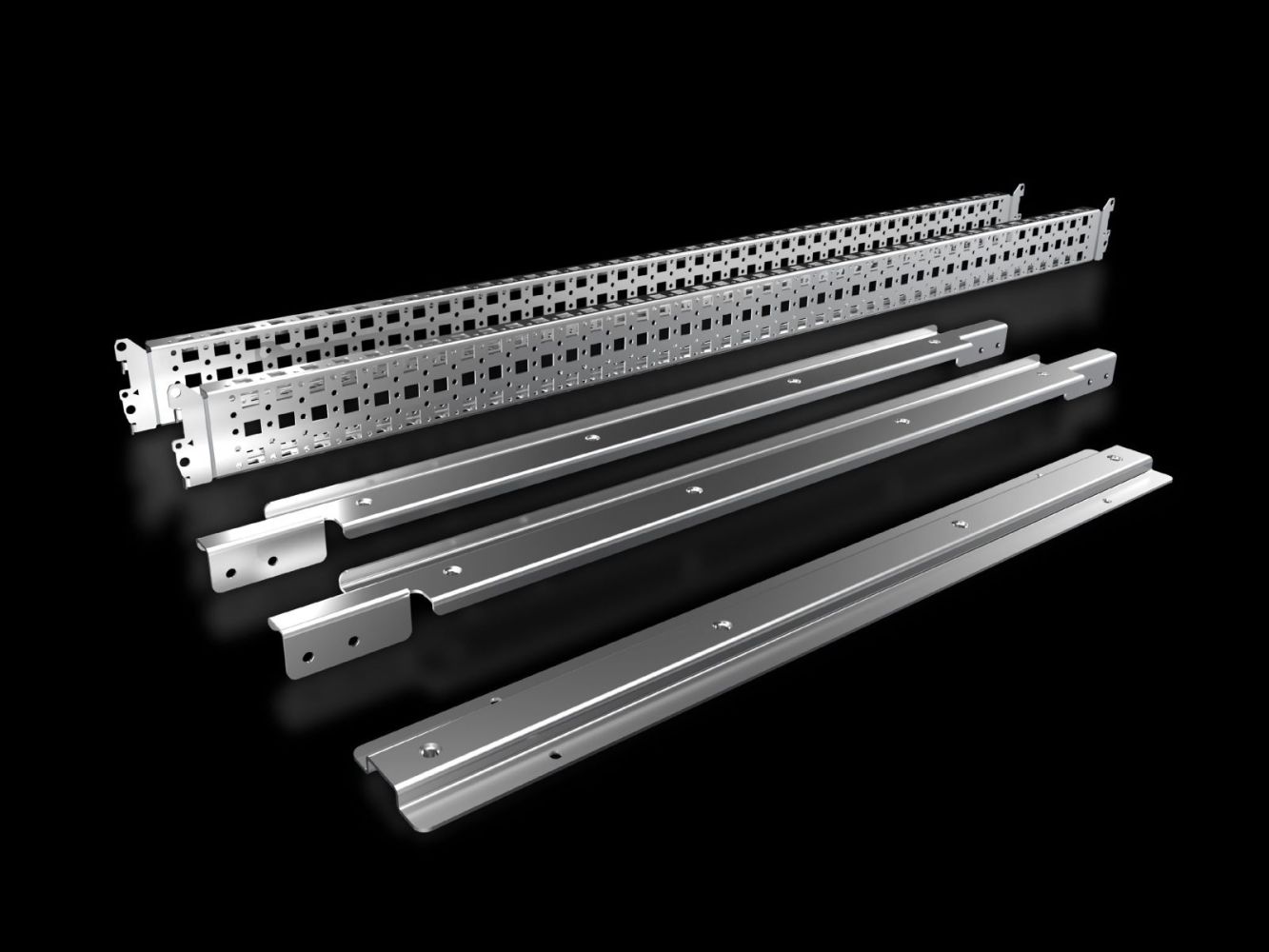

The Rittal SV 9677541 is a system mounting for VX, specifically designed for the secure installation of busbar systems with a center-to-center spacing of 185 mm inside enclosures. The product is designed for enclosures with a width of exactly 1,200 mm and serves as a mounting component for the busbar holder SV 9677500. It is made of sheet steel and features a galvanized surface, ensuring high corrosion resistance and extending service life in industrial applications.

Applications
The system mounting is used in industrial electrical engineering where stable and precise installation of busbars in enclosures is required. It is particularly suitable for installations where electrical power is distributed via busbars, such as in production plants, automation systems, or power distribution enclosures. The mounting enables secure and vibration-resistant anchoring of the busbars, which is critical for the reliability of the entire electrical installation.

Functions and Equipment in Detail
The delivery includes two system mountings (left and right), two mounting chassis, fastening materials, and an additional system mounting for the central position. These components enable symmetrical and even load distribution within the enclosure. The mounting chassis are designed as flat metal profiles and serve as the base for securing the busbars. The fastening materials are intended for connecting the components to each other and to the enclosure frame.

Technology Explained Simply
The system mounting is designed to maintain the busbars at a defined spacing of 185 mm from each other, enabling standardized installation. The galvanized sheet steel construction provides mechanical stability and protection against environmental influences such as moisture. Installation is carried out by securing the system mountings to the enclosure walls, with left, right, and central positioning to ensure even load distribution. The use of mounting chassis allows flexible adaptation to different enclosure depths, with the appropriate chassis selected according to depth.

Compatibility and Accessories
The system mounting is specifically designed for use with the busbar holder SV 9677500. For variable depth adjustment of the busbar system within the enclosure, the system chassis 23 x 64 mm for VX is additionally required, intended for the inner mounting plane. Compatible chassis are available in widths of 600 mm and 800 mm. Additionally, VX cage nuts M8 can be used as fastening elements to facilitate installation and increase mechanical strength.

Mounting and Installation
Installation involves securing the system mountings to the inner walls of the enclosure, positioned left, right, and centrally. The mounting chassis are selected according to the desired enclosure depth and attached to the system mountings. The fastening materials included in the delivery are used to securely connect the components. Installation does not require special tools, but precise alignment of the elements is important to ensure correct positioning of the busbars.

Advantages in Operation
The system mounting provides a robust and reliable mounting base for busbars, designed for industrial use. The galvanized surface protects against corrosion, increasing service life. The modular construction with separate mounting chassis allows flexible adaptation to different enclosure depths, making the system mounting universally applicable. The clear structure and pre-fabricated fastening elements reduce installation time and increase installation accuracy.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of delivery2 system mounting brackets (left/right), 2 mounting chassis, including fastening material, system mounting bracket (center)
Mounting noteFor variable depth adjustment of the busbar system in the control cabinet, the additional system chassis 23 x 64 mm for VX (for internal mounting plane) is required. Selection is according to the cabinet depth.
Suitable for width= 1.200 mm
PCF/VE (Cradle-to-Gate)21.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9677541, EAN: 4028177923331
