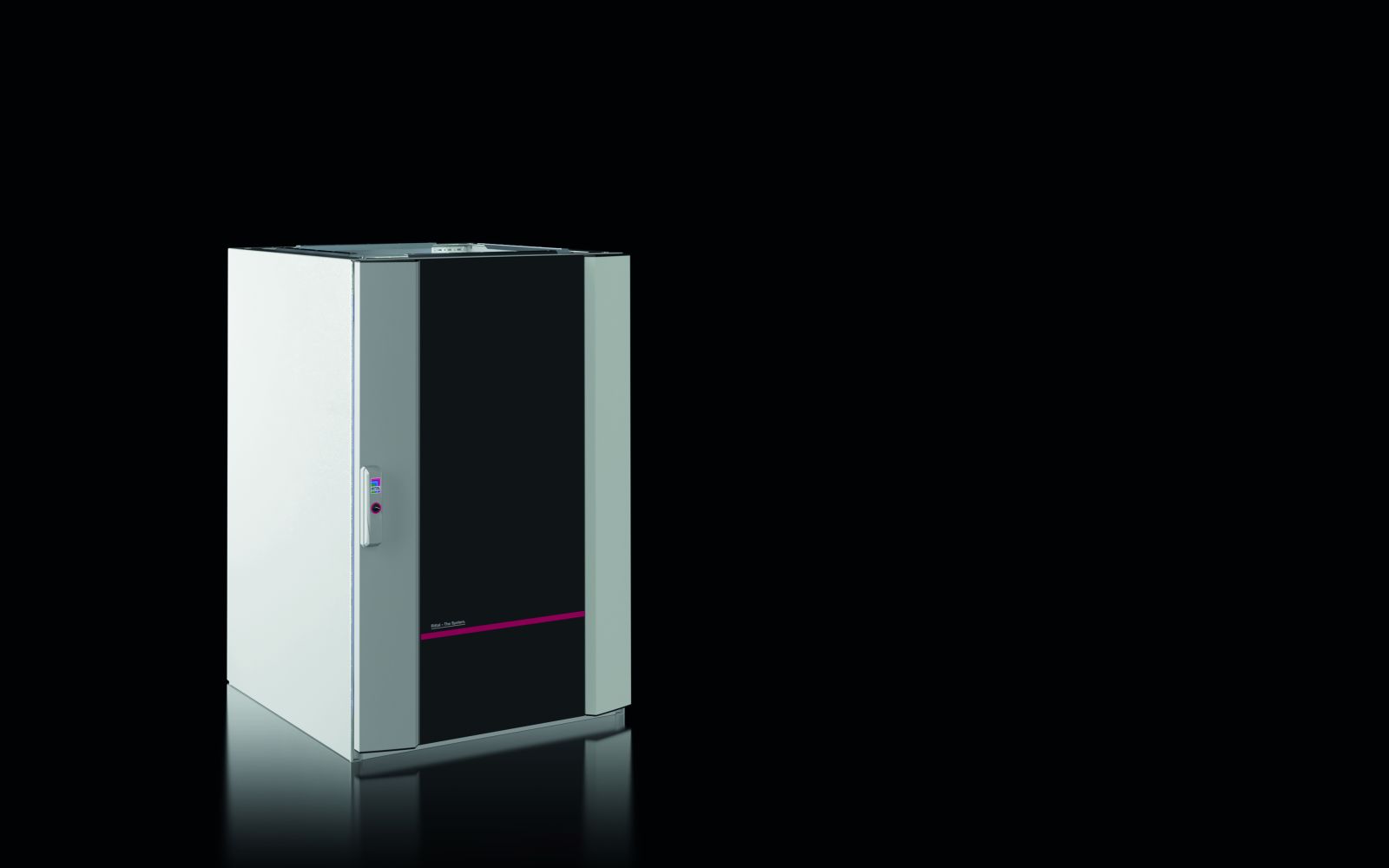

Rittal 6900700 Industrial Workstations IW, 600x900x600 mm, rear panel
|
813,17 EUR |
|
|
( 967,67 EUR incl. VAT ) ≈ £680.62 | ≈ $893.67 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1895080 |
| Mfg Part No: | 6900700 |
| UPC/EAN: | 4028177968509 |
| Weight: | 46.6 kg |
| Type: | IW 6900700 |
Product information for Rittal 6900700:
Applications
The IW 6900700 is suitable for use in industrial work environments where a stable and protective housing is required for electronic devices, controls or workstations. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, enabling use in damp or dusty areas. The workstation is therefore suitable for indoor areas exposed to certain environmental stresses, such as assembly halls, laboratories or technical control rooms.
Functions and Equipment in Detail
The enclosure is closed on the sides and is supplied with three-piece base plates and levelling feet, enabling stable and level installation. The design door on the front side provides secure access to the interior, while the rear panel is screwed from the inside, allowing secure mounting of components and easy maintenance. The construction is designed for the installation of devices and systems, with dimensions and form factor adapted to integration into existing work environments.
Technology Explained Simply
The IP 55 protection rating means the enclosure is protected against dust (dust-tight) and splashing water (e.g. from a nozzle). This is particularly important in environments where moisture or dust exposure may occur. The use of sheet steel as material ensures high mechanical stability and resistance to external influences. The powder-coated surface provides additional corrosion protection and is suitable for industrial use. The levelling feet allow precise alignment of the enclosure on uneven floors.
Compatibility and Accessories
Various compatible accessories are available for the IW 6900700, extending its functionality. These include cable entry plates for worktops, component shelves in various versions (e.g. fixed installation 600x600 mm or pull-out), PC plinths, mounting rails (e.g. SZ 4171000 PS), comfort handles (e.g. TS 8611330), drawer trays, paper extraction flaps, worktops, double swivel castors, mounting brackets, system chassis and C-profile rails. These components can be mounted additionally according to requirements to adapt the workstation to specific needs.
Mounting and Installation
Installation is carried out using the supplied levelling feet and base plates, enabling stable fixation to the floor. The design door and rear panel are pre-assembled and can be directly installed into the enclosure. The internal screw connection of the rear panel facilitates the installation of internal components, as the fastening is done from the inside. The workstation is designed for installation in existing work environments and can be supplemented with additional accessories as required.
Advantages in Operation
The IW 6900700 provides a robust and protective housing for electronic devices and workstations. The IP 55 protection rating ensures high environmental resistance, while the sheet steel construction guarantees long service life and mechanical stability. The modular equipment option with various accessories allows flexible adaptation to different application scenarios. The levelling feet and base plates ensure secure and level positioning, simplifying installation and operation.
| General | |
| Model | Design door, rear panel screwed from inside |
| Material | Enclosure, design door, rear panel: sheet steel |
| Surface protection | Housing: dip primed, externally powder coated, textured lacquer |
| Colour | Decorative bezels: RAL 7015 |
| Scope of delivery | Enclosure side closed, base plates, three-part, levelling feet, design door, rear panel screwed from inside |
| Width | 600 mm |
| Height | 900 mm |
| Depth | 600 mm |
| Degree of protection IP according to IEC 60 529 | IP 55 |
| PCF/VE (Cradle-to-Gate) | 177.5 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 6900700 Industrial Workstations IW, 600x900x600 mm, rear panel?
The article Rittal 6900700 Industrial Workstations IW, 600x900x600 mm, rear panel is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6900700 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 6900700 Industrial Workstations IW, 600x900x600 mm, rear panel always at the best possible price. We can give you a discount of 2% on Rittal 6900700 Industrial Workstations IW, 600x900x600 mm, rear panel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
