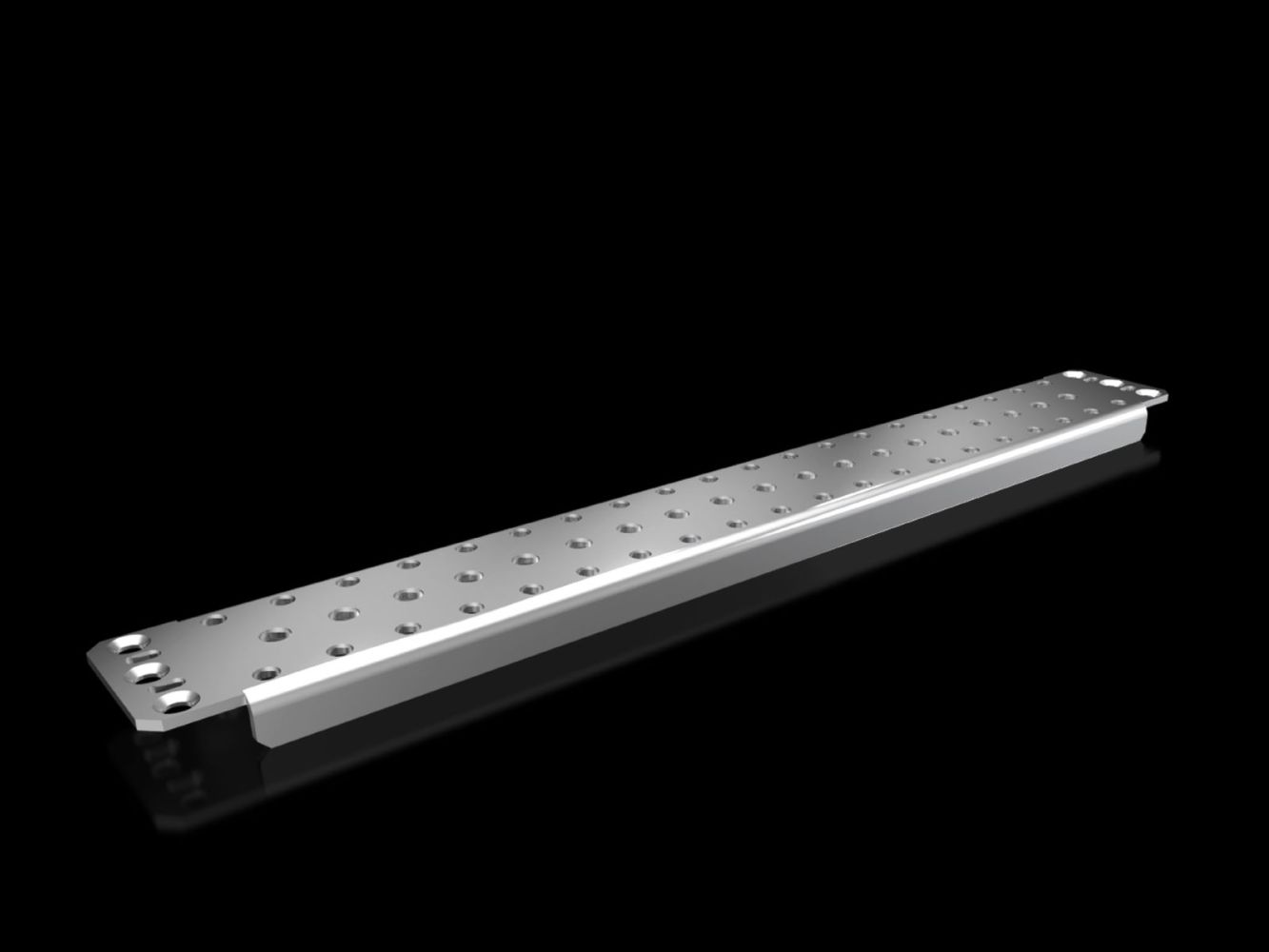

Rittal 4396000 support rails, perforated, for VX, TS, VX SE, for enclosure

Your rating:
Average rating
product review for Rittal 4396000 support rails, perforated, for VX, TS, VX SE, for enclosure
( 4.6 / 5 ) 30 ratings
Rittal 4396000
This image may differ from the desired article.
Rittal 4396000Rittal 4396000Rittal 4396000Rittal 4396000
51,98 EUR
( 61,86 EUR incl. VAT )
≈ £43.51  |  ≈ $57.13
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 4396000 support rails, perforated, for VX, TS, VX SE, for enclosure
Datasheet:file_download Download
Lieske Part No.:577357
Mfg Part No: 4396000
UPC/EAN: 4028177100398
Weight:6.58 kg
Type:TS 4396000

Product information for Rittal 4396000:

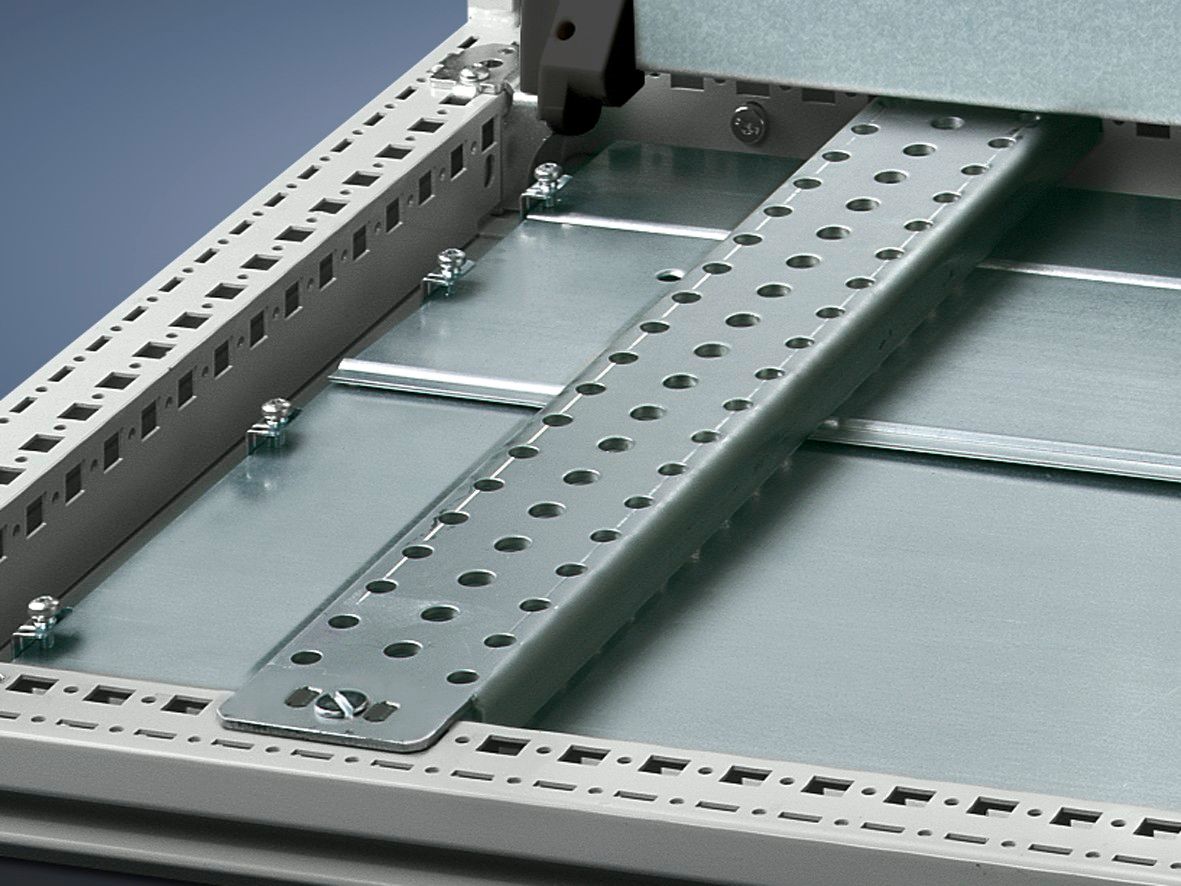

For heavy installed equipment. Particularly suitable for the installation of base isolators.
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly parts
Packs of: 4 pc(s).
EAN: 4028177100398
Customs tariff number: 73269098
eCl@ss 5.1: 27189250
eCl@ss 7.0: 23159101
ETIM 6.0: EC001285

Design: Slotted
To fit: Enclosure type: TS 8
Enclosure type: SE 8
Enclosure type: CM
Width: = 600 mm
Depth: = 600 mm

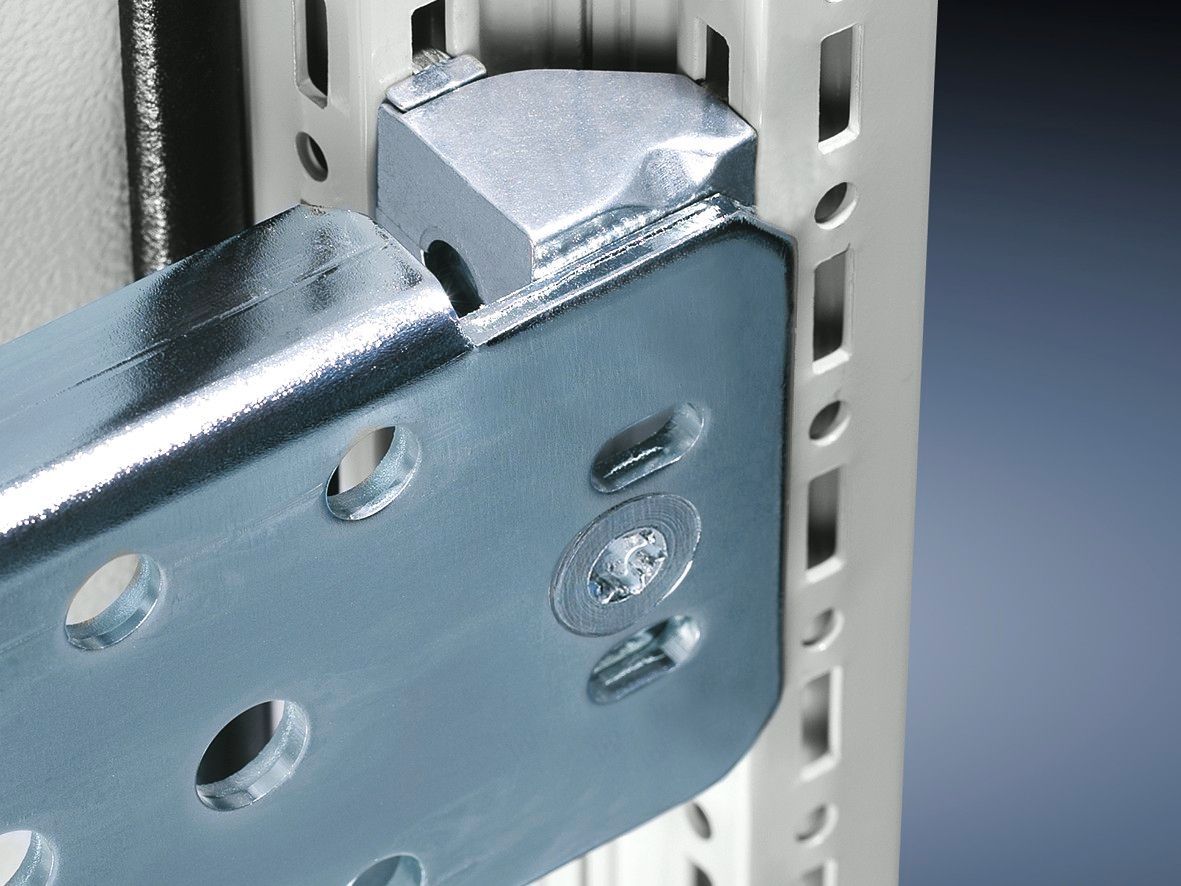

Installation options: On the vertical TS, SE enclosure section via snap-on nuts TS 8800.808 or adaptor rails for PS compatibility, height-offset, via TS punched rail 25 x 38 mm
On the horizontal TS enclosure section: in the width, in the depth
in the case of SE, additionally at the horizontal section in the width at the bottom and top or in the depth at the top via snap-on nuts 8800.808.
On base configuration rail for CM
Weight/pack: 6.56 kg

General
ModelPerforated
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsOn the inner mounting plane of the VX cabinet profile, on the vertical TS cabinet profile via mounting nut 8800.808 or via adapter rail for VX compatibility, offset in height, via TS mounting rail 25 x 38 mm, on the horizontal TS cabinet profile: in width, in depth, on the horizontal VX SE cabinet profile in width top and bottom or in depth top and bottom via mounting nut 8800.808
Suitable forCabinet type: VX, TS, VX SE, width: = 600 mm, depth: = 600 mm
PCF/VE (Cradle-to-Gate)30.99 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 4396000, EAN: 4028177100398
