Rittal 8618521 VX add-on module, for W: 1000 mm

Your rating:
Average rating
product review for Rittal 8618521 VX add-on module, for W: 1000 mm
( 4.1 / 5 ) 7 ratings
Rittal 8618521
This image may differ from the desired article.
Rittal 8618521Rittal 8618521Rittal 8618521Rittal 8618521Rittal 8618521Rittal 8618521Rittal 8618521
409,80 EUR
( 487,66 EUR incl. VAT )
≈ £343.00  |  ≈ $450.37
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 8618521 VX add-on module, for W: 1000 mm
Datasheet:file_download Download
Lieske Part No.:1775583
Mfg Part No: 8618521
UPC/EAN: 4028177957596
Weight:15.9 kg
Type:VX 8618521

Product information for Rittal 8618521:

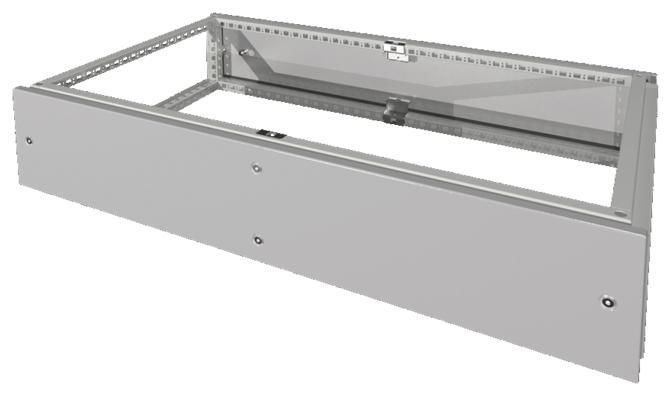

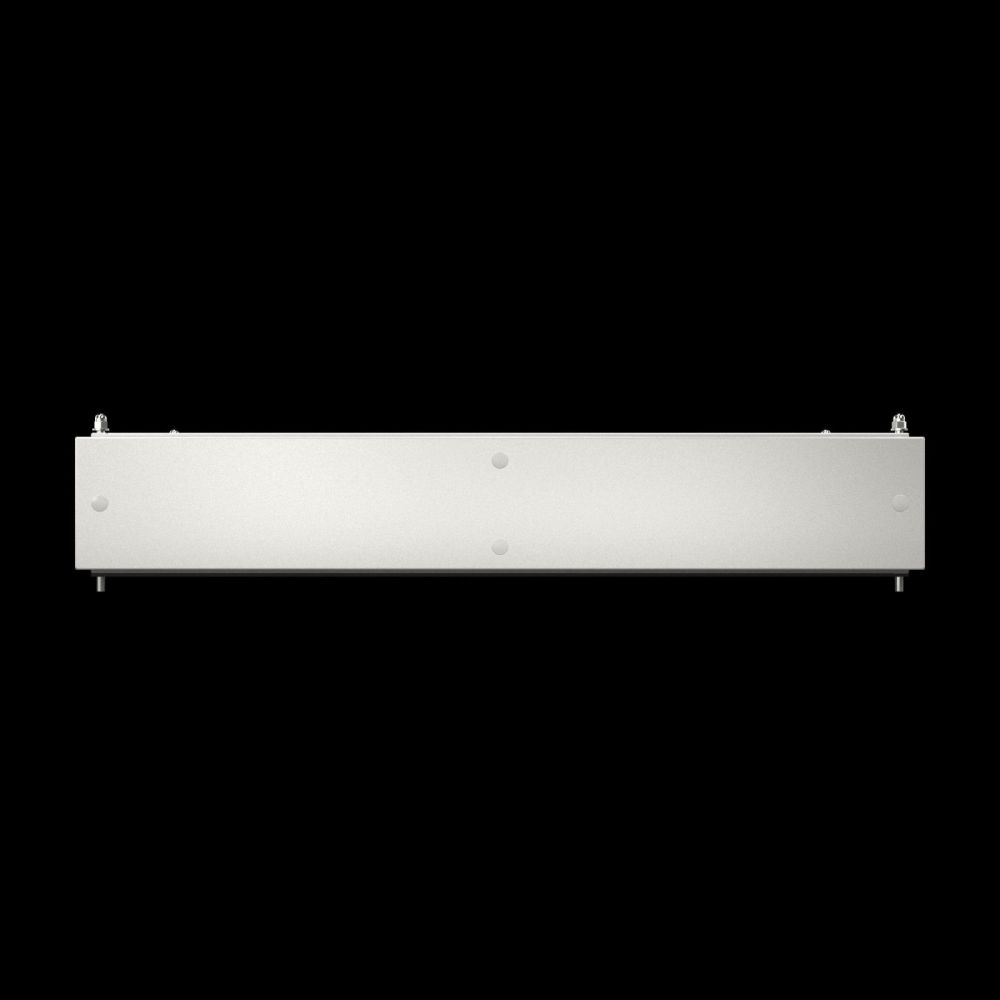

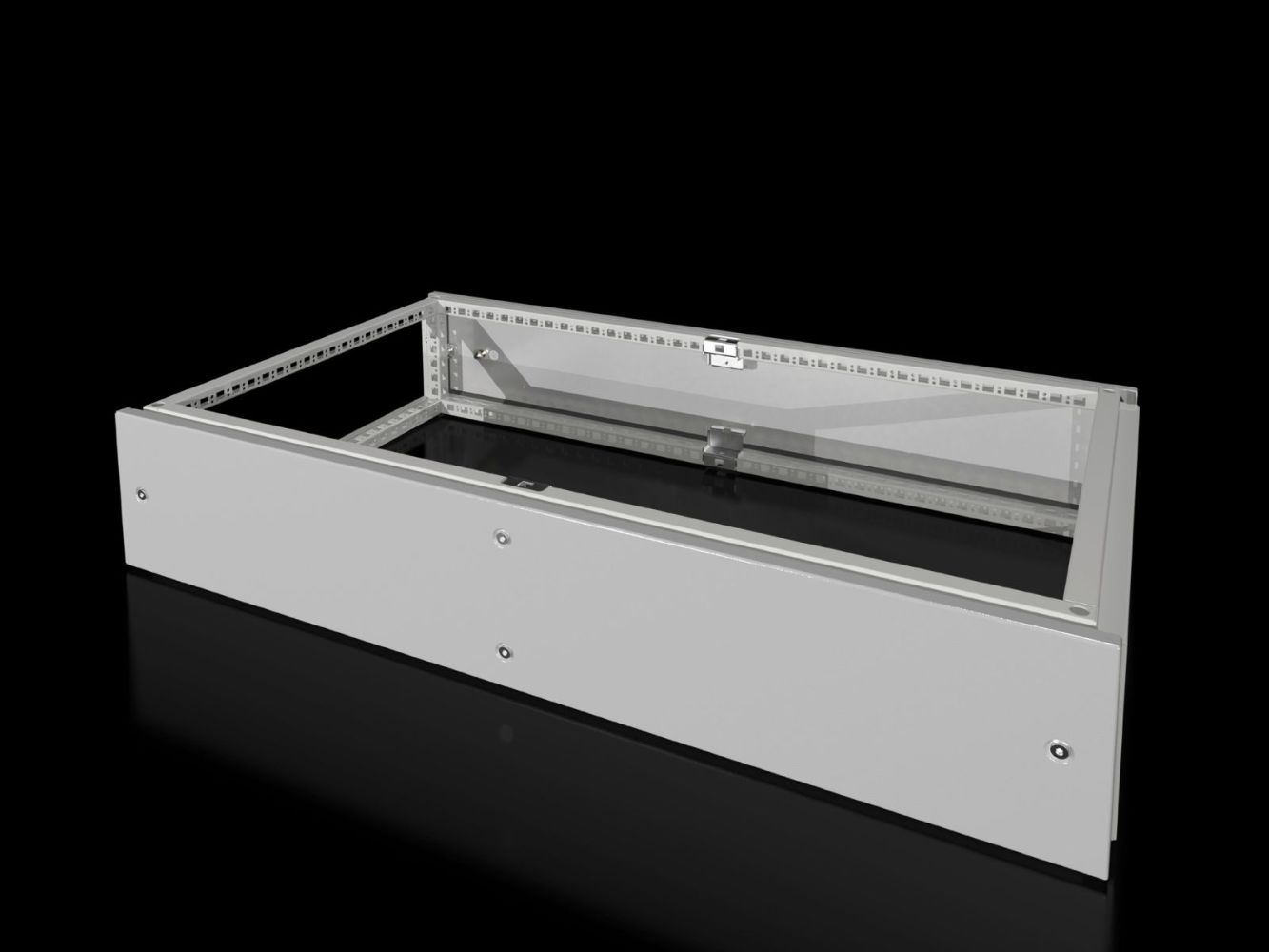

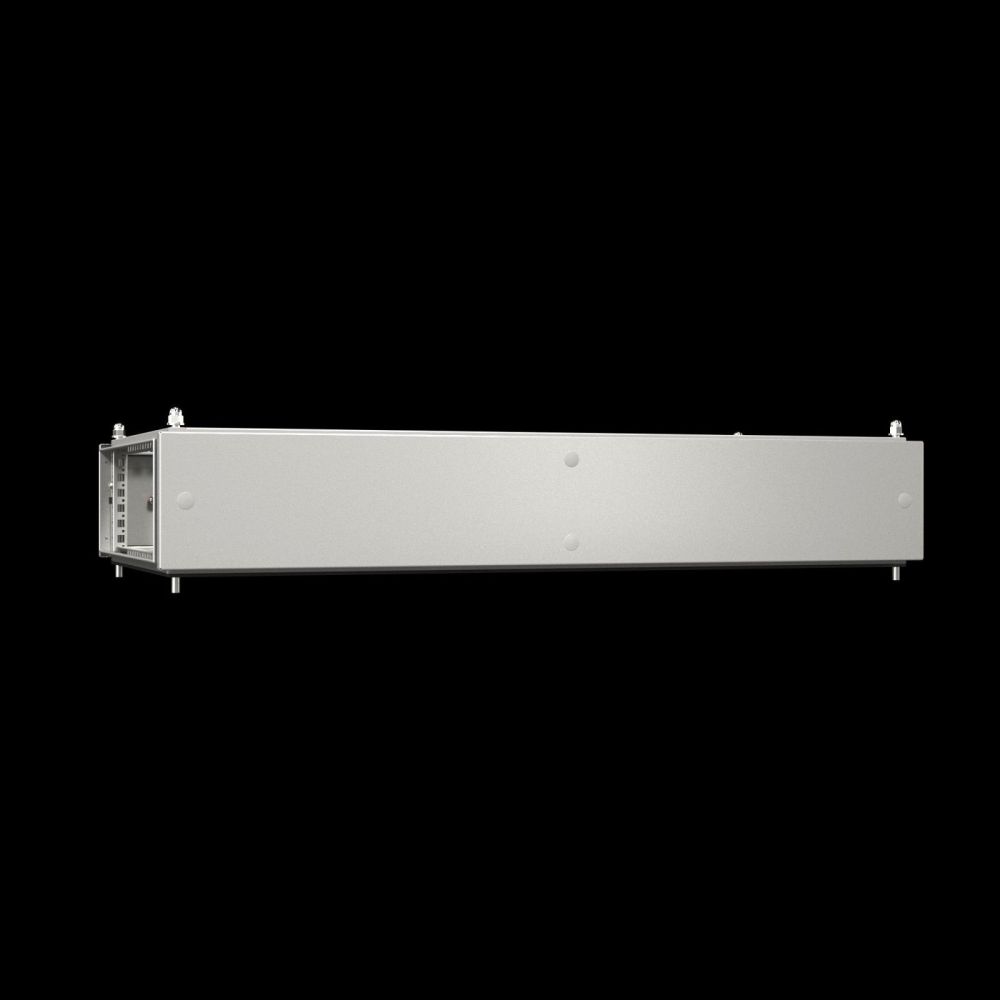

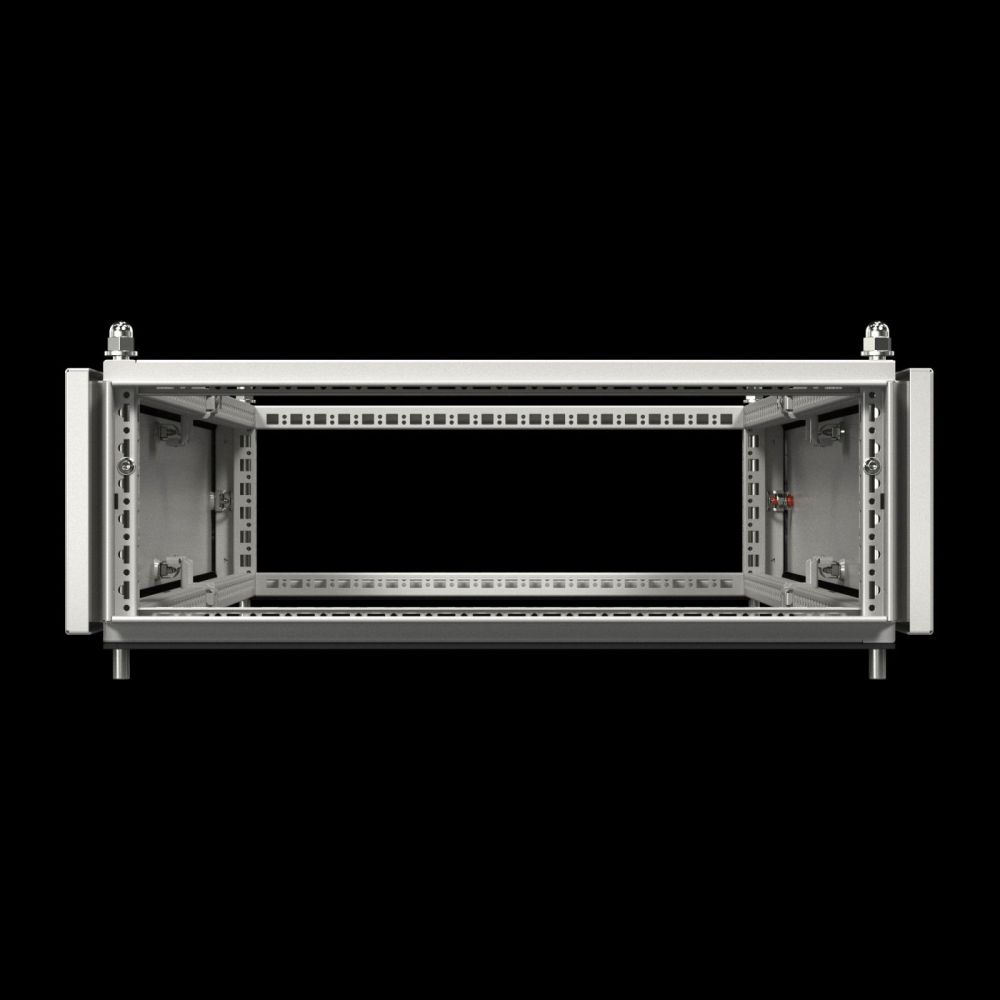

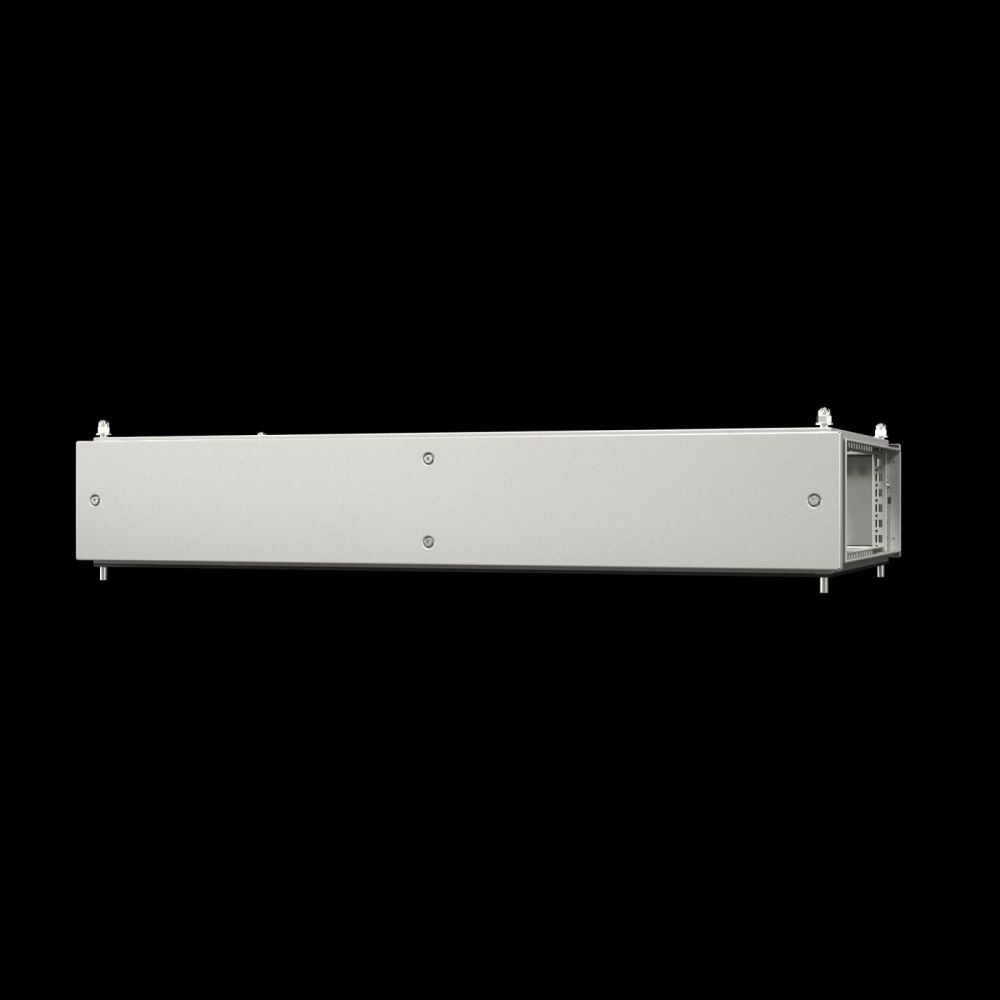

The Rittal VX 8618521 is a top module for enclosures of type VX, specifically designed for enclosures with a width of 1,000 mm and a depth of 600 mm. It serves as a cable routing space for accommodating cable entries from above or as an energy distribution element in conjunction with busbar systems over bayed enclosures. The module is mounted on the top of the enclosure and uses the standard roof plate as the upper closure to ensure a sealed and protective cover.

Applications
This top module is intended for industrial applications in the fields of electrical engineering and automation technology. It enables structured and secure routing of cables and lines entering the enclosure from above, as well as integration of distribution systems such as busbars. Its use over bayed enclosures supports efficient energy distribution in larger installations. The protection rating IP 55 makes it suitable for environments requiring a certain level of protection against dust and splashing water, for example in production halls or outdoor areas with limited weather exposure.

Functions and Equipment in Detail
The module is made of sheet steel with a wall thickness of 1.5 mm, coated with a structured paint in RAL 7035. This surface coating provides high mechanical stability and corrosion protection. The delivery includes the frame module, two front and rear trim panels, eight holders with automatic equipotential bonding, and fastening material. The holders allow secure fastening of cables or other components, with the automatic equipotential bonding ensuring a safe electrical connection. The trim panels serve for visual finishing and protection against mechanical impacts.

Technology Explained Simply
The height of the module is 200 mm, sufficient to accommodate a variety of cables or small distribution elements. The protection rating IP 55 according to IEC 60 529 means the module is protected against dust and splashing water, making it suitable for industrial environments. The type rating according to UL 50E in category Type 1 and Type 12 indicates suitability for indoor use as well as environments with limited exposure to splashing water and dust. The use of sheet steel with a thickness of 1.5 mm ensures high mechanical strength and durability.

Compatibility and Accessories
The module is specifically designed for enclosures of type VX with dimensions width 1,000 mm and depth 600 mm. It is compatible with various accessories available for the VX system, including C-profile rails, support rails, system chassis, baying brackets, mounting rails, cable strain relief rails, and side panels for top modules. These components enable flexible and modular expansion of the enclosure to meet specific requirements for cable routing, mounting, and protection.

Installation and Mounting
Mounting is carried out on the top of the VX enclosure. The module is fastened using the included fastening material, with the holders featuring automatic equipotential bonding ensuring a safe electrical connection. The provided front and rear trim panels are also installed to create a closed and aesthetically pleasing cover.

Operational Advantages
The VX 8618521 offers a structured and secure solution for cable routing from above and energy distribution over bayed enclosures. The integrated holders with equipotential bonding ensure a safe electrical connection, while the IP 55 protection rating guarantees high environmental resistance. The modular design allows flexible adaptation to different requirements in industrial applications. The use of sheet steel with structured paint in RAL 7035 ensures a durable and robust surface that meets the demands of industrial environments.

General
MaterialSheet steel, 1.5 mm
Surface protectionPainted, textured paint
ColourRAL 7035
Scope of deliveryFrame module, 2 front/rear panels, 8 holders with automatic potential equalization, including mounting material
Height200 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Suitable forCabinet type: VX, Width: = 1.000 mm, Depth: = 600 mm


Product data sheet
Datasheet for Rittal 8618521, EAN: 4028177957596

Questions & answers

What is the delivery time of Rittal 8618521 VX add-on module, for W: 1000 mm?

The article Rittal 8618521 VX add-on module, for W: 1000 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618521 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618521 VX add-on module, for W: 1000 mm always at the best possible price. We can give you a discount of 2% on Rittal 8618521 VX add-on module, for W: 1000 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
